Intuition What this deep-dive is forThe parent note gave you the two rules. Rules are useless until you have tripped over every trap at least once . This page enumerates every kind of shape situation broadcasting can hand you — matching axes, size-1 stretch, missing axes, scalars, zero-length axes, hard errors, and the sneaky "it worked but gave the wrong shape" case — then works one example per case, so no scenario can surprise you later.
Before anything: a shape is just the tuple of sizes NumPy prints, one number per axis. (3, 4) means "3 rows, 4 columns." An axis is one direction you can travel in. If you have not met these, read NumPy Arrays — shape, dtype, strides first — we assume only that (3, 4) = 3 rows × 4 columns and nothing more.
Every broadcasting situation is one of the cells below. We label each worked example with its cell so you can see the whole space gets covered.
Cell
Situation
What happens
Example
A Both axes equal
element-by-element, no stretch
Ex 1
B One axis is 1 → stretch
size-1 side reused
Ex 2
C Missing leading axespadded with 1s on the left, then stretch
Ex 3
D Both size-1 axes stretchouter-grid
Ex 4
E Scalar (shape ())all-1 dims, stretches to anything
Ex 5
F Orientation trap — right shapes, wrong axissilent wrong answer / error
Ex 6
G Hard error — 3 vs 4, neither is 1raises ValueError
Ex 7
H Degenerate: zero-length axis (size 0)legal, result has a 0-axis
Ex 8
I 3-D real-world word problemstack all rules at once
Ex 9
J Exam twist — (3,) + (3,1) accidental matrixresult bigger than both inputs
Ex 10
The engine of all of them is the same three-step algorithm:

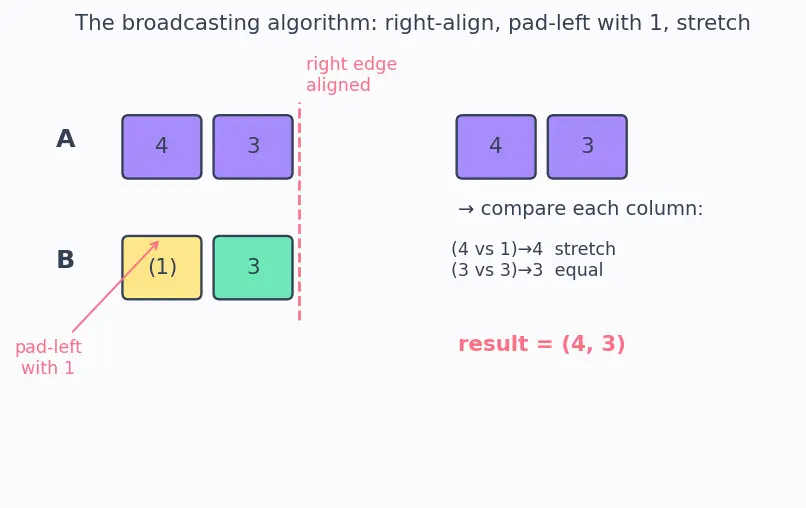

Read the figure below before continuing — it is the algorithm. On the left, shape A = (4, 3) and shape B = (3,) are drawn as boxes. Follow the coral dashed line: that is the right edge , and both shapes are pushed against it — this is "right-align." Watch the butter-yellow (1) box appear under the front of B: that is the pad-left step filling the missing leading axis with a 1. Then each vertical column of boxes is compared: (4 vs 1) stretches to 4, (3 vs 3) stays 3, so the result reads off as (4, 3) in coral on the right. Every later example is just this picture with different numbers.
Worked example Ex 1 · Cell A — plain element-wise addA has shape (2, 3), B has shape (2, 3). What is A + B?
Forecast: guess the result shape before reading on. (Same shape? bigger? error?)
Right-align: both are (2, 3) — already lined up.
Why this step? Broadcasting always lines shapes up from the right; here nothing moves because lengths match.Compare pairs: axis0 ( 2 , 2 ) ( 3 , 3 ) Why this step? Rule says legal if equal; both are equal, so no stretching happens at all — this is ordinary element-by-element arithmetic.Result: shape (2, 3), and res[i,j] = A[i,j] + B[i,j].
Verify: with A = [[1,2,3],[4,5,6]], B = [[10,20,30],[40,50,60]], we get [[11,22,33],[44,55,66]]. Shape (2,3), every cell is a straight sum. ✓
This is the boring baseline. Everything else differs from it by stretching.
Worked example Ex 2 · Cell B — subtract a per-column meanX is (4, 3) (4 samples, 3 features). mu = X.mean(axis=0) is (3,). What is X - mu?
Forecast: shape? and which value gets subtracted from row 2?
Right-align (4, 3) against (3,). The (3,) slides under the last axis of (4,3).
Why this step? Reducing over axis 0 collapses the row axis, leaving one number per column — a trailing-axis object, so it lines up with the columns naturally.Pad left: (3,) is shorter, so it becomes (1, 3).
Why this step? Rule 2 — missing leading axes are treated as 1.Compare: axis0 ( 4 , 1 ) stretch to 4. axis1 ( 3 , 3 ) Why this step? The size-1 row axis means "the same mu for everybody," so it is safe to reuse across all 4 rows.Result (4, 3): every row has the same mu subtracted.
Verify: if column means are mu = [2, 5, 8], then row [2,5,8] becomes [0,0,0]; a mean-2 column now averages to 0. Centering worked. ✓

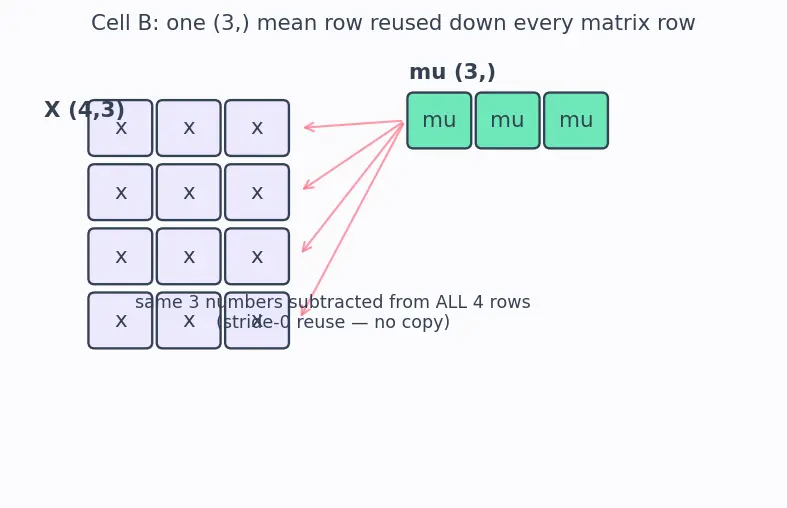

The figure below shows why this is memory-free. The lavender (4,3) grid on the left is X; the mint (3,) row on top-right is mu. Follow the coral arrows: each of the 4 rows of X points back at the same single mint row — that is the size-1 axis stretching by re-reading one buffer (stride-0), never copying. Look at the caption: 3 numbers serve all 4 rows.
Worked example Ex 3 · Cell C — a bias vector across a batch of imagesimgs is (5, 2, 3) (5 images, each 2×3). bias is (3,). What is imgs + bias?
Forecast: does one length-3 vector really line up with a 3-D stack?
Right-align: (5, 2, 3) over (3,).Pad left: (3,) → (1, 1, 3) (two missing axes filled with 1s).
Why this step? We need equal lengths; each pad-1 is a "stretch me" wildcard.Compare: ( 5 , 1 ) → 5 ( 2 , 1 ) → 2 ( 3 , 3 ) → 3 Why this step? Two axes stretch, one matches — all legal.Result (5, 2, 3): the same 3-number bias is added to every pixel-row of every image.
Verify: pick image 3, row 1: imgs[3,1] + bias uses the identical bias as image 0, row 0 — one buffer of 3 numbers reused 5 × 2 = 10
Worked example Ex 4 · Cell D — build a coordinate gridcol = np.arange(3).reshape(3, 1) is (3, 1); row = np.arange(4).reshape(1, 4) is (1, 4). What is col + row?
Forecast: what shape, and what is entry [2, 3]?
Right-align: already same length, (3,1) over (1,4).Compare: axis0 ( 3 , 1 ) row has the 1, stretch to 3. axis1 ( 1 , 4 ) col has the 1, stretch to 4.
Why this step? Both operands contribute one stretched axis; this is exactly how you turn two 1-D ranges into a 2-D table (see Reshaping and newaxis (None) indexing for the None trick).Result (3, 4) with table[i, j] = i + j.
Verify: table[2, 3] = 2 + 3 = 5; top-left table[0,0] = 0. Every cell is row-index + col-index. ✓

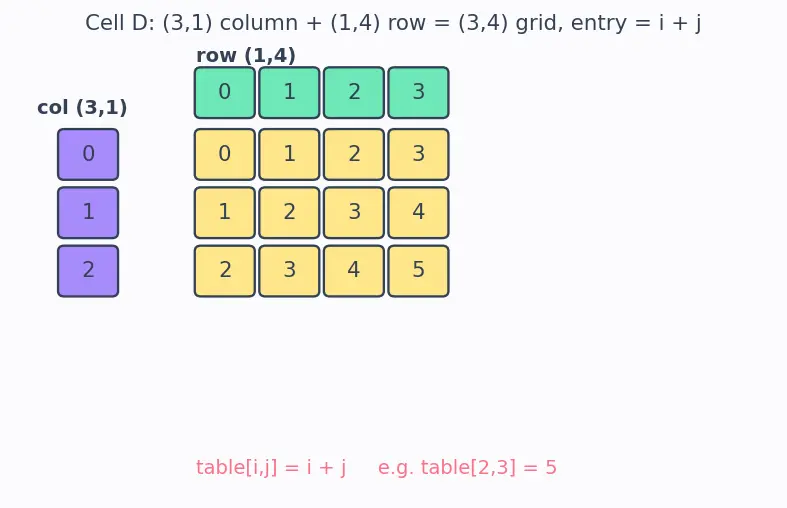

In the figure, the lavender column col runs down the left edge and the mint row row runs across the top; each butter-yellow inner cell is their sum. Trace cell [2,3]: line down from col=2 and across from row=3, and the box reads 5 — literally i + j. Both a column and a row got stretched into a full grid.
Worked example Ex 5 · Cell E — add a plain numberA = np.ones((2, 2)); compute A + 5.
Forecast: does 5 need reshaping?
A Python scalar has shape () — zero axes.
Why this step? It's the empty tuple; there is literally nothing to line up yet.
Pad left: () → (1, 1).
Why this step? The algorithm's step 2 pads the shorter shape on the left with 1s until it matches the other's length; A has 2 axes, 5 has 0, so we add two leading 1s to reach (1, 1). Those wildcards can then stretch to anything.Compare: ( 2 , 1 ) → 2 ( 2 , 1 ) → 2 Why this step? Both axes are the wildcard 1, so 5 stretches to fill the whole (2,2).Result (2, 2), every entry = 1 + 5 = 6.
Verify: sum of all entries = 4 × 6 = 24
Worked example Ex 6 · Cell F — scale each ROW by a weightM is (3, 4). You want row i w[i], with w = [1., 2., 3.] shape (3,). Why does M * w misbehave, and what's the fix?
Forecast: will M * w error, or give a wrong-but-silent answer?
Try the naive M * w: right-align (3, 4) over (3,) → pad to (1, 3).
Why this step? We must run the same algorithm even on the wrong attempt: w is shorter, so it right-aligns against M's last axis (the columns) and pads its missing leading axis to a 1, giving (1, 3). That right-alignment is exactly what puts w on the wrong axis.Compare: axis1 ( 4 , 3 ) neither is 1 → error .
Why this step? w lands on the trailing (column) axis, not the row axis you meant. This is the vectorization pitfall : the code is short but targets the wrong direction.Fix: M * w[:, None]. Now w is (3, 1).
Why this step? [:, None] adds a trailing size-1 axis, pushing the 3 onto axis 0 where the rows live.Compare fixed: ( 3 , 3 ) → 3 ( 4 , 1 ) → 4 (3, 4), row i w[i].
Verify: if M is all ones, (M * w[:,None]) has row sums [4, 8, 12] = 4*w. Rows scaled correctly. ✓
The figure contrasts the two attempts. Top row: M * w lines the mint 3 under the lavender 4 — the coral text spells out "4 ≠ 3, neither is 1 → ERROR." Bottom row: after w[:,None], the mint 3 now sits under M's 3 and a butter 1 sits under the 4, so it stretches cleanly to (3,4). The side box shows the payoff: row 0 × 1, row 1 × 2, row 2 × 3.
Common mistake The exact trap(3, 4) * (3,) fails because (3,) meets the length-4 axis. If M had been (4, 3) it would have silently succeeded but scaled columns — even worse than an error, because nothing complains.
Worked example Ex 7 · Cell G — incompatible non-1 sizesA is (3, 4), B is (2, 4). What is A + B?
Forecast: stretch, or crash?
Right-align: (3, 4) over (2, 4).Compare: axis1 ( 4 , 4 ) ( 3 , 2 ) neither is 1 .
Why this step? There is no honest way to pair "the 3 rows of A" with "the 2 rows of B" — no wildcard to stretch. So the operation is undefined.Result: ValueError: operands could not be broadcast together with shapes (3,4) (2,4).
Verify: the rule "equal OR one is 1" is violated on axis 0 → guaranteed error, no exceptions. ✓
Worked example Ex 8 · Cell H — a size-0 dimension (empty data)E is (0, 4) (an empty batch — zero samples, still 4 features). mu is (4,). What is E - mu?
Forecast: error? or a valid empty result?
Right-align: (0, 4) over (4,) → pad to (1, 4).Compare: axis0 ( 0 , 1 ) max ( 0 , 1 ) = 1 other operand's size, which is 0, so axis 0 becomes 0. axis1 ( 4 , 4 ) Why this step? The wildcard side (the 1) always adopts the partner's length; here the partner is 0, so "one copy" becomes "zero copies." Perfectly legal.Result (0, 4): an empty array. No arithmetic executes because there are no rows.
Verify: E - mu has shape (0, 4) and .size == 0. Broadcasting with a 0-axis never errors as long as the other size is 0 or 1 — a common edge in real pipelines with empty batches. ✓
Contrast: (0, 4) vs (3, 4) on axis 0 gives 0 = 3 error . Zero is not a wildcard; only 1 is.
Worked example Ex 9 · Cell I — normalize an RGB image stack per channelimgs is (10, 32, 32, 3): 10 images, each 32×32 pixels, 3 colour channels. You have a per-channel mean cmean shape (3,) and per-channel std cstd shape (3,). Compute (imgs - cmean) / cstd.
Forecast: does a length-3 vector really line up against a 4-D tensor? and where does it land?
Right-align (10, 32, 32, 3) over (3,).Pad left: (3,) → (1, 1, 1, 3).
Why this step? Three missing leading axes each become a stretch-wildcard 1.Compare: ( 10 , 1 ) → 10 ( 32 , 1 ) → 32 ( 32 , 1 ) → 32 ( 3 , 3 ) → 3 Why this step? The 3 lands on the last axis — the channel axis — exactly where colours live. So each channel gets its own mean and std, reused across all pixels and images.Same alignment for / cstd. Result (10, 32, 32, 3).
Verify: if channel 0 has cmean[0] = 128, cstd[0] = 64, then a red value of 192 becomes ( 192 − 128 ) /64 = 1.0 10 ⋅ 32 ⋅ 32 = 10240
Worked example Ex 10 · Cell J —(3,) + (3,1) accidental matrix
a is (3,), b is (3, 1). A student expects (3,). What actually happens?
Forecast: shape (3,)? (3,1)? or something surprising?
Right-align: (3,) over (3, 1).Pad left: a is shorter → (1, 3). Now (1, 3) vs (3, 1).
Why this step? The pad went on the left , so a became a row , while b is a column .Compare: axis0 ( 1 , 3 ) → 3 ( 3 , 1 ) → 3 Why this step? Both operands stretch — this is Cell D in disguise (outer grid). The result is a full 3×3 matrix , bigger than either input.Result (3, 3) with res[i, j] = b[i, 0] + a[j].
Verify: a = [10, 20, 30], b = [[1],[2],[3]] gives row 0 = [11, 21, 31], and res[2,1] = b[2,0] + a[1] = 3 + 20 = 23. You accidentally built a table — always print .shape. ✓

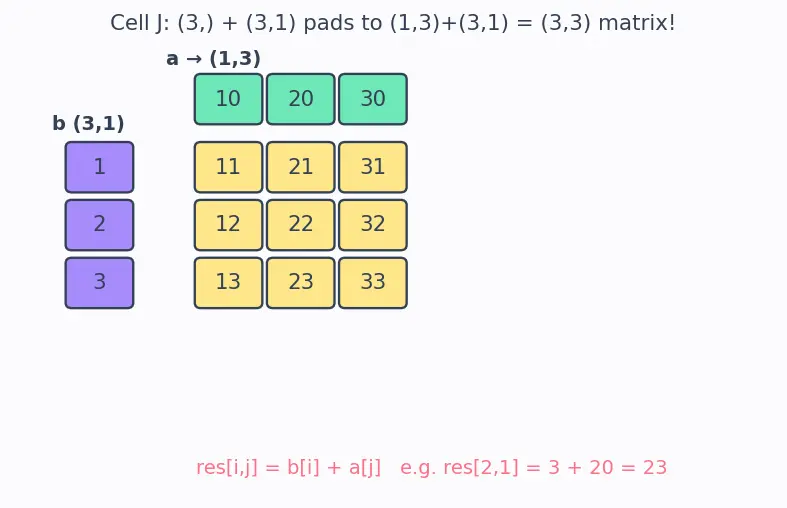

The figure lays it out: a padded into a mint row across the top, b as a lavender column down the left, and the butter 3×3 grid of sums between them. Read res[2,1]: from b=3 (row) and a=20 (col) the box shows 23. A (3,) and a (3,1) silently produced a matrix — the classic exam gotcha.
Which single size acts as the broadcast wildcard? 1 (and only 1 — 0 is not a wildcard).
(3,4) + (2,4) → ?ERROR — axis 0 is 3 vs 2, neither is 1.
(3,) + (3,1) → ?(3,3) — a matrix, because the (3,) pads to (1,3) and both axes stretch.
(0,4) - (4,) → ?(0,4), a valid empty array (size-1 stretches to 0).
Scale each ROW of (3,4) by w shape (3,) — the fix? w[:, None] → (3,1) so it aligns with axis 0.
(10,32,32,3) - (3,) lands the 3 on which axis?The last (channel) axis, by right-alignment.
Recall Mnemonic for every cell"Right-align, pad-left with 1s, then stretch a 1 or crash on a mismatch." Zero is data, not a wildcard. When in doubt, print .shape.
