Broadcasting — rules, why it works, gotchas: Visual walkthrough

We assume only that you can picture a grid of numbers (a table with rows and columns). Everything else — shape, axis, stride, alignment — we define the moment we need it.

Step 1 — What is a "shape", really?

WHAT. A NumPy array is just numbers laid out in a grid. Its shape is the tuple telling you how many boxes there are along each direction. A grid with 3 rows and 4 columns has shape $(3, 4)$ : read it as "3 along the first direction, 4 along the second."

WHY start here. Broadcasting is entirely a game played on shapes. If you can't see a shape as a physical grid of boxes, no rule will make sense. So we anchor the word first.

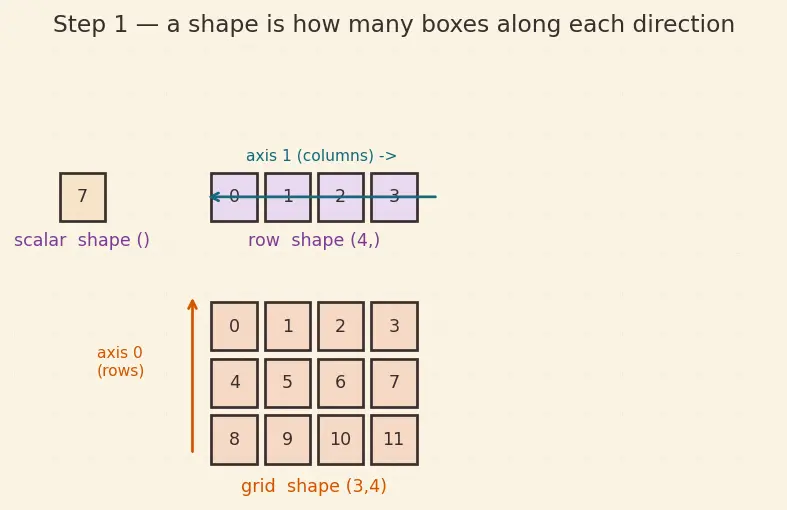

PICTURE. Below, the same numbers, three shapes. A single number (a scalar) has shape $()$ — the empty tuple, "no directions at all." A row of 4 has shape $(4,)$ — one direction. A grid has shape $(3, 4)$ — two directions. The little arrows are the axes: axis 0 runs down the rows, axis 1 runs across the columns.

Figure — Broadcasting — rules, why it works, gotchas

Related building block: NumPy Arrays — shape, dtype, strides.

Step 2 — The naive problem: shapes don't match

WHAT. We want to add a row vector $v$ of shape $(4,)$ to every row of a grid $A$ of shape $(3, 4)$ . Element-wise addition demands: box $(i, j)$ of the answer $= A [i, j] + (something) [i, j]$ . But $v$ has no row index $i$ — it only has $j$ . So what is " $v [i, j]$ "?

WHY this matters. This is the whole tension. Two arrays of different shape cannot be added box-for-box, because one of them is missing boxes. Broadcasting is the story of how NumPy invents the missing boxes — honestly, and for free.

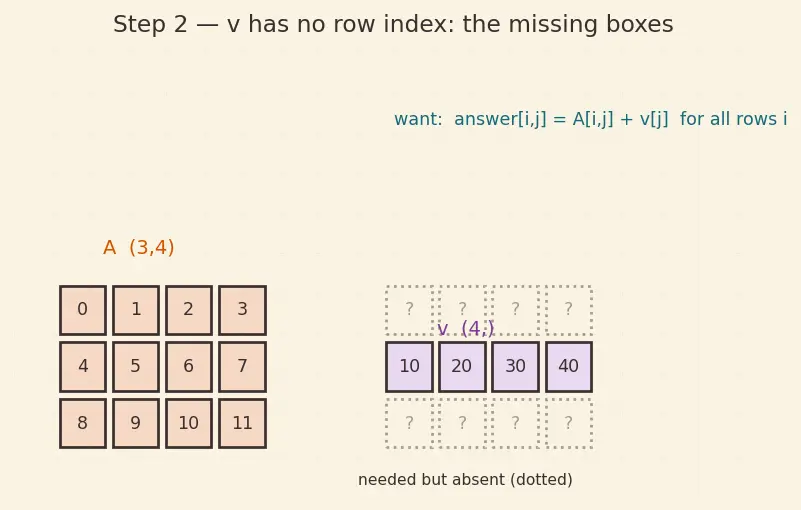

PICTURE. The grid on the left is full. The row on the right is short — it only knows about columns. The dotted boxes are the ones we'd need but don't have.

The dumb fix (the parent's "manual tile"): physically copy $v$ downward into a full $(3, 4)$ grid, then add. That works but wastes memory — three identical copies of the same four numbers. See np.tile and np.repeat (explicit replication) for the explicit version. Broadcasting will do the same arithmetic without the copy.

Step 3 — Right-align the shapes (the alignment rule)

WHAT. To decide if two shapes can combine, write them one above the other, flush against the right edge, and compare them column by column.

A : (3, 4) v : (3, 4)

Here $A$ 's trailing size is $4$ and $v$ 's trailing size is $4$ : they line up. $A$ has an extra leading axis (the $3$ ) that $v$ simply doesn't have.

WHY right-align and not left-align? Because the last axis is the innermost, fastest-changing one — the columns, the thing that sits next to each number in memory. When you say "add $v$ to each row," you mean v pairs with the columns. Aligning from the right is exactly "match the innermost meanings first." Left-aligning would pair $v$ with the rows, which is not what "add a row vector" means. (This right-vs-left choice is the single most common bug — Step 7.)

PICTURE. Two shape tuples as ticket stubs, torn and pushed against a right-hand wall. Matched columns glow; the unmatched leftover on the left is flagged "missing."

Step 4 — Why a missing axis becomes a "1", and why "1" means "stretch me"

WHAT. The missing leading axis of $v$ is filled in as size 1: $(4,) \to (1, 4)$ . Now both shapes have two axes:

A : (3, 4) v : (1, 4) result : (3, 4)

Axis 1: $4$ vs $4$ , equal — fine, they pair box-for-box. Axis 0: $3$ vs $1$ . Size 1 means "this direction has exactly one value, the same for everyone." So there is a meaning-preserving way to line up: give row 0, row 1, and row 2 all the same single value. That is stretching the size-1 axis to size 3.

WHY this is the only sensible choice. Ask: can I pair element $i$ of a length-3 axis with element $i$ of a length-1 axis? A length-1 axis only has index 0. If I want to match indices $0, 1, 2$ , the only honest answer is "read index 0 every time." There is no ambiguity — one value fits all. Contrast a length-3 vs length-4 axis: there's no consistent way to say which of the 4 pairs with which of the 3. That is why "equal OR one" are the only compatible cases.

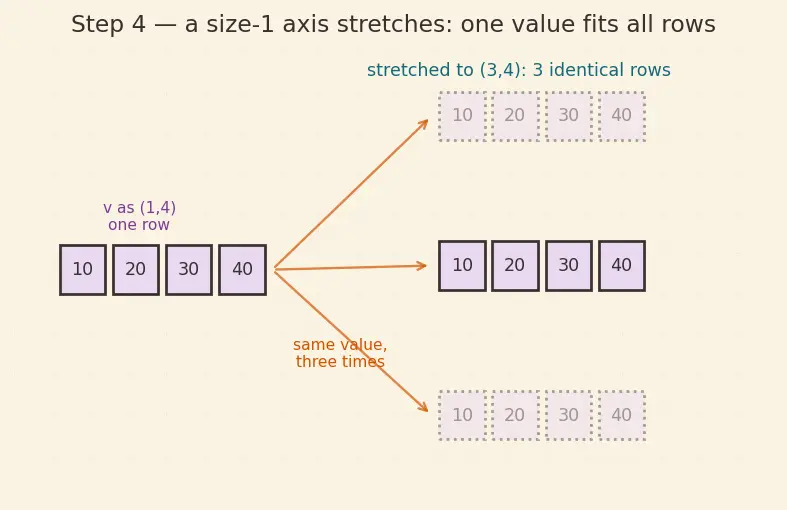

PICTURE. The single row $v$ (size-1 rows axis) fanning out into 3 identical ghost-rows, each pointing back to the one original. The label reads "same value, three times."

Step 5 — The stretch costs zero memory: the stride-0 trick

WHAT. "Stretch to 3 copies" sounds like it needs 3× the memory. It does not. NumPy stores an array as three things: a data buffer (the raw numbers in a line), the shape, and the strides — where a stride is how many bytes to jump to reach the next box along an axis.

WHY strides let us fake copies. To move to the next row normally you'd jump stride_0 bytes forward in the buffer. But if you set

$stride_{rows} = 0,$

then "move to the next row" jumps zero bytes — you land on the same four numbers again. Reading rows 0, 1, 2 all re-reads the identical memory. That is the stretch, implemented as a pointer that refuses to advance. No copy is ever made.

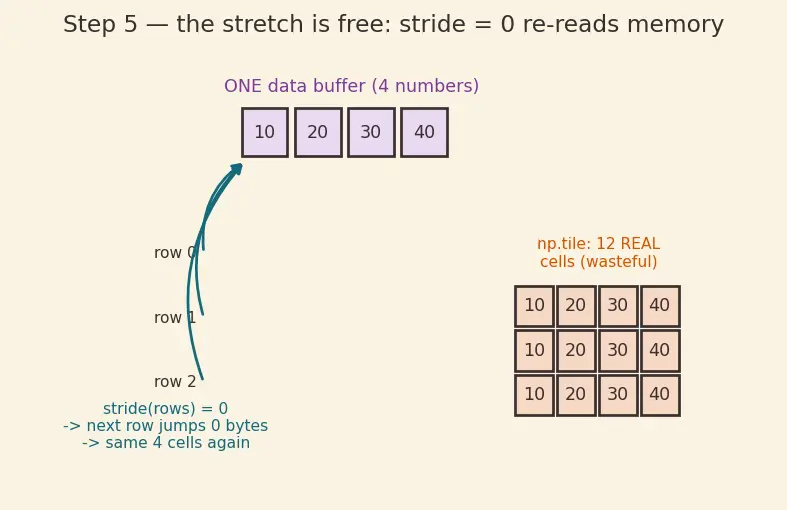

PICTURE. One straight buffer of 4 numbers. Three "row" arrows all bending back to point at that same buffer, each labelled stride = 0. Next to it, the wasteful tile version showing 12 real cells for contrast.

This is why broadcasting has the readability of A + v and the memory of a hand-written C loop — see Vectorization vs Python loops and, for the byte-level layout, Array Memory Layout — C vs Fortran order.

Step 6 — Both sides can stretch at once (the grid-builder)

WHAT. Nothing says only one array stretches. Take a column of shape $(3, 1)$ and a row of shape $(1, 4)$ :

col : (3, 1) row : (1, 4) result : (3, 4)

Axis 0: $3$ vs $1 \Rightarrow$ the row stretches down to 3. Axis 1: $1$ vs $4 \Rightarrow$ the column stretches across to 4. Both have a size-1 axis, and each fills the other's gap. The answer is table[i,j] = col[i] + row[j].

WHY this is the canonical trick. It turns two 1-D lists into a full 2-D table with no loops — the outer-sum / outer-product pattern. You choose which axis each vector lives on by reshaping (Step 7), using Reshaping and newaxis (None) indexing.

PICTURE. A column stretching rightward, a row stretching downward, meeting in a filled $3 \times 4$ grid where each cell shows $i + j$ .

Worked example Build a table with a column + a row

col = np.arange(3).reshape(3, 1)   # (3,1)  -> [[0],[1],[2]]
row = np.arange(4).reshape(1, 4)   # (1,4)  -> [[0,1,2,3]]
table = col + row                  # (3,4);  table[i,j] = i + j

Step 7 — The orientation trap (edge case: which axis do I stretch?)

WHAT. Grid $M$ is $(3, 4)$ . I want to scale row $i$ by weight w[i], where w has shape $(3,)$ . Naively M * w:

M : (3, 4) w : (3, 3) \to (1, 3)

Trailing axes: $4$ vs $3$ — not equal, neither is 1 → ERROR. The bare $(3,)$ glued itself to the columns (the last axis), not the rows.

WHY it fails — and the fix. Right-alignment always drops your 1-D vector onto the last axis. To target the rows axis (axis 0) you must give $w$ a trailing size-1 axis: w[:, None] makes it $(3, 1)$ . Now:

M : (3, 4) w : (3, 1) result : (3, 4)

Axis 0: $3$ vs $3$ equal. Axis 1: $4$ vs $1 \Rightarrow w$ stretches across the 4 columns. Row $i$ is scaled by the single value w[i]. ✓

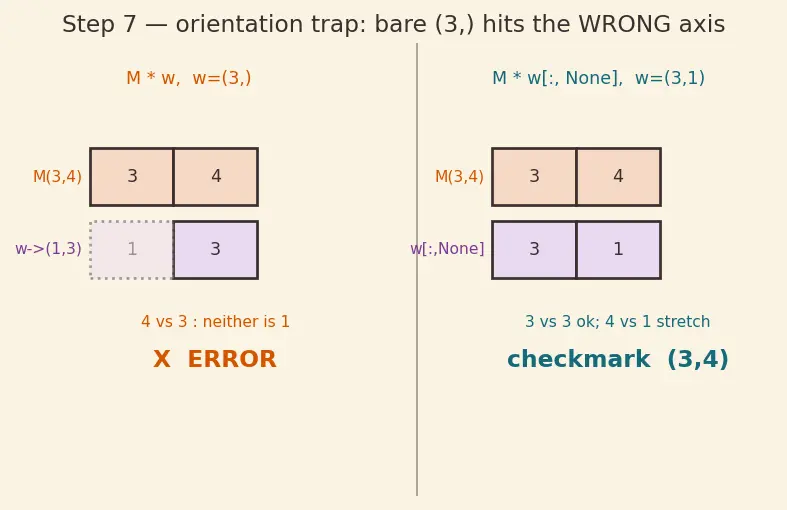

PICTURE. Left: $(3,)$ colliding with the column axis, red X. Right: w[:, None] = $(3, 1)$ slotting onto the row axis, green check, stretching sideways.

Step 8 — Degenerate & extreme cases (nothing should surprise you)

WHAT / WHY. Four boundary cases, each a direct consequence of Steps 3–4:

Scalar. A Python number has shape $()$ . Pad-left with 1s → $(1, 1)$ against a $(2, 2)$ → stretch both axes → every cell gets the same number. A + 5 is just broadcasting.
The $(3,)$ + $(3, 1)$ accident. $(3,) \to (1, 3)$ ; $(3, 1)$ stays. Axis 0: $1$ vs $3 \to 3$ ; axis 1: $3$ vs $1 \to 3$ . Result $(3, 3)$ — you built a matrix by mistake!
Higher-dim skip-alignment. $(5, 1, 4)$ vs $(3, 4)$ : pad the shorter → $(1, 3, 4)$ . Axes: $5 vs 1 \to 5$ , $1 vs 3 \to 3$ , $4 vs 4 \to 4$ ⇒ $(5, 3, 4)$ .
The hard error. $(2, 3)$ vs $(2,) \to (1, 2)$ : trailing $3$ vs $2$ , neither is 1 → ERROR. Same-looking numbers on the wrong axis don't save you.

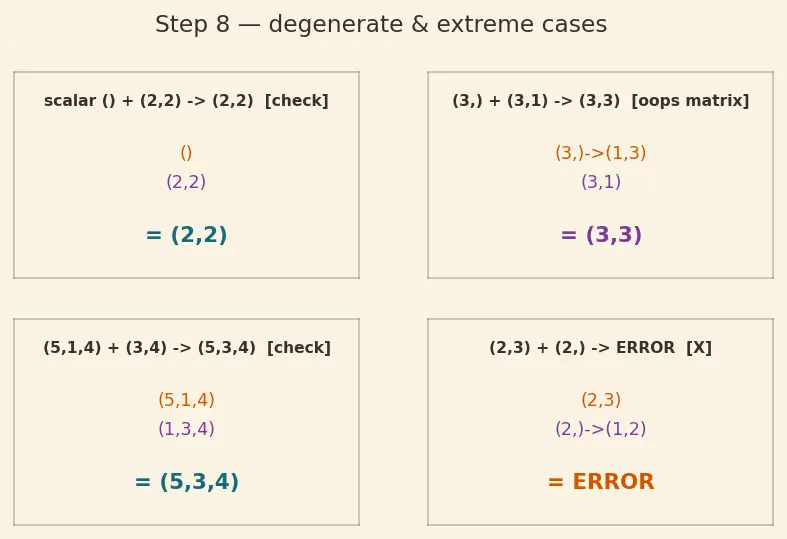

PICTURE. A 2×2 panel, one mini-diagram per case, ticket-stub alignment shown, green check or red X on each.

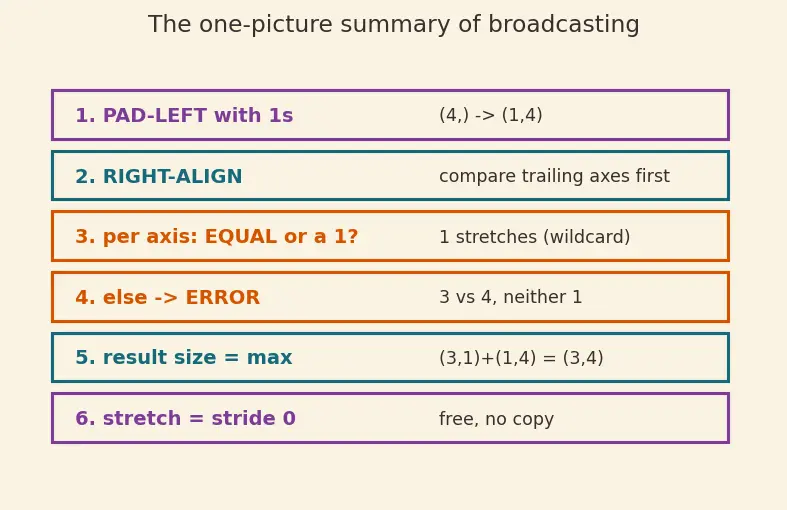

The one-picture summary

Every rule on one canvas: pad-left with 1s → compare each column (equal, or a 1 that stretches, else error) → take the max → the stretch is a free stride-0 view.

Recall Feynman retelling — the whole walkthrough in plain words

You've got a big table of numbers and a small strip, and you want to add them. Trouble: the strip doesn't have enough boxes. So NumPy plays a game. First it shoves both shapes against a right-hand wall — because the boxes right next to each number (the columns) are the ones that should match up first. If one side is shorter, it pretends the missing directions have exactly one box. Then it walks down the matched-up columns of the two shapes: if two numbers are the same, great, they pair off; if one of them is a 1, that side just says "I only have one value — use it everywhere," and it stretches to match; if neither is 1 and they differ, it gives up and shouts ERROR. When something stretches, it doesn't really make copies — it sets a "jump size" of zero bytes for that direction, so stepping to the next row just re-reads the same numbers. That's the whole trick: right-align, then equal-or-one, and the "one" is a magic wildcard that costs nothing. The only way to get bitten is orientation — a flat strip always lands on the last axis, so if you meant the rows, you have to give it a trailing 1 with [:, None] first.
