Address Sanitizer (ASan) — detecting buffer overflows at runtime: Worked examples

Everything here reuses exactly one rule from the parent note. Let us pin it down so we never re-derive it. First, three names we will use constantly:

Notice the clean split: $Sh$ is a function that returns an address; $s$ is a number (the shadow value). We never write $s (\dots)$ again — $Sh (\dots)$ locates, $s$ is what we read.

Let me re-earn each symbol so a newcomer is never lost:

Every example below is just this formula, plugged in, plus one sanity re-read of the C.

The scenario matrix

We tabulate the classes of case ASan can meet. The goal: not one blank cell.

Cell	Case class	What is special	Covered by
C1	In-bounds access, full green granule ( $s = 0$ )	must not fire	Ex 1
C2	Overflow into a full redzone ( $s < 0$ )	classic heap overflow	Ex 2
C3	Partial granule ( $1 \leq s \leq 7$ ), last valid byte	boundary that must not fire	Ex 3
C4	Partial granule, first poisoned byte	boundary that must fire	Ex 3
C5	Use-after-free ( $s < 0$ , was green)	temporal, not spatial	Ex 4
C6	Multi-byte access ( $N > 1$ ) straddling into poison, same granule	$N$ matters, not just $o$	Ex 5
C7	Multi-byte access crossing a granule boundary	one access, two shadow checks	Ex 6
C8	Wild far pointer landing in another live object	the false-negative ASan misses	Ex 7
C9	Zero-size allocation `malloc(0)`	degenerate size, still has redzone	Ex 8
C10	Stack array overflow (compiler redzones)	not heap; use-after-return cousin	Ex 9
C11	Global buffer overflow + real-world word problem	globals get redzones too	Ex 10
C12	Exam twist: underflow (`p[-1]`)	overflow on the low side	Ex 11

Eleven examples, twelve cells (Ex 3 knocks out C3 and C4 — the two sides of one boundary).

Example 1 — In-bounds, fully green (cell C1)

Worked example

char *p = malloc(8);   // exactly one granule
p[3] = 'x';            // legal

Forecast: fire, or silent? Guess before reading.

Step 1 — What is $s$ for this granule? malloc(8) gives 8 usable bytes = one full granule, so all 8 slots are green ⇒ $s = 0$ . Why this step? The whole formula branches on $s \neq = 0$ first; a green granule short-circuits to "no bug".

Step 2 — Apply the check. $s = 0$ , so the condition s != 0 && ... is already false. No report. Why this step? We never even need $o$ or $N$ when the granule is fully green — the cheapest, most common path.

Verify: p[3] is index $3$ of an 8-element buffer, $0 \leq 3 \leq 7$ : genuinely in bounds. ASan silent — correct behaviour (no false positive).

Example 2 — Heap overflow into a redzone (cell C2)

Worked example

char *p = malloc(8);
p[8] = 'x';            // one past the end

Forecast: which shadow value does byte 8 read, and does it fire?

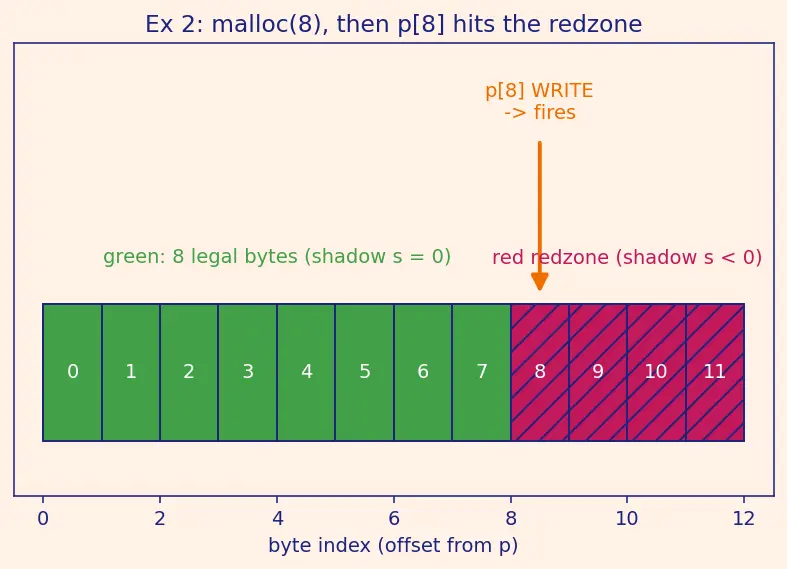

In the figure, the eight green squares (labelled 0–7) are the legal bytes and share one shadow byte $s = 0$ ; the four striped magenta squares (8–11) are the redzone ASan padded after the buffer, and they share a shadow byte $s < 0$ . The orange arrow marks the write to square 8 — visibly the first square in the red region, which is exactly why the check will fire.

Step 1 — Locate byte 8. p[8] sits at address $p + 8$ . Since p starts a granule, $p + 8$ starts the next granule — the redzone. Reading $Sh (p + 8)$ gives a shadow value $s < 0$ (fully poisoned). Why this step? We must know which granule the byte falls in before reading its shadow value.

Step 2 — Offset and check. $o = (p + 8) & 7 = 0$ (redzone granule's first slot). $N = 1$ . Condition: $s \neq = 0$ ✓ (it's negative) and $(0 + 1 - 1) = 0 \geq s$ . Since $s < 0$ , $0 \geq s$ is true. Why this step? Here $o = 0$ , yet the test still passes: whenever $s$ is negative, any value of $o + N - 1$ (which is $\geq 0$ ) is $\geq s$ . A poisoned granule reports for every slot, offset zero included.

Verify: ASan prints heap-buffer-overflow ... WRITE of size 1 at offset 8 of an 8-byte region. Matches: the access is exactly 1 byte beyond the allocation. Fires. ✓

Example 3 — The partial-granule boundary, both sides (cells C3 + C4)

Worked example

char *p = malloc(5);   // 5 usable bytes in one granule
p[4] = 'a';            // last legal byte
p[5] = 'b';            // first illegal byte

Forecast: the whole point of "one shadow byte per 8" is captured here. Guess both verdicts.

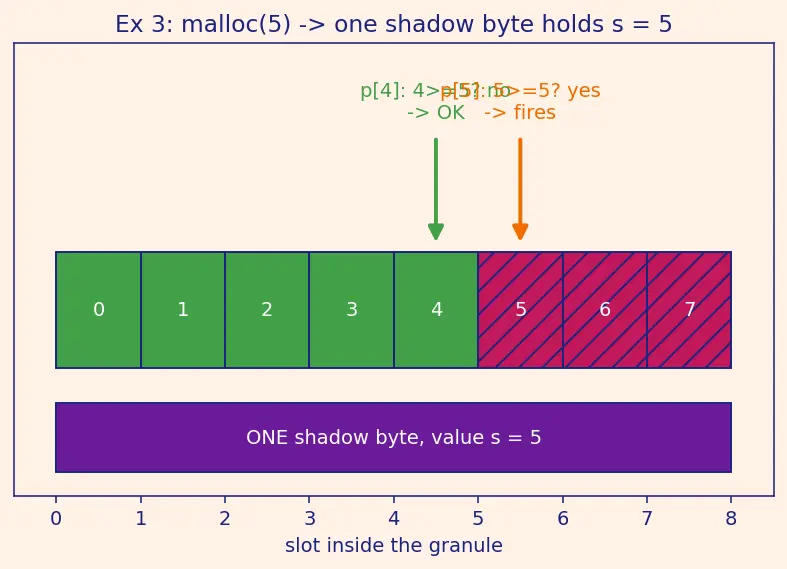

In the figure, slots 0–4 are green and slots 5–7 red, yet the violet bar underneath shows they are all described by one shadow byte holding the value $s = 5$ . The green arrow (p[4]) points at the last green slot; the orange arrow (p[5]) points at the first red slot — the boundary lives inside a single granule, which is the exact resolution one shadow byte gives you.

Step 1 — Shadow value. malloc(5) ⇒ slots $0..4$ valid ⇒ $s = 5$ ("first 5 bytes valid"). Why this step? Partial granules are the only case where a positive $s$ lives; the formula's middle branch.

Step 2 — Access p[4]. $o = 4$ , $N = 1$ . Check: $s = 5 \neq = 0$ ✓, and $(4 + 1 - 1) = 4 \geq 5$ ? No ( $4 < 5$ ). No report. Legal. ✓ (cell C3) Why this step? Slot 4 is the last green slot; the formula must let it through.

Step 3 — Access p[5]. $o = 5$ , $N = 1$ . Check: $s = 5 \neq = 0$ ✓, and $(5 + 1 - 1) = 5 \geq 5$ ? Yes. Report. ✓ (cell C4) Why this step? Slot 5 is the first red slot inside the same granule — proving one byte of shadow really can distinguish valid from invalid within 8.

Verify: boundary is at index 5 = the allocation size. $index < 5 \Rightarrow$ ok, $index \geq 5 \Rightarrow$ overflow. Both verdicts consistent. ✓

Example 4 — Use-after-free (cell C5)

Worked example

char *p = malloc(16);
free(p);
p[0] = 1;             // temporal bug

Forecast: slot 0 was green a moment ago. Does the check still fire?

Step 1 — What free does to the shadow. On free(p), ASan poisons the whole freed region: every granule's shadow value set negative. It also drops the block into a quarantine so malloc won't hand it back and repaint it green. Why this step? Spatial rules alone would say "slot 0 is fine"; temporal safety needs free to change the map.

Step 2 — Apply the check to p[0]. $o = 0$ , $N = 1$ , $s < 0$ . Condition: $s \neq = 0$ ✓, $(0) \geq s$ ✓ (since $s < 0$ ). Report. Why this step? Same inequality as any redzone — freed memory simply is a redzone now.

Verify: ASan reports heap-use-after-free, and because it stored the free-site stack, it also prints where it was freed. The mechanism (repaint on free + quarantine) explains both facts. ✓ (This is why Valgrind Memcheck and ASan agree on UAF, but ASan is faster.)

Example 5 — Multi-byte access straddling into poison, one granule (cell C6)

Worked example

char *p = malloc(6);            // slots 0..5 green, s = 6
int  x  = *(short*)(p + 5);     // 2-byte read at offset 5

Forecast: offset 5 is still green (5 < 6). Trap: this is a 2-byte read. Does it fire?

Step 1 — Shadow value. malloc(6) ⇒ $s = 6$ (slots $0..5$ valid). Why this step? Establish the poison boundary at slot 6.

Step 2 — Offset and size. The read starts at $p + 5$ , so $o = 5$ , and short is 2 bytes so $N = 2$ . The last byte touched is slot $o + N - 1 = 5 + 2 - 1 = 6$ . Both bytes (slots 5 and 6) live in the same granule, so a single shadow check covers the whole access. Why this step? For $N > 1$ it is the last byte, not the first, that decides. This is why the formula uses $o + N - 1$ , not $o$ .

Step 3 — Check. $s = 6 \neq = 0$ ✓, and $6 \geq 6$ ? Yes. Report. Why this step? Slot 6 is the first poisoned slot; the 2-byte read reaches it even though its starting byte was legal.

Verify: the read spans slots 5–6; slot 6 is out of a 6-byte buffer. So a heap-buffer-overflow READ of size 2 is correct. A 1-byte read at offset 5 would have been silent ( $5 \geq 6$ is false) — the size genuinely matters. ✓

Example 6 — A multi-byte access that CROSSES a granule boundary (cell C7)

Worked example

char *p = malloc(16);           // slots 0..15 green across TWO granules
int  x  = *(int*)(p + 6);       // 4-byte read at offset 6 -> spans bytes 6,7,8,9

Forecast: bytes 6 and 7 are in the first granule, bytes 8 and 9 in the second. Our headline formula assumed "not crossing a granule boundary." What does ASan actually do?

Step 1 — See the crossing. Address $p + 6$ has $o = 6$ , $N = 4$ , so the last byte is slot $o + N - 1 = 9$ . But slot indices only run $0..7$ within one granule; index 9 lives in the next granule. The access straddles the boundary between granule 0 (bytes 0–7) and granule 1 (bytes 8–15). Why this step? The single-check formula is only valid inside one granule; we must recognise when it doesn't apply.

Step 2 — How ASan chains checks. The compiler does not use one check here. For an unaligned or boundary-crossing access it emits two checks: it validates the first byte ( $p + 6$ ) against granule 0's shadow, and the last byte ( $p + 9$ ) against granule 1's shadow. If either is poisoned, it reports. Why this step? Checking only the endpoints is enough because everything between them is in one of the two granules already covered; this keeps the instrumentation to two loads instead of $N$ .

Step 3 — Apply both checks. Granule 0: all green (malloc(16) is two full granules) ⇒ $s_{0} = 0$ ⇒ first check silent. Granule 1: also fully green ⇒ $s_{1} = 0$ ⇒ second check silent. No report — this read is legal (offsets 6–9 all inside a 16-byte buffer). Why this step? Shows the chained mechanism producing the correct silence.

Step 4 — Make it fire. Change to malloc(9): now granule 1 is a partial granule with $s_{1} = 1$ (only slot 8 valid). The last byte $p + 9$ has $o = 1$ in granule 1; check $1 \geq 1$ ? Yes ⇒ report. The first-byte check on granule 0 stays silent, but the second fires. Why this step? Demonstrates that the endpoint that lands in poison is the one that catches the bug — exactly what chaining buys you.

Verify: with malloc(16), offsets 6–9 are all $< 16$ : legal, silent — correct. With malloc(9), offset 9 is out of a 9-byte buffer: heap-buffer-overflow READ of size 4 — correct. The two-check chain gives the right verdict in both. ✓

Example 7 — The wild far pointer ASan MISSES (cell C8)

Worked example

char *a = malloc(8);
char *b = malloc(8);           // happens to sit far away but still valid
a[100000] = 'z';               // lands inside... something valid?

Forecast: ASan fires on a[8]. Will it fire on a[100000]?

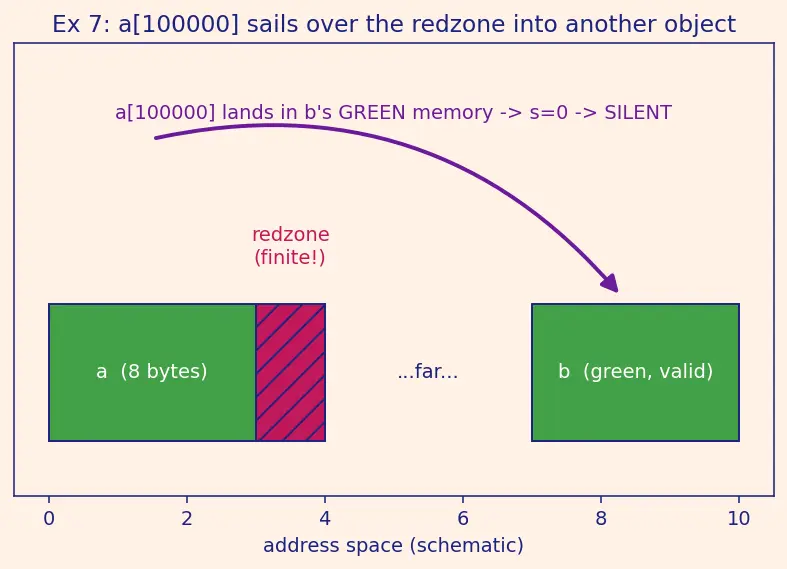

The figure lays out the address space: the small magenta redzone right after a is finite, only a few dozen bytes wide. The violet arrow leaps clear over it and lands in b's green block far to the right. Because the byte it touches is green, the shadow check reads $s = 0$ and stays silent — the picture is the whole argument for why distance, not intent, decides.

Step 1 — Where does a+100000 land? Redzones are finite (a few dozen–few hundred bytes). A jump of 100000 sails clean past a's redzone and can land in the green memory of some other live object, the runtime's own bookkeeping, or an unmapped page. Why this step? ASan validates the byte you touch, not the intent; if that faraway byte is green, the check is happy.

Step 2 — Apply the check (green case). If it lands on a green granule, $s = 0$ ⇒ condition false ⇒ no report. ASan stays silent even though this is a catastrophic bug. Why this step? This is the honest limit stated in the parent's mistake box: "ASan catches adjacent overflows, not arbitrary jumps."

Verify: contrast Ex 2 (a[8], offset 8, hits the adjacent redzone → fires) with this (a[100000], jumps over the redzone → may be silent). The difference is distance vs redzone width, not "is it a bug". Pair ASan with Fuzzing (libFuzzer / AFL) and Undefined Behaviour in C and C++ reasoning to reach and reason about such paths. ✓ (silent = the documented gap)

Example 8 — Zero-size allocation (degenerate, cell C9)

Worked example

char *p = malloc(0);   // legal in C: may return a unique non-NULL pointer
p[0] = 'q';            // read/write the "zeroth" byte

Forecast: zero usable bytes — what shadow value, and does p[0] fire?

Step 1 — How ASan represents "0 usable bytes". A partial granule with $k$ valid bytes stores the positive value $s = k$ for $1 \leq k \leq 7$ . Zero valid bytes is not one of those ( $k = 0$ is not in $1..7$ ); ASan instead marks the granule with a negative shadow value — the very same "fully poisoned" encoding used for redzones ( $s < 0$ ). So there is no mysterious separate marker: "0 bytes usable" is represented identically to a redzone, $s < 0$ . (This is why the positive range starts at $s = 1$ , not $s = 0$ : $s = 0$ already means all 8 valid.) Why this step? The reviewer's ambiguity is resolved here — "0 usable" and "redzone" share one representation, $s < 0$ .

Step 2 — Apply the check to p[0]. $o = 0$ , $N = 1$ , $s < 0$ . Condition: $s \neq = 0$ ✓, $(0) \geq s$ ✓ (a non-negative number is always $\geq$ a negative one). Report. Why this step? Touching byte 0 of a 0-byte region is an overflow of zero capacity — the smallest possible overflow, and ASan still catches it.

Verify: you asked for 0 bytes, you own 0 bytes; index 0 is already out of bounds. heap-buffer-overflow is the correct verdict. ✓

Example 9 — Stack array overflow (cell C10)

Worked example

void f(void) {
    char buf[5];       // stack, not heap
    buf[5] = '!';      // one past
}

Forecast: heap redzones come from the runtime's malloc. Where do stack redzones come from?

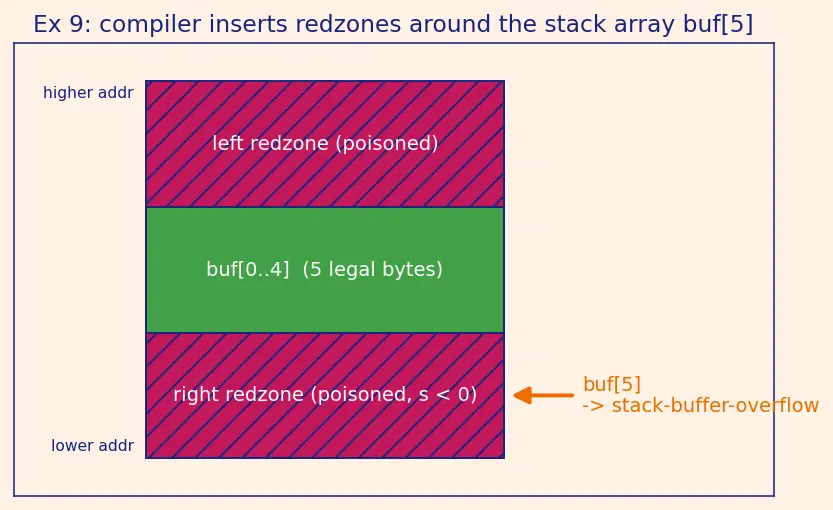

The figure draws the stack frame vertically: a magenta poisoned strip above buf, the green buf[0..4], and a magenta poisoned strip below it. The orange arrow shows buf[5] reaching just past the green into the lower redzone — the compiler put that red strip there at build time, which is the point the figure makes visible.

Step 1 — Who inserts the redzone? For stack arrays the compiler rewrites the frame at build time: it lays buf between two poisoned strips and emits code to poison/unpoison them on function entry/exit. See Stack vs Heap Memory Layout for why the mechanism differs by region, and Compiler Instrumentation and -fsanitize flags for the flag that turns it on. Why this step? Same shadow model, different installer — the runtime can't intercept a stack "allocation" (it's just moving the stack pointer), so the compiler must do it.

Step 2 — Apply the check. buf[5] is offset $o$ into the stack redzone granule after buf; $s < 0$ . Condition true ⇒ report stack-buffer-overflow. Why this step? Once the shadow is poisoned, the check itself is identical to the heap case — one formula rules all regions.

Verify: buf has valid indices $0..4$ ; index 5 is one past. stack-buffer-overflow WRITE of size 1. ✓ (The cousin bug, use-after-return, is the same idea across a function boundary.)

Example 10 — Global buffer + real-world word problem (cell C11)

Worked example

Word problem. A logging module has a fixed global name buffer of 16 bytes. A config parser copies a hostname into it with strcpy. The hostname string literal is "verylonghostname!!". How many bytes does strcpy write, how many overflow, and at which index does ASan first fire?

char hostname[16];                       // global
strcpy(hostname, "verylonghostname!!");  // copies until and including '\0'

Forecast: count the characters and the first bad write index before reading on.

Step 1 — Count the bytes copied. "verylonghostname!!" = 18 characters, plus the terminating '\0' ⇒ strcpy writes 19 bytes to a 16-byte buffer. Why this step? strcpy copies until (and including) the NUL — the classic source of "off-by-the-whole-string" overflows.

Step 2 — First out-of-bounds write. Valid indices are $0..15$ . The first illegal write is index 16. Globals get compiler-installed redzones (like Ex 9's stack case), so the granule at offset 16 has $s < 0$ . Why this step? We need the exact firing point, which is the write to the first redzone byte.

Step 3 — Apply the check. At index 16: it starts a new (redzone) granule, $o = 0$ , $N = 1$ , $s < 0$ ⇒ report global-buffer-overflow WRITE of size 1 at offset 16. Why this step? Confirms the region label (global) and the offset the report will show.

Verify: overflow size $= 19 - 16 = 3$ bytes; first bad index $= 16$ ; number of legal bytes written $= 16$ (indices 0–15). All three numbers consistent. ✓

Example 11 — Exam twist: underflow, the low side (cell C12)

Worked example

char *p = malloc(8);
p[-1] = 'u';           // one byte BEFORE the buffer

Forecast: everyone guards the top end. Does ASan also catch reaching below the buffer?

Step 1 — There's a redzone on both sides. The parent note poisons the strips before and after each buffer. So p-1 lands in the left redzone, and $Sh (p - 1)$ reads a value $s < 0$ . Why this step? Underflow is just overflow with a negative index; the guarding is symmetric.

Step 2 — Apply the check. p-1 sits in the previous (redzone) granule, at some offset $o$ with $s < 0$ . Condition: $s \neq = 0$ ✓, $(o + 1 - 1) = o \geq s$ ✓ (since $s < 0 \leq o$ ). Report. Why this step? Confirms the same inequality catches the low-side redzone.

Verify: ASan reports heap-buffer-overflow ... WRITE of size 1 with a negative offset (e.g. offset $- 1$ of the region). The left redzone is what makes underflow detectable. ✓

Recap: which cell fired?

Example	Cell	Verdict
1	C1	silent (correct)
2	C2	fire (heap overflow)
3	C3 / C4	silent / fire (boundary)
4	C5	fire (use-after-free)
5	C6	fire (multi-byte, same granule)
6	C7	silent then fire (boundary-crossing, two checks)
7	C8	silent (documented miss)
8	C9	fire (zero-size)
9	C10	fire (stack overflow)
10	C11	fire (global, offset 16)
11	C12	fire (underflow)

Recall Active recall

Compute the shadow value $s$ and the verdict for each:

malloc(3); p[2] ::: $s = 3$ ; $o + N - 1 = 2$ ; $2 \geq 3$ ? No → silent (legal).
malloc(3); p[3] ::: $s = 3$ ; $3 \geq 3$ ? Yes → fire.
malloc(6); *(int*)(p+4) (4-byte read) ::: $s = 6$ ; last byte $= 4 + 4 - 1 = 7 \geq 6$ ? Yes → fire.
malloc(8); p[100000] ::: may hit a green granule elsewhere → possibly silent (the gap).
malloc(16); *(int*)(p+6) (4-byte read, crosses boundary) ::: both endpoints in green granules → silent (legal).
