Memory model — happens-before, acquire-release semantics: Foundations

Before you can read the parent note Memory Model, you need every word and symbol it silently assumes. We build them one at a time, from nothing, each on top of the last.

Figure — Memory model — happens-before, acquire-release semantics

Look at the figure: two shelves (two CPU cores), and boxes on each. The key trouble — which this whole topic is about — is that when core 1 changes a box, core 2 does not see the change instantly. There's a delay, drawn as the wavy pipe between them.

1. Thread — a worker with its own to-do list

The picture: two people (Thread 1, Thread 2) each holding a to-do list, both reaching for the same boxes. Everything hard in this topic happens because they share memory but run at their own pace.

Why the topic needs it: a data race, happens-before, acquire, release — all of these describe relationships between two threads. With one thread there is no problem at all.

2. Program order — top-to-bottom, as written

Definition Program order

Program order is simply the order the lines appear in your source, top to bottom, within one thread.

data = 42;      // line 1 — earlier in program order
ready = true;   // line 2 — later in program order

The picture: an arrow pointing straight down the to-do list. This is the order you wrote, not necessarily the order the machine does things — which is the whole surprise of the next symbol.

3. Reordering — the surprise

In the figure the black arrow is the order you wrote; the red arrow is an order the machine might actually run. Three separate villains can cause this swap:

the compiler (see Compiler reordering and the as-if rule),
the CPU running instructions out of order (see Out-of-order execution and store buffers (CPU)),
the store buffer (SB) delaying when a write reaches the shelf.

4. `std::atomic<T>` — an indivisible box

The picture: a box with a solid lid, so anyone looking in sees either the old value or the new value, never a smeared mix. Important and easy to miss: atomic guarantees this only for the atomic box itself — it says nothing yet about the ordinary boxes around it. Ordering those is a separate job (that's what §9–11 are for).

5. `.store()`, `.load()`, and RMW — the three verbs

The picture: store = dropping a note in; load = peeking in; RMW = grabbing the note, editing it, and putting it back before anyone else can touch the box.

6. Data race — the thing we must avoid

Why the topic needs it: the entire memory model exists to let you avoid data races by supplying the missing ordering arrow. Everything from here is about building that arrow correctly.

7. Acquire and release — the two ends of the handshake

We must meet these two words before we can define the cross-thread arrow, because that arrow is made of them.

The figure shows release as a floor (⬇ things can't fall through) and acquire as a ceiling (⬆ things can't rise through). Together, when the acquire-load reads exactly the value the release-store wrote, a handshake forms — the cross-thread arrow of the next section.

A mutex is just these two glued together: locking is an acquire, unlocking is a release.

8. The three ordering relations — arrows between events

An "event" here just means one read or write happening. We connect events with arrows. First, two tiny pieces of notation so the arrows read cleanly:

$A hb B ⟹ B sees every write done by A$

That formula is the payoff. If — and only if — you can draw a happens-before path from a write to a read, the read is guaranteed to see that write. No path ⇒ no guarantee ⇒ possible data race.

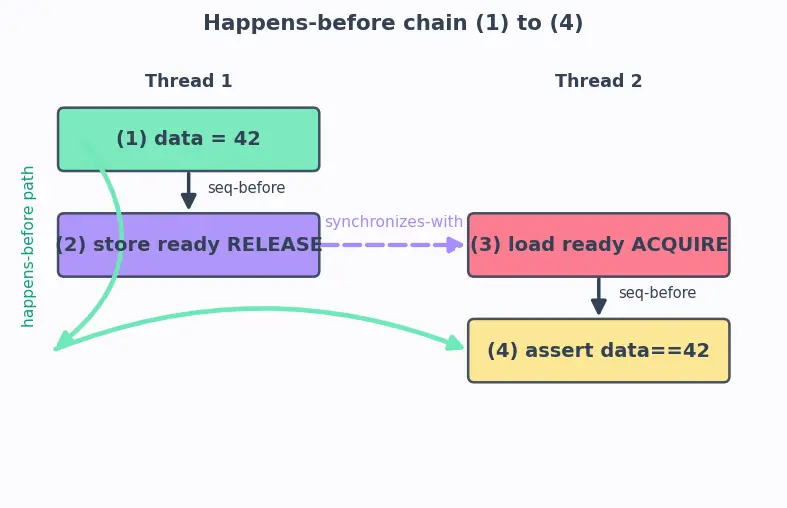

Follow the figure: the solid down-arrows are sequenced-before, the dashed cross-arrow is synchronizes-with, and the long green path from (1) to (4) is the happens-before chain that makes data == 42 safe.

9. `memory_order` — the strength dial

Definition The ordering tags

Every atomic operation carries a strength tag, weakest to strongest:

relaxed — atomic + per-variable coherence only; no ordering arrow for other boxes.
consume — a rarely-used, weaker cousin of acquire: it orders only operations that data-depend on the loaded value (follow the same pointer/value), not everything after the load. In practice every current compiler promotes consume to acquire, and the C++ standard discourages its use; treat it as "acquire, but historically meant to be cheaper for pointer-chasing." Named here so the enum list is complete.
acquire (loads): no reads/writes after it move before it (the upward gate of §7).
release (stores): no reads/writes before it move after it (the downward gate of §7).
acq_rel (RMW): both gates at once.
seq_cst (default): acquire+release plus one single global order all seq_cst ops agree on. See Sequential consistency vs weak memory models.

Picture: a dial from "loose" (relaxed) to "strict" (seq_cst). More strictness = more guarantees = usually slower, because the CPU must insert real fences (see std-atomic_thread_fence).

Prerequisite map

Each foundation feeds the next; the two arrows that finally meet at Happens-before are the whole point — one from inside a thread (sequenced-before), one across threads (synchronizes-with).

Equipment checklist

Test yourself — but each line here also pushes one step past the plain definition, so read them as mini-puzzles, not repeats.

Two threads each store a different value to the same atomic box; can they disagree on which store was last?

No — per-variable coherence forces a single modification order all threads agree on.

A store buffer delays a write; does that delay ever affect the thread that made the write?

No — a thread always reads its own latest write; the delay is only visible to other cores.

An acquire-load reads a value written not by the release-store but by a later RMW on that box — is the handshake still made?

Yes — the RMW is part of the release sequence, so it carries the same baton.

You tag a load consume to save time; what will a modern compiler actually emit?

acquire — every current compiler promotes consume to acquire.

relaxed gives per-variable coherence but not what?

any ordering arrow relating other boxes to this one — so no happens-before for surrounding data.

Why must acquire and release be defined before synchronizes-with?

because synchronizes-with is literally built out of a release store being read by an acquire load.

A hb B ⟹ B sees A

read aloud is

if A happens-before B, B is guaranteed to observe all of A's writes.
