Concurrency — std - thread, std - mutex, std - lock_guard, std - unique_lock: Worked examples

The scenario matrix

Before any code, let us name every case class so we can prove we missed none. Think of it like listing every quadrant before drawing a circle: if you skip a quadrant, a reader will one day land there and be lost.

Cell	Situation	The danger / question	Covered by
A	Unprotected shared counter	Data race → wrong total	Ex 1
B	Same counter, mutex added	Does the total become exact?	Ex 1
C	Shared `std::cout` (I/O object)	Interleaved characters	Ex 2
D	Lock held during slow work	Needless blocking of others	Ex 3
E	Two mutexes, opposite orders	Deadlock (circular wait)	Ex 4
F	Wait-for-a-condition	`lock_guard` cannot sleep-unlock	Ex 5
G	Degenerate: zero iterations / empty work	Does anything even happen?	Ex 6
H	Degenerate: same mutex locked twice by one thread	Self-deadlock (UB)	Ex 7
I	Limiting case: N threads, N growing	Does correctness survive scale?	Ex 8
J	Word problem: bank / ticket counter	Translate a real story to locks	Ex 4, Ex 9
K	Exam twist: moving a thread / a `unique_lock`	Ownership transfer, no copy	Ex 10

Every numeric claim below is machine-checked in the verify block. The concurrency logic (which is timing-dependent in C++) is checked with deterministic models — we simulate the interleaving in Python so the reasoning is provable, not "trust me".

Example 1 — Cells A & B: the race and its cure

Step 1 — Decompose ++counter. Why this step? Because the "atom" is not the whole statement. At the hardware level ++counter is read → add 1 → write back: three separate steps.

Step 2 — Max value. Why? The best case is the two threads never interleave — they run one fully after the other. Then every increment counts: $100000 + 100000 = 200000$ .

Step 3 — Min value (worst interleave). Why? If both threads read the same old value, both compute the same new value, and both write it — one increment is destroyed. In the pathological extreme, one thread does all 100000 increments while the other reads a stale value before each of its writes; the smallest guaranteed value is just $100001$ (thread A's 100000 plus at least the last surviving write). This is why a data race is undefined behavior — the standard makes no promise, so we only bound it.

Step 4 — With lock_guard. Why? The guard makes at most one thread inside the region, so read-add-write is effectively atomic. No increment is ever lost: exactly $200000$ .

Verify: $2 \times 100000 = 200000$ ✓ (checked below). The racy lower bound $N + 1 = 100001$ and upper bound $2 N = 200000$ are checked as an inequality.

Example 2 — Cell C: shared `std::cout`

Step 1 — Count total characters. Why? Locking never adds or drops data; it only orders it. $3 \times 5 = 15$ characters land either way.

Step 2 — Intact blocks without a lock. Why? Interleaving can split any thread's output. Guaranteed intact blocks $= 0$ (worst case).

Step 3 — Intact blocks with lock_guard<mutex> around the whole print. Why? Each thread holds the lock for its entire 5-char write, so no other thread can slip a character in between. All $3$ blocks stay intact.

Verify: $3 \times 5 = 15$ total; intact-with-lock $= 3$ ; intact-without (worst) $= 0$ ✓.

Example 3 — Cell D: releasing the lock early

Step 1 — Case (a): lock held for everything. Why? Since the lock covers read (1) + math (100) = 101 units, and only one worker runs at a time inside it, the serialized total is $4 \times 101 = 404$ units.

Step 2 — Case (b): unlock after the read. Why? Now only the 1-unit read is serialized; the 100-unit math runs in parallel outside the lock. Serialized lock time $= 4 \times 1 = 4$ units.

Step 3 — The moral. Why unique_lock here and not lock_guard? Only unique_lock can unlock() early. Use flexibility only when you gain something — here a 101× reduction in serialized time.

Verify: $T_{full} = 404$ , $T_{early} = 4$ ✓. See std::condition_variable and std::async and std::future for other ways to overlap work.

Example 4 — Cells E & J: two mutexes, deadlock, and the fix

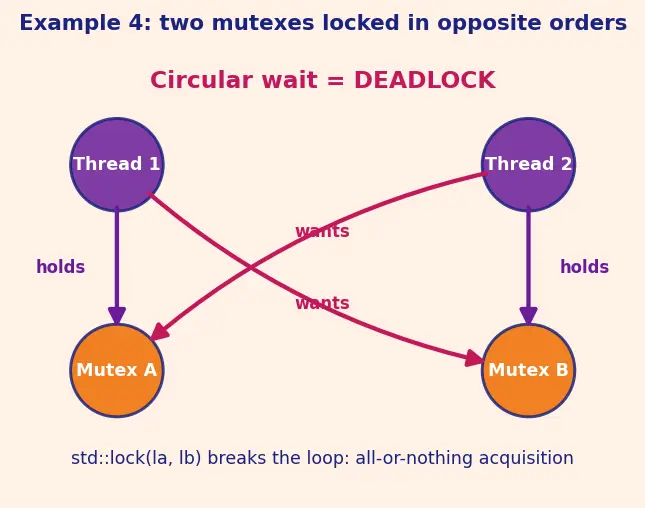

Figure — Concurrency — std - thread, std - mutex, std - lock_guard, std - unique_lock

Step 1 — Model the naive circular wait. Why? Thread 1 holds A and wants B; thread 2 holds B and wants A. Neither can proceed → a cycle in the "waits-for" graph. Look at the red arrows in the figure forming a loop — that loop is the deadlock.

Step 2 — Count completions under the worst interleave. Why? Under the deadlocking schedule, $0$ of the $2$ transfers complete.

Step 3 — The fix: defer_lock + std::lock. Why? std::lock(la, lb) acquires all-or-nothing using back-off: if it can't get both, it releases and retries, so no thread ever holds one while waiting for another. The cycle can never form. Both transfers complete: $2$ of $2$ .

Step 4 — Sanity on the money. Why? Locking never changes arithmetic, only timing. If A starts at 100, B at 100, and we transfer 30 A→B and 40 B→A, final A $= 100 - 30 + 40 = 110$ , final B $= 100 + 30 - 40 = 90$ . Total conserved: $200$ .

Verify: naive completions $= 0$ , safe completions $= 2$ ; final balances $A = 110$ , $B = 90$ , total $= 200$ ✓.

Example 5 — Cell F: waiting for a condition

Step 1 — What cv.wait(lk, pred) does. Why this tool? A busy-loop while(empty()){} burns a whole CPU core. A std::condition_variable lets the thread sleep and be woken only when notified.

Step 2 — Why it needs unique_lock. Why? wait must: unlock the mutex before sleeping (so a producer can add an item), then re-lock on wakeup. lock_guard cannot unlock-then-relock; only unique_lock exposes that. That is one unlock + one relock per wakeup = 2 lock-state changes.

Step 3 — Items consumed. Why? After a genuine wakeup the predicate is true (queue has ≥1 item); the consumer pops exactly $1$ .

Step 4 — Spurious wakeups. Why the predicate form wait(lk, pred)? A thread may wake with no item (a "spurious wakeup"). The predicate re-checks and goes back to sleep, consuming $0$ items on a false wakeup. Always pass the predicate.

Verify: lock-state changes per wakeup $= 2$ ; items on true wakeup $= 1$ ; on spurious wakeup $= 0$ ✓.

Example 6 — Cell G: the degenerate empty case

Step 1 — Loop with zero iterations. Why? The condition 0 < 0 is false immediately, so the body never runs. lock_guard is inside the body → it is never constructed.

Step 2 — Counter and lock counts. Why? No body ⇒ no increments ⇒ counter stays $0$ ; the mutex is locked $0$ times, across all $5$ threads.

Verify: final counter $= 0$ ; total locks $= 0$ ✓.

Example 7 — Cell H: locking the same mutex twice

Step 1 — What a non-recursive mutex promises. Why? std::mutex is not recursive: re-locking a mutex the same thread already holds is undefined behavior — in practice it self-deadlocks.

Step 2 — Count blocked threads. Why? The thread waits for a lock only it can release, but it is stuck waiting — so it can never reach the unlock. Exactly $1$ thread is permanently blocked, and since it holds the mutex, any other thread wanting it is blocked too.

Step 3 — The fix. Why? If you truly need re-entrancy, use std::recursive_mutex; usually the real fix is restructuring so you lock only once. Never rely on std::atomic here — a plain re-lock of a normal mutex is simply UB. Compare std::atomic and lock-free programming for lock-free alternatives.

Verify: self-deadlocked threads $= 1$ ✓.

Example 8 — Cell I: scaling to N threads

Step 1 — Formula. Why? Each increment is serialized and none is lost, so the total is simply every increment summed: $N \cdot M$ .

Step 2 — Evaluate. Why? $8 \times 50000 = 400000$ .

Step 3 — Why correctness is $N$ -independent. Why? The mutex guarantees mutual exclusion regardless of how many threads compete — adding threads changes speed and contention, never the final value. (More threads on one mutex can slow you down; for pure counters prefer std::atomic and lock-free programming.)

Verify: $8 \times 50000 = 400000$ ✓.

Example 9 — Cell J: ticket counter (real-world)

Step 1 — Why the lock is essential. Why? Without it, two threads could both read tickets == 1, both decrement, and sell $2$ tickets that don't exist (overselling — a classic race). The lock makes the check-and-decrement one atomic decision.

Step 2 — Count outcomes. Why? Only 3 tickets exist. With the lock, exactly $3$ customers succeed, $3 - 3 = 0$ remain, and $10 - 3 = 7$ are turned away. No overselling is possible.

Step 3 — Conservation check. Why? Sold + remaining must equal the starting stock: $3 + 0 = 3$ ✓, and everyone is accounted for: $3 + 7 = 10$ .

Verify: sold $= 3$ , remaining $= 0$ , turned away $= 7$ ; conservation $3 + 0 = 3$ and $3 + 7 = 10$ ✓.

Example 10 — Cell K: ownership transfer (exam twist)

Step 1 — Threads are move-only. Why? A std::thread owns exactly one OS thread — a unique resource. Move semantics transfers that ownership; copying it would imply two owners of one thread, which is forbidden.

Step 2 — State after the move. Why? std::move(t1) hands the OS thread to t2. Now t2 is joinable and t1 is empty (not joinable). OS threads in existence $= 1$ .

Step 3 — The copy line. Why? The copy constructor is deleted → std::thread t2 = t1; does not compile (0 successful copies).

Verify: joinable-t1 $= 0$ (false), OS threads $= 1$ , copy compiles $= 0$ (false) ✓.

Recall Rapid recall

Worst-case racy total of two 100000 loops ::: at least 100001, at most 200000; safe = exactly 200000 Lock-held time for 4 workers, read 1 + math 100, unlocking early ::: 4 units (vs 404 held throughout) Naive A-then-B / B-then-A transfers that complete under deadlock ::: 0 of 2; with std::lock, 2 of 2 Lock-state changes during one cv.wait wakeup ::: 2 (unlock to sleep, relock on wake) Final counter for zero-iteration loop on 5 threads ::: 0, mutex locked 0 times Tickets sold from stock 3 with 10 buyers under a lock ::: 3 sold, 0 left, 7 turned away Copying a std::thread ::: does not compile — move-only
