Intuition The ONE core ideaA thread is a second worker running your code at the same time as the first; a mutex is a single key that only one worker may hold, so they never scribble on the same memory at once. Everything on the parent page is just how to hand that key around safely so nobody drops it or fights over it.
Before you can read the parent note, you need to see what each word and symbol means. We build them one at a time, bottom to top. Nothing below uses a term that was not drawn first.
Definition Instruction & program counterA program is a list of tiny steps (instructions). The computer keeps a finger — called the program counter — pointing at "the step I am doing right now". After each step, the finger moves down one line.
The picture: a to-do list with a finger pointing at the current line.
A thread is one such moving finger walking through code. A normal program has one finger. Concurrency means having two or more fingers stepping through code at the same moment.

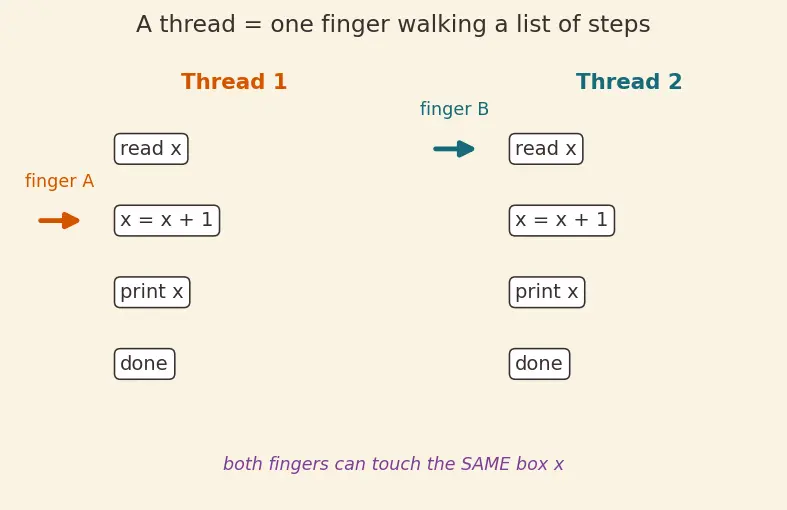

Look at the figure: the left column is one thread (one finger), the right adds a second finger moving independently. Both can read and write the same boxes of memory — that is where trouble begins.
Intuition Why the topic needs thisWithout the idea "a finger walking a list", the words thread and at the same time have no picture. Every later problem (races, locks) is just "two fingers reaching for the same box".
A core is a physical worker inside the CPU that can move one finger at a time . A 4-core chip can genuinely run 4 fingers simultaneously .
Why the topic mentions this: the parent says concurrency exists because cores sit idle . One finger uses one core; the other cores do nothing. A second thread puts a second core to work → more steps done per second (throughput ).
Definition Variable = a labelled box in memoryA variable like counter is a box holding a number. Reading it copies the number out; writing it puts a new number in.
Shared memory means: the same box is visible to both fingers. This is powerful (cooperation) and dangerous (collision), which motivates the next section.
The parent claims ++counter is not one action but three. Here is the picture that proves it.
Intuition Why this mattersBecause it is three steps, a second finger can slip in between them. In the figure, both fingers read 5, both compute 6, both write 6 — two increments happened but the box only went up by one. One increment was lost. That lost step is the data race.
A data race is: two threads touch the same box , at least one writes , and there is no rule ordering them . In C++ this is undefined behavior — the program is allowed to do anything .
Recall Why "at least one writes"?Two fingers only reading the same box never conflict — reading doesn't change it. The danger is a write happening while another finger reads or writes. ::: Because a write changes the box mid-way, so what the other finger sees depends on luck (timing).
Link: this is exactly Undefined behavior in C++ — the compiler assumes it never happens, so the observed result can be nonsense, not just "sometimes wrong".
To serialize accesses means: force them into a single-file line , one finger fully finishing its read-modify-write before the next may start. No overlap → no lost step.
The whole point of a mutex (next) is to make a chosen region serialized .
Definition Mutex (mutual exclusion)A mutex is a single key . Two actions:
lock() — "pick up the key". If someone else holds it, you wait (block) at the door.unlock() — "put the key back", letting a waiter in.
Because there is exactly one key, exactly one finger can be inside the guarded room at a time.
In the figure the key forces the two fingers into a queue: finger A holds the key and does its full read-modify-write; finger B is stuck at the door until A returns the key. The race is gone.
To block means a thread pauses and does nothing , cheaply, until the thing it waits for (the key) is available. It is not "busy spinning"; the OS parks it.
Before lock_guard can make sense, you must see scope .
A scope is the region between a { and its matching }. When the finger crosses the closing }, every object created inside is destroyed , in reverse order — guaranteed , even if we leave early or an exception is thrown.
Definition Constructor / Destructor
A constructor runs when an object is born (at its declaration).
A destructor runs when the object dies (at the closing }).
The key insight: you cannot skip a destructor. Leaving via return, break, or an exception still runs it.
This guaranteed-cleanup rule is the whole foundation of RAII and resource management — "grab the resource in the constructor, release it in the destructor".
std::lock_guard<std::mutex>
A tiny object whose constructor calls lock() and destructor calls unlock() . You just declare it; the key is picked up and — thanks to the guaranteed destructor — always put back at the }. It has no other buttons.
std::unique_lock<std::mutex>
The same RAII idea but with extra buttons : unlock early, lock late (defer_lock), re-lock, and be moved . Use it only when you need one of those buttons — otherwise lock_guard is simpler and cheaper. It is required for std::condition_variable .
<std::mutex> as scary syntax
The < > just says "a lock_guard for a std::mutex" — filling in which kind of key it guards. It is a template parameter, not maths. :::
std:: and ::
std is a namespace — a labelled drawer in the standard library. std::thread reads "the thread tool from the std drawer". The :: is just "reach inside".
Program counter = a moving finger
Variable = a box in memory
Read modify write = 3 steps
Scope and destructor = guaranteed cleanup
lock_guard and unique_lock
Each row feeds the one below it. By the time you reach lock_guard, every earlier word already has a picture.
Test yourself — you are ready for the parent note when you can answer each without peeking.
What is a thread, in the finger picture? One moving finger stepping through a list of instructions; concurrency = two or more fingers at once.
What does one core give you? The ability to run exactly one finger (thread) truly simultaneously with others.
Why is ++counter three operations, not one? It is read the box, add one on a scratch pad, write it back — a second finger can slip in between.
Define a data race in three conditions. Same memory box, at least one writer, no synchronization ordering them — which is undefined behavior in C++.
What does a mutex physically model? A single key that only one finger may hold; lock() picks it up (blocking if held), unlock() returns it.
What does "block" mean for a thread? The OS parks the thread doing nothing until the key it waits for becomes free.
Why can a destructor never be skipped? Crossing the closing brace of a scope always destroys objects made inside — even on early return or exception.
What is the one-line job of lock_guard? Lock the mutex in its constructor, unlock in its destructor, so the key is always returned on scope exit.
When do you reach for unique_lock instead? When you need extra buttons — early unlock, deferred lock, move, or a condition variable.
What does std:: before a name mean? The name lives in the std namespace (drawer) of the standard library; :: reaches into it.
