Unions — overlapping memory: Foundations — Coding deep dive

Before you can read a single line of the parent note, you must own every word and symbol it throws at you. Below, each item is built from the one before it. Nothing is used before it is drawn.

1. A byte — the smallest labelled box

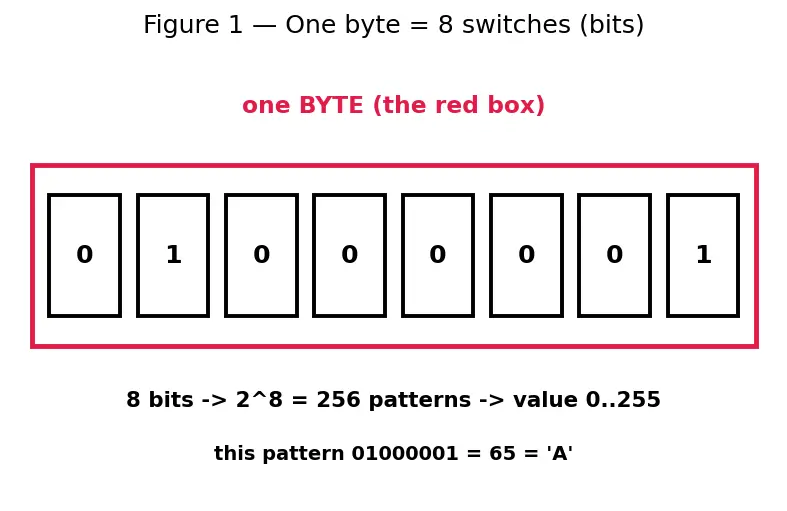

Look at the figure: eight tiny switches (bits) sit inside one box. Each switch is OFF (0) or ON (1). Eight switches give $2^{8} = 256$ patterns, so one byte holds $0$ to $255$ .

Why the topic needs it: a union is described entirely in terms of how many bytes each member takes and which bytes overlap. If "byte" is fuzzy, everything after is fuzzy.

2. An address — the number written on the box

In the figure the red box is at offset 0 — the very first box of the object. The parent note keeps saying "all members start at the same address (offset 0)". This picture is that sentence.

3. A type — the rule for reading a group of boxes

Type	Boxes (bytes)	How it reads them
`char`	1	one byte as a small number / ASCII letter
`int`	usually 4	four bytes as a whole number
`float`	4	four bytes as a decimal, using a special bit layout
`double`	8	eight bytes as a more precise decimal

Why the topic needs it: the parent's key warning — reading a different member reinterprets the raw bits, it does not convert — is exactly "same boxes, different ruler."

4. `sizeof` — the tool that measures the boxes

Reading the notation: sizeof(union Mix) == 8 means "measuring the union gives 8 boxes." The == here is C's is-it-equal? test, giving true/false — not assignment.

5. `max` and the "worst case"

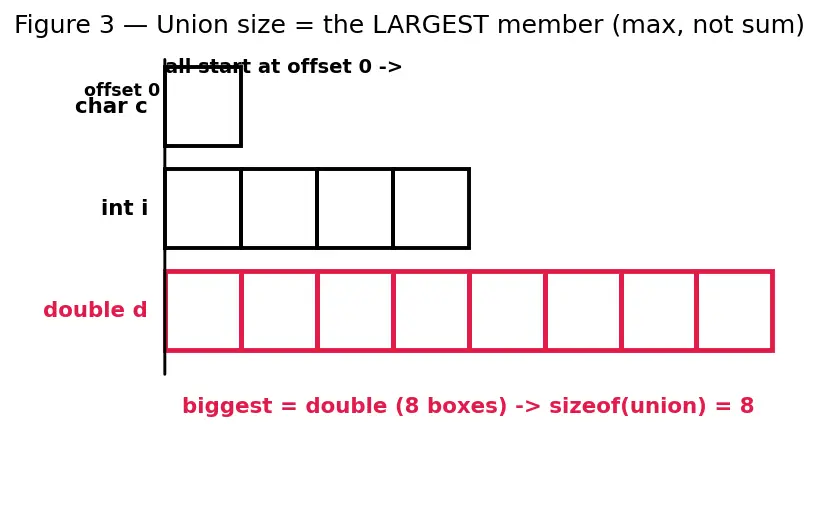

The figure stacks each member's bytes from offset 0. The red bar is the largest member — its length sets the room size, because the room must survive the worst case (the biggest tenant).

Why $max$ and not $\sum$ (sum)? A struct adds member sizes because members sit in separate boxes (sum). A union overlaps them on the same boxes, so only the longest one matters (max). That single choice — sum vs max — is the whole difference. See Structs — separate memory for each member.

6. Alignment — why sizes get rounded up

Why the topic needs it: the parent writes "(plus padding for alignment)" and never explains it. Now you know: padding is the rounding-up so arrays of unions keep every element on a legal address. Full story in Memory alignment and padding.

7. Endianness — which byte is "first"

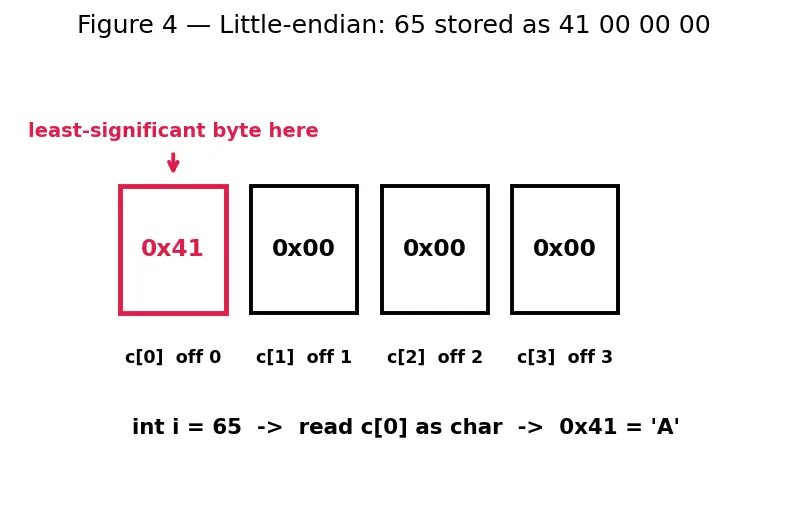

The number 65 in one int is, in hex, 00 00 00 41 (only the last byte carries value). The figure shows little-endian laying it down as 41 00 00 00 — the red 41 landing in box 0. So reading box 0 as a char gives 0x41 = 'A'. That is exactly the parent's u.c[0] == 'A' example. Deeper: Endianness — byte order.

Why the topic needs it: the parent's type-punning example only makes sense once you know why the 'A' shows up at c[0] and not c[3].

2^{8} = 256

patterns.

What does "offset 0" mean and why do all union members share it?

The first box of the object; every union member starts there so they overlap on the same memory.

Two rulers over the same four boxes — what does that model?

Type punning: the same bytes read as different types give different values, with no conversion.

What question does sizeof(T) answer?

How many bytes one value of type T occupies on this machine.

In the size formula, what do

max_{m}

and

align (\cdot)

each do?

max_{m}

picks the biggest member's size;

align

rounds it up to a legal multiple.

Why is a union's size max-of-members while a struct's is sum-of-members?

A union overlaps members on the same boxes (max); a struct gives each its own boxes (sum).

On little-endian, where does the least-significant byte of an int go?

In the lowest-address box (offset 0), so u.c[0] reads it.

What is an enum and why does a tagged union use one?

A named set of integer constants; it labels which union member is currently live.

Difference between = and == in C?

= assigns a value; == tests equality and yields true/false.
