WHAT is a union?

union Data {
    int   i;     // 4 bytes
    float f;     // 4 bytes
    char  c[4];  // 4 bytes
};

Contrast with a struct:

Feature	`struct`	`union`
Memory	sum of all members (+padding)	size of largest member
Members live	all simultaneously	only one at a time
Use case	bundle related data	save space / reinterpret bytes

WHY is its size the largest member?

Worked example Sizing by hand

union Mix { char c; int i; double d; };

Sizes: char=1, int=4, double=8. Largest = 8. Why this step? The union must fit the biggest member, the double. Alignment of double is 8, and 8 is already a multiple of 8. $\Rightarrow$ sizeof(union Mix) == 8.

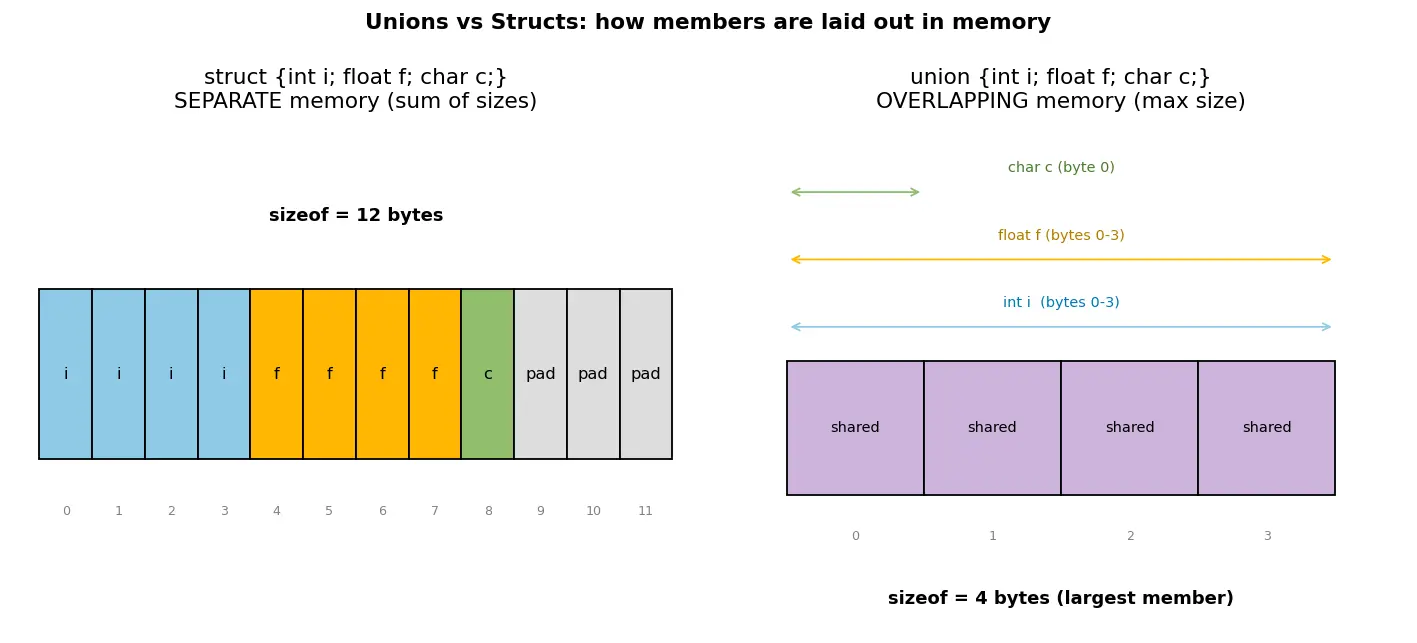

HOW the bytes overlap (the key picture)

Worked example Writing one member clobbers the others

union Data d;
d.i = 65;            // bytes now hold integer 65
printf("%d\n", d.i); // 65   — valid, we just wrote i
d.f = 3.14f;         // SAME bytes overwritten with float bits
printf("%d\n", d.i); // garbage! i's bytes are now float bits
printf("%f\n", d.f); // 3.140000 — valid, last written

Why this step? d.i and d.f are the same 4 bytes. Writing d.f reinterprets those bytes as a float pattern; reading d.i afterward reads float bits as if they were an int.

Worked example Type punning — peeking at the bytes

Suppose int i = 65 on a little-endian machine. ASCII 'A' = 65.

union { int i; char c[4]; } u;
u.i = 65;
// bytes (little-endian): 41 00 00 00  (hex)
printf("%c\n", u.c[0]);  // 'A'

Why this step? The lowest-order byte of 65 is 0x41. On little-endian it lands at c[0], so reading it as a char gives 'A'. This is how unions let you inspect raw representation.

A practical use: tagged union (safe pattern)

struct Variant {
    enum { INT, FLOAT, STR } tag;   // who lives in the room now?
    union { int i; float f; char *s; } val;
};

WHY: there is no runtime flag inside a union telling you the active member. The tag is your bookkeeping so you only read what you last wrote.

Common mistake Steel-manning the common errors

Mistake 1: "I can write d.i and later read d.f to convert int→float." Why it feels right: both are 4 bytes, so it "looks like" a conversion. The truth: reading a different member reinterprets the raw bit pattern, it does NOT do an arithmetic conversion. 65 as int has a totally different bit pattern than 65.0 as float. Fix: use a cast float f = (float)d.i; for value conversion; use the union only when you want the raw bits.

Mistake 2: "sizeof(union) = sum of members." Why it feels right: that's true for structs. Fix: unions overlap, so size = largest member (+alignment padding).

Mistake 3: forgetting that initializing a union sets only the FIRST member by default. union Data d = {65}; initializes d.i, not all members. The rest is meaningless to read.

Recall Feynman: explain to a 12-year-old

Imagine one whiteboard. You can write a number, OR a word, OR a drawing — but only one thing fits because it's the same board. If you write a word over your number, the number is gone. A union is that single whiteboard shared by different kinds of "writing." A struct, by contrast, is a notebook with a separate page for each thing. The board is exactly as big as the biggest thing you might write.

Flashcards

What is the defining property of a union's members?

They all share the same memory (start at offset 0), so only one is valid at a time.

How is the size of a union determined?

It equals the size of its largest member, rounded up to satisfy alignment.

In a struct, how is size determined vs a union?

struct = sum of members (+padding); union = size of largest member (+padding).

What happens to other members when you write one union member?

Their bytes are overwritten/reinterpreted — reading them now gives meaningless data.

Does reading a different union member perform a type conversion?

No — it reinterprets the raw bit pattern (type punning), not an arithmetic conversion.

What is a tagged union and why is it needed?

A struct holding the union plus an enum tag recording the active member, because a union itself doesn't remember which member is live.

For union { char c; int i; double d; }, what is sizeof?

8 (size of the largest member, double, already 8-aligned).

With little-endian and u.i = 65, what does u.c[0] give?

'A' (0x41), the lowest-order byte of 65.

Connections

Structs — separate memory for each member
Memory alignment and padding
Endianness — byte order
Type punning and bit-level reinterpretation
Enums (used for the tag in tagged unions)
sizeof operator

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, union ka matlab simple hai: ek hi memory ka tukda jise saare members share karte hain. struct mein har member ka apna alag ghar hota hai (isliye size = sab members ka sum), lekin union mein sab roommates ek hi kamre mein rehte hain — sabhi offset 0 se start hote hain. Isliye union ka size hamesha uske sabse bade member ke barabar hota hai (alignment padding ke saath).

Sabse important baat: ek time pe sirf ek member valid hota hai. Jab tum d.f = 3.14 likhte ho, to wahi bytes overwrite ho jaate hain, aur agar tum phir d.i padho to garbage milega — kyunki ab un bytes mein float ka bit pattern pada hai, int ka nahi. Ye koi conversion nahi hota, sirf same bytes ko alag tarah se "padhna" hai (isko type punning kehte hain).

Ek bahut common galti: log sochte hain d.i = 65 ke baad d.f padhne se 65.0 milega. Galat! Bits same hote hain par interpretation alag — int 65 aur float 65.0 ke bit patterns bilkul alag hote hain. Value convert karni ho to (float)d.i cast karo.

Real life mein union ka use memory bachane ke liye aur tagged union banane ke liye hota hai — ek struct mein union + ek enum "tag" rakho jo bataye abhi kaunsa member active hai, kyunki union khud kuch yaad nahi rakhta. Bas yahi core idea hai: ek room, ek waqt mein ek hi cheez, size = sabse bada member.
