Bit fields in structs: Worked examples — Coding deep dive

Parent: Bit Fields in Structs

This page walks the whole zoo of bit-field situations. Before we solve, we map the terrain, so you can see that we left nothing out.

The scenario matrix

Every bit-field puzzle you will ever meet falls into one of the cells below. We name the cell, then later solve at least one example that lands squarely in it.

#	Case class	What makes it tricky	Covered by
A	Choosing a width	pick smallest $N$ with $2^{N} \geq$ needed values	Ex 1
B	Unsigned overflow (wrap)	value too big → keep low $N$ bits	Ex 2
C	Signed field, positive value	top bit is a sign, not a value	Ex 3
D	Signed field, value that becomes negative	the sign bit flips meaning	Ex 3, Ex 4
E	Zero / degenerate value	storing 0, and the all-ones maximum	Ex 5
F	Packing & `sizeof`	how fields share one storage unit	Ex 6
G	Zero-width alignment trick	forcing a new storage unit	Ex 7
H	Real-world word problem	a hardware status register	Ex 8
I	Exam twist (address / illegal op)	`&s.field` won't compile	Ex 9

Two tiny tools do all the arithmetic below, so let us earn them first.

The picture above is the mental model for every example: a row of numbered slots, filling left, and a value that "falls off the edge" when it is too wide.

Example 1 — Cell A: choose the smallest width

Worked example How wide for a weekday?

You must store a weekday number 1–7. Declare the narrowest unsigned bit field that works.

Forecast: guess the bit count before reading on. (Careful: is it 3 or 4?)

Count the values you must represent. Days 1..7 is 7 distinct values. Why this step? The width question is always "how many distinct values," never "how big is the largest number" by itself — though here they nearly agree.
Solve $2^{N} \geq 7$ . $2^{2} = 4 < 7$ , $2^{3} = 8 \geq 7$ . So $N = 3$ . Why this step? $2^{N}$ is the count a box holds (our first tool); we want the smallest box that holds at least 7 things.
Write the declaration.
```
unsigned int weekday : 3;   // holds 0..7, we use 1..7
```
Why this step? unsigned because weekdays are never negative; 3 bits because that is the answer from step 2.

Verify: a 3-bit box holds $0 \dots 7$ — that comfortably contains 1..7 with value 0 to spare. A 2-bit box tops out at 3, which cannot even reach Thursday. ✓

Example 2 — Cell B: unsigned overflow wraps

Worked example Store 20 into a 4-bit field

struct { unsigned q : 4; } s;
s.q = 20;
printf("%u\n", s.q);

Forecast: what number prints? (It is not an error, and not 20.)

Find the box's capacity. 4 bits hold $2^{4} = 16$ values, i.e. $0 \dots 15$ . Since $20 > 15$ , it does not fit. Why this step? We must know whether wrap even happens.
Write 20 in binary. $20 = 16 + 4 = 1010 0_{2}$ (five digits). Why this step? The box keeps only the low 4 binary digits, so we need to see those digits.
Keep the low 4 bits. From $1010 0_{2}$ , drop the leftmost bit → $010 0_{2} = 4$ . Why this step? A 4-slot box physically cannot store the 5th digit — it falls off the edge (look at the "overflow" arrow in the s01 figure).
Cross-check with the wrap tool. $20 mod 16 = 4$ . Why this step? Modulo is just the fast way to do steps 2–3 without drawing bits.

Verify: program prints 4, and $20 - 16 = 4$ matches. ✓

Example 3 — Cells C & D: signed field, positive vs negative

Worked example What does a 3-bit

signed field store?

struct { signed int x : 3; } s;
s.x = 3;   printf("%d\n", s.x);   // case C
s.x = 6;   printf("%d\n", s.x);   // case D

Forecast: guess both outputs. (The second one surprises everyone.)

List the legal range of a signed 3-bit field. One bit is the sign, so values run $- 2^{2} \dots 2^{2} - 1 = - 4 \dots 3$ . Why this step? Signed and unsigned share the same bits but interpret the top bit differently.
Case C: store 3. $3$ is inside $- 4 \dots 3$ , so it is kept exactly. Prints 3. Why this step? No wrap, no sign issue — the easy case, shown so you trust the machinery.
Case D: store 6. First truncate to 3 bits: $6 = 11 0_{2}$ , already 3 bits, so the raw bits are $110$ . Why this step? Overflow-truncation happens before we read the sign.
Re-interpret those bits as signed. Top bit is 1 → negative. The two's-complement value of $11 0_{2}$ is $6 - 2^{3} = 6 - 8 = - 2$ . Prints -2. Why this step? In a signed box, the leading 1 means "subtract $2^{N}$ " — that is what "the sign bit" does (see Unsigned vs signed integers).

Verify: $6 mod 8 = 6$ as raw bits; since $6 \geq 2^{2} = 4$ , the signed value is $6 - 8 = - 2$ . ✓

Example 4 — Cell D limit: the most-negative value

Example 5 — Cell E: zero and the all-ones maximum

Worked example Both extremes of an 8-bit unsigned register

For unsigned int reg : 8;, what does storing 0 give, and what is the largest storable value and its bits?

Forecast: two numbers — the floor and the ceiling.

Zero is the degenerate low case. $0$ stores as $0000000 0_{2}$ ; nothing to wrap. Reads back as 0. Why this step? Always confirm the trivial input behaves — it is a free correctness check.
Maximum is all ones. Largest unsigned value $= 2^{8} - 1 = 255 = 1111111 1_{2}$ . Why this step? "All ones" is the visual signature of a full box (all slots switched on).
What if you store 256? $256 = 10000000 0_{2}$ (9 bits) → low 8 bits are all zero → wraps to 0, same as case E's floor. Why this step? Shows the ceiling and floor are neighbours on the number circle: one past 255 lands on 0.

Verify: $2^{8} - 1 = 255$ ✓ and $256 mod 256 = 0$ ✓.

Example 6 — Cell F: packing and `sizeof`

Worked example How many bytes?

struct S {
    unsigned a : 5;
    unsigned b : 5;
    unsigned c : 25;
};
printf("%zu\n", sizeof(struct S));   // typical 32-bit-unit compiler

Forecast: guess sizeof. (Is it 4? 8? something odd?)

Place a. Takes slots 0–4 of the first 32-bit unit. Free slots left: 27. Why this step? The compiler fills a storage unit left-to-right, tracking an offset (see Memory alignment and padding).
Place b. Takes slots 5–9. Free slots left: 22. Why this step? Same rolling offset; still comfortably inside unit 1.
Try to place c (25 bits). Only 22 slots remain in unit 1, but $c$ needs 25. It does not fit. Why this step? A field may not straddle the end of a unit here, so it must jump.
Start a fresh unit for c. Now the struct spans two 32-bit units = $2 \times 4 = 8$ bytes. Why this step? sizeof counts whole storage units used, not bits.

Verify (bit accounting): unit 1 uses $5 + 5 = 10 \leq 32$ bits ✓; $10 + 25 = 35 > 32$ forces the jump ✓; total units $= 2$ , so sizeof $= 8$ . ✓

Example 7 — Cell G: the zero-width alignment trick

Worked example Force a new storage unit

struct R {
    unsigned low  : 4;
    unsigned      : 0;   // the trick
    unsigned high : 4;
};

Where do low and high live, and (on a 32-bit-unit compiler) what is sizeof(struct R)?

Forecast: do low and high share a unit or not?

Place low. Slots 0–3 of unit 1. Why this step? Normal packing.

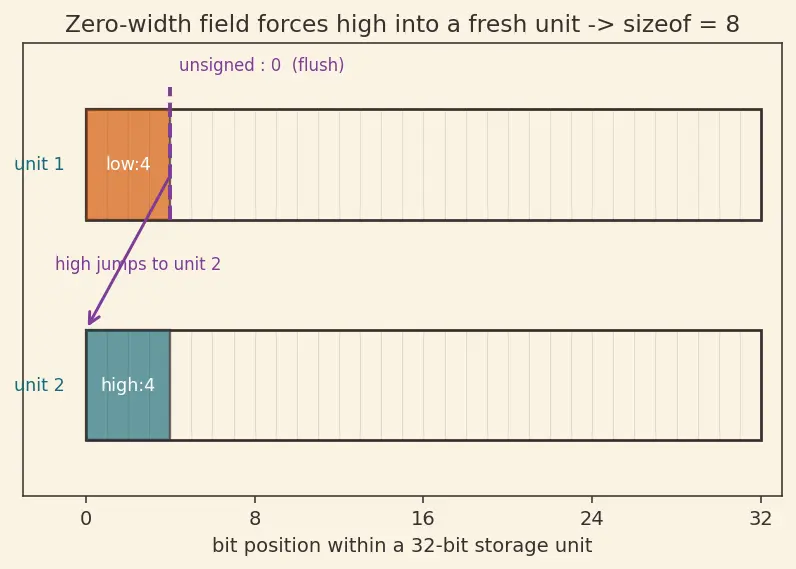

Hit the unsigned : 0; marker. An unnamed zero-width field stores nothing but says "flush to the next unit boundary." Why this step? This is the whole point of the trick — deliberate alignment, not data.
Place high. Because of the flush, high starts at slot 0 of unit 2, not slot 4 of unit 1. Why this step? Useful when mirroring a hardware layout where two fields must sit in separate registers.
Count units. Two units touched → sizeof $= 8$ bytes. Why this step? Same "whole units" rule as Example 6.

Verify: without the trick both 4-bit fields fit in one unit ( $4 + 4 = 8 \leq 32$ , sizeof=4); the zero-width field pushed high to a new unit, so sizeof becomes 8. ✓

Example 8 — Cell H: real-world hardware register

Worked example Decode a motor-controller status byte

A chip exposes one 8-bit status register. In C we mirror it (see Embedded systems / hardware registers):

struct Status {
    unsigned ready  : 1;   // bit 0
    unsigned dir    : 1;   // bit 1  (0=fwd, 1=rev)
    unsigned speed  : 3;   // bits 2..4  (0..7)
    unsigned error  : 3;   // bits 5..7  (fault code)
};

The hardware reports the raw byte 0b110_101_1_0 grouped as error speed dir ready = 110 101 1 0. Decode every field.

Forecast: guess ready, dir, speed, error before decoding.

Split the byte by the declared widths. Reading the grouping: ready=0, dir=1, speed=101₂, error=110₂. Why this step? Each field owns a fixed slice; decoding is just slicing at the right widths.
ready = 0 → the motor is not ready. Why this step? A 1-bit field is a plain flag: 0/1 only ( $2^{1} = 2$ values).
dir = 1 → direction is reverse. Why this step? Same 1-bit flag, meaning fixed by the datasheet.
speed = 101₂ = 5. Unsigned 3-bit, range 0..7. Why this step? Convert the 3-bit slice to a number ( $4 + 0 + 1 = 5$ ).
error = 110₂ = 6. Fault code 6. Why this step? Same conversion for the top slice ( $4 + 2 + 0 = 6$ ).

Verify: widths sum to $1 + 1 + 3 + 3 = 8$ bits = exactly one byte ✓; decoded values $0, 1, 5, 6$ each lie in their field's range ( $< 2$ , $< 2$ , $< 8$ , $< 8$ ) ✓.

Example 9 — Cell I: the exam twist (address is illegal)

Worked example Spot the compile error

struct { unsigned flag : 1; } s;
unsigned *p = &s.flag;      // (A)
unsigned  t = s.flag;
unsigned *q = &t;           // (B)

Which line fails to compile, and how do you rescue the intent?

Forecast: guess which of (A)/(B) breaks.

Recall what & needs. The & operator needs a byte address; C addresses point at whole bytes, never at a single bit. Why this step? This is the rule the twist is built on (contrast with Bitwise operators, which manipulate bits without ever needing their address).
Line (A) fails. flag may sit at, say, bit 0 inside a byte — it has no byte address, so &s.flag is a compile error. Why this step? Directly applies step 1.
Line (B) is fine. t is an ordinary unsigned living in its own bytes, so &t is legal. Why this step? Copying into a normal variable gives the value a real address.
Rescue pattern. Always copy a bit field into a plain variable before you need its address. Why this step? It is the standard idiom and the expected exam answer.

Verify (logic): exactly line (A) is rejected; after the copy, t == s.flag and &t is valid. No arithmetic to check — the claim is a rule, confirmed by the C standard's "bit fields are not addressable." ✓
