Parent: Bit fields in structs. This page is a self-testing ladder. Each problem states the question cleanly; the Solution is hidden inside a collapsible callout so you can try first, then reveal. Levels climb from recognising the syntax to mastering real hardware-register layouts.

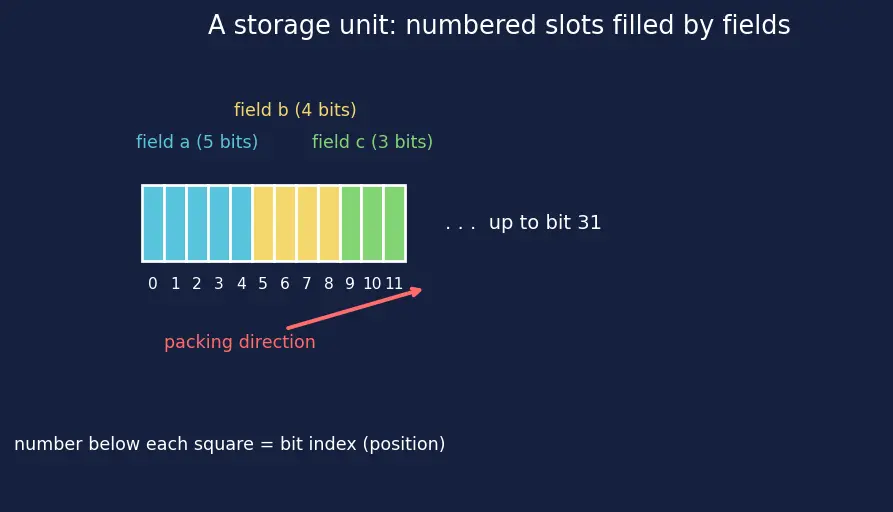

Before we start, one shared picture to lean on. A bit field lives inside a storage unit — think of an unsigned int as a row of numbered slots, filled by fields in these figures. Keep this in mind for every packing question.

Common mistake Read this first — almost everything here is

implementation-defined The C standard deliberately leaves several choices to the compiler and CPU. Every "assuming…" in the solutions below is us fixing one such choice so the arithmetic is concrete. What actually varies:

Packing direction (which slot is "first"): low-bit-first or high-bit-first is implementation-defined and often tracks endianness. Our figures draw low-index-first; your compiler may draw the mirror image.
Storage-unit size: the standard does not force it to be a 32-bit int. We assume 32-bit units; some targets differ.
Signedness of plain int : N: whether a plain int field is signed or unsigned is implementation-defined. Always write signed/unsigned explicitly.
Allowed types: portable, standard bit-field types are only _Bool, signed int, and unsigned int (C99/C11 §6.7.2.1). char/short/long bit fields are compiler extensions.

Takeaway: the logic you practise here (widths, wrapping, unit boundaries) is universal; the exact byte layout is portable only if you avoid the grey areas above.

Recall the vault prerequisites if any word feels new: Data types and sizeof, Bitwise operators, Unsigned vs signed integers, Memory alignment and padding, Structs in C.

Level 1 — Recognition

Recall Solution — L1·Q1

Answer: (b).

(a) illegal — the type of a bit field must be one of the portable integer types permitted by the standard (signed int, unsigned int, _Bool). float is not.
(c) illegal — the width must be a non-negative integer constant; 2.5 is not an integer.
(d) illegal — a bit field is a single scalar, you cannot make an array a bit field.
(b) legal — type member : width; with an allowed integer type and an integer width. ✓

Recall Solution — L1·Q2

Use the counting rule: $N$ bits give $2^{N}$ combinations, largest is all-ones $= 2^{N} - 1$ . $N = 4 \Rightarrow 2^{4} = 16 values, range 0 \dots 15.$ Largest = 15.

Level 2 — Application

Recall Solution — L2·Q1

Why this step: we need $2^{N} - 1 \geq 1000$ , i.e. $2^{N} \geq 1001$ .

$2^{9} = 512 < 1001$
$2^{10} = 1024 \geq 1001$ ✓

Answer: $N = 10$ bits. Declaration: unsigned int val : 10; (holds $0 \dots 1023$ ).

Recall Solution — L2·Q2

A 3-bit field keeps only the low 3 bits = value mod $2^{3} = 8$ . $20 = 1010 0_{2} . Low 3 bits = 10 0_{2} = 4. 20 mod 8 = 4.$ Prints 4. No error, no warning — silent truncation. Look at figure s02: the top bits of 20 simply fall off the left edge of the 3-slot box.

Recall Solution — L2·Q3

A signed field spends its top bit on the sign (see Unsigned vs signed integers). With $N = 4$ bits in two's complement: $range = - 2^{N - 1} \dots 2^{N - 1} - 1 = - 2^{3} \dots 2^{3} - 1 = - 8 \dots 7.$ Answer: −8 to 7 (16 values total, but only 0..7 are non-negative).

Level 3 — Analysis

Worked example L3·Q1 — sizeof of a packed struct

struct S {
    unsigned a : 5;
    unsigned b : 5;
    unsigned c : 25;
};

Assuming a 32-bit int storage unit and left-to-right packing, what is sizeof(struct S)?

Recall Solution — L3·Q1

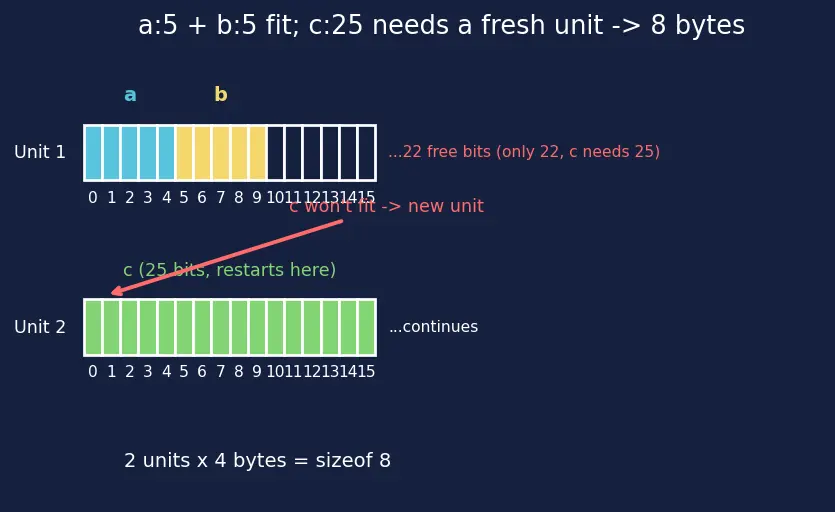

Track the offset in one 32-bit unit (figure s03):

a takes bits 0–4 (offset now 5).
b takes bits 5–9 (offset now 10).
c needs 25 bits, but only $32 - 10 = 22$ remain → won't fit. It starts a fresh unit (bits 0–24 of unit #2).

Two storage units are used → $2 \times 4$ bytes. sizeof(struct S) = 8 under these assumptions (32-bit unit, left-to-right packing). On a compiler with a different unit size or packing direction the number can differ — the reasoning, not the constant, is the point.

Recall Solution — L3·Q2

unsigned : 0; is the align-to-next-unit instruction: it forces the field after it to begin a fresh storage unit.

low → bits 0–3 of unit #1.
: 0 → close unit #1, jump to unit #2.
high → bits 0–3 of unit #2.

Two units → sizeof(struct R) = 8 bytes (assuming 4-byte units). (Contrast: without the : 0 divider, both 4-bit fields fit in one unit → 4 bytes.) See Memory alignment and padding.

Recall Solution — L3·Q3

It does NOT compile. The smallest thing a C pointer can address is a byte. A 1-bit field may sit in the middle of a byte (e.g. bit 3 of byte 0), which has no byte address of its own. So &s.flag is a compile error. Fix — copy to a normal variable first:

unsigned t = s.flag;   // t is a full addressable variable
unsigned *p = &t;      // legal

Level 4 — Synthesis

Recall Solution — L4·Q1

Sum the widths: $1 + 3 + 2 + 2 = 8$ bits → the logical layout needs exactly one byte. In portable standard C the only allowed bit-field types are unsigned int / signed int / _Bool, so we declare with unsigned int (see Embedded systems / hardware registers):

struct StatusReg {
    unsigned int ready    : 1;   // bit 0
    unsigned int speed    : 3;   // bits 1..3
    unsigned int error    : 2;   // bits 4..5
    unsigned int reserved : 2;   // bits 6..7
};

All 8 logical bits are accounted for; speed correctly holds $0 \dots 2^{3} - 1 = 0 \dots 7$ . ✓

Honest caveat about sizeof: because the storage unit is an unsigned int, sizeof(struct StatusReg) is typically 4 bytes, not 1 — the fields live in the low 8 bits of a 4-byte unit, the rest is padding. You cannot portably force a 1-byte struct: unsigned char ready : 1; is a compiler extension (GCC/Clang accept it, but the standard does not list char as a bit-field type, and even then it may still pack into an int on some targets). If you truly need an exact 1-byte hardware image, the portable route is a raw unsigned char plus manual shift-and-mask (next exercise), or a compiler-specific __attribute__((packed)).

Recall Solution — L4·Q2

speed sits at bits 1–3. Shift it down so bit 1 lands at position 0, then mask to keep 3 bits.

Shift right by 1: reg >> 1 brings bits 1–3 to positions 0–2.
Mask with $2^{3} - 1 = 7 = 11 1_{2}$ : & 0x7 keeps exactly those 3 bits.

unsigned speed = (reg >> 1) & 0x7;

Check with reg = 0b01011010 (= 90): reg >> 1 = 0b00101101, & 0b111 = 0b101 = 5. So speed = 5. This shift-and-mask is fully portable — it does not depend on packing direction, unit size, or signedness the way a bit-field layout does.

Level 5 — Mastery

Worked example L5·Q1 — Full trace with wrap and packing

struct { unsigned a : 4; unsigned b : 4; } s;
s.a = 25;
s.b = 7;
printf("%u %u\n", s.a, s.b);

Predict the exact output, showing the arithmetic.

Recall Solution — L5·Q1

Each field is 4 bits → keep value mod $2^{4} = 16$ .

s.a = 25: $25 mod 16 = 9$ . (Binary: $1100 1_{2}$ , low 4 bits $= 100 1_{2} = 9$ .)
s.b = 7: $7 < 16$ , stored as-is $= 7$ .

Output: 9 7. Both fields live in the same storage unit (4+4 = 8 bits ≤ 32), independent of each other. (The values 9 and 7 are portable; which physical bits hold them depends on packing direction.)

Recall Solution — L5·Q2

Place each field at its starting bit and add (this is packing, done by hand — order fixed by the problem, so it's unambiguous):

ready (bit 0): $1 ≪ 0 = 1$
speed (bits 1–3): $5 ≪ 1 = 10$
error (bits 4–5): $2 ≪ 4 = 32$
reserved (bits 6–7): $0 ≪ 6 = 0$

$byte = 1 + 10 + 32 + 0 = 43 = 0010101 1_{2} .$ Answer: 43. Reading right-to-left: reserved=00, error=10, speed=101, ready=1 — matches the inputs. ✓

Worked example L5·Q3 — Predict

sizeof under a subtle divider

struct M {
    unsigned p : 10;
    unsigned q : 10;
    unsigned   : 0;
    unsigned r : 10;
};

With 32-bit units and left-to-right packing, give sizeof(struct M).

Recall Solution — L5·Q3

p → bits 0–9 of unit #1 (offset 10).
q → bits 10–19 of unit #1 (offset 20).
: 0 → close unit #1, force next field to a fresh unit.
r → bits 0–9 of unit #2.

Even though r (10 bits) would have fit in unit #1's remaining 12 bits, the zero-width field pushed it to unit #2. Two units used → sizeof(struct M) = 8 bytes (under the 32-bit-unit assumption).

Recall Rapid recap — the four moves you practised

Truncation ::: value stored = assigned value mod $2^{N}$ (keep low N bits). Signed range ::: $- 2^{N - 1}$ to $2^{N - 1} - 1$ ; unsigned range $0$ to $2^{N} - 1$ . Packing rule ::: fill a storage unit until a field won't fit; then start a fresh unit. Extract a field at bit k ::: (reg >> k) & mask — shift first, then mask. Which parts are portable ::: values/widths/wrapping are; exact byte layout (packing order, unit size) is implementation-defined.
