Code coverage — line, branch, path coverage: Worked examples

Before anything, three plain-word reminders (we earn every term):

The scenario matrix

Every worked example below is tagged with the cell of this matrix it exercises. Together they hit every cell.

Cell	Code shape	What makes it tricky
A	Straight line, no `if`	Degenerate: 0 branches — what does branch coverage even mean?
B	Single `if` / no `else`	The "hidden" fall-through False outcome
C	Two sequential `if`s	Path explosion $2^{n}$ ; branch cheap, path dear
D	Nested `if`	Some paths are infeasible — the denominator shrinks
E	Loop (runs $0.. k$ times)	Infinite/huge path count; loop-boundary branches
F	Short-circuit `and`/`or`	Sub-conditions hide inside one decision
G	Dead / unreachable code	100% branch still leaves lines at 0% — impossible to reach
H	Word problem (real login)	Translate business rules into coverage targets
I	Exam twist	"100% line but a live bug" — the vanity-metric trap

Example 1 — Cell A: no decisions at all

Worked example Straight-line code

def area(w, h):
    a = w * h      # L1
    return a       # L2

One test area(3, 4). What are line, branch, and path coverage?

Forecast: Guess each of the three numbers before reading on. (Trap: what's the branch denominator?)

Count lines. a = w*h and return a → 2 executable lines. Why this step? The denominator for line coverage is total executable lines.
Run the test. area(3,4) executes both lines → $2/2 = 100%$ line. Why? No fork means every line always runs.
Count branch outcomes. There is no if → 0 branches. Why this matters? Branch coverage is $\frac{taken}{total} = \frac{0}{0}$ . By convention tools report this as 100% (nothing to miss) — never as 0% or an error.
Count paths. With no forks there is exactly one route → our test covers it → $1/1 = 100%$ path.

Verify: Line $= 2/2 = 100%$ . Branch: $0/0$ defined as $100%$ . Path $= 1/1 = 100%$ . Sanity: with zero decisions all three levels must agree — the hierarchy Line ⊂ Branch ⊂ Path only separates them when decisions exist.

Example 2 — Cell B: single `if`, no `else`

Worked example The hidden fall-through

def fee(age):
    price = 10          # L1
    if age < 12:        # D1
        price = 5       # L2
    return price        # L3

One test fee(30). Give all three coverages.

Forecast: fee(30) is an adult — does it ever touch line L2? Guess branch % first.

Count lines: L1, D1, L2, L3 → but if age<12 and the two assignments count as statements → executable lines = price=10, if..., price=5, return price = 4. Why? Each does work at runtime.
Run fee(30): age<12 is False, so price=5 (L2) never runs. Executed = 3 of 4 → $3/4 = 75%$ line. Why this step? Shows one test typically misses the code inside an untaken if.
Count branch outcomes: D1 has True and False → 2 outcomes. Why? Even without an else, "skip the block" is the False outcome — it is invisible in the source but real.
Branch for fee(30): only the False outcome taken → $1/2 = 50%$ branch. Notice $50% \leq 75%$ : branch is stricter.
Reach 100%: add fee(5) (True outcome). Both outcomes hit → $2/2 = 100%$ branch, and now L2 runs too → $4/4 = 100%$ line.

Verify: With fee(30) alone: line $= 3/4 = 75%$ , branch $= 1/2 = 50%$ . With both tests: line $= 100%$ , branch $= 100%$ . This confirms the parent's theorem: 100% branch ⟹ 100% line.

Example 3 — Cell C: two sequential `if`s (path explosion)

Figure — Code coverage — line, branch, path coverage

Worked example Branch is cheap, path is dear

def f(a, b):
    x = 1 if a else 2      # D1
    y = 1 if b else 2      # D2
    return x + y

Tests f(True,True) and f(False,False). Branch %? Path %?

Forecast: Two tests, four possible routes. Guess whether branch is already 100%.

Count branch outcomes: D1{T,F} + D2{T,F} = 4 outcomes. Why? Each decision independently has two.
Check the two tests hit all 4: (T,T) takes D1-True and D2-True; (F,F) takes D1-False and D2-False. All four outcomes appear → $4/4 = 100%$ branch. Why this step? Branch only asks each outcome to happen once, not in every combination.

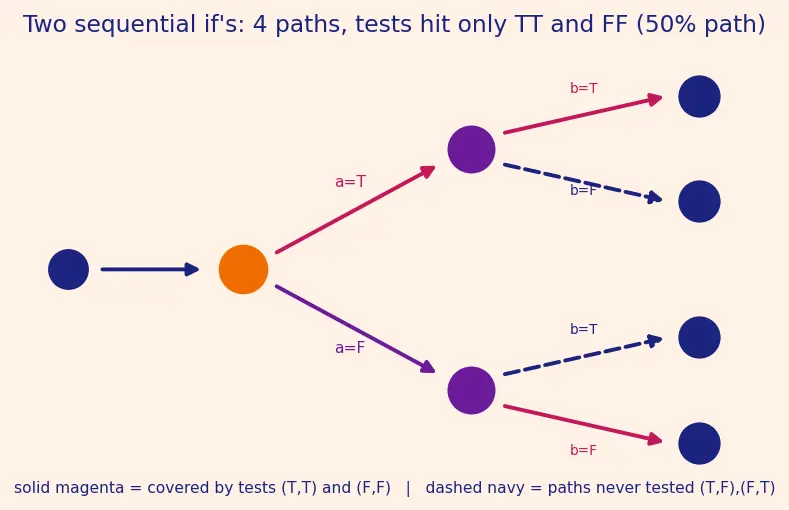

Count paths: with $n = 2$ independent decisions, total routes $= 2^{n} = 2^{2} = 4$ : TT, TF, FT, FF. Look at the figure — four colored routes, our two tests use only the diagonal (TT and FF).
Path coverage: covered ${T T, F F}$ → $2/4 = 50%$ path. Why this matters? A bug living only in the (T,F) combination is invisible to 100% branch but caught by path coverage.

Verify: Branch $= 4/4 = 100%$ . Path $= 2/4 = 50%$ . Total paths $= 2^{2} = 4$ . Confirms the exponential blow-up: 3 sequential ifs would give $2^{3} = 8$ paths.

Example 4 — Cell D: nested `if` (infeasible paths shrink the denominator)

Worked example Not every combination is reachable

def band(n):
    if n > 0:            # D1
        if n > 100:      # D2  (only reachable when D1 True)
            return "big"
        return "small"
    return "nonpos"

How many feasible paths, and what's 100% path cost?

Forecast: Naively $2 \times 2 = 4$ . But can D2 ever run when D1 is False? Guess the real count.

List naive combinations: D1∈{T,F}, D2∈{T,F} → 4 on paper. Why start here? To expose the trap.
Prune infeasible ones: D2 sits inside D1's True block. When D1 is False, D2 is never reached — so (D1=F, D2=T) and (D1=F, D2=F) are the same single route "nonpos". Why this step? Path coverage counts feasible paths only; unreachable combinations are removed from the denominator.
Enumerate feasible paths:
- D1-T, D2-T → "big"
- D1-T, D2-F → "small"
- D1-F (D2 skipped) → "nonpos" → 3 feasible paths, not 4.
Design tests: band(150) → big; band(50) → small; band(-1) → nonpos. Three tests → $3/3 = 100%$ path.

Verify: Feasible paths $= 3$ (not $2^{2} = 4$ ). Tests needed for 100% path $= 3$ . Branch outcomes $= 4$ (D1 T/F, D2 T/F) and the same 3 tests take D1-T (twice), D1-F, D2-T, D2-F → $4/4 = 100%$ branch. So here 100% path is reached with only 3 tests because nesting removed a path.

Example 5 — Cell E: a loop (huge/infinite path count)

Worked example The loop that never stops multiplying paths

def sum_to(k):
    total = 0
    i = 0
    while i < k:      # D1 (loop decision)
        total += i
        i += 1
    return total

What are branch and path coverage for tests sum_to(0) and sum_to(3)?

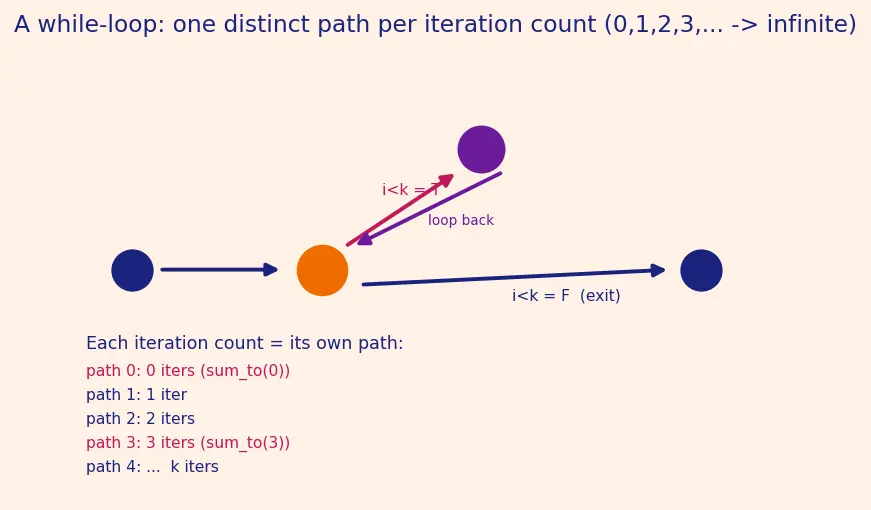

Forecast: A while is a decision too. How many paths does a loop with $0.. k$ iterations create?

Loop decision = one branch: i < k has True (enter loop) and False (exit) → 2 branch outcomes. Why? Every loop guard is a decision, exactly like an if.
sum_to(0): 0 < 0 is False immediately → takes the False (exit) outcome, loop body never runs. Why include this test? It's the zero-iteration degenerate case — the boundary that catches "off-by-one" bugs.
sum_to(3): enters the loop (True outcome) three times, then exits (False). So this one test alone takes both outcomes → $2/2 = 100%$ branch. Why? A loop naturally exercises both guard outcomes once it runs at least once.
Count paths: a path is defined by how many times the loop ran: 0, 1, 2, 3, … iterations — one distinct path each. Since $k$ is unbounded, total paths are effectively infinite (see figure: each loop-count is its own route). Full path coverage is infeasible.
Practical rule: for loops, cover the 0, 1, and "many" iteration cases (boundary testing) instead of all paths.

Verify: Branch outcomes $= 2$ ; sum_to(3) alone gives branch $= 2/2 = 100%$ . Also check the code is correct: $sum_to (3) = 0 + 1 + 2 = 3$ and $sum_to (0) = 0$ . Feasible paths grow with $k$ → unbounded, so path coverage $\to$ infeasible.

Example 6 — Cell F: short-circuit hides a sub-condition

Worked example One decision, two conditions

def can_login(user):
    if user is not None and user.active:   # D1: two conditions C1, C2
        return True
    return False

Tests: can_login(None) and can_login(active_user). Give decision coverage and condition coverage.

Forecast: Both tests run the if line. Does user.active ever get evaluated when user is None?

Decision (branch) coverage: the whole and expression is either True or False.
- can_login(None) → whole condition False → False outcome.
- can_login(active_user) → both parts True → whole True. → both decision outcomes hit → $2/2 = 100%$ decision. Why? Decision coverage only looks at the combined result.
Now look at each sub-condition. Condition coverage needs C1 (user is not None) and C2 (user.active) each to be both True and False. Why this step? Bugs can hide in one sub-term.
Trace short-circuit: for can_login(None), C1 is False, and and short-circuits — Python never evaluates C2. So C2 is never False in our tests. C2 got: True (in the active-user test) but never False. Why it matters? We only exercised 3 of the 4 needed (C1-T, C1-F, C2-T) → C2-F missing.
Condition coverage: $3/4 = 75%$ . To fix, add can_login(inactive_user) (C1 True, C2 False) → $4/4 = 100%$ condition. This is exactly what MC/DC enforces for safety-critical code.

Verify: Decision $= 2/2 = 100%$ . Condition with two tests $= 3/4 = 75%$ . After the third test $= 4/4 = 100%$ . This proves 100% decision can coexist with only 75% condition — the two levels disagree.

Example 7 — Cell G: dead / unreachable code

Worked example The line you can never reach

def sign(x):
    if x >= 0:
        return "nonneg"
    if x >= 0:          # DEAD: can only run when first if was False
        return "never"  # unreachable line
    return "neg"

With sign(5) and sign(-5), what's the best possible line coverage?

Forecast: Can any input ever reach return "never"? Guess the ceiling on line coverage.

Enumerate executable lines: if x>=0 (first), return "nonneg", second if x>=0, return "never", return "neg" → 5 lines.
Trace both tests: sign(5) → first if True → returns "nonneg". sign(-5) → first if False → reaches second if x>=0, which is now also False (x is still -5) → skips "never" → returns "neg". Why this step? Shows return "never" can never execute for any x.
The unreachable line: line 4 (return "never") has 0 reachable inputs. So max lines executable = 4 of 5. Why it matters? Coverage tools cap you below 100% not because your tests are weak, but because the code has a defect (dead code).
Best possible line coverage: $4/5 = 80%$ . The remaining 20% signals "delete this dead code." Why? A coverage number stuck below 100% is a smell pointing at unreachable logic.

Verify: Reachable lines $= 4$ , total $= 5$ → ceiling $= 4/5 = 80%$ . Confirms dead code makes 100% line coverage impossible regardless of test effort.

Example 8 — Cell H: real-world word problem

Worked example Login policy → coverage target

A payment service rule: "Grant access only if the account is verified AND (the balance is positive OR the account is premium)." Model it and find the minimum tests for 100% branch.

def grant(verified, balance, premium):
    if verified and (balance > 0 or premium):   # D1
        return "allow"
    return "deny"

Forecast: How many tests to make the whole if come out both True and False at least once?

Identify the single decision D1. For branch coverage we need D1 True once and False once → 2 outcomes. Why? Branch counts the whole condition's result.
Make D1 True: need verified=True and (balance>0 or premium). Test grant(True, 100, False) → verified ✓, balance>0 ✓ → True → "allow".
Make D1 False: simplest is verified=False. Test grant(False, 100, True) → verified fails → whole thing False → "deny". Why this choice? If verified is False the and short-circuits to False regardless of the rest.
Branch result: two tests give both D1 outcomes → $2/2 = 100%$ branch with 2 tests. Why note this? A real feature's coverage target reduces to counting decision outcomes.
Bonus — condition depth: conditions are C1=verified, C2=balance>0, C3=premium. Full condition coverage needs each both T and F → up to 4–5 tests. For a payment system, use MC/DC.

Verify: Minimum tests for 100% branch $= 2$ . Decision outcomes $= 2$ . Check the logic table: grant(True,100,False)="allow" (T·(T∨F)=T), grant(False,100,True)="deny" (F·anything=F). Both correct.

Example 9 — Cell I: exam twist (100% line, live bug)

Worked example The vanity-metric trap

def abs_val(x):
    if x < 0:
        return -x      # BUG-prone spot
    return x

A tester writes: def test(): abs_val(-3); abs_val(3) # no assert. They report 100% line and 100% branch. Is the function proven correct?

Forecast: Both if outcomes ran; both lines ran. Does that mean abs_val works?

Coverage math: abs_val(-3) takes the True outcome (return -x), abs_val(3) takes False (return x). Both branch outcomes and all lines executed → $100%$ branch, $100%$ line. Why? Coverage counts execution, and both tests executed everything.
The catch: the test has no assert. It never checks that abs_val(-3) equals 3. Why this matters? Coverage measures "did the line run", not "did the result get checked."
Inject a mutation: suppose the code said return x instead of return -x (a mutant). The test still runs, still gives 100% coverage, and still passes because it asserts nothing. The bug survives. Why show this? This is exactly what Mutation Testing detects — a surviving mutant with 100% coverage.
The fix: add real assertions: assert abs_val(-3) == 3. Now the mutant would fail. Coverage is a lower bound on ignorance, not a proof of correctness.

Verify: Line $= 100%$ , branch $= 100%$ for the two-call test. Yet the correct outputs are $abs_val (- 3) = 3$ and $abs_val (3) = 3$ ; an unasserting test cannot distinguish correct code from the mutant return x (which gives $- 3$ ). Confirms 100% coverage ≠ correctness.

Recall Self-check across all cells

Straight-line code branch coverage is defined as ::: 100% (0/0 by convention — no decisions to miss). Two independent sequential ifs: branch % vs path % with the diagonal tests (TT, FF) ::: 100% branch (4/4) but 50% path (2/4). Nested if: why 3 feasible paths not 4? ::: The inner decision is unreachable when the outer is False, so those combinations collapse into one path. A while loop's path count ::: One path per iteration-count (0,1,2,…) → effectively infinite → full path coverage infeasible. Short-circuit a and b with a=False: which condition never gets a False value tested? ::: b — it is never evaluated, so its outcomes may stay untested (condition < 100%). Dead code's effect on maximum line coverage ::: It caps line coverage below 100% no matter how many tests you write. 100% line + no asserts proves what about correctness? ::: Nothing — coverage measures execution, not verification; pair with Mutation Testing.

Related deep dives: Unit Testing · Control Flow Graph · Cyclomatic Complexity · Test-Driven Development · MC-DC Coverage.
