Code coverage — line, branch, path coverage

WHY does code coverage exist?

WHY do we care? Untested code is a blind spot. If a line never runs during testing, you have zero evidence it works. Coverage surfaces these blind spots cheaply and automatically.

WHAT it is NOT: Coverage measures execution, not correctness. A test can execute a line and still assert nothing (no assert), giving 100% coverage with 0% confidence. Steel-man this later.

The three levels (weakest → strongest)

We classify coverage by what unit we count. Bigger units = stronger guarantee = harder to reach.

Level	Unit counted	Catches
Line (statement)	each executable line	unexecuted lines
Branch (decision)	each true/false outcome of every decision	untaken decision outcomes
Path	each end-to-end route through the code	unexercised combinations of branches

Formula The three coverage formulas — derived from first principles

Each is "what you hit ÷ what exists". The only thing that changes is the denominator's definition. $\text{Line} = \frac{\text{lines executed}}{\text{total executable lines}}\times 100\%$ $\text{Branch} = \frac{\text{branch outcomes taken}}{\text{total branch outcomes}}\times 100\%$ $\text{Path} = \frac{\text{distinct paths executed}}{\text{total feasible paths}}\times 100\%$ Why branch denominator is bigger: one if is one line but two branch outcomes (true and false). So branch coverage demands more. Why path explodes: $n$ independent ifs in sequence give $2^n$ paths. A loop that can run $0..k$ times multiplies further. Path count grows exponentially → often infeasible.

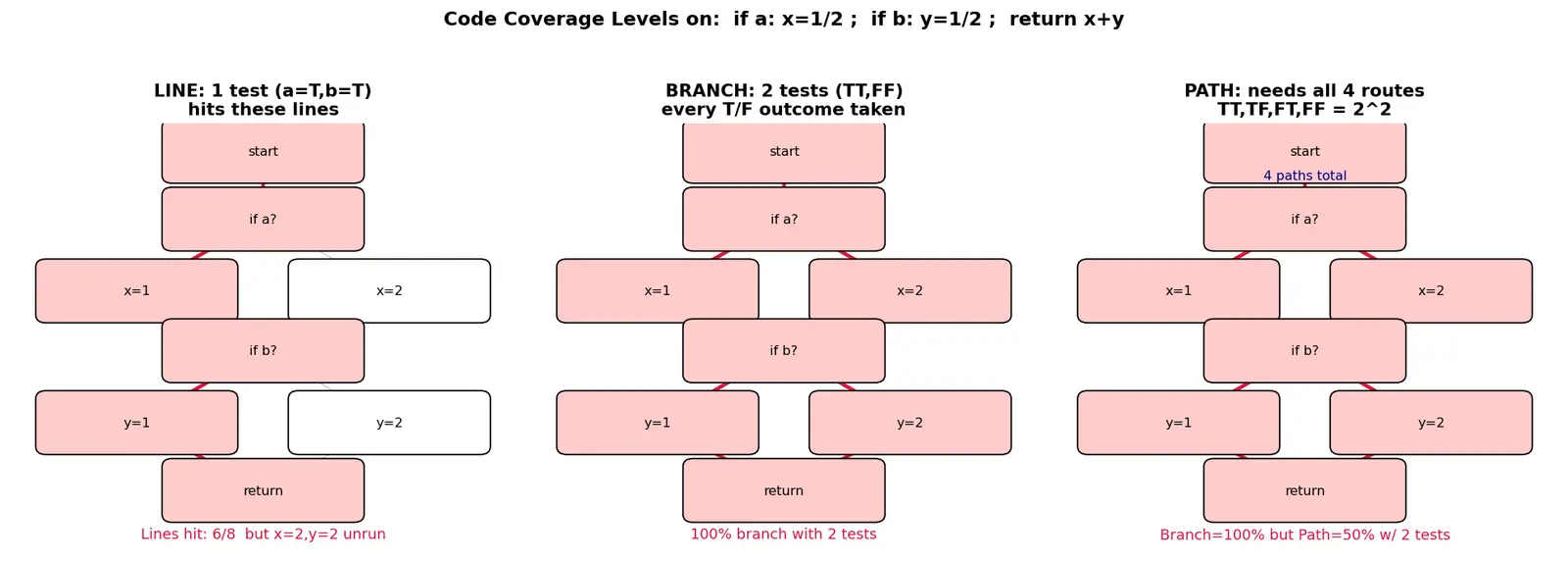

Figure — Code coverage — line, branch, path coverage

Derivation: why branch ≥ line, and path ≥ branch (a hierarchy)

Take this function:

def grade(x):
    if x > 50:        # decision D1
        return "pass"
    return "fail"

Step 1 — Count lines. Executable lines: if x>50, return "pass", return "fail" → 3 lines. Why? We count statements that actually do something at runtime.

Step 2 — One test grade(60). Runs if, runs return "pass". That's 2/3 lines = 66% line. The return "fail" never ran. Why this step? To show one test rarely hits everything.

Step 3 — Count branches. D1 has two outcomes: True and False → 2 branch outcomes. grade(60) only takes the True outcome → 1/2 = 50% branch. Why this step? Notice branch% (50) ≤ line% (66): branch is stricter, it punishes the untaken False path harder.

Step 4 — Full branch coverage. Add grade(40) (takes False). Now both outcomes hit → 100% branch, and incidentally 100% line. Theorem (informal): 100% branch ⟹ 100% line (taking every decision outcome forces every line to run), but not vice-versa. So branch subsumes line. Likewise path subsumes branch.

Worked Example — Path explosion

def f(a, b):
    if a: x = 1     # D1
    else: x = 2
    if b: y = 1     # D2
    else: y = 2
    return x + y

Step 1 — Lines: ~5 → one test covers nearly all → easy 100% line. Step 2 — Branches: D1{T,F}, D2{T,F} = 4 outcomes. Tests (T,T) and (F,F) cover all 4 → 100% branch with just 2 tests. Why this step? Branch coverage does not require combinations, only that each outcome occurs at least once. Step 3 — Paths: routes through the program = combinations: (T,T),(T,F),(F,T),(F,F) = $2^2 = 4$ paths. Our 2 tests covered only TT and FF → 2/4 = 50% path. Why this matters: A bug that only appears when a=True AND b=False is invisible to 100% branch coverage but caught by path coverage. That's the value path adds — and why it costs $2^n$ .

Worked Example — Short-circuit hides a branch

if user != None and user.active:   # two conditions!
    login()

Step 1: Line coverage sees ONE line; one test running it = 100% line. Step 2: Branch coverage (decision) sees the whole condition True/False. Step 3: Condition coverage (a finer cousin) needs each sub-condition user!=None and user.active to be both T and F. Why this matters: user=None short-circuits and never evaluates user.active. Tools reporting only line/decision coverage mask this. The fix: use MC/DC (Modified Condition/Decision Coverage) for safety-critical code, where each condition independently affects the outcome.

Common mistake Steel-man: "We hit 100% coverage, so we're done!"

Why it feels right: 100% sounds like "everything tested," and the green dashboard is psychologically satisfying. Management loves a round number. Why it's wrong: Coverage measures execution, not assertion. This test gives 100% line coverage:

def test(): grade(60)   # no assert!

It runs the line but checks nothing — a "vanity metric." Also, 100% line ≠ 100% branch ≠ 100% path; you may have huge untested logic combinations. The fix: Treat coverage as a lower bound on ignorance ("code below X% is definitely undertested"), pair it with mutation testing (does flipping a > to >= make a test fail?), and always assert outcomes.

The 80/20 takeaway

20% you must know: Line ⊂ Branch ⊂ Path in strictness. Branch = every if-outcome at least once. Path = every combination = $2^n$ blowup. 100% coverage ≠ correct.
The 80% real-world practice: aim for high branch coverage on critical modules, use path/MC/DC only for safety-critical code, and back coverage with mutation testing.

Recall Feynman: explain to a 12-year-old

Imagine your code is a maze and your tests are people walking through it.

Line coverage: Did someone step on every floor tile? (Maybe, but they all walked the same way.)
Branch coverage: At every fork, did someone go left AND someone go right? (Better — both directions tried.)
Path coverage: Did people try every possible complete route from start to exit? (Best — but in a big maze there are millions of routes, so it's exhausting.) Walking through the maze proves you can reach a room. It does NOT prove the room is safe — for that you must actually check the room (assert). That's why "100% walked" isn't "100% safe."

Flashcards

What does code coverage measure?

The percentage of source code that is executed while the test suite runs — execution, not correctness.

Line (statement) coverage formula

(executable lines executed ÷ total executable lines) × 100%.

Branch (decision) coverage formula

(branch outcomes taken ÷ total branch outcomes) × 100%; each decision has 2 outcomes (T/F).

Why is branch coverage stricter than line coverage?

One if is one line but two branch outcomes; running the line once gives 100% line but only 50% branch until both T and F are taken.

Does 100% branch coverage imply 100% line coverage?

Yes — taking every decision outcome forces every line to execute. The reverse is false.

How many paths do n sequential independent if-statements create?

2^n

— path coverage grows exponentially, often becoming infeasible.

Why is 100% coverage not proof of correctness?

A test can execute code without asserting anything; coverage measures execution, not whether results are checked.

Difference between decision/branch coverage and condition coverage?

Decision = whole condition's T/F; Condition = each boolean sub-term's T/F. a and b = 1 decision, 2 conditions.

What hides branches in a and b?

Short-circuit evaluation — if a is False, b is never evaluated, so its outcomes may go untested.

What is MC/DC and when is it used?

Modified Condition/Decision Coverage — each condition independently affects the outcome; required in safety-critical (e.g. avionics) software.

What technique complements coverage to check test quality?

Mutation testing — it mutates the code (e.g. >→>=) and checks whether tests fail.

Subset hierarchy of coverage strength?

Line ⊂ Branch ⊂ Path (and Path subsumes Branch subsumes Line).

Connections

Unit Testing — coverage is measured by running unit/integration tests.
Mutation Testing — fixes coverage's "did you assert?" blind spot.
Cyclomatic Complexity — gives a lower bound on tests needed for branch coverage.
Control Flow Graph — branches and paths are edges/routes in the CFG.
Test-Driven Development — TDD naturally produces high branch coverage.
MC-DC Coverage — the stricter standard for safety-critical systems.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, code coverage ka matlab simple hai: jab tum apne tests chalate ho, toh tumhare code ka kitna hissa actually execute hua? Ye ek thermometer jaisa hai — bukhaar batata hai, par ilaaj nahi karta. 100% coverage ka matlab ye nahi hai ki code sahi hai; iska matlab sirf itna hai ki wo line chali. Agar test mein assert hi nahi hai, toh line chal ke bhi kuch prove nahi hota — isko "vanity metric" kehte hain.

Teen levels hote hain, weak se strong: Line coverage (har executable line chali kya?), Branch coverage (har if ke dono raaste — True bhi aur False bhi — try hue kya?), aur Path coverage (har poora end-to-end route try hua kya?). Yaad rakho: ek if ek line hai par do branch outcomes deta hai, isliye branch coverage line se zyaada strict hai. Aur agar $n$ sequential if hain, toh total paths $2^n$ ho jaate hain — isliye path coverage exponentially badh jaata hai aur badi codebase mein practically impossible ho jaata hai.

Ek important trick: a and b jaise condition mein short-circuit hota hai — agar a False hai toh b evaluate hi nahi hota. Isliye line/branch coverage mein wo chhup jaata hai. Safety-critical software (jaise plane ka software) ke liye MC/DC use karte hain jahaan har sub-condition independently outcome ko affect kare. Aur coverage ke saath mutation testing jaroor use karo — wo check karta hai ki > ko >= banane par tumhara test fail hota hai ya nahi, yaani test ki quality check karta hai. Exam aur real job dono mein yahi practical samajh kaam aati hai.
