RAID — levels 0, 1, 5, 6, 10 — trade-offs: Worked examples

We only use three tools throughout, all built in the parent note:

XOR written $\oplus$ — "add without carry", where $x \oplus x = 0$ (see XOR and Boolean Algebra).
Capacity formulas — $0 \to n$ , $1 \to n /2$ , $5 \to n - 1$ , $6 \to n - 2$ , $10 \to n /2$ .
The write-penalty count — small writes = 4 I/Os (RAID 5) or 6 I/Os (RAID 6).

Nothing new is assumed. Every symbol below was earned in the parent note.

The scenario matrix

Every RAID problem is one of these case classes. The goal of this page is to fill every cell.

#	Case class	What makes it tricky	Worked example
A	Capacity — normal array	plug into the level formula	Ex 1
B	Fault tolerance — normal	how many failures survived	Ex 1, Ex 4
C	Degenerate input (small $n$ )	$n = 2$ , $n = 3$ : formulas hit limits	Ex 2
D	Zero / impossible input	RAID 6 with 2 disks = "no data disks"	Ex 3
E	XOR recovery — data disk dies	rebuild a data block	Ex 5
F	XOR recovery — parity disk dies	the parity itself is lost	Ex 5
G	Small-write I/O count	read-modify-write penalty	Ex 6
H	Limiting behaviour (large $n$ )	efficiency as $n \to \infty$	Ex 7
I	Second-failure-during-rebuild	why RAID 5 dies on big arrays	Ex 8
J	Real-world word problem	pick a level from requirements	Ex 9
K	Exam twist (RAID 0+1 vs 10)	order of operations changes fate	Ex 10

The examples below are ordered so that together they touch A through K.

Worked examples

Worked example Ex 1 — Cell A + B: capacity & tolerance of a normal array

Statement. You have $n = 6$ disks, each $2$ TB. Give usable capacity and max failures survived for RAID 0, 1, 5, 6, 10.

Forecast: guess the five capacities before reading — which level wastes the most space?

RAID 0: capacity $= n \times 2 = 6 \times 2 = 12$ TB. Why this step? striping keeps every disk for data.
RAID 1: capacity $= \frac{n}{2} \times 2 = 3 \times 2 = 6$ TB. Why? half the disks are exact copies.
RAID 5: capacity $= (n - 1) \times 2 = 5 \times 2 = 10$ TB. Why? one disk's worth is parity $P$ .
RAID 6: capacity $= (n - 2) \times 2 = 4 \times 2 = 8$ TB. Why? two disks' worth is $P$ and $Q$ .
RAID 10: capacity $= \frac{n}{2} \times 2 = 6$ TB. Why? mirroring halves it; striping adds no capacity.

Failures survived — be careful to separate guaranteed from lucky:

RAID 0 → 0 (guaranteed and best-case: no redundancy at all).
RAID 5 → 1 (guaranteed and best-case: single parity).
RAID 6 → 2 (guaranteed and best-case: double parity).
RAID 1 & 10 (3 mirror pairs here) → worst-case guaranteed = 1 (a single failure is always survived; two failures in the same pair kill it). Best-case (lucky) = 3 (one disk from each of the 3 pairs can die and every pair still keeps a twin). The honest headline number is the guaranteed 1.

Verify: total raw is $6 \times 2 = 12$ TB. RAID 5 keeps $10/12 = 83.3%$ ; RAID 6 keeps $8/12 = 66.7%$ ; RAID 1/10 keep $50%$ . Parity is always cheaper than mirroring — matches theory. ✓

Worked example Ex 2 — Cell C: the smallest legal arrays (degenerate small

$n$ ) Statement. What happens to each level at its minimum disk count? Use the smallest $n$ each level allows.

Forecast: at $n = 2$ , is RAID 5 even possible?

RAID 0, $n = 2$ : capacity $= 2$ disks. Why? striping just needs $\geq 2$ disks to stripe across.
RAID 1, $n = 2$ : capacity $= n /2 = 1$ disk. Why? one twin pair; you keep exactly one disk of data.
RAID 5, $n = 3$ (minimum): capacity $= n - 1 = 2$ disks. Why? need $\geq 2$ data disks + 1 parity's worth rotated. At $n = 2$ you'd have $1$ data + $1$ parity = a mirror in disguise, so RAID 5 needs $n \geq 3$ .
RAID 6, $n = 4$ (minimum): capacity $= n - 2 = 2$ disks. Why? need $\geq 2$ data disks plus $P$ and $Q$ worth.
RAID 10, $n = 4$ (minimum): capacity $= n /2 = 2$ disks. Why? need $\geq 2$ mirror pairs to have anything to stripe.

Verify: RAID 5 at its floor $n = 3$ keeps $2/3 = 66.7%$ — worse efficiency than large arrays. Small parity arrays waste proportionally more. ✓ (This is the whole reason RAID 5 pays off only with more disks.)

Worked example Ex 3 — Cell D: the impossible / zero-data input

Statement. A student configures RAID 6 with only 2 disks. What is the usable capacity, and what does the number mean?

Forecast: plug $n = 2$ into $n - 2$ before reading. What do you get, and is it real?

Apply the formula: capacity $= (n - 2)$ disks $= (2 - 2) = 0$ disks. Why this step? RAID 6 always spends two disks' worth on $P$ and $Q$ .
Interpret $0$ : zero data capacity — both disks are entirely parity, no room for actual data. Why? with $2$ data disks needed minimum and $2$ parities, you'd need $\geq 4$ disks.
Conclusion: RAID 6 with $n < 4$ is not a valid configuration — the controller rejects it. Why? a code that protects against 2 erasures needs at least 2 things left to protect.

Verify: the formula gracefully returns $0$ , the honest answer: "no usable space." Check RAID 5 with $n = 1$ : $(1 - 1) = 0$ too — a single disk can't store both data and parity. Degenerate inputs give $0$ , not negatives. ✓

Worked example Ex 4 — Cell B: counting

which failure patterns survive Statement. RAID 10 with 3 mirror pairs (6 disks: pairs ${1, 2}, {3, 4}, {5, 6}$ ). Which 2-disk failures survive, which don't?

Forecast: RAID 10 "survives 1 per pair" — so does it always survive 2 failures?

Failure of ${1, 3}$ (one from two different pairs): survives. Why? each pair still has one living twin.
Failure of ${1, 2}$ (both disks of one pair): total loss. Why? that pair's data has no surviving copy.
Count survivable 2-disk sets: total pairs of disks $= (2 6) = 15$ . Fatal ones are the 3 within-pair combos. Survivable $= 15 - 3 = 12$ . Why this step? only same-pair losses are fatal.

Verify: survival probability of a random 2-disk failure $= 12/15 = 0.8 = 80%$ . Contrast RAID 6: survives all $(2 6) = 15$ two-disk failures (100%). So RAID 6 is strictly safer against 2 failures, but RAID 10 writes faster. Matches parent trade-off table. ✓

Worked example Ex 5 — Cells E + F: XOR recovery, data disk

and parity disk Statement. A RAID 5 stripe holds $D_{1} = 1101$ , $D_{2} = 0011$ , $D_{3} = 1010$ . Parity $P = D_{1} \oplus D_{2} \oplus D_{3}$ . (a) Recover $D_{2}$ if disk 2 dies. (b) Recover $P$ if the parity disk dies.

Forecast: in case (b), is losing parity even a problem for reading data?

Compute $P$ : $D_{1} \oplus D_{2} = 1101 \oplus 0011 = 1110$ . Why? combine first two blocks.
Finish: $P = 1110 \oplus D_{3} = 1110 \oplus 1010 = 0100$ . Why? XOR the last block to complete the parity.
(a) Data disk dies. Recover $D_{2} = P \oplus D_{1} \oplus D_{3}$ . Why? the recovery rule cancels every surviving block, leaving the missing one.
$P \oplus D_{1} = 0100 \oplus 1101 = 1001$ ; then $1001 \oplus D_{3} = 1001 \oplus 1010 = 0011 = D_{2}$ . Why? matches the original $D_{2}$ — recovery succeeded.
(b) Parity disk dies. Data $D_{1}, D_{2}, D_{3}$ still readable directly — no rebuild needed to read. To restore redundancy, recompute $P = D_{1} \oplus D_{2} \oplus D_{3} = 0100$ (step 2). Why? parity is just a function of the data; recompute it any time.

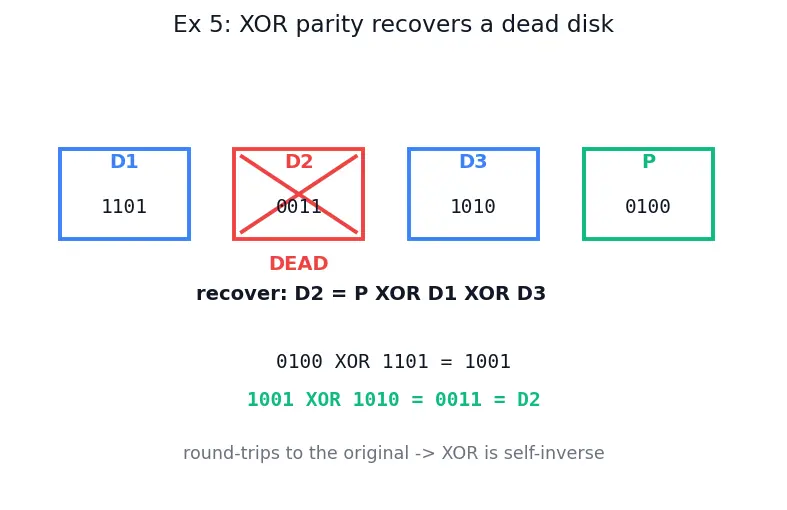

Read the figure. The four boxes are the three data blocks (blue) and the parity block $P$ (green), each showing its 4-bit value. The red X marks the dead disk $D_{2}$ . Below, follow the two green monospace lines: they are exactly steps 3–4 — first $P \oplus D_{1} = 1001$ , then $\oplus D_{3} = 0011$ , which lands back on the original $D_{2}$ . The caption reminds you why it round-trips: every surviving block appears twice and cancels ( $x \oplus x = 0$ ), leaving only the missing one.

Verify: recovered $D_{2} = 0011$ equals the original. Recomputed $P = 0100$ equals the stored parity. Both round-trip perfectly because XOR is self-inverse ( $x \oplus x = 0$ ). ✓ See Galois Fields GF(2^n) for why RAID 6's second parity $Q$ needs more than XOR.

Worked example Ex 6 — Cell G: I/O cost of a small write in RAID 5 vs RAID 6

Statement. Update one 4 KB data block. Count physical disk I/Os for RAID 5 and RAID 6. Then update both parities: use $P_{n e w} = P_{o l d} \oplus D_{o l d} \oplus D_{n e w}$ with $P_{o l d} = 0100$ , $D_{o l d} = 0011$ , $D_{n e w} = 1111$ , and update the RAID 6 second parity $Q$ the analogous way.

Forecast: guess the two I/O counts, and guess $P_{n e w}$ , before computing.

RAID 5 I/Os: read $D_{o l d}$ (1), read $P_{o l d}$ (1), write $D_{n e w}$ (1), write $P_{n e w}$ (1) $= 4$ . Why? parity must be recomputed to stay valid, and that needs the old values.
RAID 6 I/Os: same reads/writes but for two parities $P$ and $Q$ : read $D_{o l d}, P_{o l d}, Q_{o l d}$ (3), write $D_{n e w}, P_{n e w}, Q_{n e w}$ (3) $= 6$ . Why? a second independent parity doubles the parity work.
Compute $P_{n e w}$ : $P_{o l d} \oplus D_{o l d} = 0100 \oplus 0011 = 0111$ . Why? removes the old data's contribution from parity.
Finish $P_{n e w}$ : $P_{n e w} = 0111 \oplus D_{n e w} = 0111 \oplus 1111 = 1000$ . Why? inserts the new data's contribution.
Update the second parity $Q$ (RAID 6 only). $Q$ is not a plain XOR — from the parent note $Q = ⨁_{i} g^{i} \cdot D_{i}$ over $GF (2^{8})$ , so the block at position $i$ enters multiplied by $g^{i}$ . The same "remove-old, add-new" trick still works, but the change must be scaled by that block's coefficient: $Q_{n e w} = Q_{o l d} \oplus (g^{i} \cdot D_{o l d}) \oplus (g^{i} \cdot D_{n e w}) .$ Why this step? $Q_{o l d}$ contained the term $g^{i} \cdot D_{o l d}$ ; XORing it back cancels it ( $x \oplus x = 0$ ), and XORing $g^{i} \cdot D_{n e w}$ inserts the new scaled term. Numerically, if disk $i$ has coefficient $g^{i} = 1$ (the simplest case, position $0$ ) the update collapses to the same shape as $P$ : $Q_{n e w} = Q_{o l d} \oplus D_{o l d} \oplus D_{n e w} = 1000$ for the same operands. For any other position the multiply is done in $GF (2^{8})$ — see Galois Fields GF(2^n).

Verify: sanity-check $P_{n e w}$ by rebuilding from scratch. Suppose the stripe was $D_{o l d} = 0011$ with two other blocks XORing to $0111$ (since $0111 \oplus 0011 = 0100 = P_{o l d}$ ✓). After the write those two blocks are unchanged, so new full parity $= 0111 \oplus 1111 = 1000 = P_{n e w}$ . ✓ For $Q$ with coefficient $g^{i} = 1$ , the shortcut gives $Q_{n e w} = 1000$ , matching a from-scratch recompute of the same collapsed sum. Both methods agree — the shortcut saved reading the other disks. ✓

Worked example Ex 7 — Cell H: limiting behaviour, efficiency as

$n \to \infty$ Statement. For RAID 5, 6, and 1, what fraction of raw capacity is usable as the number of disks $n$ grows large?

Forecast: does RAID 5's efficiency approach $100%$ ? Does RAID 1 ever improve?

RAID 5 efficiency: $\frac{n - 1}{n} = 1 - \frac{1}{n}$ . As $n \to \infty$ , this $\to 1$ (i.e. $100%$ ). Why? one fixed parity disk becomes negligible in a huge array.
RAID 6 efficiency: $\frac{n - 2}{n} = 1 - \frac{2}{n} \to 1$ too. Why? two fixed parities also vanish proportionally.
RAID 1 efficiency: $\frac{n /2}{n} = \frac{1}{2}$ , constant. Why? every disk always has a twin, no matter how many you add — mirroring never gets cheaper.
Numerical spot-check at $n = 10$ : RAID 5 $= 9/10 = 90%$ ; RAID 6 $= 8/10 = 80%$ ; RAID 1 $= 50%$ . Why? confirms the trend before the limit.

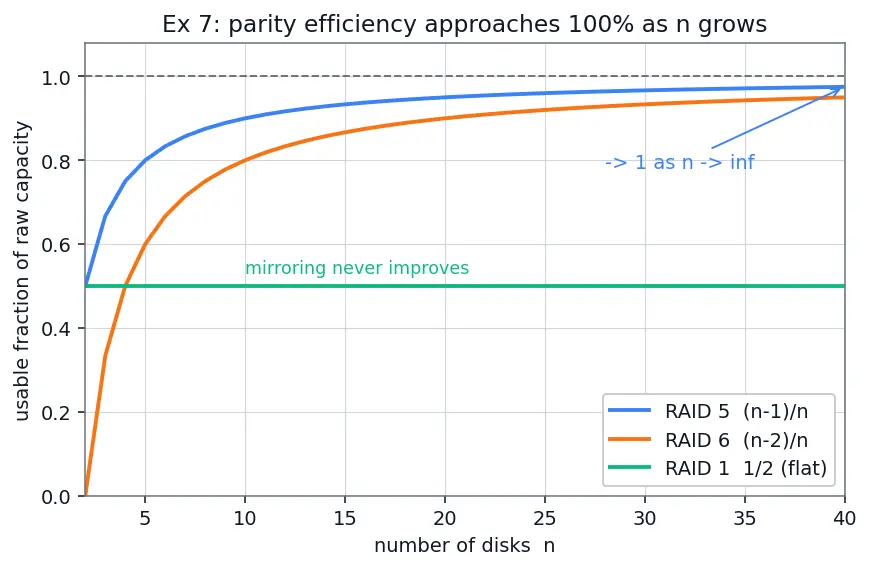

Read the figure. The horizontal axis is the disk count $n$ ; the vertical axis is the usable fraction of raw capacity. The blue curve is RAID 5 $= (n - 1) / n$ and the orange curve is RAID 6 $= (n - 2) / n$ — both climb toward the dashed gray line at $1.0$ (the $100%$ ceiling) as you move right, confirming steps 1–2. The flat green line sits at $0.5$ : that is RAID 1, which never improves no matter how far right you look (step 3). The arrow marks the " $\to 1$ as $n \to \infty$ " trend for the parity curves.

Verify: the limit $1 - 1/ n \to 1$ is monotone increasing — parity RAID becomes more space-efficient with scale, while mirroring stays flat at $0.5$ . This is exactly why huge arrays favour parity levels. ✓

Worked example Ex 8 — Cell I: the second-failure-during-rebuild disaster

Statement. RAID 5 with 12 disks. During a rebuild after one failure, every remaining disk must be fully read. If a second disk fails during that window, what is lost — and how does RAID 6 change the outcome?

Forecast: does the number of disks make a second failure more or less likely during rebuild?

RAID 5 survives exactly 1 failure (single parity $P$ = one equation, one unknown). Why? one erasure code fixes one erasure.
During rebuild, all $11$ surviving disks are read end-to-end under heavy load. Why? the missing disk's every block is recomputed via $D_{k} = P \oplus ⨁_{i \neq = k} D_{i}$ .
With more disks, the probability that some second disk fails during this stressful window rises (more disks = more chances). Why? independent failure risks add up — see Reliability and MTBF.
A second failure now means two unknowns but only one equation → unsolvable → total data loss. Why? one parity cannot span two missing blocks.
RAID 6 fix: with $P$ and $Q$ (two independent equations) it survives the second failure — rebuild continues safely. Why? two equations solve two unknowns.

Verify: RAID 5 tolerance $= 1$ , RAID 6 tolerance $= 2$ ; the failure count that kills each is $2$ and $3$ respectively. So the "12-disk RAID 5" mistake from the parent note is confirmed: large arrays need RAID 6. ✓

Worked example Ex 9 — Cell J: real-world word problem (pick a level)

Statement. A hospital needs a database volume that is (i) write-heavy, (ii) must survive one disk failure with no downtime, (iii) has budget for exactly 8 × 4 TB disks. It does not need max capacity. Which level, and what capacity results?

Forecast: RAID 5 or RAID 10 — which wins for write-heavy?

Rule out RAID 0 — requirement (ii) demands redundancy. Why? RAID 0 survives 0 failures.
Between RAID 5 and RAID 10: RAID 5 small writes cost 4 I/Os (read-modify-write); RAID 10 writes cost 2 I/Os (write to both twins, no parity read). Why? write-heavy load makes parity penalty the deciding factor.
Choose RAID 10 for lowest write penalty and no-downtime redundancy. Why? it satisfies (i) and (ii); (iii) is met and max capacity isn't required.
Capacity $= \frac{n}{2} \times 4 = 4 \times 4 = 16$ TB. Why? mirroring halves the raw $32$ TB.

Verify: RAID 10 write I/Os $= 2 < 4 =$ RAID 5 — correct for write-heavy. Capacity $16$ TB $\leq 32$ TB raw, consistent with $50%$ mirroring overhead. All three requirements met. ✓ (RAID is availability, not backup — the hospital still needs separate backups.)

Worked example Ex 10 — Cell K: the exam twist, RAID 10 vs RAID 0+1

Statement. 4 disks, arranged two ways. RAID 10 = mirror pairs ${A_{1}, A_{2}}, {B_{1}, B_{2}}$ then stripe. RAID 0+1 = two stripes $S_{1} = {A_{1}, B_{1}}$ , $S_{2} = {A_{2}, B_{2}}$ then mirror the stripes. Disk $A_{1}$ fails, then disk $B_{2}$ fails. Which layout survives?

Forecast: same disks, same 50% capacity — surely same survival? (It is not.)

RAID 10 after $A_{1}$ dies: pair ${A_{1}, A_{2}}$ still has $A_{2}$ ; pair ${B_{1}, B_{2}}$ intact. Why? mirror-then-stripe keeps redundancy inside each pair.
RAID 10 then $B_{2}$ dies: pair ${B_{1}, B_{2}}$ still has $B_{1}$ . Both pairs alive → survives. Why? the two failures hit different pairs, and each pair only needs one surviving twin.
RAID 0+1 after $A_{1}$ dies: stripe $S_{1} = {A_{1}, B_{1}}$ is broken — a stripe has no internal redundancy, so losing any one member kills the whole stripe. The system now depends entirely on the surviving mirror copy, stripe $S_{2}$ . Why? stripe-then-mirror puts redundancy only between the two stripes, never inside them.
RAID 0+1 then $B_{2}$ dies: $B_{2} \in S_{2}$ , so stripe $S_{2}$ is now also broken. Both stripes are dead and there is no third copy → total data loss. Why? the only surviving redundant copy ( $S_{2}$ ) was itself a fragile stripe, and a single disk loss destroyed it.

Answer: with the identical failures ${A_{1}, B_{2}}$ , RAID 10 survives but RAID 0+1 is lost.

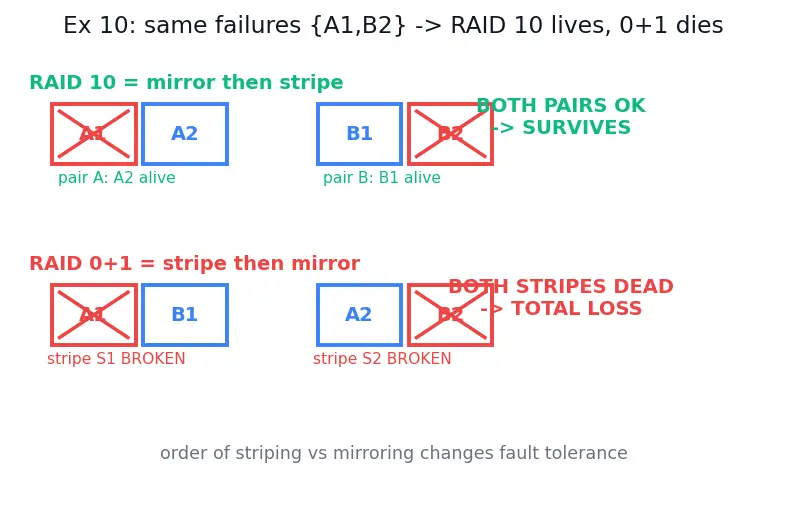

Read the figure. Top row = RAID 10: the two mirror pairs are drawn side by side; $A_{1}$ and $B_{2}$ carry red X's but each pair still shows one blue (alive) twin, so the green label reads "BOTH PAIRS OK → SURVIVES". Bottom row = RAID 0+1: the same two dead disks now sit in different stripes $S_{1}$ and $S_{2}$ , so both stripe labels turn red ("BROKEN") and the red verdict reads "BOTH STRIPES DEAD → TOTAL LOSS". The single caption states the moral: order of striping vs mirroring changes fault tolerance.

Verify: identical disk failures ${A_{1}, B_{2}}$ → RAID 10 lives, RAID 0+1 dies. Order of striping vs mirroring genuinely changes fault tolerance. This confirms the parent's "order matters" mistake. ✓

Recall Quick self-test

RAID 6 with 2 disks — usable capacity? ::: 0 disks (invalid config; both are parity). RAID 5 efficiency as n→∞? ::: Approaches 100%, since (n−1)/n → 1. RAID 10, 3 pairs — fraction of random 2-disk failures survived? ::: 12/15 = 80%. Small RAID 6 write costs how many I/Os? ::: 6 (read+write of data, P, and Q). P_new for P_old=0100, D_old=0011, D_new=1111? ::: 1000. Guaranteed vs lucky failures survived by RAID 10 (3 pairs)? ::: Guaranteed 1 (worst case), up to 3 (one per pair, best case). Why does RAID 0+1 die where RAID 10 survives (same disks)? ::: Stripe-then-mirror has no redundancy inside a stripe; one loss breaks a whole stripe.
