RAID — levels 0, 1, 5, 6, 10 — trade-offs

WHY does RAID exist?

The core tension: you cannot maximize capacity, speed, and reliability all at once. Pick your trade-off.

HOW parity works (derive it from scratch)

Derivation. Let data blocks be $D_1, D_2, \dots, D_{n-1}$ across $n-1$ disks. Define parity: $P = D_1 \oplus D_2 \oplus \cdots \oplus D_{n-1}$ Suppose disk $k$ dies. We know all other $D_i$ and $P$ . XOR everything we still have: $D_1 \oplus \cdots \oplus D_{k-1} \oplus D_{k+1} \oplus \cdots \oplus P$ Substitute $P$ and use $\oplus$ properties: $x \oplus x = 0$ and $x \oplus 0 = x$ . Every surviving block cancels its own copy inside $P$ , leaving: $= D_k$

For RAID 6 we add a second, independent parity $Q$ using Reed–Solomon over a Galois field $GF(2^8)$ : $Q = \bigoplus_i g^{i}\cdot D_i$ Two independent equations ( $P$ and $Q$ ) let you solve for two unknowns → survives 2 disk failures.

The five levels

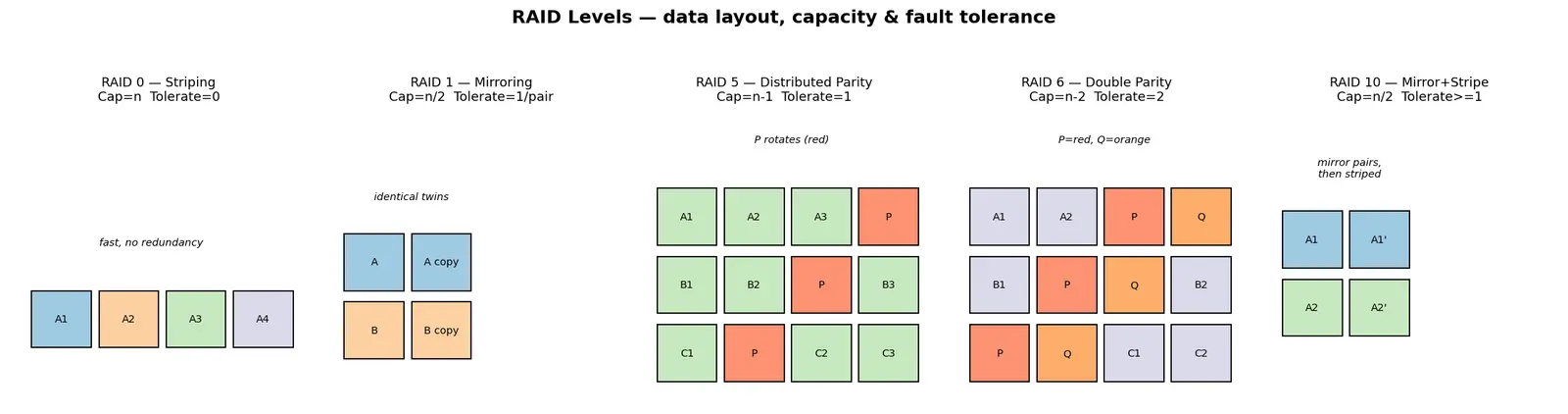

Figure — RAID — levels 0, 1, 5, 6, 10 — trade-offs

The write penalty (WHY RAID 5/6 writes are slow)

Worked examples

Common mistakes (steel-manned)

Recall Feynman: explain to a 12-year-old

Imagine you and friends each copy one page of a comic. RAID 0: everyone holds a different page — super fast to read all at once, but if one friend loses their page the comic is ruined. RAID 1: two friends hold the same pages, so if one drops out the other still has it. RAID 5: each friend also writes down a magic "summary number" so that if any one friend vanishes, the rest can rebuild the missing page from the summary. RAID 6: two magic summaries, so even if two friends vanish you're fine. RAID 10: pair up friends as backups, then split the comic across the pairs — fast and safe.

Active recall

What does RAID stand for?

Redundant Array of Independent Disks.

Which RAID level has zero redundancy?

RAID 0 (pure striping).

Usable capacity of RAID 5 with n disks?

(n − 1) disks worth.

Usable capacity of RAID 6 with n disks?

(n − 2) disks worth.

How many disk failures does RAID 6 survive?

Two simultaneous failures.

Parity recovery formula for a lost block D_k?

D_k = P ⊕ (XOR of all surviving data blocks).

Why does XOR parity recover exactly one disk?

XOR is self-inverse (x⊕x=0); one parity = one equation = one unknown solvable.

How many I/Os for a small RAID 5 write, and why?

4 — read old data, read old parity, write new data, write new parity.

Formula for updating parity on a small write?

P_new = P_old ⊕ D_old ⊕ D_new.

Difference between RAID 10 and RAID 0+1?

RAID 10 = mirror then stripe (more failure-tolerant); 0+1 = stripe then mirror.

Why does RAID 6 use a second parity Q instead of another XOR P?

Two copies of XOR give the same equation; Q uses GF(2^8) coding to be independent, allowing two unknowns to be solved.

Is RAID a substitute for backups?

No — it guards against disk failure, not deletion/corruption/ransomware.

Which levels are best for a write-heavy database?

RAID 10 (fast writes + redundancy); avoid parity levels for small random writes.

Connections

XOR and Boolean Algebra — the math behind parity.
Galois Fields GF(2^n) — basis of RAID 6's second parity.
Disk Scheduling — how striping improves throughput.
Reliability and MTBF — quantifying failure tolerance.
Backups vs Redundancy — why RAID ≠ backup.
File Systems — RAID sits below the filesystem layer.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek single disk ke do problem hote hain: woh slow hoti hai (sirf ek hi head se padh-likh sakti hai) aur fragile hoti hai (ek failure matlab pura data gaya). RAID ka idea simple hai — kai disks ko mila ke ek bada logical disk banao, taaki tum speed, reliability, ya dono khareed sako. Lekin har level mein tumhe kuch na kuch pay karna padta hai: capacity, paisa, ya write speed.

Levels yaad rakhne ka tareeka: RAID 0 = sirf striping, sabse fast par zero safety — ek disk gayi to sab gaya. RAID 1 = mirroring, har disk ka exact copy, par aadhi capacity barbaad. RAID 5 = striping + ek parity block jo XOR se banta hai aur saari disks par ghoomta hai; ek disk fail ho to parity se rebuild ho jaati hai (capacity n−1, tolerate 1). RAID 6 = do parity (P aur Q), do disk failures tak survive (capacity n−2). RAID 10 = pehle mirror, phir stripe — fast bhi, safe bhi, par mehnga.

Parity ka magic XOR hai: $P = D_1 \oplus D_2 \oplus \cdots$ . Agar koi block missing ho jaye, to baaki sab ko parity ke saath XOR karo aur missing block wapas mil jata hai, kyunki $x\oplus x=0$ . Yeh sirf ek missing piece fix kar sakta hai — isliye RAID 5 sirf 1 failure handle karta hai. Ek important point: chhoti write mein RAID 5 ko 4 I/O lagte hain (purana data + purana parity padho, naya data + naya parity likho), isliye parity levels write-heavy databases ke liye slow hote hain — wahan RAID 10 better hai.

Sabse bada exam-trap: RAID ko backup mat samajhna! RAID disk failure se bachata hai, par galti se delete, virus, ya fire se nahi — kyunki woh galti turant mirror par bhi copy ho jaati hai. Backup alag cheez hai.
