This page assumes you know nothing about metals. We build every word the parent note throws at you, one brick at a time, so that when it says "quench to trap BCT martensite and block dislocation motion" you can see every piece.

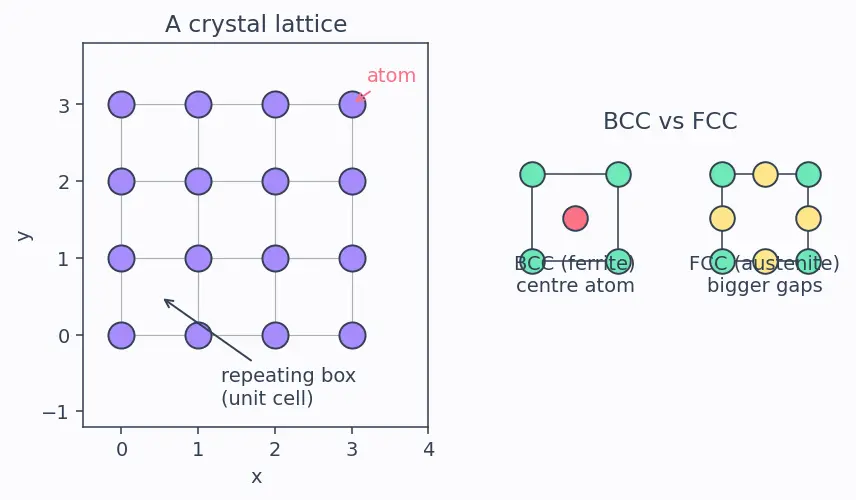

Look at the left panel of the figure below. The lavender dots are atoms; the thin slate lines are just guides showing the repeating box (the unit cell) — they are not physical bonds, they help your eye see the pattern. The red arrow points to one atom so you can pick a single grid point out of the crowd.
Why the topic needs this: heat treatment is entirely about which grid pattern the iron atoms choose, and whether carbon atoms fit into the gaps. No lattice, no story.
In the right panel of s01, the coral atom is the body-centre of the BCC cell; the butter-yellow atoms are the face-centres of the FCC cell. Look at how the FCC (right box) has more atoms crowding the faces yet leaves fatter open gaps in the middle — that open room is the entire reason austenite swallows carbon and ferrite spits it out.

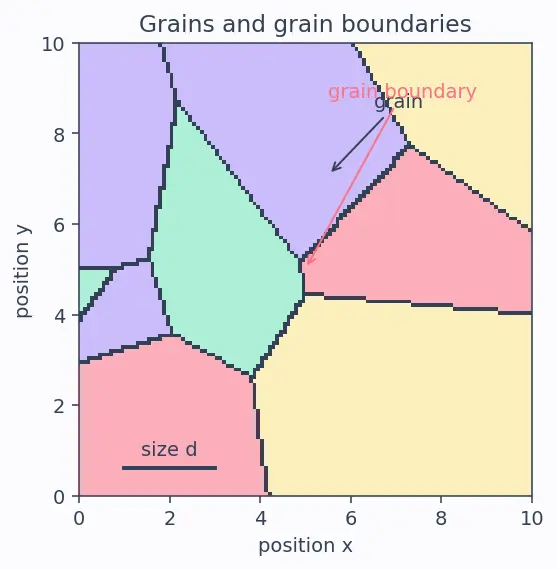

In this figure each coloured patch is one grain; the dark slate seams tracing between colours are the grain boundaries (follow the coral arrow to one). The short slate bar labelled "size d" measures the diameter of a single grain — that length is the d you will meet in the Hall–Petch formula.
Why the topic needs this: the parent note's headline claim — "cooling rate decides which phase you trap" — only makes sense once phase and grain are real objects in your head. See Iron-Carbon Phase Diagram for which phases appear at which composition and temperature.
The special temperature the parent calls "~723 °C" is the line below which austenite (FCC) is no longer stable and wants to become ferrite + cementite. Above it, heat; below it, freeze the result.

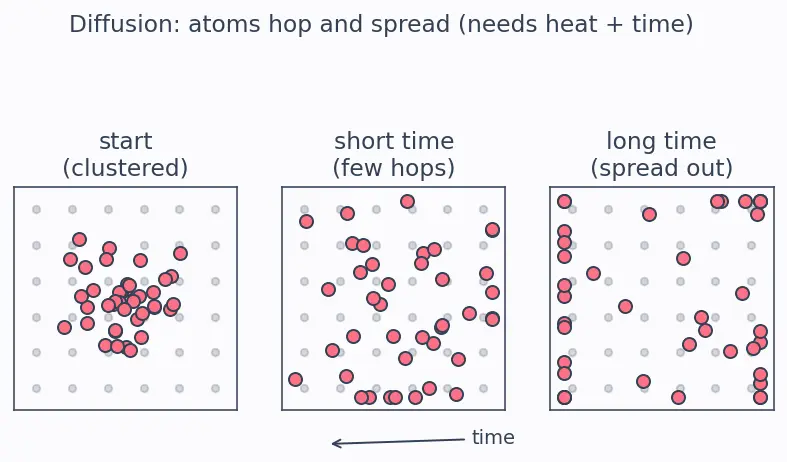

Read this figure left to right as time passing. In the left frame the coral atoms are bunched at the centre; in the middle frame a few have hopped outward; in the right frame they have spread evenly across the faint slate lattice sites. The arrow beneath labelled "time" is your reminder that spreading costs time — and (from Brick 2) enough heat to hop at all.
The single most important consequence, drilled into the parent note:

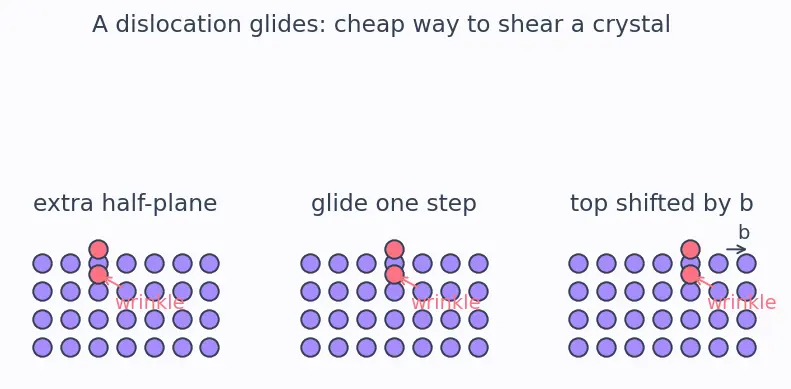

Follow the three frames left to right. The coral atoms mark the wrinkle (the extra half-plane). In frame 1 it sits at one column; in frame 2 it has glided one column over; by frame 3 the top of the crystal has shifted sideways by exactly one atom spacing — the little arrow labelled b measures that shift. Moving a wrinkle one step at a time is cheap; that cheapness is exactly what makes metals soft.
Two symbols enter here for later formulas:
b = Burgers vector, the length of one glide step (roughly one atom spacing, the arrow in s04). It measures "how much slip one dislocation delivers".
G = shear modulus, the metal's stiffness against sliding one layer of atoms over the next. Big G = stiff, resists shear. (Do not confuse G, a fixed material property, with τ below, which is the stress you apply.)
Trace any arrow: to understand quenching you need lattice → diffusion → fast cool traps; to understand normalising you need grains → Hall–Petch. The bricks are the prerequisites, the topic is where they meet.
Timing charts for when each transformation happens live in TTT and CCT Diagrams, and the map of which phase forms at which composition is the Iron-Carbon Phase Diagram.
