Refractory metals — W, Mo, Ta, Re for rocket nozzles: Visual walkthrough

We will not memorise "W melts at 3695 K". We will derive why it must be high, picture by picture.

Step 1 — What "melting" actually is (the picture of an atom in a cage)

WHAT. Before any formula, look at what a solid is. In a solid metal the atoms sit in a neat repeating grid called a lattice (think oranges stacked in a crate). Each atom is not glued in place — it jiggles around its home spot. The hotter it is, the bigger the jiggle.

WHY. Melting is simply the moment the jiggle gets so violent that atoms break out of their spots and start sliding past each other (that sliding is what a liquid is). So to understand melting we only need two things: how deep is the pit that holds each atom (bond strength), and how big is the jiggle (temperature). That is the whole game.

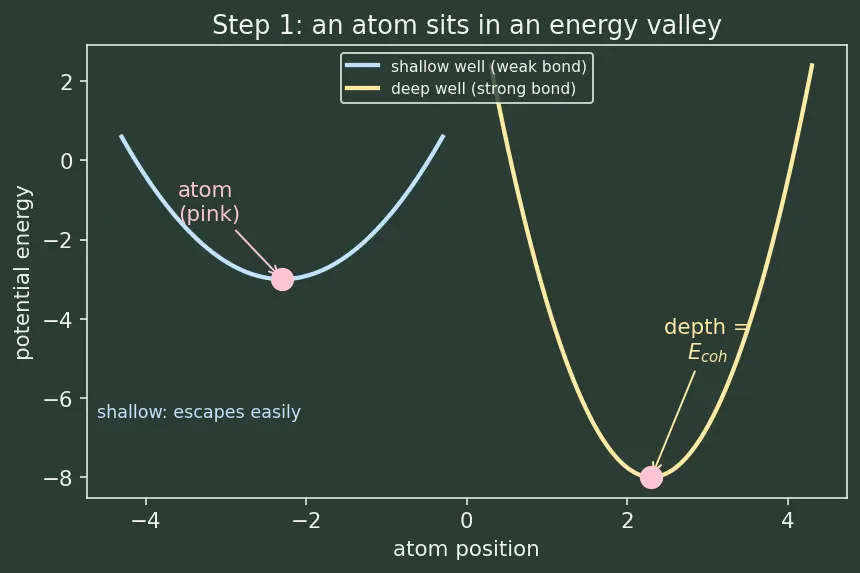

PICTURE. Look at the figure. The blue curve is an energy well — a valley. The atom is the pink ball. Sitting at the bottom costs the least energy; climbing the walls costs more. The depth of the valley is the cohesive energy $E_{co h}$ : the energy you'd need to lift the atom clean out of the crate. A deep valley (right) = strong bonds = hard to escape. A shallow valley (left) = weak bonds = escapes easily.

Figure — Refractory metals — W, Mo, Ta, Re for rocket nozzles

Step 2 — Where the bond strength comes from (filling the electron sea)

WHAT. Why is one metal's valley deeper than another's? In the electron-sea picture, each atom donates some outer electrons into a shared pool. Those shared electrons act like glue between the positive atom-cores. More glue electrons in bonding slots ⇒ deeper valley ⇒ stronger metal.

WHY. The d-block metals have a set of orbitals (the d-band) that fill up as you move left-to-right across a row. Roughly half of these slots are bonding (they pull atoms together) and the other half are anti-bonding (they push atoms apart). So the cohesion is maximised when the bonding slots are full but the anti-bonding slots are still empty — that happens at a half-filled d-band, near Groups 5–7, where W, Re, Ta, Mo live. Fill past half and you start loading the pushing slots, weakening the metal (that's why gold is soft and mercury is liquid).

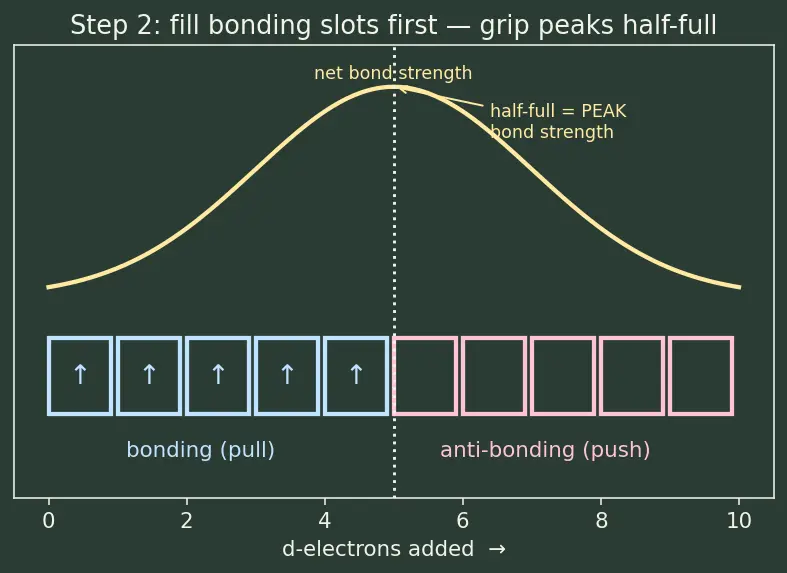

PICTURE. The figure shows the d-band as a row of boxes. Fill from the left: bonding boxes (blue, pulling) fill first, anti-bonding boxes (pink, pushing) fill last. The green curve on top = net bond strength — it rises to a peak at half-filling and falls after. W/Re sit right under that peak.

Step 3 — Turning bond depth into a temperature (equipartition)

WHAT. We have a valley of depth $E_{co h}$ . Now we ask: how hot must it be for the jiggle to reach out of the valley? We need to convert "energy of a bond" into "temperature". The bridge between the two is a fundamental constant.

WHY this tool — Boltzmann's constant $k_{B}$ . Temperature $T$ and energy are not the same currency; $T$ is measured in kelvin (K), energy in eV. The physics rule called equipartition says a jiggling atom carries thermal energy of order $k_{B} T$ , where $k_{B}$ is the exchange rate between the two currencies. We use $k_{B}$ (and not, say, the gas constant $R$ ) because $R$ is per mole of atoms, while here we reason about one atom at a time — the same fact, just single-atom bookkeeping.

jiggle energy of one atom E_{thermal} \sim energy per kelvin = 8.617 \times 1 0^{- 5} eV/K k_{B} \times temperature (K) T

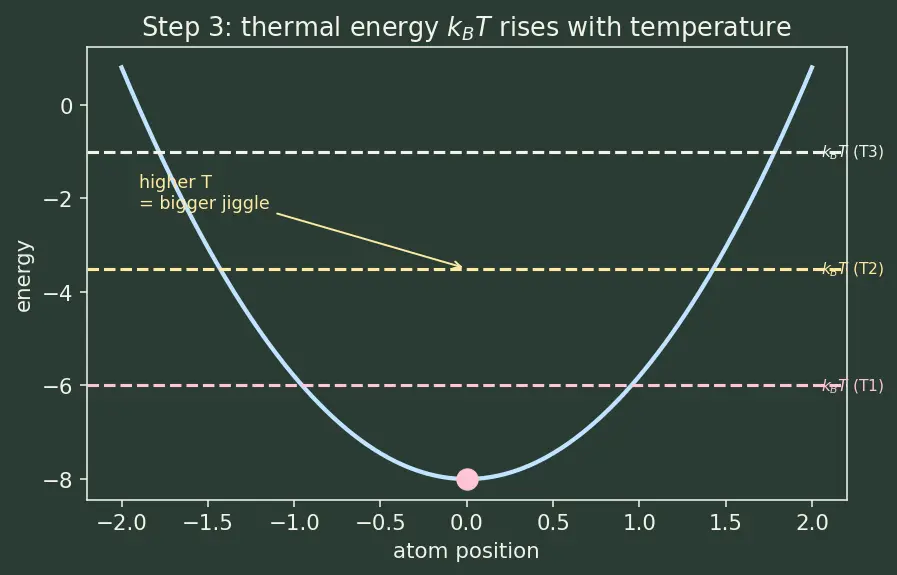

PICTURE. The figure overlays a horizontal "thermal energy" line onto the same valley from Step 1. As $T$ rises, the line rises. The atom can wander anywhere below the line. Melting is imminent when the line climbs to a fixed fraction of the valley depth — the atom's jiggle now spans nearly the whole valley.

Step 4 — The Lindemann idea: escape at a fixed fraction of the well

WHAT. We now write the melting condition. An atom escapes its cage when its thermal energy reaches a fixed small fraction $c$ of the bond-well depth $E_{co h}$ . Call that the melting point $T_{m}$ :

jiggle energy at melting k_{B} T_{m} \approx critical fraction (a pure number, \approx 0.03) c \times valley depth E_{co h}

WHY. Why a fixed fraction, not the whole depth? An atom doesn't need to be lifted all the way out to break the lattice — it only needs to jiggle far enough that neighbours collide and the neat order collapses. Experiments show that "far enough" is reached when the jiggle amplitude is roughly a tenth of the atom spacing, which corresponds to $k_{B} T_{m}$ being a few percent of $E_{co h}$ . That constant $c$ is nearly the same for all metals of a given crystal family, which is the magic: it lets us compare metals just by comparing $E_{co h}$ .

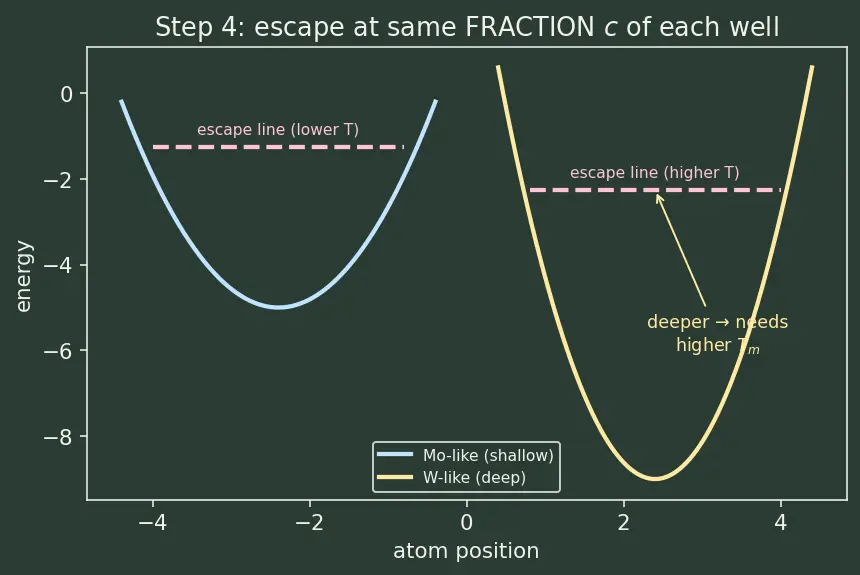

PICTURE. The figure shows two valleys side by side — a shallow one (Mo-like) and a deep one (W-like) — each with its dashed "escape line" drawn at the same fraction up the wall. Because W's valley is deeper, its escape line sits at a higher energy, so it needs a higher $T$ to reach it. Deeper valley → higher $T_{m}$ , drawn plainly.

Step 5 — Plug in tungsten (the number check)

WHAT. Let's test the formula on real W. Its cohesive energy is $E_{co h} \approx 8.9 eV/atom$ , and the calibrated fraction is $c \approx 0.032$ .

WHY. A derivation you can't put numbers into is just a story. If our chain is right, the predicted $T_{m}$ should land in the right ballpark of the measured 3695 K.

T_{m} \approx \frac{0.032 c \times 8.9 eV E _{co h}}{k _{B} 8.617 \times 1 0 ^{- 5} eV/K} \approx 3300 K

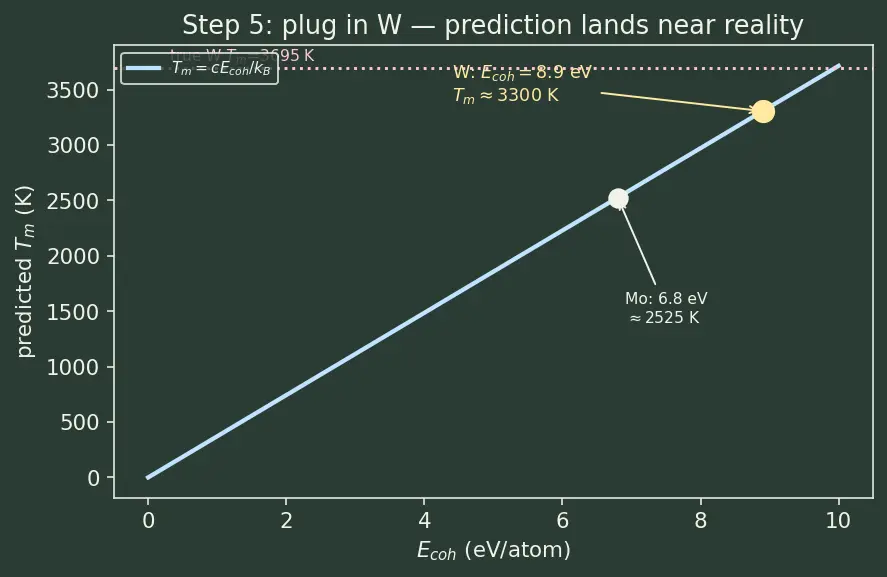

PICTURE. The figure plots the escape line for W's specific valley depth and drops a marker at $T_{m} \approx 3300 K$ , with the true value 3695 K shown as a faint reference tick — close enough to confirm the logic (we're not doing precision engineering, we're proving why it's huge).

Step 6 — Reading off the whole d-block trend (the payoff)

WHAT. Combine Step 2 (cohesion peaks at half-filled d-band) with Step 4 ( $T_{m} \propto E_{co h}$ ). The conclusion writes itself: melting point peaks at the half-filled d-band too.

WHY. This is the sentence the parent note asserted — "half-filled d-band = highest $T_{m}$ " — and we have now earned it: it is two proven links chained together. It also predicts the falls at both ends: early d-block (few bonding electrons) and late d-block (anti-bonding filled) are both weaker.

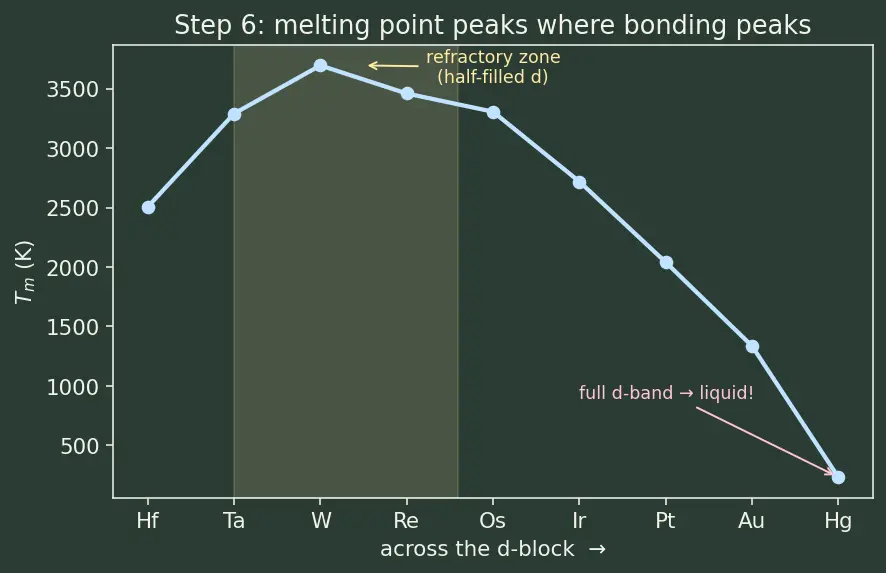

PICTURE. The figure plots measured $T_{m}$ across a d-block row. It rises from the left, peaks near W/Re (the shaded refractory zone), and tumbles toward the coinage metals on the right — mirroring the bond-strength curve from Step 2. The refractory four sit exactly under the summit.

Step 7 — The degenerate cases (where the simple picture bends)

A derivation isn't finished until we show where it stops being the whole story. Three edge cases:

Case A — Mercury (Hg), $T_{m} = 234 K$ (a liquid metal!). Its d-band is completely full → all anti-bonding slots occupied → the "springs" cancel the "ropes" → tiny $E_{co h}$ → tiny $T_{m}$ . Our formula correctly predicts a low melting point; it's the extreme right end of the Step 6 curve, no contradiction.

Case B — Rhenium (Re) beats the pure $E_{co h}$ ranking on usefulness. Re's $T_{m}$ (3459 K) is second to W, but for a nozzle the survival metric isn't just $T_{m}$ — it's resistance to creep (slow sagging while hot, see Creep and recrystallisation in metals). The Lindemann formula says nothing about creep; that needs a separate argument. So $T_{m} \propto E_{co h}$ is necessary but not sufficient for nozzle choice.

Case C — Tungsten oxidises away long before it melts. At $\sim 500^{\circ} C$ , far below $T_{m}$ , W meets oxygen and forms volatile $W O_{3}$ that boils off — a chemical failure the thermal derivation cannot see. This is why the parent insists on coatings and the Pilling–Bedworth check. High $T_{m}$ ≠ chemically safe.

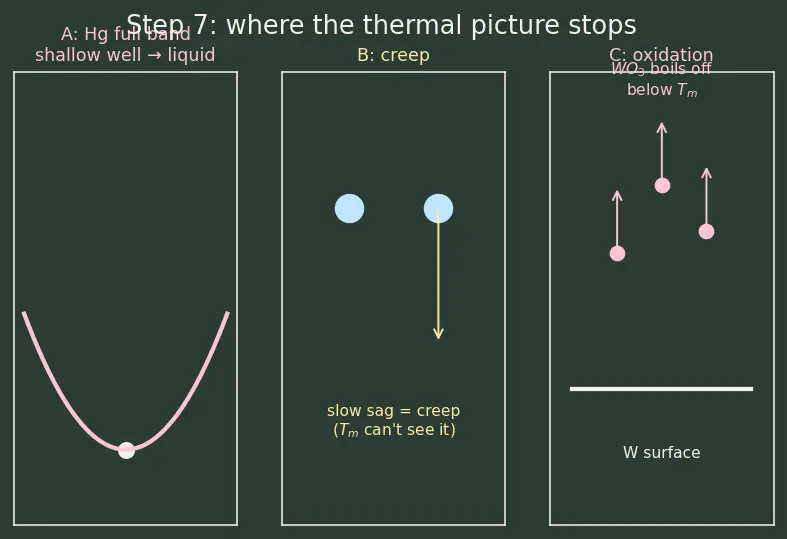

PICTURE. Three mini-panels: (A) Hg's full-band cancelled valley (shallow), (B) two atoms with a "creep sag" arrow that $T_{m}$ ignores, (C) a W surface with $W O_{3}$ molecules flying off as smoke well below the melting mark.

The one-picture summary

Everything above collapses into one diagram: bond depth → escape temperature → the d-block peak → the refractory four, with the two edge caveats hanging off the side.

Recall Feynman: retell the whole walkthrough to a 12-year-old

Picture every atom sitting in a little dip, like a marble in a bowl. Heat makes the marble jiggle. A shallow bowl lets the marble hop out with a small jiggle — that metal melts easily. A deep bowl needs a huge jiggle — that metal melts only when ferociously hot. What makes the bowl deep? The shared "glue" electrons: fill the pulling slots but not the pushing slots and the glue is strongest. That happens for metals in the middle of a special row (the d-block) — tungsten, rhenium, tantalum, molybdenum. So those bowls are the deepest, so those metals melt hottest, so those are what you line a rocket throat with. Two warnings, though: this bowl story only knows about heat — it doesn't know that hot metals can slowly sag (creep), and it doesn't know that tungsten can rust into smoke long before it melts. That's why engineers add a little rhenium and paint on a protective coat.

Recall Quick self-test

What does the depth of the energy valley represent? ::: The cohesive energy $E_{co h}$ — how hard it is to pull an atom out of the lattice.
Why does the d-band being half-full give the strongest bonding? ::: Bonding (pulling) slots are full, anti-bonding (pushing) slots are still empty → maximum net grip.
Which constant converts bond energy into a melting temperature, and why $k_{B}$ not $R$ ? ::: $k_{B}$ , because we reason per single atom, not per mole.
State the central proportionality. ::: $T_{m} \propto E_{co h}$ .
Name two failure modes the derivation cannot see. ::: Creep (slow high-T sag) and oxidation (volatile $W O_{3}$ well below $T_{m}$ ).
