Refractory metals — W, Mo, Ta, Re for rocket nozzles

What is a "refractory metal"?

Metal	$T_m$ (K)	Crystal	Density (g/cm³)	Key trait
W (tungsten)	3695	BCC	19.3	Highest $T_m$ of all metals; very hard
Re (rhenium)	3459	HCP	21.0	2nd highest $T_m$ ; ductile + creep-resistant
Ta (tantalum)	3290	BCC	16.7	Ductile, superb corrosion resistance
Mo (molybdenum)	2896	BCC	10.2	Lighter, good conductor, cheaper

HOW high $T_m$ arises — a first-principles chain

We don't memorise "W melts high"; we derive why.

Formula Melting from cohesive energy (Lindemann-style reasoning)

Step 1 — Bond strength. Cohesive energy per atom $E_{coh}$ = energy to pull an atom out of the lattice. Strong d-band bonding ⇒ large $E_{coh}$ . Why this step? Melting destroys long-range order; you must overcome the bonding holding atoms in place.

Step 2 — Thermal energy at melting. An atom escapes its lattice cage when its vibrational energy is a fixed fraction of bond energy. Crudely: $k_B T_m \;\approx\; c\,E_{coh}$ Why this step? Equipartition: thermal energy $\sim k_B T$ . When $k_BT$ reaches a critical fraction $c$ of the bond well depth, atoms break free.

Step 3 — Read off the trend. Since $T_m \propto E_{coh}$ , and $E_{coh}$ is maximal for a half-filled d-band, $T_m$ peaks at W/Re. ∎

Why these specific four (the 80/20 of selection)

The oxidation problem — protective vs non-protective oxides

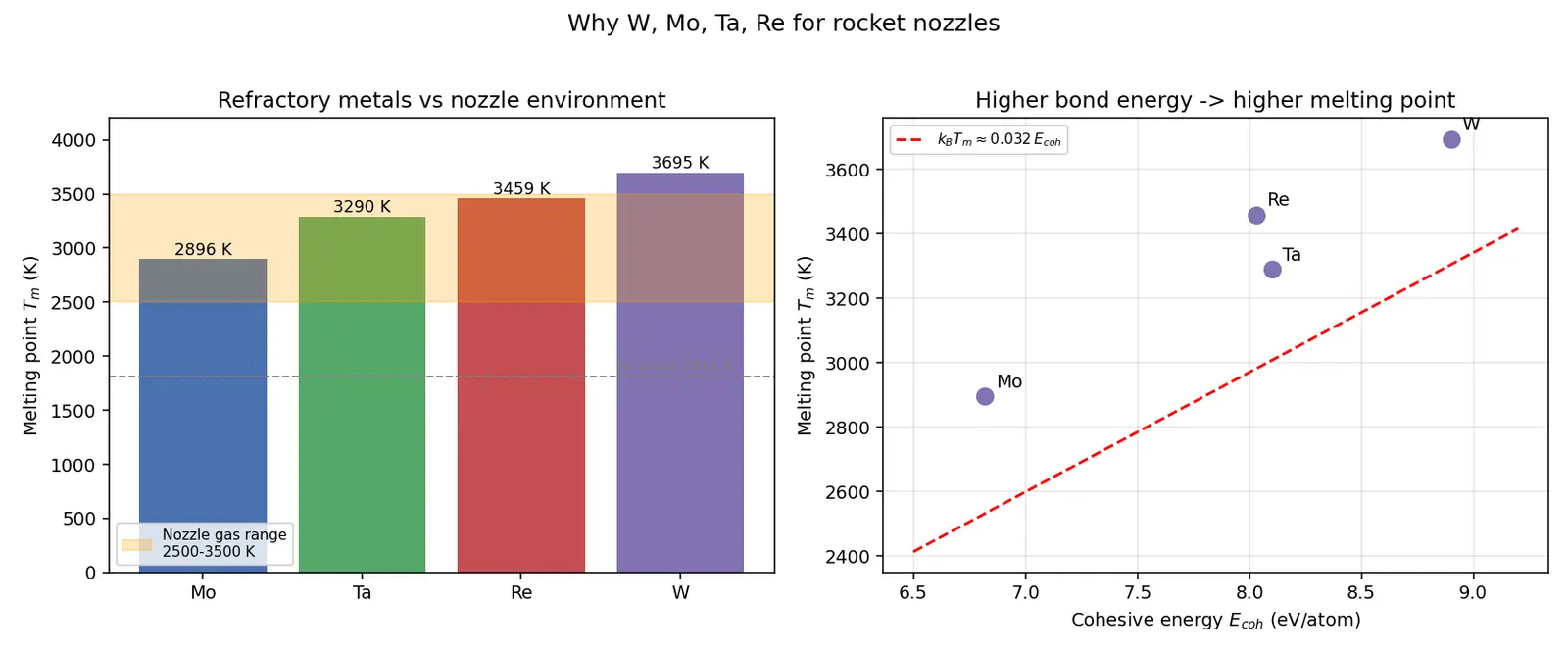

Figure — Refractory metals — W, Mo, Ta, Re for rocket nozzles

Putting it in a nozzle

Active recall

Recall Test yourself (hide answers)

Which metal has the highest $T_m$ of all, and what is it (K)? → W, 3695 K
Why do Group 5–7 transition metals have the highest melting points? → ~half-filled d-band ⇒ max bonding, min anti-bonding occupation ⇒ max cohesive energy
What is the "rhenium effect"? → adding Re to W lowers ductile-brittle transition + raises recrystallisation T → tougher W
Why can't you use bare W in an oxidising exhaust? → forms volatile $WO_3$ above ~500 °C → erodes; needs coating
State the Pilling–Bedworth rule of thumb. → PBR 1–2 protective; <1 cracks; >2 spalls

Recall Feynman: explain to a 12-year-old

Imagine candle wax melts when it's warm, but a steel pan needs a much hotter stove. Some metals — tungsten and its friends — are like the toughest pan ever: their tiny atoms hold hands super tightly, so it takes a fire as hot as the Sun's surface to melt them. That's perfect for a rocket, because the hot gas blasting out the back would melt normal metal like wax. The catch: tungsten rusts away into smoke when hot air touches it, so engineers paint it with a special heat-proof coat, or mix in a bit of rhenium so it doesn't crack.

Connections

Metallic bonding and the electron sea model
d-block trends — melting points and cohesive energy
Creep and recrystallisation in metals
Oxidation kinetics and the Pilling–Bedworth ratio
Thermal barrier coatings and ablatives
Ceramic-matrix composites — alternatives to refractory metals (ZrB2, HfC)
Rocket nozzle thermal management — radiation vs regen cooling

Which metal has the highest melting point of all metals, and its value?

Tungsten (W), 3695 K (~3422 °C).

Order W, Mo, Ta, Re by melting point (high→low).

W (3695 K) > Re (3459 K) > Ta (3290 K) > Mo (2896 K).

Why do mid-d-block metals (Groups 5–7) have the highest melting points?

Their d-band is roughly half-filled, maximising occupation of bonding d-orbitals while anti-bonding ones stay empty → maximum cohesive energy → highest T_m.

What relation links melting point to bonding?

T_m ∝ cohesive energy: k_B·T_m ≈ c·E_coh, so stronger bonds ⇒ higher melting point.

What is the "rhenium effect"?

Adding Re to W lowers the ductile-to-brittle transition temperature and raises recrystallisation temperature, making W tougher and thermal-shock resistant.

Why can't bare tungsten be used in oxidising rocket exhaust?

It forms WO3 above ~500 °C, which is volatile and evaporates/sublimes, eroding the surface; an oxidation-resistant coating is required.

Why is Ta (or Ta–10W) chosen for thrust-chamber liners despite lower T_m than W?

Ta is ductile, fabricable into complex cooling channels, and corrosion-resistant; W content raises strength and T_m — the manufacturability trade-off.

State the Pilling–Bedworth ratio and its protective range.

PBR = V_oxide/V_metal = M_ox·ρ_M/(n·M_M·ρ_ox); protective if 1<PBR<2, cracks if <1, spalls if >2.

Why is Mo sometimes preferred over W despite lower T_m?

Mo density is ~10.2 g/cm³ (about half of W's 19.3), it is cheaper and a better conductor — chosen when weight/cost matter and peak T is lower.

Which refractory metal is most ductile and corrosion-resistant?

Tantalum (Ta).

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, rocket ke nozzle ke throat mein gas ka temperature 2500-3500 K hota hai — itni garmi mein normal metal (lohe ka melting point sirf 1811 K) toh mom ki tarah pighal jayega. Isiliye humein refractory metals chahiye: W (tungsten), Mo, Ta, Re. Inka melting point sabse zyada hota hai, aur garam hone par bhi ye apni strength nahi khote. Tungsten toh 3695 K par melt hota hai — sabse top.

Ab kyun inka melting point itna high hai? Kyunki ye periodic table ke middle d-block (Group 5-7) mein hain, jahan d-band aadha bhara (half-filled) hota hai. Iska matlab maximum bonding orbitals bhare aur anti-bonding khaali — yaani atoms ek dusre ko bahut strong pakad ke rakhte hain (high cohesive energy). Aur simple rule hai: $k_B T_m \approx c \cdot E_{coh}$ , yaani jitni strong bonding, utna high melting point. Isiliye W/Re top par aur Mo thoda neeche.

Lekin ek catch hai — sirf "highest melting point" dekh ke pure W use mat karna. Pure tungsten brittle hota hai (thanda hone par crack), aur 500 °C ke upar oxidising gas mein $WO_3$ ban jaata hai jo udd jaata hai (volatile) — toh nozzle ghis jaata hai. Iska fix: thoda Re milao (rhenium effect) taaki W tough ban jaaye, ya coating lagao taaki oxidation se bachao. Jahan fabrication complex ho (cooling channels), wahan Ta-10W use karte hain kyunki Ta ductile aur corrosion-proof hai. Yeh saara game trade-off ka hai: temperature vs weight vs toughness vs oxidation.
