Nucleic acids — DNA, RNA; base pairing, double helix, replication, transcription, translation (overview): Visual walkthrough

We will use these words a lot, so let us pin them down before step 1:

Step 1 — One nucleotide: the atom of information

WHAT. We draw the single repeating unit: a phosphate, joined to a sugar, joined to a base. This trio is a nucleotide.

WHY start here. You cannot understand a chain until you understand its link. Nature builds long molecules by repeating one small piece, so we must see that piece clearly before we join thousands of them.

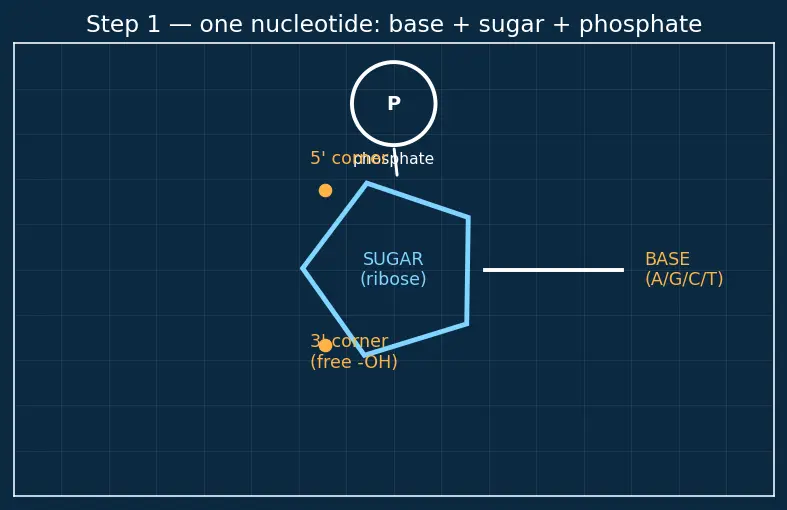

PICTURE. In the figure the sugar is the central cyan pentagon. Its corners are numbered — this numbering is the whole reason DNA has a direction, so watch the amber labels:

Figure — Nucleic acids — DNA, RNA; base pairing, double helix, replication, transcription, translation (overview)

The key take-away: a single unit already has a head ( $5^{'}$ ) and a tail ( $3^{'}$ ). It is not symmetric.

Step 2 — Joining units: the backbone gets a direction

WHAT. We snap a second nucleotide onto the first. The link forms between the $3^{'}$ -OH of one sugar and the $5^{'}$ -phosphate of the next — a phosphodiester bond.

WHY this bond and not any other. Because only the $3^{'}$ end has a free -OH ready to grab the next phosphate, the chain can only grow one way: new units attach at the $3^{'}$ end. That is what gives a strand its arrow.

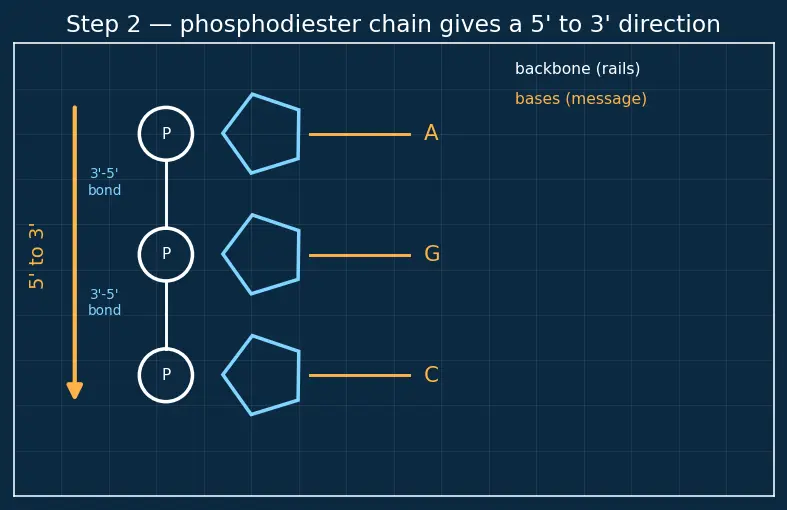

PICTURE. Follow the amber arrow: it always points from $5^{'}$ down to $3^{'}$ . The side rails are the boring, identical sugar-phosphate repeat; the bases stick out sideways as the message.

Step 3 — Why a base has exactly one partner

WHAT. We line up the four base shapes and ask: which fit together? Answer — A with T, G with C, and nothing else.

WHY only these pairs. Two independent rules must both be satisfied:

Size rule — a two-ring purine (A or G) must pair with a one-ring pyrimidine (C or T) so every rung is the same width. Purine+purine is too fat; pyrimidine+pyrimidine too thin.
Snap rule — the hydrogen-bond "hooks" and "loops" only line up for A–T and G–C.

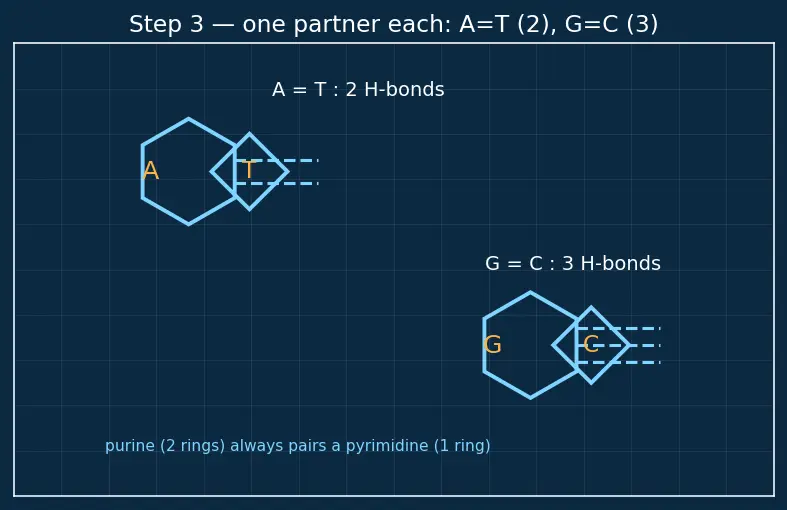

PICTURE. The figure shows the rungs. Count the little cyan dashes between the bases: A–T has 2, G–C has 3. This count is not decoration — it sets how tightly the ladder holds.

Recall Why does this instantly give Chargaff's rule?

If every A is bonded to a T, then counting all A's must equal counting all T's. Same for G and C. ::: Because pairing is one-to-one, $% A = % T$ and $% G = % C$ automatically.

Step 4 — Antiparallel: the two rails point opposite ways

WHAT. We place the second strand alongside the first. Its arrow points the opposite direction. One strand runs $5^{'} \to 3^{'}$ downward, its partner runs $5^{'} \to 3^{'}$ upward.

WHY opposite. The bases can only hydrogen-bond when the two sugars face each other correctly — and geometry forces the partner strand to be flipped. Try to lay them parallel and the hooks miss. So the pair is antiparallel.

PICTURE. Two amber arrows point in opposite vertical directions. Read across any rung: a $5^{'}$ on the left sits beside a $3^{'}$ on the right.

Step 5 — Complementarity: one strand is a recipe for the other

WHAT. Cover the bottom strand. Because each top base has exactly one partner, you can rebuild the entire bottom strand from the top alone.

WHY this is the whole point. This is the parent note's central result. Information is stored twice, mirror-fashion, so losing (or unzipping) one half loses nothing — the survivor dictates the rebuild.

PICTURE. The top strand is drawn solid; the bottom is drawn as faded "ghost" letters that you fill in by the pairing law. Watch a base "predict" its partner via the amber arrow.

Step 6 — Twist it: the double helix

WHAT. The flat ladder is not flat — it twists into a right-handed double helix, one full turn about every 10 rungs.

WHY twist. Stacking the flat bases and letting water push the oily bases inward makes the lowest-energy shape a gentle spiral, with backbones (rails) on the outside and bases (rungs) tucked inside.

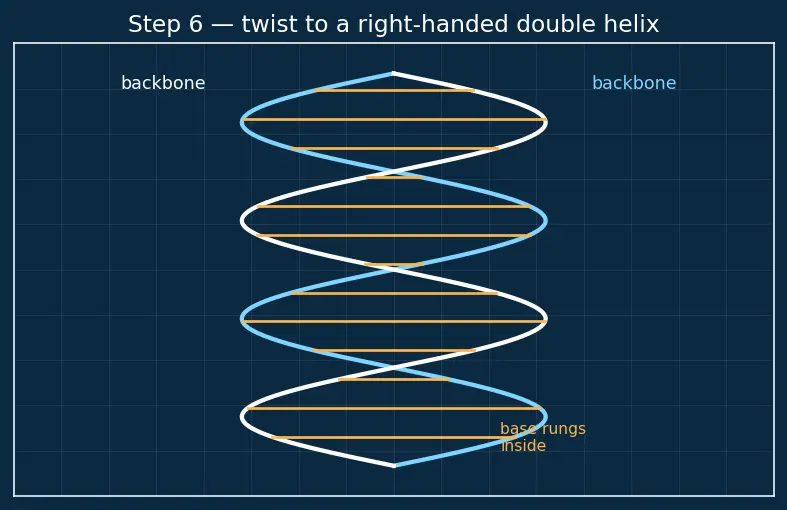

PICTURE. The two backbone ribbons spiral up; rungs are horizontal amber bars inside. Note the bases hide in the core, backbone faces the water outside.

Step 7 — The degenerate cases (do not skip these)

WHAT. We test the extreme inputs, so no scenario surprises you.

WHY. A rule you have not tested at its edges is a rule you do not trust. Check: pure-purine, all-one-base, and 50/50.

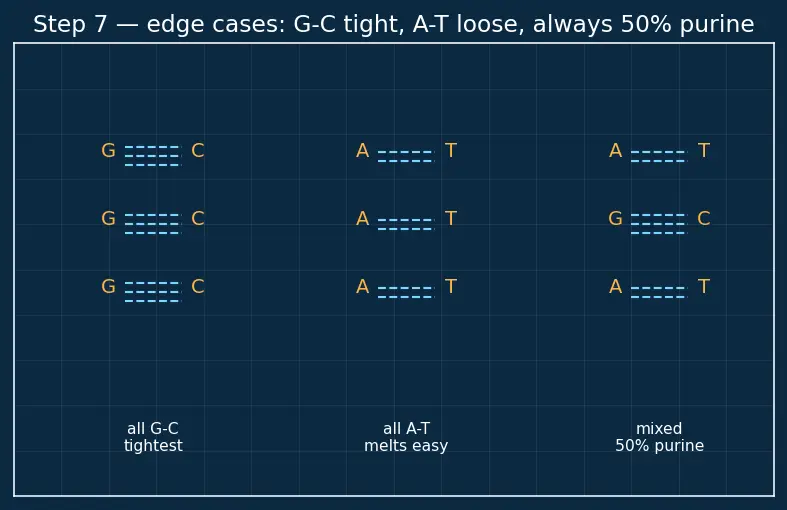

PICTURE. Three mini-panels: an all-G-C stretch (tight, 3 bonds each), an all-A-T stretch (loose, 2 bonds each), and a balanced stretch.

The one-picture summary

Everything on this page collapses into one diagram: a nucleotide → a directional strand → paired rungs → antiparallel partner → the twist. Follow the amber path from top-left to bottom-right.

Recall Feynman retelling — the whole walkthrough in plain words

Start with one snap-together bead: a phosphate, a little sugar ring, and one letter-shape (A, G, C or T). The sugar has a front corner (call it $5^{'}$ ) and a back corner ( $3^{'}$ ), so the bead is not symmetric — it has a nose and a tail. Snap beads nose-to-tail and you get a strand that clearly points one way, $5^{'} \to 3^{'}$ . Now the magic: each letter only snaps to one partner — A to T with two little hooks, G to C with three. Lay a second strand of the matching partners alongside, but you have to flip it so it runs the opposite way (that's "antiparallel"). Because the partners are forced, one strand is a complete recipe for the other — cover one, rebuild it from the other, no information lost. Finally the flat ladder twists into a right-handed spiral with the letters tucked safely inside. Test the extremes: all G–C is glued tight (three hooks each), all A–T melts easily (two hooks each), a lone strand just stays open — and always exactly half the letters are the big two-ring kind. That single "each letter has one partner" rule is the seed of copying, messaging, and building proteins.

Return to the parent: (Hinglish version) · related: Amino acids and Proteins, Enzymes, Genetic code and mutations.
