Peptide bond; primary, secondary, tertiary, quaternary protein structure: Worked examples

Before anything, one word we lean on constantly: a residue is what remains of an amino acid after it has joined the chain (it lost the atoms of water). So "a peptide of $n$ residues" = a peptide built from $n$ amino acids.

The scenario matrix

Every peptide/protein problem falls into one of these case classes. Each row is a way the numbers, the geometry, or the reasoning can bend. We will hit every cell with a worked example.

#	Case class	The "input" that changes	Degenerate / edge version	Worked in
A	Linear count — bonds & water	number of residues $n$	$n = 1$ (no bond!), $n = 2$	Ex 1
B	Molecular mass of the peptide	masses + water lost	subtract $(n - 1) \times 18$	Ex 2
C	Cyclic peptide	ring closes, no free ends	cyclic: bonds $= n$ , not $n - 1$	Ex 3
C′	Branched peptide	an extra bond off a side-chain	one branch = one extra bond	Ex 3b
D	Disulphide bridges ( $- S - S -$ )	number of cysteines	odd cysteine = 1 left free	Ex 4
E	Naming & direction (N→C)	which end is N-terminus	reverse order = different peptide	Ex 5
F	Sequencing / permutations	how many possible sequences	repeated residues shrink count	Ex 6
G	Which structural level breaks?	the disrupting agent	primary always survives weak agents	Ex 7
H	Real-world word problem	haemoglobin, silk, hair	map story → level	Ex 8
I	Exam twist — combine several	multi-step reasoning	catch the hidden trap	Ex 9

The two number-facts everything rests on:

Figure — Peptide bond; primary, secondary, tertiary, quaternary protein structure

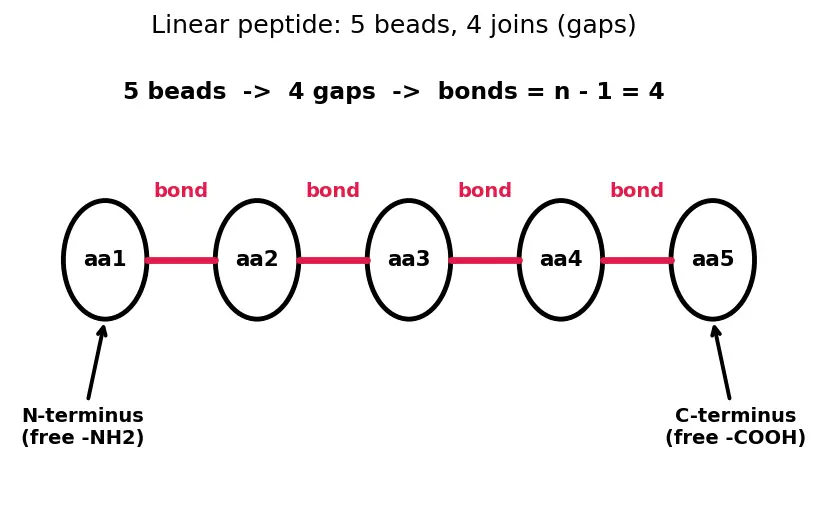

Figure s01 — A linear pentapeptide. Count the red bonds (the accent colour marks the peptide bonds): five beads leave four gaps, so bonds $= n - 1 = 4$ . Notice the two free ends — this "two free ends" fact is exactly what changes for cyclic and branched peptides below.

Case A — Linear count (with the degenerate ends)

Worked example Example 1 — bonds & water for

$n = 1, 2, 7$ · (cell A) How many peptide bonds and water molecules for a peptide of (a) 1, (b) 2, (c) 7 amino acids?

Forecast: guess each pair before reading. Careful with $n = 1$ !

$n = 1$ : bonds $= 1 - 1 = 0$ ; water $= 0$ . Why this step? One lone amino acid has no neighbour to bond to — there is no chain, no knot, no water released. This is the degenerate edge that catches people.
$n = 2$ (a dipeptide): bonds $= 2 - 1 = 1$ ; water $= 1$ . Why this step? Two beads, one gap → one knot, one water expelled.
$n = 7$ : bonds $= 7 - 1 = 6$ ; water $= 6$ . Why this step? Same rule; seven beads have six gaps.

Verify: the number of joins can never exceed the number of pieces minus one — $0 \leq 0$ , $1 \leq 1$ , $6 \leq 6$ . ✓ And bonds always equal water in a linear condensation (each join expels exactly one $H_{2} O$ ).

Case B — Molecular mass of a peptide

Here is the idea, in plain words: when two amino acids join, the product weighs less than the two separate pieces — because a whole water molecule ( $18 g/mol$ ) walked away. So:

Case C — Cyclic peptides (the $n - 1$ rule breaks!)

The rule "bonds $= n - 1$ " quietly assumed the chain has two free ends (a line). If the chain instead closes into a ring, both ends are tied together — that is one extra bond.

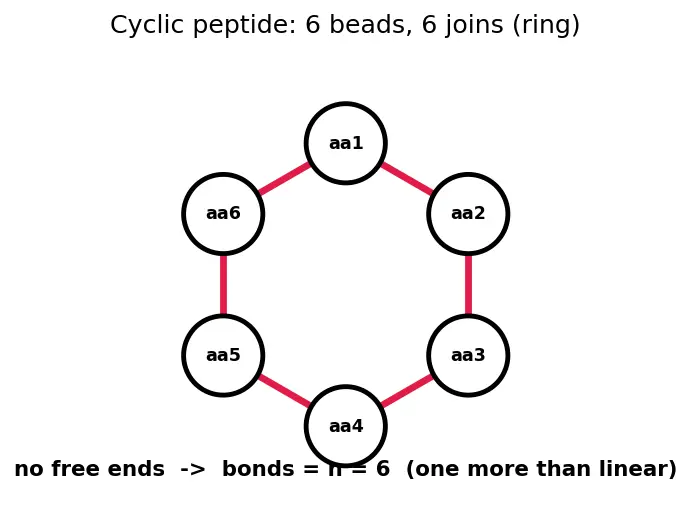

Figure s02 — A cyclic hexapeptide. The six beads (aa1–aa6) sit on a ring joined by six red bonds; there is no free $- N H_{2}$ or $- C O O H$ end anywhere. Because every residue now has a neighbour on both sides, the number of bonds equals the number of residues ( $n$ ), one more than the linear case.

Case C′ — Branched peptides (a bond off a side-chain)

A branched peptide is a chain that grows an extra arm — a residue like lysine (which has a spare $- N H_{2}$ on its side-chain) or aspartic/glutamic acid (a spare $- C O O H$ ) can form a second peptide bond off that side-chain. So instead of one straight line of joins, the molecule has a fork.

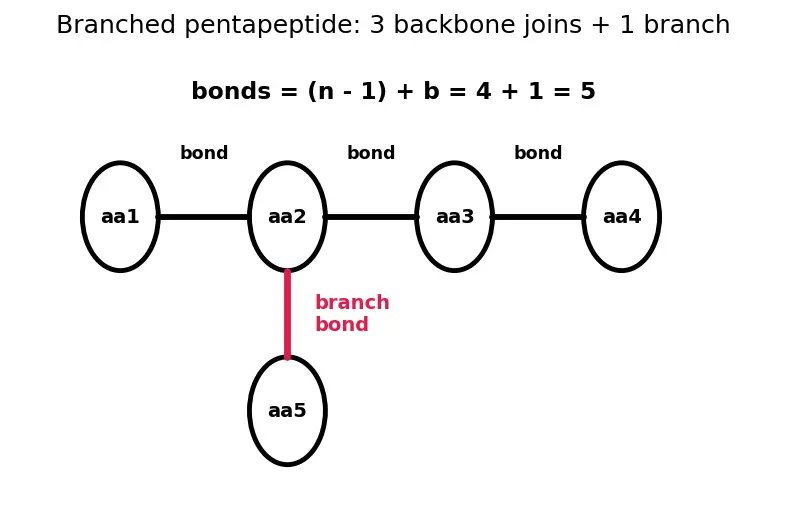

Figure s03 — A branched pentapeptide. Four beads (aa1–aa4) form a straight backbone (the black joins), and a fifth bead (aa5) hangs off the side-chain of aa2 by an extra red bond — the branch. Count them: 3 backbone joins for 4 in-line beads is not the full story; the one red branch bond is the extra $+ b$ that the formula adds.

Worked example Example 3b — a branched pentapeptide · (cell C′)

Five amino acids are joined so that four form a normal linear backbone and the fifth is attached via the side-chain $- N H_{2}$ of a lysine (one branch). How many peptide bonds and waters?

Forecast: more or fewer than the plain linear answer of 4?

Count the linear-backbone joins: for $n = 5$ residues the straight part contributes $n - 1 = 4$ bonds. Why this step? The backbone still connects all five pieces into one, so it needs $n - 1$ joins as usual.
Add the branch: $b = 1$ side-chain linkage → $+ 1$ bond. Why this step? The fifth residue is tied on through the lysine side-chain — that is a second, extra condensation, not part of the straight backbone count.
Total: bonds $= (5 - 1) + 1 = 5$ ; water $= 5$ . Why this step? Every peptide bond, backbone or branch, expels one water, so waters match bonds.

Verify: contrast the three shapes for the same 5 residues — linear gives $4$ , one branch gives $5$ , and a cyclic version would also give $5$ (ring adds one closing bond). The branch and the ring each add exactly one bond over the linear line, for different geometric reasons. ✓

Case D — Disulphide bridges

A disulphide bridge is a different bond from the peptide bond. It is a covalent $- S - S -$ link formed when two cysteine side-chains ( $- S H$ ) lose two hydrogens and join. It does not release water, and it does not count as a peptide bond.

Worked example Example 4 — counting

$- S - S -$ links · (cell D, with odd edge) A single chain contains (a) 4 cysteine residues, (b) 5 cysteine residues. Maximum disulphide bridges?

Forecast: each bridge needs two cysteines — so what happens with an odd number?

Each $- S - S -$ bridge consumes 2 cysteines. Why this step? A bridge is a pair; you cannot make a bridge from one $- S H$ .
(a) $4 \div 2 = 2$ bridges — clean pairing. Why this step? Four cysteines split perfectly into two pairs.
(b) $⌊ 5/2 ⌋ = 2$ bridges, with 1 cysteine left free (a spare $- S H$ ). Why this step? Odd number → one is always left without a partner. This is the degenerate edge.

Verify: bridges $\times 2 \leq$ cysteines: $2 \times 2 = 4 \leq 4$ ✓; $2 \times 2 = 4 \leq 5$ ✓ with 1 spare. Disulphides stabilise tertiary structure and are covalent — remember they survive gentle heat but break under reducing agents.

Case E — Naming & direction (N→C)

Worked example Example 5 — Ala-Gly vs Gly-Ala · (cell E)

(a) Alanine at the N-terminus, glycine at the C-terminus — name it. (b) Is Gly-Ala the same molecule?

Forecast: does swapping the ends give the same peptide or a different one?

(a) N-terminus = Ala → becomes "alanyl"; C-terminus = Gly stays "glycine" → Alanylglycine (Ala-Gly). Why this step? All but the last residue take the "-yl" ending; we read N→C.
(b) Gly-Ala means Gly is now N-terminal → Glycylalanine. This is a different molecule. Why this step? The free $- N H_{2}$ and free $- C O O H$ ends sit on different residues, so the two peptides have different chemistry — order matters. This is exactly why primary structure = sequence.

Verify: Ala-Gly and Gly-Ala have the same atoms ( $C_{5} H_{10} N_{2} O_{3}$ , mass $146$ ) but are not identical — direction distinguishes them, just as "TAP" ≠ "PAT". Same mass, different molecule. ✓

Case F — Sequencing / permutations

If you know which amino acids are present but not their order, how many distinct sequences exist? This is a counting question hiding inside chemistry.

Worked example Example 6 — how many tripeptides? · (cell F, with repeat edge)

(a) From 3 different amino acids (each used once), how many distinct tripeptides? (b) From two Gly and one Ala?

Forecast: will repeats give more or fewer arrangements?

(a) All different: $3! = 3 \times 2 \times 1 = 6$ . Why this step? 3 choices for the N-terminal position, 2 for the middle, 1 left — multiply.
(b) Two identical Gly: total slots arrangement $3! = 6$ , but the two Gly are indistinguishable, so divide by $2! = 2$ . Why this step? Swapping the two Gly gives no new molecule, so we must not count those swaps twice.
$\frac{3 !}{2 !} = \frac{6}{2} = 3$ distinct sequences: Gly-Gly-Ala, Gly-Ala-Gly, Ala-Gly-Gly. Why this step? Repeats always shrink the count.

Verify: list them — (a) with A,B,C: ABC, ACB, BAC, BCA, CAB, CBA = 6 ✓; (b) the three positions Ala can occupy = 3 ✓.

Case G — Which structural level breaks?

Recall The one rule that answers every "denaturation" question

Weak forces (H-bonds, ionic salt bridges, hydrophobic contacts) hold secondary, tertiary, quaternary. Only covalent bonds (peptide bonds = primary, and $- S - S -$ ) survive gentle disruption. So: heat / acid / urea → primary always survives; only the folding is lost. (full note)

Worked example Example 7 — three agents, which level? · (cell G)

Which structural level(s) are destroyed by: (a) boiling, (b) a reducing agent that cleaves $- S - S -$ , (c) strong prolonged acid hydrolysis?

Forecast: does anything ever break the primary structure?

(a) Boiling → breaks H-bonds, ionic, hydrophobic → secondary, tertiary, quaternary lost; primary intact. Why this step? Heat only shakes apart weak forces; peptide bonds are too strong.
(b) Reducing agent → cleaves the covalent $- S - S -$ bridges → tertiary loosens, but peptide bonds (primary) still intact. Why this step? $- S - S -$ is covalent, but it is a tertiary-level stabiliser, not the backbone itself — cutting it unfolds the shape without editing the sequence.
(c) Strong prolonged acid hydrolysis → actually cleaves the peptide bonds → primary structure destroyed (the chain is cut into smaller pieces / free amino acids). Why this step? This is the one exam twist: harsh hydrolysis does attack the covalent backbone. "Denaturation" (mild — heat/acid/urea) never does; "hydrolysis" (harsh, prolonged) does. So of all higher levels here, only (c) reaches primary.

Verify: order the agents by how deep they cut — weak forces break first (boiling, agent a), then the $- S - S -$ covalent bridge (agent b), then finally the peptide backbone itself (agent c). Only (c) destroys the sequence; (a) and (b) leave primary intact. ✓ Enzymes lose activity in (a) & (b) because shape is lost even though sequence survives.

Case H — Real-world word problem

Worked example Example 8 — the haemoglobin story · (cell H)

Haemoglobin is one working molecule made of 4 chains (2α + 2β) that together carry $O_{2}$ . (a) Which structural level is this "4 chains together"? (b) A single mutation swaps one Glu→Val, causing sickle-cell. Which level is directly changed, and does that alter the higher levels?

Forecast: which level is a single-letter change, and which is whole assembly?

(a) "Two or more chains assembled into one functional protein" = quaternary structure. Why this step? Multiple subunits acting as one unit is the definition of quaternary. (see full note)
(b) One amino acid swap = a change in the primary structure (the sequence spelling). Why this step? Changing which residue sits at one position is literally editing the sequence.
Because higher levels depend on the sequence, this one swap propagates: the altered R-group (hydrophobic Val instead of charged Glu) changes folding (tertiary) and makes chains stick together (altered quaternary behaviour → sickling). Why this step? Primary dictates all higher levels — a single change can cascade upward.

Verify: hierarchy check — sequence (primary) is the foundation; edit it and you can disturb everything above. 4 chains ⇒ quaternary requires $> 1$ chain ✓ (a single-chain protein like myoglobin has no quaternary structure).

Case I — Exam twist (combine everything)

Worked example Example 9 — the multi-trap question · (cell I, combines A+B+C+D)

A cyclic peptide is built from 8 amino acids, 4 of which are cysteine forming 2 disulphide bridges. (a) How many peptide bonds? (b) How many waters released in forming just the peptide bonds? (c) Do the disulphide bridges release water?

Forecast: spot both traps — "cyclic" and "disulphide ≠ peptide bond".

(a) It's cyclic, so peptide bonds $= n = 8$ (not $7$ ). Why this step? Trap 1 — a ring adds one extra bond beyond the linear $n - 1$ .
(b) Water released in peptide-bond formation $=$ number of peptide bonds $= 8$ . Why this step? Each peptide bond is one condensation reaction, and every condensation expels exactly one water — so the water count equals the bond count.
(c) No — disulphide bridges form by loss of hydrogens (oxidation), not water, so they add 0 to the water count. Why this step? Trap 2 — $- S - S -$ formation is a different reaction (two $- S H$ lose $2 H$ ); it is not a condensation, so no water leaves. Do not lump it with peptide-bond counting.

Verify: linear 8-mer → 7 bonds; ring adds 1 → 8 ✓. Peptide waters $=$ peptide bonds $= 8$ ✓. Disulphides contribute $0$ water ✓. So total water released from all bond-forming = 8 (all from peptide bonds; the 2 bridges add none).

Wrapping up

Every cell of the scenario matrix is now worked: linear counts (A), mass (B), cyclic (C), branched (C′), disulphides (D), naming/direction (E), permutations (F), levels breaking (G), the real-world haemoglobin story (H), and the combined exam twist (I). The three counting traps and the "primary always survives weak agents" rule are the load-bearing ideas — everything else is bookkeeping. From here, deepen the why behind the flat backbone in Amides — resonance & planarity, the forces that undo folding in Denaturation of proteins, and the working machinery in Enzymes — globular proteins as biocatalysts.

Recall Self-test — cover the answers

A cyclic peptide of 10 residues has how many peptide bonds? ::: $10$ (ring rule: bonds $= n$ ) A linear peptide of 10 residues has how many peptide bonds? ::: $9$ (linear rule: $n - 1$ ) A linear 6-residue peptide with 1 side-chain branch has how many peptide bonds? ::: $6$ — that is $(n - 1) + b = 5 + 1$ Do disulphide bridges release water when they form? ::: No — they form by loss of hydrogens (oxidation), not condensation 7 cysteines give at most how many $- S - S -$ bridges? ::: $3$ bridges, with $1$ cysteine left free (odd → one spare) Ala-Gly and Gly-Ala: same molecule? ::: No — same atoms/mass but different sequence (direction matters) Does harsh acid hydrolysis break primary structure? ::: Yes — it cleaves peptide bonds (unlike mild denaturation, which spares them)
