Visual walkthrough — Peptide bond; primary, secondary, tertiary, quaternary protein structure

We assume only that you have met amino acids as molecules with two "handles". Everything else we draw.

---

Step 1 — Meet the two building blocks

WHAT: we lay out two separate amino acids side by side, calling them ${\text{aa}}_1$ and ${\text{aa}}_2$.

WHY: before any reaction you must know exactly which atom will do which job. The whole peptide bond is a conversation between the $N$ of one molecule and the acid carbon of the other — so those two are the stars.

PICTURE: the two coloured molecules below. Note the blue lone pair sitting on each nitrogen and the red carbonyl carbon ($C$ of $-COOH$) — memorise these two colours; the entire derivation is about them meeting. The green groups are the side chains $R_1,R_2$ (defined above).

$\underset{{\text{aa}}_1}{{\text{H}}_2\stackrel{\downarrow \text{lone pair}}{N}-{\text{C}}_{\alpha }\text{H}{R}_1-\underset{\text{electrophile}}{C}\text{OOH}}\underset{{\text{aa}}_2}{{\text{H}}_{2}N-{\text{C}}_{\alpha }\text{H}{R}_2-\text{COOH}}$

• ${\text{H}}_{2}N$ — the amine handle, its $N$ holds the electron-rich lone pair.
• $C_{\alpha }$ — central carbon, carries $H$ and side chain $R_1$ or $R_2$ (the $R$ defined above).
• The $C$ of $\text{COOH}$ (red) — this is the atom hungry for electrons.

---

Step 2 — Why the carbonyl carbon is "hungry"

WHAT: we zoom in on one $-COOH$ group and mark where the electrons sit.

WHY this matters: oxygen is far greedier for electrons than carbon (it is more electronegative). In the $C=O$ bond, oxygen drags the shared electrons toward itself, leaving the carbon slightly positive ($\delta +$). That partial positive is the "hunger" — it is exactly what a lone pair will attack. This is the same electron-pull that makes all amides behave the way they do.

PICTURE: the arrow shows electron density sliding from $C$ toward $O$; the $\delta +$ / $\delta -$ labels are the leftover partial charges.

$\stackrel{\delta +}{C}=\stackrel{\delta -}{O}$

• $\delta +$ on $C$ — the target of attack.
• $\delta -$ on $O$ — where the pulled electrons piled up.

---

Step 3 — Activate the acid, then attack

WHAT: first, an acid (a proton source, $H^{+}$ — in the cell provided by the enzyme's machinery or ATP-driven activation) protonates the carbonyl oxygen. This makes the carbon even more $\delta +$. Now the lone pair on nitrogen of ${\text{aa}}_2$ reaches across and forms a new $C-N$ bond to that carbon; the $C=O$ electrons flip up onto the (now protonated) oxygen.

WHY the proton first: a bare carbonyl is only mildly hungry — too mild to react on its own (Step 2's reality check). Adding $H^{+}$ to the oxygen pulls electrons even harder, sharpening the $\delta +$ so the weak amine nucleophile can actually attack. This is acid catalysis: the proton is borrowed, not consumed — we will hand an equivalent one back later.

PICTURE: arrow ⓪ = $H^{+}$ onto oxygen (activation). Arrow ① = nitrogen's lone pair → carbon (bond forming). Arrow ② = $C=O$ electrons → onto oxygen.

$\underset{\text{activation}}{\stackrel{\text{⓪}}{H^{+}}\to O}\underset{\text{new }C-N\text{ bond}}{\stackrel{\text{①}}{N}:⟶C}\underset{\text{oxygen keeps the pair}}{C=O\stackrel{\text{②}}{⟶}C-OH}$

• ⓪ — borrowed proton sharpens the electrophile.
• ① — lone pair becomes the future backbone $C-N$ bond.
• ② — the old double bond parks on oxygen (now $-OH$, since it was protonated).

---

Step 4 — The tetrahedral intermediate (with a charged nitrogen)

WHAT: we draw the crowded carbon right after the attack. Crucially, the attacking nitrogen used its lone pair to bond, so it is now positively charged — it carries three bonds plus a proton: an $-\stackrel{+}{N}{H}_2-$ group. This positive nitrogen is a key that many students skip.

WHY it can't last: carbon "dislikes" carrying four bulky groups and wants its double bond back. Two things must now happen by acid–base steps: (i) the extra proton on the positive nitrogen must leave, and (ii) one $-OH$ must depart as water. We track both protons in the next step.

PICTURE: the four bonds fan out; the positive nitrogen ($-\stackrel{+}{N}{H}_2-$) is flagged in yellow, and the leaving $-OH$ is highlighted in red.

$\stackrel{OH}{\underset{\underset{OH}{|}}{\stackrel{|}{C}}}-\stackrel{+}{N}{H}_2-\text{(four single bonds, N is positive, unstable)}$

• $\stackrel{+}{N}{H}_2$ (yellow) — the nitrogen is positive because its lone pair became a bond; it holds a spare proton.
• One $OH$ (red) — the group about to leave.
• $C-N$ — the freshly made link we want to keep.

---

Step 5 — Proton relay: lose water, deprotonate nitrogen

WHAT: three coordinated acid–base moves finish the job, and we track every proton:

1. An acid protonates the leaving $-OH$, turning it into $-\stackrel{+}{O}{H}_2$ — a good leaving group (this is where the "make $-OH$ leavable" work happens; a bare $-OH$ is a terrible leaving group, which is exactly why the raw reaction needs activation).
2. The other oxygen's electrons push down to reform $C=O$, ejecting that $-O{H}_2$ as a neutral water molecule $H_{2}O$. This water carries away the proton we just added.
3. A base removes the spare proton from the positive nitrogen ($-\stackrel{+}{N}{H}_2-\to -NH-$), handing that proton back to solution — this repays the $H^{+}$ borrowed in Step 3.

WHY it balances: count the protons — one $H^{+}$ was borrowed to activate (Step 3), one was added to the leaving $-OH$ (move 1) and left inside the water, and one was removed from nitrogen (move 3). Net across Steps 3–5: protons are handed around but conserved — the enzyme is a catalyst, not a reagent. What is permanently lost is exactly one $H_{2}O$ (its two H's: one from the departing $-OH$, one added as $H^{+}$; its O from the original $-OH$). What remains is the flat unit $-CO-NH-$, with the surviving $N-H$ proton being an original amine hydrogen (the amine started as $-N{H}_2$; one H stays on N, the balance is accounted for above).

PICTURE: the red water floats off; yellow shows the proton being pulled off the nitrogen; the surviving green box is the peptide bond.

${\text{aa}}_1-\underset{\text{peptide bond}}{\underbrace{C(=O)-N(H)}}-{\text{aa}}_2+H_{2}O(\text{proton borrowed}=\text{proton returned})$

• $C(=O)$ — carbonyl restored (oxygen took back its double bond in move 2).
• $N(H)$ — nitrogen, now neutral, after losing its spare proton in move 3.
• $H_{2}O$ (red) — the single water lost; its atoms tracked in moves 1–2.

---

Step 6 — Why the finished bond is FLAT (resonance)

WHAT: the nitrogen still has a lone pair. That lone pair slides toward the carbonyl, pushing the $C=O$ electrons onto the oxygen. Now the $C-N$ is part double bond and the $C-O$ is part single bond.

WHY it matters: a double bond cannot rotate (rotating would tear the sideways-overlapping electron cloud). Because $C-N$ is partly double, it too refuses to twist. So all six atoms $C_{\alpha },C,O,N,H,C_{\alpha }$ are frozen into one flat plane. This stiffness is the reason proteins fold into neat helices and sheets instead of flopping around — it is the hinge on which all higher structure hangs.

PICTURE: the two resonance drawings on the left, the double-headed arrow between them, and on the right the flat plane holding all six atoms rigid.

$\stackrel{\text{form A}}{O=C-\stackrel{..}{N}H}⟷\stackrel{\text{form B}}{O^{-}-C=\stackrel{+}{N}H}$

• Form A — normal drawing, double bond on oxygen.
• Form B — nitrogen's lone pair moved in, double bond now on $C-N$.
• The real bond is the average → partial double character → no rotation → planar.

---

Step 7 — Edge & degenerate cases

Never leave a scenario unshown.

---

The one-picture summary

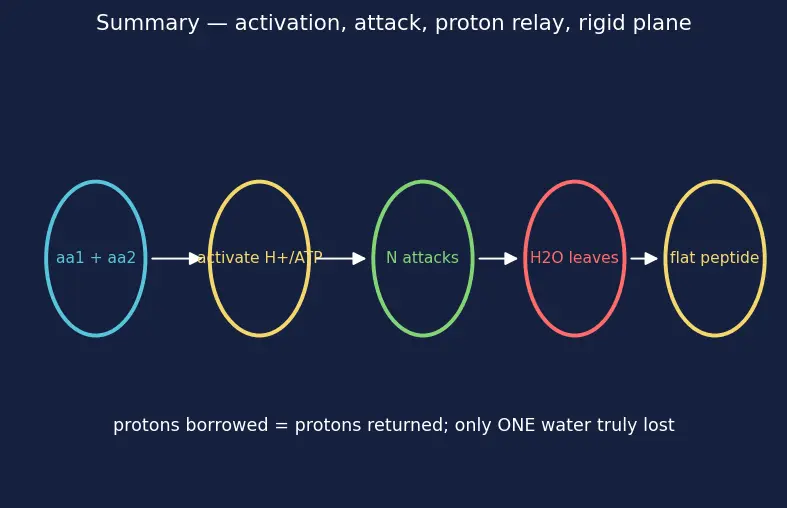

The whole journey on one canvas: two amino acids (blue) → the acid is activated (borrowed $H^{+}$/ATP) → nitrogen's lone pair attacks the sharpened carbon → a proton relay ejects water and deprotonates nitrogen → a flat, rigid green peptide plane remains, which then coils into the helices and sheets of higher structure.

Recall Feynman: tell it like a story

Picture two little people, each with a grabby hand (the acid carbon) and a giving hand full of electrons (the nitrogen). The grabby hand is normally lazy, so a helper (an enzyme, paid with ATP energy) first tightens it by clipping on a tiny magnet (a borrowed proton $H^{+}$) — now it's hungry enough to grab. Person 2's giving hand reaches in; but person 1's grabby hand was holding a little water-bucket ($-OH$). The helper clips another magnet onto that bucket so it slips off easily, and out it floats as water. Person 2's giving hand, having grabbed, is now over-charged (positive nitrogen), so the helper plucks a spare proton off it — and hands that proton back where it borrowed the first one. Every magnet borrowed is returned; only one bucket of water is truly gone. Now the two are locked hand-in-hand, and the nitrogen keeps leaking electrons toward the carbon like glue that freezes the wrists so nobody can twist. A whole line of these frozen-wrist handshakes can't wobble — so it neatly curls into a spring or lies flat as a mat. That frozen, un-twistable handshake is the peptide bond.

Recall Quick self-test

Why does the carbonyl carbon get attacked and not the oxygen? ::: Oxygen pulls the shared electrons to itself, leaving carbon partially positive ($\delta +$) — the electron-rich nitrogen goes for that positive carbon (and an acid can protonate the oxygen to sharpen it further). Where does the proton on the product's $N-H$ end up coming out even, and where does the water's extra H come from? ::: Protons are borrowed and returned by acid–base catalysis; net only one $H_{2}O$ leaves. The nitrogen loses its spare proton (deprotonation), repaying the $H^{+}$ borrowed to activate the acid. Why isn't peptide-bond formation spontaneous in the cell? ::: Water favours the reverse (hydrolysis); the acid must be energetically activated (ATP, e.g. as an activated ester on tRNA) and an enzyme supplies acid–base catalysis. How many waters when 4 amino acids join into one chain? ::: $n-1=3$. What single feature makes the peptide bond unable to rotate? ::: Resonance gives the $C-N$ bond partial double-bond character; double bonds can't twist.
