Visual walkthrough — Ethers — Williamson synthesis, cleavage by HI

---

Step 1 — Draw the ether and mark the two "seams"

WHAT. An ether has one oxygen with two bonds to carbon and two lone pairs (the little dots). We name the two carbon–oxygen bonds the left seam and the right seam — these are the only bonds that can ever be made or cut.

WHY. Everything on this page is a decision about which seam forms or breaks. If you can point at the two seams, the whole chapter becomes one question: "which seam, and by which move?"

PICTURE. In the figure the O sits at the centre, bent at about $110^{\circ }$ (oxygen is $s{p}^3$ — think water with both H's swapped for carbon). The two yellow dots above O are the lone pairs: this is the electron stash that makes O both a weak base (it can grab a proton) and, once negative, a strong nucleophile.

$\underset{\text{left carbon group}}{\underbrace{R}}-\underset{\begin{array}{c}\text{oxygen}\\ \text{2 lone pairs}\end{array}}{\underbrace{O}}-\underset{\text{right carbon group}}{\underbrace{R^{\prime }}}$

---

Step 2 — Why a bare alcohol can't sew, and how we charge it up

WHAT. To build a seam we need the oxygen to attack a carbon. A neutral alcohol $R-O-H$ has lone pairs, but they are held tightly — it is a weak nucleophile. We strip off the H with a base (sodium metal or $NaH$) to make an alkoxide $R-O^{-}$.

WHY this tool — a base? We are asking "how do I make oxygen grabbier?" The answer: pile more negative charge on it. Removing $H^{+}$ leaves the bonding pair behind on O, so O goes from neutral to $-1$. More negative charge = electrons held more loosely = stronger push toward a carbon. (Why alcohols even let go of that H at all is their mild acidity.)

PICTURE. Watch the charge label on O flip from $0$ (pale) to $-1$ (bright blue) as the H leaves as $\frac{1}{2}{H}_2$. The lone-pair dots grow — that is the "loaded spring" now ready to fire.

$\underset{\text{weak nucleophile}}{R-\stackrel{\cdot \cdot }{O}-H}+Na⟶\underset{\begin{array}{c}\text{strong nucleophile}\\ \text{(alkoxide)}\end{array}}{R-\stackrel{\cdot \cdot }{\underset{\ominus }{O}}}+N{a}^{+}+\frac{1}{2}{H}_2$

• $R-O-H$ — the alcohol, oxygen still neutral.
• $\ominus$ under O — the new negative charge: this is the "loaded" state.
• $\frac{1}{2}{H}_2$ — the hydrogen leaves as gas, driving the reaction forward.

---

Step 3 — Why the other partner is an alkyl halide (the electrophile)

WHAT. The loaded alkoxide needs a carbon to hit. We give it an alkyl halide $R^{\prime }-X$ (with $X=Cl,Br,I$). The C–X bond is lopsided: the halogen hogs electrons, so carbon is left electron-poor, written $C^{\delta +}$, and $X$ is ready to leave as the stable anion $X^{-}$.

WHY this tool — a polarized bond? We asked "where can a nucleophile usefully attack?" A nucleophile wants a partial positive carbon to dump its electrons onto, plus a group ready to leave so the carbon isn't left with too many bonds. The C–X bond gives us both in one place: $\delta +$ carbon (target) and $X$ (built-in exit).

PICTURE. The bond is drawn as an arrow of electron density sliding toward $X$ (red), leaving $\delta +$ (small red plus) on carbon and $\delta -$ on $X$. That red plus is the bullseye.

$\stackrel{\delta +}{C}-\stackrel{\delta -}{X}$

• $\delta +$ on C — partial positive; the spot the alkoxide will attack.
• $\delta -$ on X — halogen has pulled the electrons; it is happy to leave with them as $X^{-}$.

---

Step 4 — The sewing move ($S_{N}2$): backside attack builds the seam

WHAT. The alkoxide lone pair attacks the carbon from the side opposite $X$ (the "backside"). In the same instant the O–C bond forms and the C–X bond breaks — one smooth, concerted step. That is $S_{N}2$ ("substitution, nucleophilic, 2 things in the slow step").

WHY backside, and why one step? Approaching head-on toward $X$ would collide with $X$'s electron cloud. The only clear runway is directly behind carbon. As O pushes in the back, $X$ is pushed out the front — like pushing a revolving door. (Full contrast of $S_{N}2$ vs the two-step route is in SN1 vs SN2 mechanisms.)

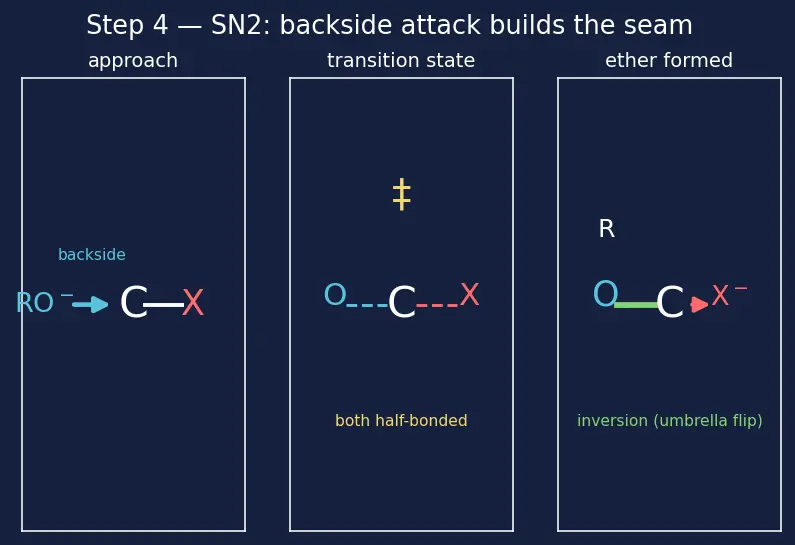

PICTURE. Three frames: (1) alkoxide approaching from the back, (2) the transition state with O and X both half-bonded (in brackets with a $‡$), (3) finished ether with $X^{-}$ ejected and the other three groups on carbon flipped inside-out (umbrella in the wind).

$R-O^{-}+\underset{\text{backside}}{\stackrel{\delta +}{C}}-X⟶[R-O\cdots C\cdots X{]}^{‡}⟶\underset{\text{ether}}{R-O-C}+X^{-}$

• $R-O^{-}$ — the loaded nucleophile from Step 2.
• $[\cdots {]}^{‡}$ — the transition state: O half-attached, X half-gone, everything happening at once.
• $X^{-}$ — the leaving group departs with the electrons; this is why it must be a good leaving group.

---

Step 5 — Edge case: bulk kills $S_{N}2$, so choose your partners

WHAT. If the carbon under attack is crowded (a tertiary carbon, three carbons hanging off it), the backside runway is blocked. The alkoxide can no longer reach — so it does the other thing it's good at: rips off a neighbouring H, giving an alkene (E2 Elimination) instead of the ether.

WHY this fixes the rule. The molecule you attack must be small and open. So put the bulky group on the alkoxide (it just sits there donating electrons — bulk doesn't matter) and the small group on the halide (it gets attacked — must be open). Cation stability is a red herring here: $S_{N}2$ never makes a free carbocation.

PICTURE. Left panel: a clear backside runway into a methyl carbon → green check, ether forms. Right panel: a tertiary carbon walled in by three methyls → red X on the runway; the alkoxide instead grabs a $\beta$-hydrogen and an alkene pops out.

---

Step 6 — Now cut: why a plain ether refuses to break

WHAT. To break a seam we'd need $I^{-}$ to attack a carbon and kick out the oxygen as $R-O^{-}$. But $R-O^{-}$ (alkoxide) is a terrible leaving group — it's the very thing we had to manufacture with a base in Step 2. A great nucleophile is, by the same token, a lousy leaving group.

WHY this stalls. A leaving group must be happy carrying the electrons away. $R-O^{-}$ is not happy being negative (that's why it's such a strong nucleophile). So the naked ether just sits there — unreactive.

PICTURE. $I^{-}$ approaches the seam, but the exit is a barred gate labelled $R{O}^{-}$ "bad leaving group" — a red barrier stops the reaction.

$I^{-}+R^{\prime }-O-R\xcancel{⟶}{R}^{\prime }-I+\underset{\text{won’t leave}}{\underbrace{R-O^{-}}}$

---

Step 7 — Protonate first: turn a bad exit into a good one (why HI)

WHAT. Add strong acid $HI$. Step one, an $H^{+}$ sticks onto an oxygen lone pair → the oxygen becomes positively charged, $R-\stackrel{+}{O}(H)-R^{\prime }$. Now if a seam breaks, the leaving group is a neutral alcohol $R-OH$ — not a hostile anion.

WHY HI specifically? We need two jobs done: (a) protonate O well and (b) supply a strong nucleophile to attack carbon. $HI$ is the strongest of $HI/HBr/HCl$ acids (best at job a) and $I^{-}$ is the biggest, most polarizable, best nucleophile (best at job b). So $HI>HBr>HCl$. (Compare sizes and softness in Nucleophilicity and leaving group ability.)

PICTURE. The barred gate from Step 6 turns green: the $H^{+}$ has clipped onto O, the label flips from $R{O}^{-}$ "bad" to $ROH$ "good leaving group", and $I^{-}$ is now free to charge in.

$R-O-R^{\prime }+H-I⟶R-\stackrel{+}{\underset{|}{O}}(H)-R^{\prime }+I^{-}$

• $\stackrel{+}{O}(H)$ — the now-protonated oxygen; positive, and about to release a neutral alcohol.
• $I^{-}$ — the freed iodide, the strongest nucleophile in the room, ready to attack.

---

Step 8 — Which seam snaps? Let the carbon choose the mechanism

WHAT. Iodide attacks a carbon of the protonated ether. Which carbon decides the products, and the carbon's shape decides the mechanism:

• $S_{N}2$ route (both carbons $1°$/methyl): $I^{-}$ hits the less hindered carbon — small group gets the iodide.
• $S_{N}1$ route ($3°$, benzylic, allylic present): the C–O bond snaps on its own to release the most stable carbocation; that carbon then grabs $I^{-}$.

WHY two routes? Same fork as sewing: an open carbon invites backside attack ($S_{N}2$); a carbon that makes a stable cation prefers to leave first and grab iodide after ($S_{N}1$). Aromatic carbon can do neither — so in an alkyl–aryl ether the alkyl seam always breaks and the aryl side survives as a phenol.

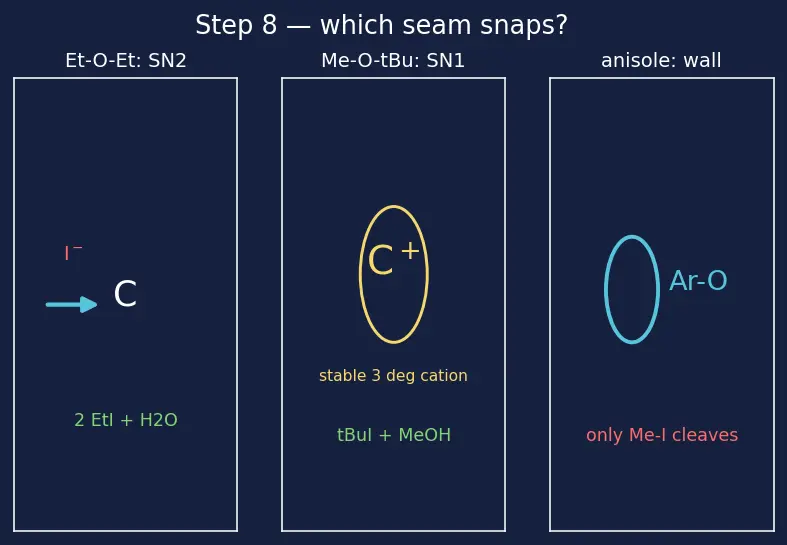

PICTURE. Three lanes. Lane A (diethyl ether): $I^{-}$ backside-attacks a $1°$ carbon → $S_{N}2$. Lane B ($C{H}_3$–O–$C(C{H}_3{)}_3$): the $3°$ seam pops to a bright, stable tertiary cation → $S_{N}1$ → cation grabs $I^{-}$. Lane C (anisole): the aryl seam is a solid wall; iodide is forced onto the methyl → phenol survives.

---

The one-picture summary

One oxygen, two seams, two moves. Sewing loads O with charge (alkoxide) and attacks an open small carbon ($S_{N}2$) — so the bulky partner is the alkoxide. Cutting first protonates O (to turn a bad exit into a good one), then lets $I^{-}$ break the seam that either is least hindered ($S_{N}2$) or gives the most stable cation ($S_{N}1$) — and an aromatic seam never breaks.

Recall Feynman: the whole walkthrough in plain words

Picture two LEGO bricks joined by an oxygen connector with two dots of spare glue on it. To build the join: you can't press two neutral bricks together — the oxygen isn't grabby enough. So you first "charge up" one brick's connector by yanking off its little H cap with a base; now it's negative and hungry. You aim it at the back of the other brick's carbon, which wears an easy-pop-off halogen cap. The hungry oxygen slams in the back, the cap pops out the front, and the join is made. Rule of thumb: the brick being hit has to be small and open — a fat, crowded brick can't be reached, so you make the fat one the hungry alkoxide and the skinny one the cap-bearing halide. To cut the join: the oxygen won't leave on its own — it's too glue-y. So you pour on strong acid $HI$: an $H$ sticks to the oxygen, making it "slippery" and willing to walk off as a neutral alcohol. Then the big soft iodide charges in and knocks a carbon loose from the oxygen. It knocks loose whichever carbon is easiest — the small open one, or the one that makes a nice stable positive fragment. But it can never knock a ring-carbon loose, so a ring-plus-methyl ether always ends up as a ring-with-oxygen (a phenol) plus methyl iodide.
