4.3.6Halides and Oxygenated Derivatives

Ethers — Williamson synthesis, cleavage by HI

1,972 words9 min readdifficulty · medium

1. What is an ether? (WHAT)

The C–O–C bond angle is about 110110^\circ (oxygen is sp3sp^3, like water with both H's replaced by carbon). The two lone pairs on O make ethers weakly basic — important for cleavage.


2. Williamson Ether Synthesis (HOW we make ethers)

Deriving the mechanism from first principles

We need a bond between O of RORO^- and the C of RXR'-X.

  1. Why an alkoxide? A neutral alcohol oxygen is only weakly nucleophilic. Removing its H with a base (e.g. Na metal, or NaH) gives RORO^- — a negatively charged O with much higher electron density → strong nucleophile. ROH+NaRONa++12H2R-OH + Na \longrightarrow R-O^-Na^+ + \tfrac12 H_2
  2. Why an alkyl halide? The C–X bond is polarized Cδ+XδC^{\delta+}-X^{\delta-}. Carbon is electrophilic; X can leave as XX^- (stable anion). This is the perfect SN2S_N2 partner.
  3. The attack (SN2S_N2): alkoxide lone pair attacks the back of the Cδ+C^{\delta+}, X leaves in one concerted step:

RO+Cδ+backsideX    [ROCX]    ROC+XR\text{–}O^- + \underset{\text{backside}}{\overset{\delta+}{C}}\text{–}X \;\longrightarrow\; [R\text{–}O\cdots C\cdots X]^{\ddagger} \;\longrightarrow\; R\text{–}O\text{–}C + X^-


3. Cleavage of Ethers by HI (HOW we cut ethers)

Ethers are unreactive (no good leaving group: RORO^- is a bad leaving group). To break them we need strong acid + good nucleophile → HI (or HBr) does both.

Deriving the mechanism

Step 1 — Protonation (turn bad LG into good LG): ROR+H+RO+(H)RR-O-R' + H^+ \rightarrow R-\overset{+}{O}(H)-R' Why? Neutral ether O is a bad leaving group. After protonation, the leaving group becomes a neutral alcohol ROHR-OH — far better.

Step 2 — Iodide attacks (SN2S_N2 or SN1S_N1): I+RO+(H)RRI+ROHI^- + R'-\overset{+}{O}(H)-R \rightarrow R'-I + R-OH

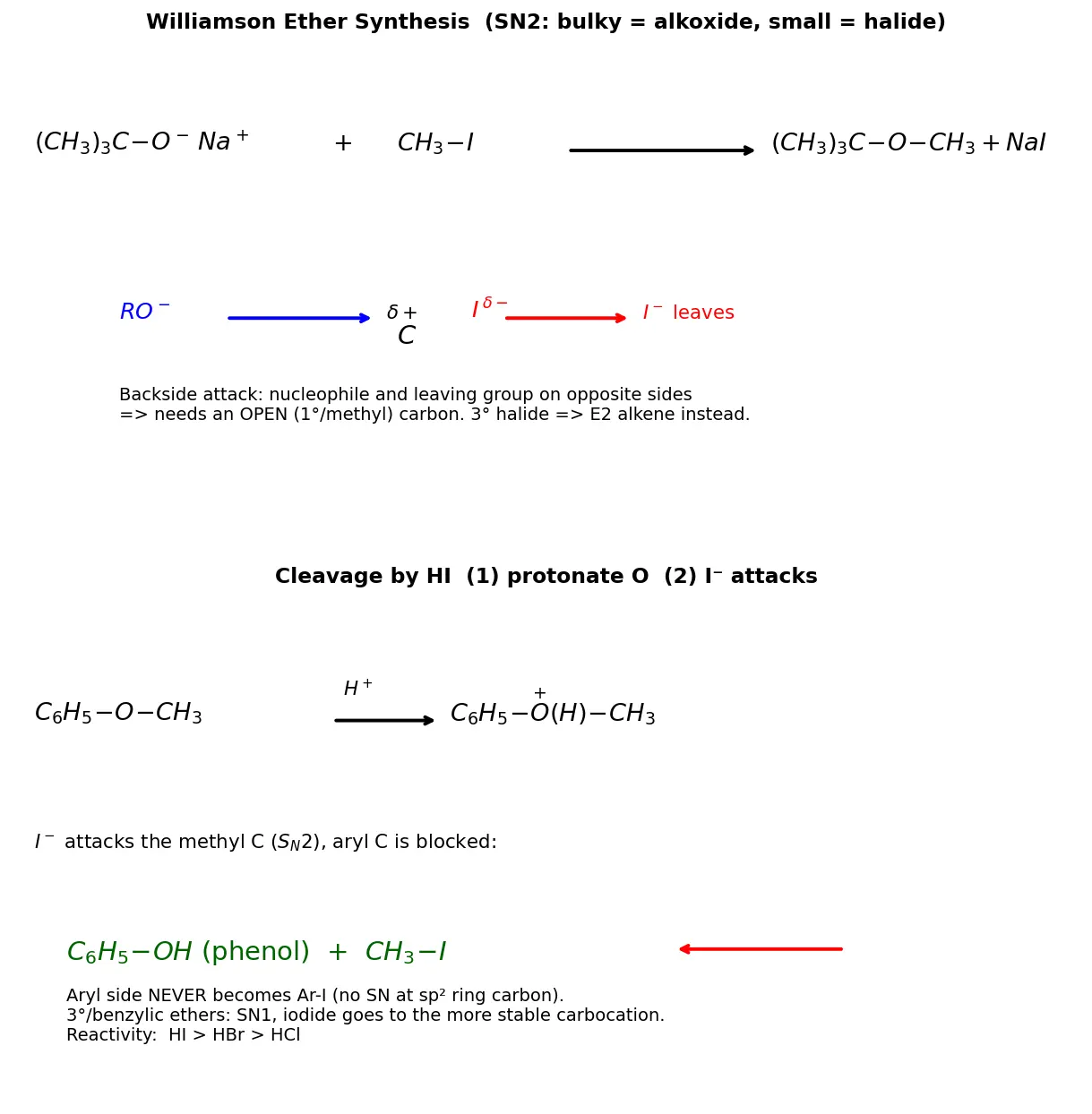

Figure — Ethers — Williamson synthesis, cleavage by HI

4. The 80/20 — what actually scores marks

  1. Williamson = SN2S_N2: bulky group → alkoxide, small group → halide.
  2. Aryl/3° must be the alkoxide (never the halide).
  3. HI cleavage: protonate O, then II^- attacks small C (SN2S_N2) or stable-cation C (SN1S_N1).
  4. Alkyl–aryl ether → phenol + alkyl iodide (aryl never becomes iodide).
  5. Reactivity HI>HBr>HClHI>HBr>HCl.

Flashcards

Williamson synthesis is which mechanism?
SN2S_N2 (alkoxide + alkyl halide).
In Williamson, which partner should be the alkyl halide?
The less hindered (methyl/1°) group; the bulkier group is the alkoxide.
Why can't a 3° alkyl halide be used in Williamson?
Strong alkoxide base causes E2 elimination (alkene) instead of SN2S_N2 ether formation.
How do you make anisole by Williamson?
C6H5ONa++CH3IC6H5OCH3C_6H_5O^-Na^+ + CH_3I \rightarrow C_6H_5OCH_3 (phenoxide is the nucleophile; aryl can't be the halide).
First step of ether cleavage by HI?
Protonation of the ether oxygen, turning RORO^- (bad LG) into a neutral alcohol (good LG).
Anisole + HI gives what?
Phenol + methyl iodide (C6H5OH+CH3IC_6H_5OH + CH_3I), NOT iodobenzene.
CH3OC(CH3)3CH_3-O-C(CH_3)_3 + HI products?
CH3OH+(CH3)3CICH_3OH + (CH_3)_3CI (S_N1: stable 3° carbocation grabs II^-).
Why HI > HBr > HCl for ether cleavage?
II^- is the most polarizable/best nucleophile and HI is the strongest acid (best protonator of O).
Diethyl ether + excess HI gives?
2C2H5I+H2O2\,C_2H_5I + H_2O.
In SN1S_N1 cleavage which carbon takes the iodide?
The one forming the more stable carbocation (3°/benzylic/allylic).

Recall Feynman: explain to a 12-year-old

An ether is two LEGO bricks joined by an oxygen connector. To build it: take one brick whose connector is "charged up and grabby" (alkoxide) and another brick with a "loose, easy-to-pop-off cap" (the halide). The grabby one snaps onto the carbon and the cap pops off. Tip: make the brick being attacked small and open, or the grabby piece can't reach it. To break it: pour strong acid (HI). The acid sticks a little H onto the oxygen so the connector becomes "slippery and willing to leave," then the iodine bumps off the carbon and takes its place. If one side is a flat ring (benzene), iodine can't push into it, so that side keeps the oxygen and becomes phenol.

Concept Map

base removes H

nucleophile

electrophile + leaving group

concerted step

forms

if 3° carbon

gives alkene not ether

weakly basic O

protonates O

iodide attacks C

cleaves

Ether R-O-R'

Alkoxide RO-

Alcohol R-OH

Alkyl halide R'-X

SN2 backside attack

Williamson synthesis

E2 elimination

HI cleavage

Protonated ether R-O+ H

C-O bond breaks

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Ether matlab RORR-O-R' — do carbon groups ek oxygen ke through jude hue. Isko banane ka best tarika hai Williamson synthesis, jo ek SN2S_N2 reaction hai: ek taraf alkoxide (RORO^-, strong nucleophile, alcohol se sodium daal ke banta hai) aur dusri taraf alkyl halide (RXR'-X). Alkoxide carbon par backside se attack karta hai aur XX^- nikal jaata hai. Yaad rakho golden rule: jo group bulky hai usko alkoxide banao, aur jo chhota (methyl/1°) hai usko halide rakho — kyunki SN2S_N2 ko khula carbon chahiye. Agar 3° halide use karoge to elimination (E2, alkene) ho jaayega, ether nahi banega. Aryl group hamesha alkoxide side par (phenoxide), kyunki aromatic carbon par SN2S_N2 nahi hota.

Ether ko todna ho to HI use karte hai. Pehla step: oxygen ko protonate karo (H+ chipka do) — isse oxygen ek acha leaving group ban jaata hai (neutral alcohol nikalega). Phir II^- carbon par attack karta hai. Konsa C–O bond tootega? Agar dono chhote (1°) hai to SN2S_N2 — iodide chhote carbon par jaata hai. Agar ek 3°/benzylic hai to SN1S_N1 — jahan stable carbocation banega wahan iodide jaata hai.

Sabse important exam point: alkyl–aryl ether (jaise anisole, C6H5OCH3C_6H_5OCH_3) + HI dega phenol + CH3I — aryl side kabhi iodide nahi banta! Aur reactivity order yaad rakho: HI>HBr>HClHI > HBr > HCl, kyunki II^- best nucleophile hai aur HI sabse strong acid. Bas yeh 5 points pakka kar lo to ether ka pura chapter scoring ban jaata hai.
