Aryl halides — low reactivity, addition-elimination (benzyne mechanism), nucleophilic aromatic substitution: Visual walkthrough

WHAT this page is. In the parent note we were told that a nucleophile adds first, a Meisenheimer complex forms, and then the halide leaves — but only if an electron-withdrawing group sits ortho or para. Here we build that whole story from zero, one picture per step, so you can see where the negative charge goes and why the position of the $N O_{2}$ group decides everything.

We assume you know only two things: a benzene ring is a flat hexagon of carbons that shares its electrons around the loop (see Aromaticity and resonance stabilisation), and a nucleophile is a species with a lone pair looking for a positive-ish carbon to bond to (see Alkyl halides — SN1 and SN2 mechanisms). Everything else we define as we go.

Step 1 — The starting picture: what a nucleophile actually "sees"

Figure — Aryl halides — low reactivity, addition-elimination (benzyne mechanism), nucleophilic aromatic substitution

WHAT. The carbon holding the $C l$ (call it $C_{1}$ ) is drawn slightly positive, $δ +$ .

WHY. Two groups pull electron density away from $C_{1}$ : chlorine is electronegative, and the para- $N O_{2}$ drains the ring (that is what an electron-withdrawing group does). A carbon starved of electrons is exactly the carbon a lone pair wants to bond to.

PICTURE. The blue arrows on the figure show electron density being pulled toward $C l$ and toward $O$ of the nitro group. The naked carbon left behind (pale yellow $δ +$ dot) is the target.

Step 2 — The nucleophile adds: a bond is born, aromaticity dies

WHAT. $N u^{-}$ forms a bond to $C_{1}$ . That carbon changes shape from flat ( $s p^{2}$ ) to tetrahedral ( $s p^{3}$ ).

$flat, aromatic Ar-Cl + lone pair N u^{-} ⟶ puckered, s p^{3} [Meisenheimer]^{-}$

$Ar-Cl$ — the aromatic ring with chlorine still attached.
$N u^{-}$ — the incoming nucleophile with its negative charge.
The $s p^{3}$ label on the product carbon means it now points to four different neighbours in a tetrahedron: $C l$ , $N u$ , and two ring carbons. It is no longer in the flat ring.

WHY this tool — why "addition" and not a straight swap? In an ordinary $S_{N} 2$ the nucleophile and leaving group trade places at the same instant. On a ring that is impossible: the benzene body physically blocks back-side attack (parent §1). So the only route left is to park first, leave later — add, then eliminate.

PICTURE. Compare s01 (flat hexagon, delocalised loop drawn as a circle) with s02 (one corner popped up out of the plane, the loop broken). The broken loop is the cost: we have lost aromaticity, and that costs energy. Something must pay it back — that is the whole point of Step 3.

Step 3 — Where does the minus go? Following the charge by resonance

WHAT. We draw the negative charge (a lone pair, pink) hopping to three positions: the two carbons ortho to $C_{1}$ and the one para to $C_{1}$ .

WHY. Resonance can only place the charge where a double bond can shuffle it to — and geometry says those landing spots are exactly ortho and para to the point of attack. Meta carbons are skipped: the double bonds never deliver charge there.

PICTURE. Three sketches side by side (the three resonance structures). The pink minus lands on the top-left carbon, then the top-right carbon, then the bottom carbon. Notice the bottom (para) carbon is the same carbon that holds the $N O_{2}$ group. Hold that thought — it is the punchline.

Recall Why can't the charge reach a

meta carbon? Because resonance moves charge by flipping a double bond onto the next atom, and from the point of attack that stepwise flipping only ever lands on ortho and para carbons — meta positions sit "between the beats." ::: The alternating double-bond pattern delivers the negative charge to ortho and para positions only; meta is never touched.

Step 4 — The nitro group catches the charge (the reason SNAr exists)

WHAT. From the para resonance structure of Step 3, the charge flows one step further: off the ring carbon, into the $N = O$ of the nitro group, ending up as a lone pair on oxygen.

$on ring C C^{-} - N + (= O) O^{-} ⟷ on oxygen C = N + (O^{-}) O^{-}$

$C^{-}$ — the para ring carbon carrying the charge (unstable there).
$N +$ — nitrogen of the nitro group, formally positive, eager to accept electrons.
$O^{-}$ — oxygen, the comfortable final home for the negative charge.

WHY this matters. This extra resting place is the energy payback that made Step 2 affordable. Oxygen holding the charge is far more stable than a carbon holding it. This stabilisation is only possible because the $N O_{2}$ sits at a carbon the charge can reach — i.e. ortho or para.

PICTURE. Watch the pink charge travel the whole highway in s04: nucleophile → $C_{1}$ → around the ring → onto $N$ → parked on $O$ . The nitro group is drawn as a bright net catching the charge.

(s05: the meta case — the pink charge circles the ring but the $N O_{2}$ is drawn on a carbon that stays chalk-white, i.e. never charged. No catch, no help.)

Step 5 — The halide leaves and the ring heals

WHAT. The lone pair that was resting on the ring collapses back down, pushing $C l^{-}$ off $C_{1}$ . The carbon flattens ( $s p^{3} \to s p^{2}$ ) and aromaticity returns.

$[Meisenheimer]^{-} ⟶ aromatic again Ar- N u + C l^{-}$

WHY. Regaining aromaticity releases a lot of energy — it is the reward that drives the whole reaction forward. The $C l^{-}$ leaves as a stable ion.

PICTURE. s06 mirrors s02 in reverse: the popped-up corner drops back into the plane, the loop closes, $C l^{-}$ flies off (chalk-blue arrow). Compare the flat, delocalised ring here with the flat, delocalised ring of Step 1 — we are aromatic at both ends, and only in the middle (Steps 2–4) did we sacrifice it.

Step 6 — Why the leaving-group order is backwards (F beats I)

WHAT. The rate-determining (slowest, bottleneck) step is addition (Step 2), not the halide's departure. So the halide's job is not to leave fast — it is to make the carbon inviting to attack.

WHY fluorine wins. Fluorine is the most electronegative halogen, so it pulls the hardest on $C_{1}$ , making it the most $δ +$ — the juiciest target for the nucleophile. Faster addition = faster overall reaction.

$SNAr leaving-group rate: F > C l > B r > I$

PICTURE. s07 stacks four energy hills (one per halide). Fluorine's first hill (addition) is the lowest because its carbon is the most positive; since that first hill is the bottleneck, low first hill = fast reaction. This is the exact reverse of the $S_{N} 2$ ordering you met in Alkyl halides — SN1 and SN2 mechanisms.

Step 7 — The worked number: chlorobenzene needs help

WHAT this shows. Each electron-withdrawing group provides an extra "catch" (like the oxygen home in Step 4), so the Meisenheimer complex is lower in energy and forms more easily — the reaction gets dramatically faster with more EWGs, ortho/para.

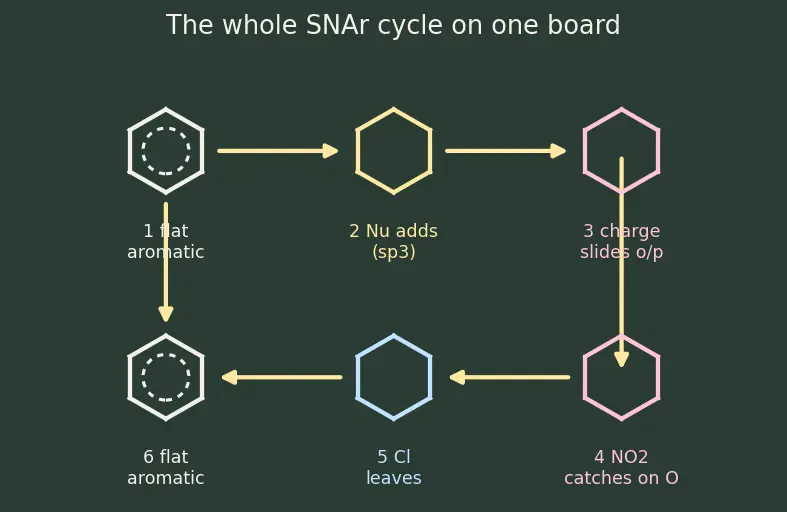

The one-picture summary

The whole cycle on one board: flat aromatic start → nucleophile adds (ring puckers, aromaticity lost) → negative charge slides to ortho/para → nitro group catches it on oxygen (the reason it all works) → halide leaves → flat aromatic product. The para- $N O_{2}$ is the hero; a meta- $N O_{2}$ would be a bystander.

Recall Feynman retelling — the walkthrough in plain words

A chlorine and a nitro group both tug electrons off one ring carbon, leaving it hungry-positive (s01). A nucleophile with spare electrons dives in and bonds there, but that forces the flat carbon to pop out of the ring, breaking the nice shared electron loop — a costly move (s02). The extra electrons the nucleophile brought now slosh around the ring, but only to the corners next to and across from where it landed (s03). Lucky for us, the "across" corner is exactly where the nitro group waits, and nitro passes the negative charge onto its oxygen, where it's happy — that's the payback that made the whole thing worth doing (s04). Put the nitro on the wrong corner (meta) and the charge never gets there, so nothing helps (s05). Finally the chlorine drops off and the ring snaps flat and aromatic again, releasing energy (s06). And the funny twist: since the slow step was the diving-in, not the chlorine leaving, it's the grippiest halogen — fluorine — that speeds things up most, backwards from what alkyl chemistry taught us (s07).

Flashcards

In SNAr, which carbon does the nucleophile attack and why?

The carbon bearing the halogen, because two electron-withdrawing effects (the halogen and the o/p EWG) leave it most

δ +

and inviting to a lone pair.

When the nucleophile adds, what happens to that carbon's hybridisation and to aromaticity?

It goes

s p^{2} \to s p^{3}

(puckers out of the plane) and the ring temporarily loses aromaticity.

To which ring carbons does resonance deliver the negative charge?

Only the ortho and para carbons relative to the point of attack — never meta.

Why must the EWG be ortho or para, not meta?

The charge only reaches ortho/para carbons by resonance, so only an EWG there can catch and stabilise it; a meta-EWG sits on a never-charged carbon.

What finally drives the halide to leave in SNAr?

Restoring aromaticity, which releases a large amount of energy.

Why is the SNAr leaving-group order F > Cl > Br > I?

Addition is rate-determining, and the most electronegative F makes the ring carbon most

δ +

, so addition (and thus the whole reaction) is fastest.

Effect of adding a second ortho/para NO₂ group?

An extra resonance home for the charge, further stabilising the Meisenheimer complex, so the reaction runs much faster / at lower temperature.
