Foundations — Aryl halides — low reactivity, addition-elimination (benzyne mechanism), nucleophilic aromatic substitution

Before you can read the parent topic, you must be able to see every symbol it throws at you. Below, each item is: plain words → the picture → why the topic needs it, built so each one stands on the one before.

1. The benzene ring and its shared cloud

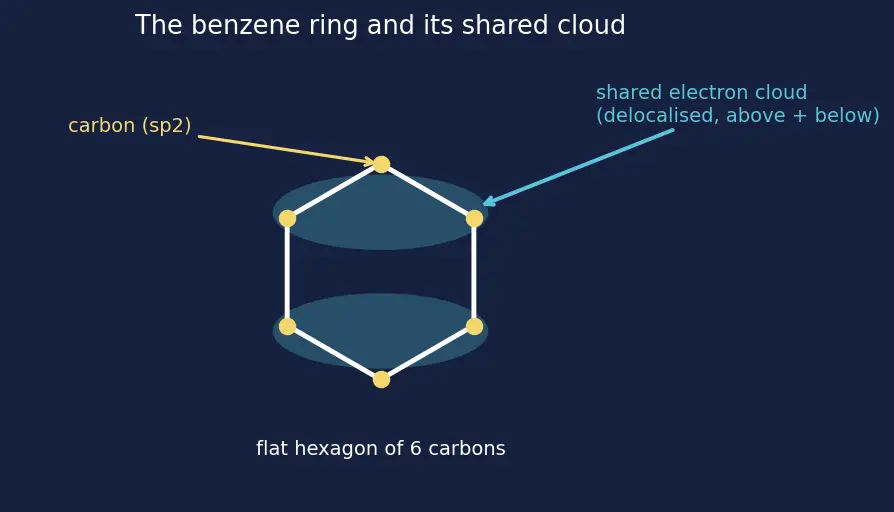

The picture (below): flat six-sided ring, with a grey doughnut of electrons floating over the whole thing.

Why the topic needs it: everything about aryl halides comes from the halogen sitting on the edge of this shared cloud. If you don't picture the cloud, you can't picture why the halogen is trapped.

2. "Aromatic" and the word resonance

The picture: two drawings of benzene with the double bonds in alternating spots, joined by a double-headed arrow $\leftrightarrow$. The true molecule is neither drawing — it is the average, the doughnut cloud.

Why the topic needs it: the parent note says Cl's lone pair "overlaps with the ring" — that is resonance. And the whole point of an electron-withdrawing group later is that resonance lets it hold a negative charge. See Aromaticity and resonance stabilisation.

3. $s{p}^3$ versus $s{p}^2$ carbon (the shape of the atom)

The picture (below): left, a 3-D tetrahedral carbon; right, a flat Y-shaped $s{p}^2$ carbon with the leftover electron cloud sticking up and down (that's what joins the benzene cloud).

Why the topic needs it:

• The halogen sits on an $s{p}^2$ carbon. An $s{p}^2$ carbon grips its electrons tighter (more "s-character") than an $s{p}^3$ one — one reason the bond is hard to break.
• Later, the Meisenheimer intermediate turns one carbon from $s{p}^2$ into $s{p}^3$ — the ring goes temporarily "bumpy" and loses its aromatic cloud. You must be able to picture that flat→pyramid change.

4. Nucleophile, electrophile, and the curly arrow

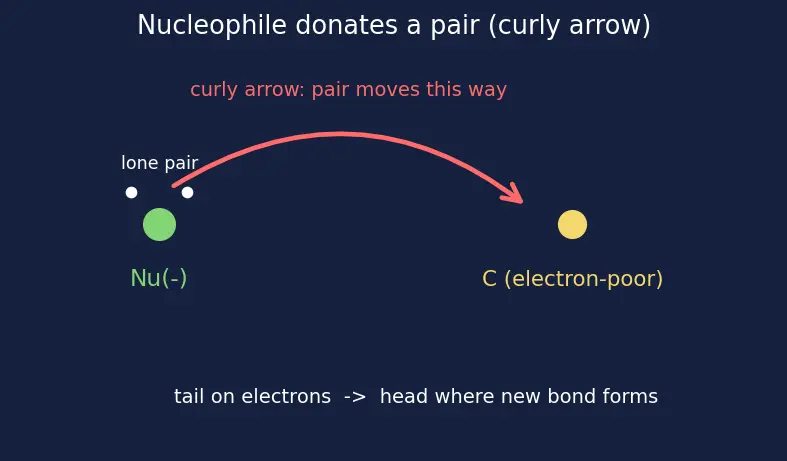

The picture (below): a curly arrow leaving a lone pair on ${\text{Nu}}^{-}$ and landing on a carbon, forming a new bond.

Why the topic needs it: both mechanisms in the parent note are just sequences of curly arrows. "Addition" = a nucleophile's arrow makes a new bond; "elimination" = a bond's arrow leaves to make a leaving group depart. If you can read the arrow, you can read the mechanism.

5. Leaving group and the symbol $\text{X}$

The picture: a bond $\text{C–Cl}$ where the pair of electrons slides fully onto Cl, and ${\text{Cl}}^{-}$ floats away.

Why the topic needs it: substitution = a leaving group departs while a nucleophile arrives. In aryl halides the whole difficulty is that $\text{X}$ is reluctant to leave. And the parent's surprising order $\text{F}>\text{Cl}>\text{Br}>\text{I}$ is all about how eagerly each pulls electrons before it leaves — see the next item.

6. Electronegativity, dipole, and EWG/EDG

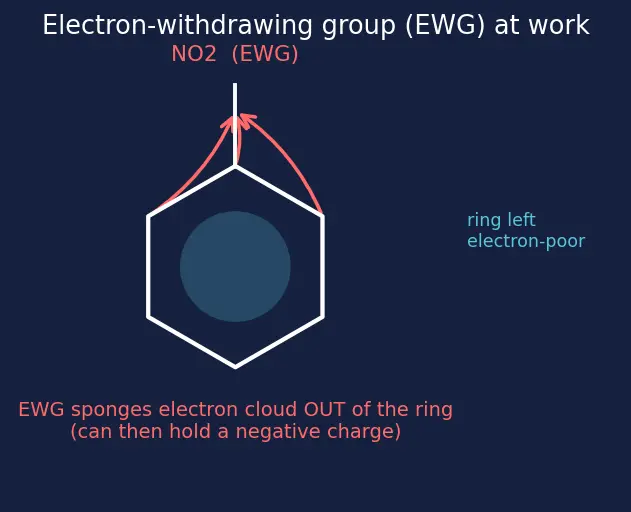

The picture (below): a ring with a nitro group $-{\text{NO}}_2$ acting like a sponge, arrows showing electron cloud flowing out of the ring toward it.

Why the topic needs it: the entire SNAr (addition–elimination) route only works because an EWG ortho or para to the halogen can park a negative charge on itself, stabilising the fragile intermediate. No EWG in the right spot → no SNAr. See Electron-withdrawing and electron-donating groups.

7. ortho, meta, para (position words)

The picture: hexagon with the halogen at the top and the three possible partner seats labelled o, m, p.

Why the topic needs it: resonance can only push the negative charge onto an EWG that sits ortho or para — never meta. That single geometric fact decides whether SNAr goes at all.

8. Reactive intermediates: carbanion, benzyne, Meisenheimer

Why the topic needs it: the two mechanisms are literally named after which intermediate they pass through. Recognising each on sight is half the battle. See Reactive intermediates — carbanions, benzyne, Meisenheimer.

9. How these feed the topic

This map is why the parent note only makes sense after D1: the two mechanism boxes both drink from the same handful of foundations.
