Intuition The ONE core ideaCarbon's four bonds want to spread out at a comfortable angle of 109.5° strain . A molecule always relaxes into the shape (its conformation ) that has the least total strain — which is why flat-looking rings secretly fold into 3D.
Before you can read the parent note on Cycloalkanes you must own every symbol it throws at you. This page builds each one from nothing, in an order where each idea leans on the one before it. Nothing here assumes you have seen a single formula.
Start with the most basic picture of all: one carbon atom and the four sticks (bonds) coming out of it.
A bond angle is the amount of "opening" between two sticks meeting at the same atom. We measure it in degrees — a full turn is 360° 90°
Now, why 109.5° 90° s p 3 sp3 Hybridization and Tetrahedral Geometry ).

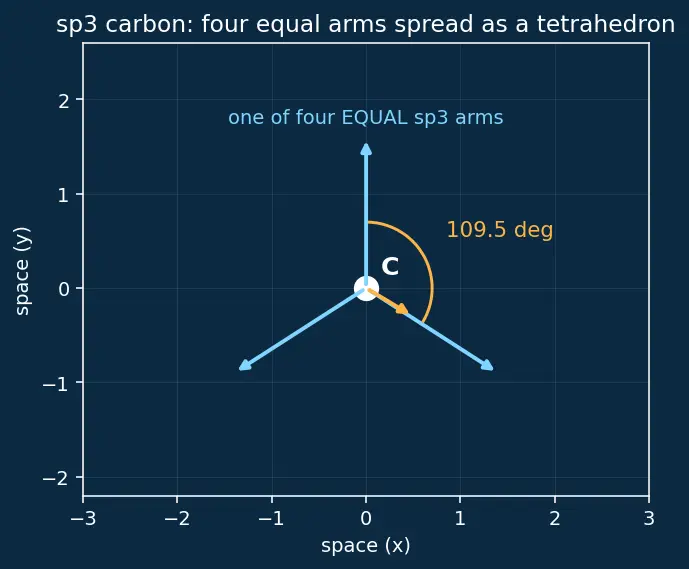

s p 3 s p 3 blend into four identical bonding arms of equal length and equal energy , aimed in four different directions in 3D. "s p 3 one s-cloud and three p-clouds were mixed to make four equal arms. Look at figure s01 — four matching sticks from one carbon, not a flat cross but a 3D fan.
Intuition Why the four arms sit at109.5° as far from each other as possible in 3D , four directions arrange as the corners of a tetrahedron (a triangular pyramid). The angle between any two arms of a tetrahedron is exactly 109.5° s p 3 109.5°
Intuition Why "farthest apart" = comfortableThe farthest-apart layout has the least repulsion, so it costs the least energy — carbon "prefers" it. Any shape that squeezes the arms closer than 109.5° strain .
Recall Why is the ideal angle109.5° 90° s p 3 109.5° 90°
The parent note's first formula is θ internal = n ( n − 2 ) × 180°

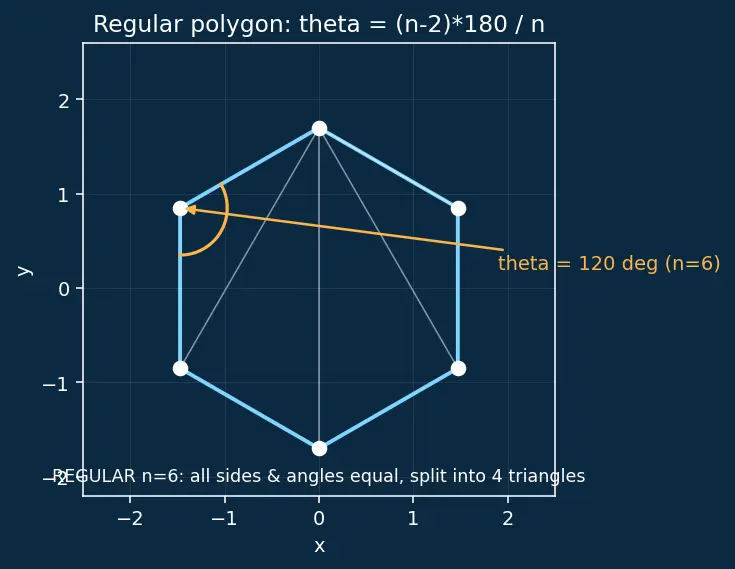

Definition Regular polygon (the shape Baeyer assumed)A regular polygon is a flat many-sided shape whose sides are all the same length and whose corner angles are all equal — like a perfect equilateral triangle or a perfect hexagon. Baeyer assumed a ring of n regular n same length and every carbon is the same kind of atom, so by symmetry all corners should look alike. (This "flat and regular" guess is exactly the assumption that later breaks — but it is what makes the tidy formula possible.)
Definition The three symbols
n number of carbons in the ring = number of corners of the polygon. A triangle ring has n = 3 n = 6 θ internal angle at one corner of the flat polygon . This is the angle the ring's shape forces on the carbon, whether carbon likes it or not.d strain per bond : how far, in degrees, each bond is bent away from the comfy 109.5°
θ internal comparison . Carbon wants 109.5° θ internal gap between "wanted" and "given" is the strain. So we must first compute what the ring geometry demands — that is θ internal
The formula θ internal = n ( n − 2 ) × 180° any polygon can be sliced into triangles , and every triangle's angles sum to 180° n ( n − 2 ) ( n − 2 ) × 180° regular , all n n
Definition Total ring strainD d n n total angle strain of the whole flat ring is
D = n × ∣ d ∣. ∣ d ∣ size of the deviation, ignoring sign) because bending too tight (d > 0 d < 0 cost energy — strain is never negative. D entire flat ring is, and it is what heat-of-combustion experiments effectively measure.
n = 3 θ internal = 3 ( 3 − 2 ) × 180° = 60° = 109.5° − 60° = 49.5° d = 49.5°/2 = 24.75° D = 3 × 24.75° = 74.25° large positive d
Common mistake Sign confusion withd Trap: thinking d < 0 Truth: d < 0 θ internal > 109.5° wider than comfy (happens for n ≥ 6 maths is fine; the flat-ring assumption is the error.
Everything above assumed the ring lies flat on a table. The whole punchline of the topic is that it does not .
Definition Conformation & puckering
A conformation is a shape a molecule can take just by rotating around its single bonds — no bonds are broken , you only twist. (Same idea you met in Conformations of Ethane and Butane .)
Puckering means the ring buckles out of the flat plane — some carbons rise, some dip — so each carbon can recover its comfy 109.5°

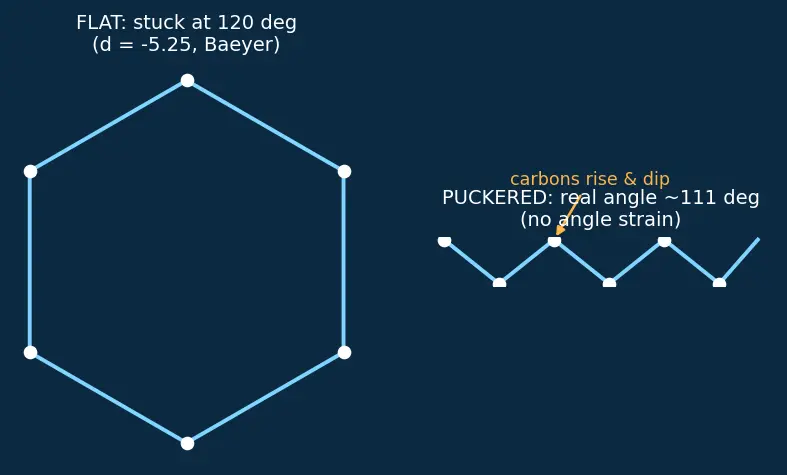

Intuition Why puckering escapes strainOn a flat hexagon each corner is stuck at 120° d = − 5.25° 111° 109.5°
Angle strain is not the only cost. Look straight down a single C–C bond and you see the bonds on the front carbon and the back carbon. This side-on view is a Newman projection (full detail in Newman Projections ).

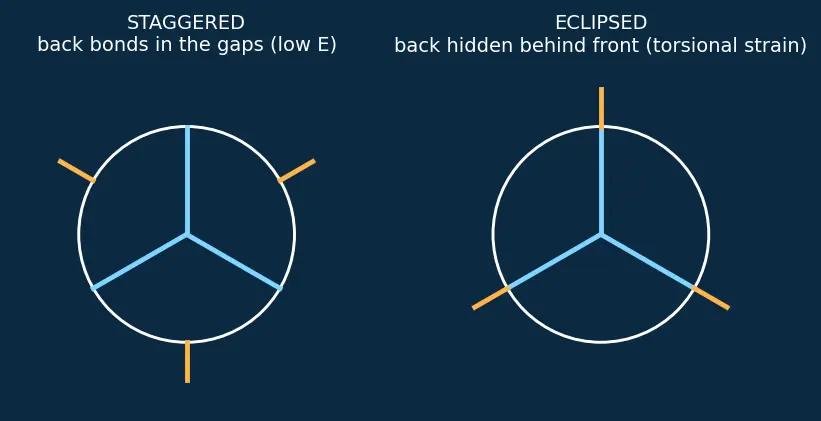

Definition Two rotational arrangements
Eclipsed : front bonds line up exactly behind back bonds (they hide each other). Electron clouds overlap and repel → higher energy.Staggered : front bonds sit in the gaps between back bonds — maximally spread. Lowest energy.
Definition Torsional strainTorsional (eclipsing) strain is the extra energy stored when neighbouring bonds are eclipsed instead of staggered . Picture two carbons joined by a bond (figure s04): if the front and back sticks line up, their electron clouds are forced to overlap and push against each other. That push is the strain. It is qualitatively a twisting resistance — the molecule would rather rotate to the staggered position — and quantitatively it is largest at perfect eclipse and drops to zero at perfect stagger.
Intuition Why the chair winsA cyclohexane chair arranges every neighbouring pair as staggered — like the happy staggered ethane → minimum torsional strain. A boat (figure s05) forces some side pairs eclipsed and pushes its two "flagpole" hydrogens toward each other → torsional plus steric strain → higher energy. So chair beats boat. Same eclipsed-vs-staggered idea, just wrapped into a ring.
Before we can talk about "bulky groups crowding", we must be able to point at the two kinds of C–H bond a chair carbon owns.
Definition Axial & equatorial bondsOn a puckered chair, each carbon carries two bonds pointing in clearly different directions:
Axial bonds point straight up or straight down , parallel to the ring's main vertical axis (the amber arrows in figure s06). Going round the ring they alternate up, down, up, down.Equatorial bonds point outward around the ring's "waist" (the cyan arrows), roughly in the belt/equator of the ring, tilted slightly opposite to their axial partner.
Intuition Why the two names matterAn axial bond aims into the crowded space directly above (or below) the ring, where the other upward axial bonds also live. An equatorial bond aims safely outward into open space. So where a group sits — axial or equatorial — decides whether it gets crowded, which is the whole point of the next section.
The last piece is the energy bookkeeping that decides how much of each shape exists.
Steric (van der Waals) strain is the energy cost when two atoms are pushed closer than they'd like , so their electron clouds squash together. In a chair this happens between an axial group and the two axial atoms on the same face — the so-called 1,3-diaxial clash (three positions apart around the ring, all pointing the same way, as shown by the axial arrows in figure s06).
To turn "shape A is lower energy" into "how much of shape A vs shape B", the parent note uses the free-energy law from Free Energy and Equilibrium ΔG = -RT lnK .
Intuition Why the exponential and not just subtractionNature distributes molecules over energies by the exponential Boltzmann rule: a molecule is e − cost / R T small energy gap can still give a large population swing — that is why Δ G = − 7.5 kJ/mol ∼ 21 : 1 2 : 1
Heat of combustion (from Heat of Combustion as a Stability Measure ) is how chemists measure total strain D cis–trans labels (from Geometrical Isomerism cis-trans ) tell you which substituents are forced axial — both feed directly into the parent note.
sp3 tetrahedral 109.5 deg
polygon angle theta and strain d
total strain D = n times d
staggered vs eclipsed Newman
chair vs boat cyclohexane
steric crowding 1,3-diaxial
heat of combustion measures D
Cover the answers; you are ready when each is a "yes".
I can say what s p 3 one s-cloud and three p-clouds blend into four equal bonding arms aimed in 3D, giving 109.5°
I can state carbon's ideal bond angle and say why 109.5° s p 3
I know what a regular polygon is a flat shape with all sides equal and all corner angles equal.
I can compute θ internal θ internal = n ( n − 2 ) × 180° n
I can compute strain per bond d d = 2 109.5° − θ internal d > 0 d < 0 d ≈ 0
I can compute the total ring strain D = n × ∣ d ∣
I know what a conformation is a shape reached by rotating single bonds, breaking nothing.
I know why rings pucker leaving the flat plane lets each carbon regain ≈ 109.5°
I can tell staggered from eclipsed and define torsional strain staggered = bonds in the gaps (low energy); eclipsed = bonds aligned; torsional strain is the energy stored by eclipsing.
I can tell axial from equatorial axial points straight up/down along the ring axis; equatorial points outward around the ring's waist.
I know what steric / 1,3-diaxial strain is crowding of atoms pushed too close, e.g. an axial group clashing with same-face axial atoms three positions away.
I can turn energy into a ratio K = e − Δ G / R T Δ G K > 1
