4.2.3Hydrocarbons

Cycloalkanes — Baeyer's strain theory; cyclohexane chair - boat, axial vs equatorial

2,115 words10 min readdifficulty · medium

1. WHAT is strain? (three kinds)

WHY these matter: the most stable conformation/ring is the one with the least total strain. Stability of cycloalkanes (measured by heat of combustion per CH₂) is governed by adding up these three.


2. Baeyer's Strain Theory — the derivation

HOW to compute the deviation (derive it):

For a regular polygon with nn sides, the internal angle is θinternal=(n2)×180°n.\theta_{\text{internal}} = \frac{(n-2)\times 180°}{n}.

Why? The angles of any nn-gon sum to (n2)×180°(n-2)\times180°; divide equally over nn corners.

Baeyer's angular strain (deviation of each C–C bond from the tetrahedral direction) per bond: d=12(109.5°θinternal).d = \frac{1}{2}\left(109.5° - \theta_{\text{internal}}\right).

Why the 12\tfrac12? At each carbon, two bonds split the bend symmetrically, so each bond deviates by half the total mismatch between the ideal angle and the polygon angle.

Ring (nn) θinternal\theta_{\text{internal}} dd Reality
3 (cyclopropane) 60°60° +24.75°+24.75° very strained ✔
4 (cyclobutane) 90°90° +9.75°+9.75° strained ✔
5 (cyclopentane) 108°108° +0.75°+0.75° nearly strain-free ✔
6 (cyclohexane) 120°120° 5.25°-5.25° Baeyer: strained ✗ — actually strain-FREE
larger more negative Baeyer: very strained ✗ — actually fine

3. Cyclohexane: chair vs boat

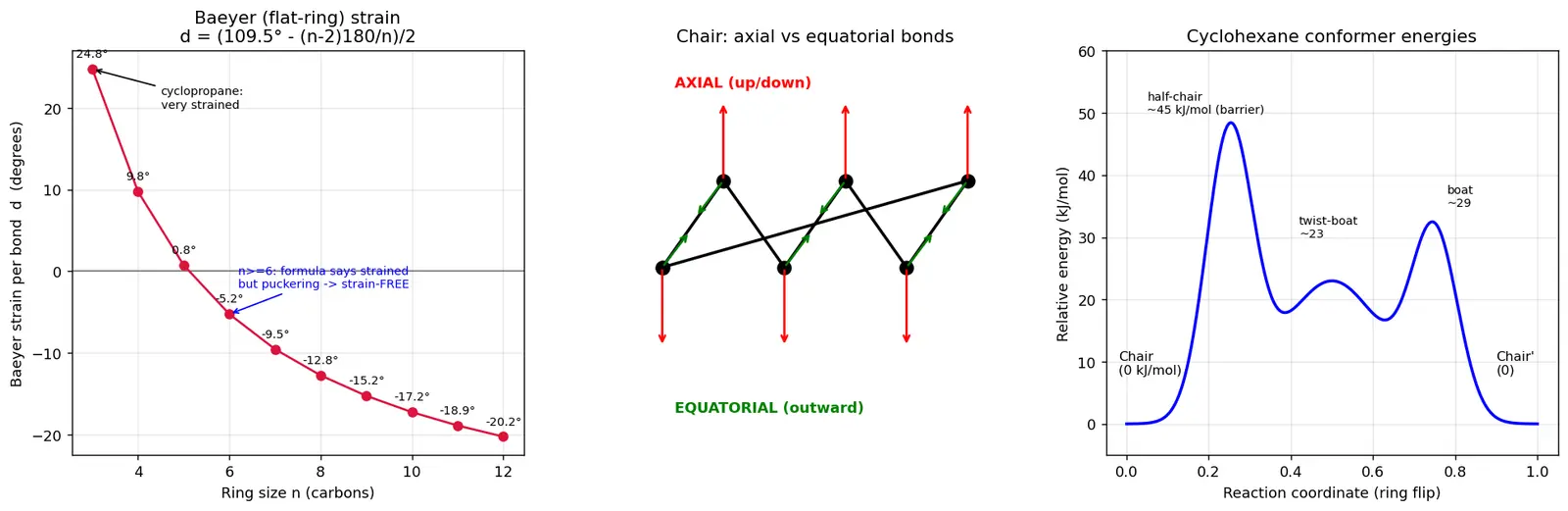

Figure — Cycloalkanes — Baeyer's strain theory; cyclohexane chair - boat, axial vs equatorial

4. Axial vs Equatorial — the key skill


5. Worked examples


6. Active recall

Recall Test yourself (hide the answers)
  • Q: Why was Baeyer wrong about big rings? → They pucker into 3D, escaping angle strain.
  • Q: Which is more stable, chair or boat, and why? → Chair; staggered bonds + no flagpole clash.
  • Q: What happens to axial/equatorial labels on a ring flip? → They swap completely.
  • Q: Why do bulky groups prefer equatorial? → To avoid 1,3-diaxial steric strain.
  • Q: Formula for flat-ring strain per bond? → d=109.5(n2)180/n2d=\frac{109.5-(n-2)180/n}{2}.
Recall Feynman: explain to a 12-year-old

Carbon's arms like to spread out at a comfy angle, like your legs in a relaxed stance. If you tie carbons in a small triangle ring, their arms get squished and uncomfortable — that's strain, and tiny rings hate it. But a 6-carbon ring is clever: instead of lying flat, it folds like a lawn chair (one part up, one part down). In that folded "chair" every arm sits comfortably and no two hands bump — so it's super happy. Some arms stick straight up/down (axial) and some stick outward (equatorial). If you wear a big backpack (a bulky group), you'd rather put it pointing outward so it doesn't bonk the things above and below you.


Connections

  • Conformations of Ethane and Butane (staggered vs eclipsed — same torsional idea)
  • sp3 Hybridization and Tetrahedral Geometry (why 109.5°109.5° is ideal)
  • Heat of Combustion as a Stability Measure
  • Geometrical Isomerism cis-trans (cis/trans dimethylcyclohexanes)
  • Newman Projections
  • Free Energy and Equilibrium ΔG = -RT lnK
Baeyer's strain theory assumes rings are
flat (planar) regular polygons
Internal angle of a regular n-gon
(n2)×180°n\frac{(n-2)\times180°}{n}
Baeyer strain per bond formula
d=109.5°(n2)180°/n2d=\frac{109.5°-(n-2)180°/n}{2}
Baeyer strain of cyclopropane
+24.75°+24.75° (highly strained)
Why Baeyer was wrong for large rings
rings pucker into 3D, removing angle strain
Most stable conformation of cyclohexane
chair
Why chair is most stable
all bonds staggered, ≈111° angles, no flagpole clash
Two destabilizing features of the boat
eclipsing (torsional) strain + flagpole steric strain
Axial bonds point
straight up/down, parallel to the ring axis
Equatorial bonds point
outward around the ring's equator
What a ring flip does to substituents
swaps all axial↔equatorial
Why bulky groups prefer equatorial
avoid 1,3-diaxial steric strain
Three types of strain
angle (Baeyer), torsional (eclipsing), steric (van der Waals)
Most stable 1,4-dimethylcyclohexane
trans (both equatorial, e,e)
Cost of one axial-methyl 1,3-diaxial interaction
≈3.8 kJ/mol
Correct rearrangement of ΔG = –RT ln K
K=eΔG/RTK=e^{-\Delta G/RT} (note the minus sign)

Concept Map

deviation causes

causes

causes

sums into

sums into

sums into

minimized gives

predicts

wrongly predicts

refutes

produces

has

features

Ideal angle 109.5 tetrahedral

Angle Baeyer strain

Eclipsed C-H bonds

Torsional strain

Atoms too close

Steric strain

Total strain

Most stable conformation

Baeyer assumes flat polygons

Large rings strained

Rings pucker in 3D

Cyclohexane chair

Zero angle strain

Axial vs equatorial H

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, carbon ka favourite angle hai 109.5°109.5° (perfect tetrahedral, sp3sp^3). Jab hum carbons ko ring me baandhte hain, toh kabhi-kabhi yeh angle bend ho jaata hai — yahi angle strain hai. Baeyer sahab ne 1885 me socha ki saari rings flat (planar) hoti hain, isliye unhone predict kiya ki badi rings bahut strained hongi. Lekin galti yahin thi: rings flat nahi rehti, woh pucker ho jaati hain yaani 3D me fold ho jaati hain. Isiliye cyclohexane bilkul strain-free hota hai. Baeyer ka theory chhoti rings (3,4 carbon) ke liye sahi kaam karta hai, badi rings ke liye fail.

Ab cyclohexane ka asli star: chair conformation. Isme alternate carbons upar-neeche hote hain, saare bonds staggered rehte hain (jaise staggered ethane), aur koi H bump nahi karta — sabse stable. Boat form me side bonds eclipse karte hain aur do "flagpole" hydrogens ek doosre ko ghoorte (clash) hain, isliye boat zyada energy wala hota hai. Chair Champion, Boat Bummer — yaad rakho.

Chair me har carbon ke do bond hote hain: axial (seedha upar/neeche, ring ke axis ke parallel) aur equatorial (bahar ki taraf). Jab ring flip karta hai, saare axial equatorial ban jaate hain aur ulta bhi. Bada group (jaise CH3-CH_3) hamesha equatorial prefer karta hai, kyunki axial me woh upar-neeche wale axial hydrogens se takraata hai — isko 1,3-diaxial strain bolte hain. Isiliye methylcyclohexane ~95% equatorial-methyl form me rehta hai. Ek important point: ΔG=RTlnK\Delta G = -RT\ln K ko rearrange karo toh K=eΔG/RTK=e^{-\Delta G/RT} banta hai (minus sign mat bhoolna). Axial→equatorial ke liye ΔG\Delta G negative hai, isliye exponent positive ban jaata hai aur K21K\approx 21, yaani equatorial overwhelmingly favoured. Exam tip: cis/trans dimethylcyclohexane me jo dono groups ko equatorial (e,e) rakh sake, wahi sabse stable hota hai.
