4.1.12General Organic Chemistry (GOC)

Reaction mechanisms — curved-arrow notation, bond formation - breaking (heterolysis vs homolysis)

2,109 words10 min readdifficulty · medium

WHAT is happening?


WHY two kinds of bond breaking?

A covalent bond is a shared pair of electrons (·:·). When the bond breaks, those 2 electrons have to go somewhere. There are only two possibilities:

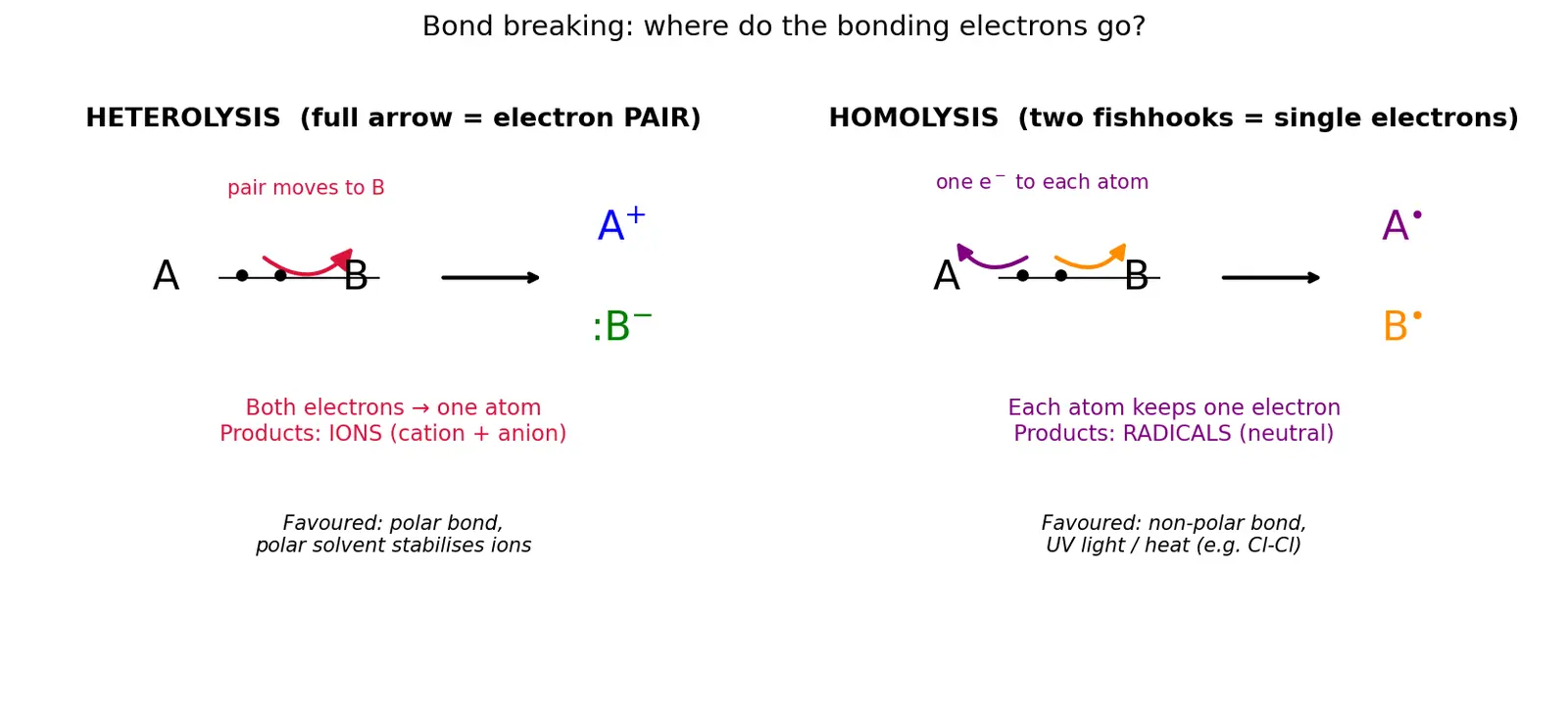

Figure — Reaction mechanisms — curved-arrow notation, bond formation - breaking (heterolysis vs homolysis)

HOW to push an arrow (the rules)

WHY rule 1 (start from electrons)?

An arrow is a moving electron pair. You can't move electrons from an empty place — there'd be nothing to move. So the tail must sit on something that actually has electrons.

Deriving "bond formation" from the same idea

A new bond forms when a lone pair (or π/σ bond) attacks an electrophilic atom. The arrowhead lands between the two atoms = the new shared pair = the new bond. Bond breaking and bond forming are the same act of electron motion viewed from the two ends of the arrow.


Worked examples


Common mistakes (Steel-man + fix)


Recall Feynman: explain to a 12-year-old

Two kids share two candies (that's a chemical bond). When they split up there are two fair-ish ways: Selfish split (heterolysis): one kid takes both candies and walks off rich (negative), the other walks off broke (positive). This happens when one kid is greedy (more electronegative). Even split (homolysis): each kid takes one candy — perfectly fair. This happens when the kids are equal and someone (the Sun = UV light) pushes them apart. The curved arrow is just an arrow showing where the candies go. A full arrow = both candies move together; a fishhook = one candy moves.


Active recall

A curved arrow represents the movement of what (not atoms)?
Electrons (an electron pair for a full arrow, one electron for a fishhook).
A double-barbed (full) arrow shows movement of how many electrons?
Two (an electron pair).
A single-barbed fishhook arrow shows movement of how many electrons?
One electron.
Define heterolysis.
Uneven bond cleavage where both bonding electrons go to one atom, producing a cation and an anion (ions).
Define homolysis.
Even bond cleavage where each atom keeps one electron, producing two neutral free radicals.
Heterolysis produces which species?
Ions (a cation + an anion).
Homolysis produces which species?
Free radicals (species with an unpaired electron).
Where must the tail of a curved arrow start?
On a source of electrons — a lone pair or a bond.
Where does the head of a curved arrow point?
Toward an electron-poor site (positive charge, δ⁺, or an atom that can accept electrons).
Which conditions favor homolysis?
Non-polar bonds, gas phase, high energy input like UV light or heat with no ion stabilization.
Which conditions favor heterolysis?
Polar bonds (large electronegativity difference) and ion-stabilizing polar/protic solvents.
What quantity is always conserved across a mechanism?
Total charge (and total number of electrons).
In C–Br heterolysis, which atom becomes negative and why?
Br, because it is more electronegative and keeps both bonding electrons → :Br⁻.
How many fishhook arrows are needed for a homolysis?
Two (one for each electron of the bond).
Does heterolysis always give a carbocation?
No — the atom keeping the electrons depends on electronegativity; e.g. C–Mg gives a carbanion.

Connections

  • Carbocations — stability and structure
  • Nucleophiles and Electrophiles
  • Inductive effect and electronegativity
  • Free radical substitution (halogenation of alkanes)
  • Electrophilic addition to alkenes
  • Bond dissociation energy
  • Resonance and arrow pushing

Concept Map

shows

tracks via

double-barbed

fishhook

type 1

type 2

used in

two used in

produces

produces

favored by

favored by

governed by

Reaction mechanism

Bond breaking and forming

Curved-arrow notation

Electron pair moves

Single electron moves

Heterolysis

Homolysis

Cation and anion

Free radicals

Polar bond and polar solvent

Non-polar bond and UV or heat

Start at electrons, point to electron-poor, conserve charge

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, organic chemistry ka asli khel electrons ka movement hai, atoms ka nahi. Curved arrow ek tarah ki grammar hai jo batati hai ki electron pair kahan se chal kar kahan ja raha hai. Full arrow (double-barbed) matlab poora electron pair (2 electrons) move kar raha hai, aur fishhook (half arrow) matlab sirf ek electron move kar raha hai. Arrow ki tail hamesha electrons par hoti hai — yaani kisi bond par ya lone pair par — aur arrow ka head electron-poor jagah ki taraf jaata hai, jaise positive charge ya δ⁺.

Jab koi bond tootta hai to do shared electrons ko kahin na kahin jaana hi padta hai. Agar dono electrons ek hi atom ke paas chale jaayein, to use heterolysis kehte hain — isse ions bante hain (ek cation, ek anion). Ye tab hota hai jab bond polar ho (electronegativity ka antar zyada) ya solvent ions ko stabilize kare. Agar har atom ek-ek electron le le, to use homolysis kehte hain — isse free radicals bante hain. Ye tab hota hai jab bond non-polar ho (jaise Cl–Cl) aur UV light ya heat se energy mile.

Yaad rakhne ka trick: HOMO = homogeneous = barabar baant = radicals, HETERO = alag = ek lalchi atom dono le le = ions. Aur ek bohot important rule — total charge hamesha conserve hota hai. Reactant aur product dono taraf charge add karke check karo; agar match nahi karta to koi arrow galat hai. Bas yahi 20% concept padh lo to aap GOC ke 80% mechanism khud predict kar paoge — carbocation, nucleophilic attack, radical halogenation, sab isi pe based hai.
