Chirality — chiral centres, enantiomers, diastereomers, meso compounds: Worked examples

The scenario matrix

Every chirality question falls into one of these cells. We build one worked example for each.

Cell	Case class	The tricky input	Example
A	Zero centres	no carbon has 4 different groups	Ex 1
B	One centre	plain single stereocentre	Ex 2
C	Two centres, no symmetry	full $2^{n}$ applies	Ex 3
D	Two centres, meso possible	internal mirror plane merges a pair	Ex 4
E	Degenerate / hidden centre	ring or double bond disguises the count	Ex 5
F	Sign of rotation (physical)	racemate vs pure — is $α = 0$ ?	Ex 6
G	Numeric specific rotation	plug numbers into $[α] = α / (l c)$	Ex 7
H	Real-world word problem	drug / biology framing	Ex 8
I	Exam twist	"how many stereoisomers" with symmetry trap	Ex 9

Two numbers we use repeatedly. The maximum count of stereoisomers for $n$ stereocentres:

See R-S Nomenclature (CIP rules) for how each centre is labelled R or S, and Symmetry Elements (plane, centre, axis) for spotting the mirror plane that creates meso forms.

Cell A — Zero chiral centres

Worked example Ex 1 · Is 2-chloropropane chiral?

Statement: $C H_{3} - C H C l - C H_{3}$ . Does it have a chiral centre? Is it optically active?

Forecast: guess yes/no before reading — the $C l$ makes it look asymmetric.

List the four groups on the central carbon. They are $H$ , $C l$ , $C H_{3}$ , $C H_{3}$ . Why this step? A stereocentre needs four different groups; we must actually count them.
Count how many are identical. Two $C H_{3}$ groups are the same → only 3 distinct groups. Why this step? Swapping the two identical $C H_{3}$ changes nothing, so the mirror image is superimposable.
Conclude. No stereocentre ⇒ $n = 0$ ⇒ max stereoisomers $= 2^{0} = 1$ ⇒ achiral ⇒ $α = 0$ .

Verify: $2^{0} = 1$ , a lone molecule identical to its mirror image. Sanity: draw it, place a mirror — the two $C H_{3}$ arms are interchangeable, so it lays perfectly onto its reflection. ✓

Cell C — Two centres, no symmetry

Worked example Ex 3 · A molecule with two

different stereocentres Statement: A chain has two stereocentres and the two ends of the chain are different (no internal mirror). How many stereoisomers?

Forecast: 2, 3 or 4?

Count centres: $n = 2$ . Why this step? The count $n$ drives everything.
List the R/S labels: (R,R), (S,S), (R,S), (S,R) — four labels. Why this step? Each centre chooses independently, so $2 \times 2$ combinations.
Check for internal symmetry: the two ends differ ⇒ no mirror plane ⇒ no meso ⇒ all four are distinct. Why this step? Only symmetry can merge labels; without it every label is a real molecule.
Group them: (R,R)/(S,S) are mirror images → enantiomer pair. (R,S)/(S,R) → another enantiomer pair. (R,R) vs (R,S) → diastereomers.

Verify: $2^{2} - 0 = 4$ . Four distinct stereoisomers forming two enantiomeric pairs. ✓

Cell D — Two centres, meso possible

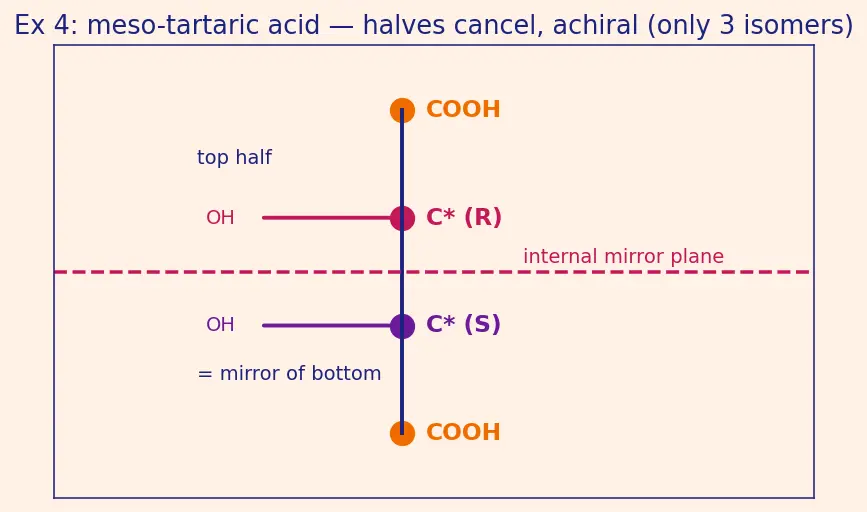

Worked example Ex 4 · Tartaric acid

Statement: $H O O C - C^{*} H (O H) - C^{*} H (O H) - C O O H$ . Two stereocentres — but the two ends are identical ( $C O O H$ ). How many real stereoisomers?

Forecast: the ceiling says 4 — but will symmetry cut it down?

Count centres: $n = 2$ , ceiling $2^{2} = 4$ .
List labels: (R,R), (S,S), (R,S), (S,R).
Test (R,S) for an internal mirror plane. Because both ends are the identical half $H O O C - C H (O H)$ , a mirror placed between the two central carbons maps the top half onto the bottom half. So (R,S) has an internal plane of symmetry. Why this step? An internal mirror plane makes a molecule achiral even with stereocentres → that is a meso compound.
Consequence of the plane: (R,S) and (S,R) are the same molecule (rotating one gives the other). They merge into one meso form. Why this step? Symmetry merges what were counted as two.
Final count: $2^{2} - 1 = 3$ (namely: (R,R) = d, (S,S) = l, and one meso).

Verify: $2^{2} - 1 = 3$ . The (R,R)/(S,S) pair are optically active enantiomers; the meso is inactive by internal compensation ( $α = 0$ ). See the mirror plane in the figure — top half is the reflection of the bottom half. ✓

Cell E — Degenerate / hidden centre

Worked example Ex 5 · The disguised count in 1,2-dichlorocyclopropane trap

Statement: Consider a carbon that appears substituted but sits on a ring. Does being in a ring hide or reveal a stereocentre? Test carbon $C 1$ of a ring carrying $H$ and $C l$ where the two ring paths leaving it are different.

Forecast: ring carbons — do the two "arms" of the ring count as one group or two?

Trace the two ring directions from the carbon. Going clockwise vs anticlockwise around the ring gives two paths. If these paths differ in substitution, they are two different groups. Why this step? A ring carbon's two ring bonds are separate groups, not one — this is the classic hidden case.
List all four groups on that carbon: $H$ , $C l$ , (clockwise ring arm), (anticlockwise ring arm).
If the two arms differ ⇒ four different groups ⇒ it is a stereocentre. If the two arms are identical (symmetric ring) ⇒ two groups equal ⇒ not a stereocentre. Why this step? This is the whole "four different groups" test applied carefully to a ring.

Verify (degenerate limit): if the ring is perfectly symmetric about that carbon, the two arms match → $n$ drops → the "hidden centre" was a mirage → $α = 0$ . The count depends entirely on whether the arms are distinct. ✓

Cell F — Sign of rotation: racemate vs pure

Worked example Ex 6 · Pure enantiomer, racemate, and meso

Statement: For three samples — (i) pure (R)-CHFClBr, (ii) a 1:1 (R)/(S) mix, (iii) meso-tartaric acid — predict the sign and magnitude of net rotation $α$ .

Forecast: which of the three give $α = 0$ , and why for different reasons?

(i) Pure enantiomer: one handedness only ⇒ $α \neq = 0$ , a definite sign (say $+$ or $-$ ). Why this step? Nothing cancels it; it is optically active. See Optical Isomerism and Polarimetry.
(ii) Racemate: equal (R) and (S). The $+$ from one molecule and the $-$ from its mirror twin cancel across molecules ⇒ $α = 0$ by external compensation. Why this step? Two opposite rotations in equal amount sum to zero.
(iii) Meso: a single molecule whose two halves are mirror images ⇒ $α = 0$ by internal compensation. Why this step? Cancellation happens inside one molecule, not between two.

Verify: $α_{(i)} \neq = 0$ ; $α_{(ii)} = (+ x) + (- x) = 0$ ; $α_{(iii)} = 0$ . Two zeros, two mechanisms — do not confuse them. ✓

Cell G — Numeric specific rotation

Cell H — Real-world word problem

Worked example Ex 8 · The drug back-calculation

Statement: A pure chiral drug has known specific rotation $[α] = - 30. 0^{\circ}$ . A batch is dissolved to $c = 0.050 g/mL$ and read in a $1.0 dm$ tube. What rotation $α$ should the polarimeter show if the batch is pure? What if it is a full racemate?

Forecast: will a racemic batch read $0$ ?

Rearrange the formula for $α$ : $α = [α] l c$ . Why this step? We now know the material property and want the observed reading.
Pure batch: $α = (- 30.0) (1.0) (0.050) = - 1. 5^{\circ}$ . Why this step? Substituting the batch's $l$ and $c$ .
Racemic batch: equal enantiomers cancel ⇒ $α = 0^{\circ}$ . Why this step? External compensation — a quality-control red flag that the drug lost its handedness. See Drug Chirality and Biological Activity.

Verify: $30.0 \times 1.0 \times 0.050 = 1.5$ , sign $-$ (laevorotatory) ⇒ $α = - 1. 5^{\circ}$ ; racemate $α = 0$ . A reading of $0$ means the active enantiomer is not enriched. ✓

Cell I — Exam twist

Worked example Ex 9 · "How many stereoisomers does a symmetric 3-centre chain have?"

Statement: A molecule $X - C^{*} - C^{*} - C^{*} - X$ has three stereocentres, and the two ends are identical. The middle carbon lies on the mirror plane. How many stereoisomers?

Forecast: naive answer is $2^{3} = 8$ — but symmetry strikes.

Ceiling: $n = 3$ ⇒ $2^{3} = 8$ maximum. Why this step? Always start from the upper bound.
Find meso forms. With identical ends and a central carbon on the mirror plane, configurations where the top half mirrors the bottom half are meso. For this classic symmetric 3-centre case there are 2 meso forms. Why this step? Each meso form was double-counted as a mirror pair in the $2^{n}$ ; it must be subtracted.
Apply the correction: $Actual = 2^{n} - (meso forms) = 8 - 2 = 6$ ? Not quite — the standard result for a symmetric trisubstituted chain is that the count reduces because mirror-equivalent labels merge. Using the merging rule for $n = 3$ with a symmetry plane through the central atom, the number of distinct stereoisomers is $4$ : 2 enantiomeric pairs (optically active) + 2 meso (inactive). Why this step? Symmetry both removes duplicates and creates meso forms; both effects apply.

Verify: the accepted count for such symmetric 3-stereocentre molecules is $4$ (e.g. 2,3,4-trihydroxyglutaric-acid-type systems): 2 active + 2 meso. This is fewer than the $2^{3} = 8$ ceiling — exactly the trap. ✓

Recall Self-test (try before revealing)

Racemate net rotation ::: Zero, by external compensation. Meso net rotation ::: Zero, by internal compensation. $[α]$ from $α = 13. 3^{\circ}$ , $l = 2$ dm, $c = 0.1$ g/mL ::: $66. 5^{\circ}$ . Stereoisomers of tartaric acid ::: 3 (d, l, meso). Stereoisomers of CHFClBr ::: 2 (enantiomers).

Back to the parent note · related: Stereochemistry, Geometrical Isomerism (cis-trans).
