Intuition The ONE core ideaSome molecules come in a left-handed and a right-handed version that look identical but cannot be perfectly stacked on top of each other — exactly like your two hands. Everything in this chapter is just a careful language for describing, counting, and detecting that handedness.
Before you can read a single line of the parent note, you meet a swarm of symbols: C ∗ R / S 2 n α [ α ] λ T each one from nothing , in an order where every idea rests on the one before it. Nothing is used before it is drawn.
Before "handedness" means anything, we need to know what shape a carbon atom makes in space .
Definition Atom and bond (plain words)
An atom ::= a tiny ball — think of a bead.
A bond ::= a stick joining two beads. When we say carbon is "bonded to four groups", picture four sticks poking out of one central bead .
Intuition WHY carbon is tetrahedral (not flat)The four sticks push each other as far apart as possible, like four balloons tied at one knot. They cannot all lie in one plane — the shape that spreads them evenly in 3D is a tetrahedron (a triangular pyramid). This 3D-ness is the whole reason handedness can exist: a flat object has no left/right twin, but a 3D one can.

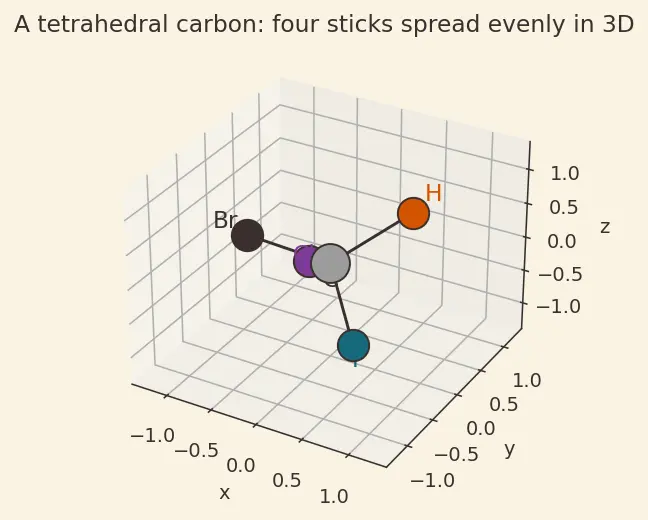

The picture above is the single most important object in the topic. Look at the central grey bead: four different-coloured groups reach out to the four corners. Because it is genuinely three-dimensional , we will be able to make a mirror copy that refuses to line up.
Recall Why can't a flat molecule be chiral?If all groups lie in one plane, the plane itself is a mirror that maps the molecule onto itself — so it equals its mirror image. Handedness needs the third dimension. ::: Flatness gives you a built-in mirror plane, forcing the molecule to be achiral.
The definition of a chiral centre says a carbon bonded to four different groups . Two words there need building: group and different .
Definition Group (substituent)A group ::= whatever hangs off the carbon through one bond — it might be a single atom (H C l C H 3 O H C O O H the entire object dangling on the end of one stick , not just the first atom.
Intuition What "different" really meansTwo groups are the same only if the entire dangling objects are identical. C H 3 C H 3 C H 3 C H 2 C H 3 different (one carbon vs two). So "four different groups" means: walk down all four sticks; if you ever meet two identical objects, the carbon is not a chiral centre.
Worked example Reading CHFClBr with the new eyesThe four sticks carry H F C l B r
Common mistake Same first atom ≠ same groupIn CH ( O H ) ( C H 3 ) ( C H 2 O H ) start with carbon, but C H 3 C H 2 O H whole branch .
Now we can define the heart-word: chiral .
Definition Mirror image & superimposable
Mirror image ::= the reflection you'd see in a flat mirror — left and right swapped. Picture holding the molecule up to a mirror and copying what you see.Superimposable ::= you can slide and rotate one object (no breaking bonds!) until it lands exactly on the other, every stick matching. Picture laying one glove on top of another so all fingers coincide .
Intuition Chiral = mirror image that WON'T superimposeMake the mirror twin of the tetrahedral carbon. Try to rotate it onto the original. If all four sticks match → the two are the same → achiral . If no matter how you spin it two sticks always stay swapped → chiral . Hands are the classic failure: rotate your left hand however you like, the thumb never lands on the right hand's thumb and the palm face the same way.

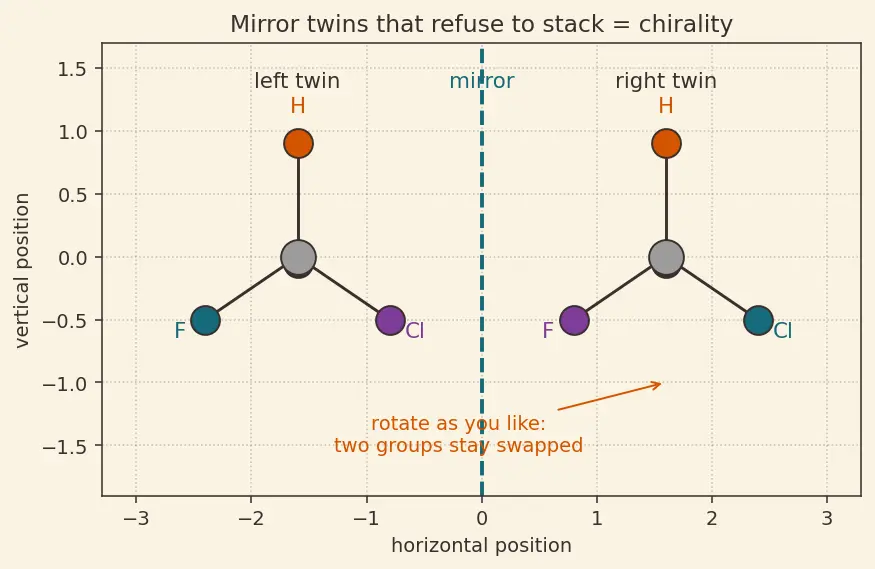

The two tetrahedra above are mirror twins. The teal arrow shows the reflection; the orange note shows that after any rotation, two groups stay out of place. That stubborn mismatch is chirality.
Definition The star notationC ∗ star is just a flag saying "handedness lives here". Picture a spotlight on that one bead .
We need this symbol because a big molecule may have several carbons; the star tells you which ones create the handedness so you can count them.
Definition The counting symbols
n number of chiral centres (starred carbons) in the molecule.2 n n n up or down (two states), asking how many total patterns exist.
Intuition WHY two-to-the-n and not something elseEach starred carbon can be built in exactly two mirror-versions, independently of the others. One switch → 2 2 × 2 = 4 2 × 2 × 2 = 8 product rule of counting : independent binary choices multiply. So the upper bound on distinct stereoisomers is 2 n

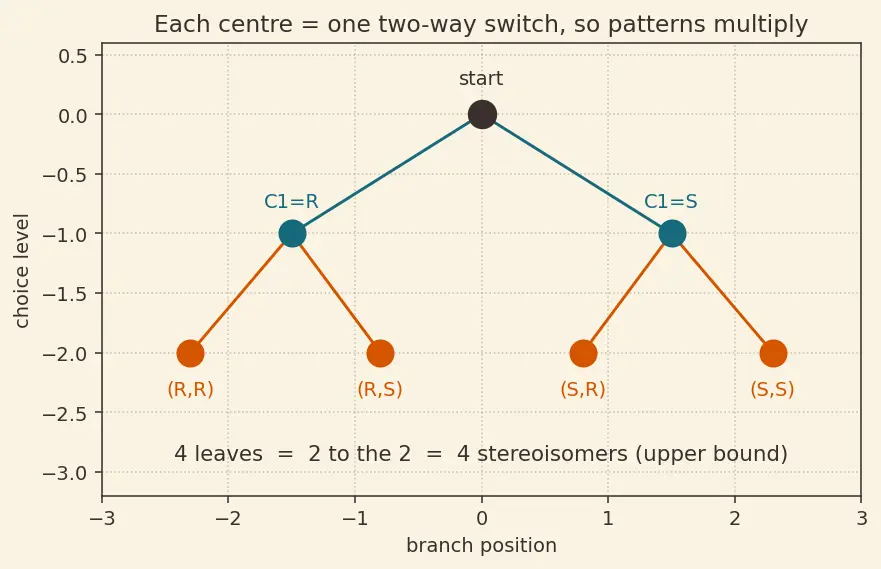

The switch-tree above shows every path for n = 2 2 2 = 4
Definition R and S (plain words for now)
R ::= "rectus", the right-handed arrangement of a starred carbon.S ::= "sinister", the left-handed arrangement.
Picture them as the two settings of one switch. The full rules for deciding which is which live in R-S Nomenclature (CIP rules) — here you only need to know they are the ==two names for the two mirror-versions of one C ∗
We need R / S ( R , S )
Definition Plane of symmetryA plane of symmetry ::= an imaginary flat sheet you could slice the molecule with so that one half is the exact mirror of the other half . Picture folding a butterfly along its middle — the two wings match.
Intuition WHY this one idea explains "meso"If a molecule has starred carbons but ALSO a plane cutting it into mirror-halves, the left half's twist and the right half's twist cancel inside the same molecule . So it is handed in parts yet achiral overall. This is the seed of the meso exception. Deeper symmetry tools are in Symmetry Elements (plane, centre, axis) .

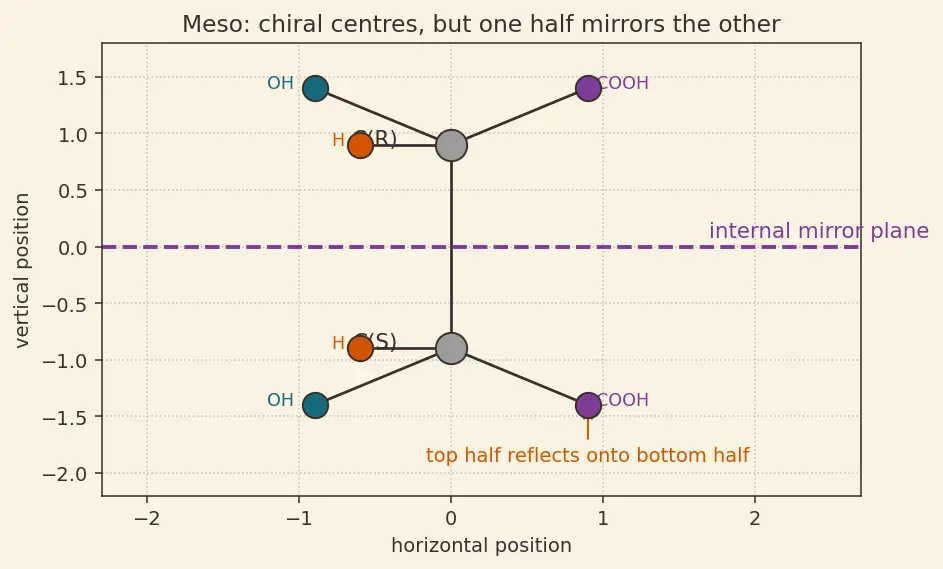

The dashed plum line is the internal mirror plane. The upper (R) half reflects onto the lower (S) half — the molecule is its own mirror image, hence achiral.
Chirality is invisible to the eye — we detect it with light. These symbols are the measuring language, explored fully in Optical Isomerism and Polarimetry .
Definition Polarimetry symbols
Plane-polarized light ::= light waves that vibrate in a single flat plane. Picture a rope wiggled only up-and-down .α observed rotation — the angle (in degrees) by which the sample twists that plane. Picture the rope's wiggle-plane rotated to a new tilt.l path length , how long the light tube is (in dm).c concentration of dissolved sample (in g/mL).λ wavelength (colour) of light used.T temperature .[ α ] λ T specific rotation , a pure property of the substance once you strip out how much and how far.
Definition Sign of rotation
( + ) dextrorotatory ::= twists the plane clockwise (to the right).( − ) laevorotatory ::= twists it anticlockwise (to the left).
Mirror twins twist by equal amounts in opposite directions.
Mirror image and superimposable
n centres gives 2 to the n
Read it upward: shape → different groups → mirror test → the starred carbon → labels and counting → symmetry → light. Every arrow is a prerequisite the parent note silently assumed.
Self-test: can you answer each before revealing?
Why must a molecule be 3D (not flat) to be chiral? A flat molecule contains its own mirror plane, so it always equals its mirror image.
When are two groups on a carbon "the same"? Only when the entire dangling branches are identical, not merely their first atom.
What does the star in C ∗ A carbon bonded to four different groups — a chiral (stereo)centre.
What does "superimposable" require? Sliding and rotating (no bond breaking) until every stick of one object lands exactly on the other.
Why is the stereoisomer bound 2 n Each of n
What do R S The two mirror-versions (settings) of a single chiral centre.
What is an internal plane of symmetry? A slice making one half the exact mirror of the other half.
Why divide α l ⋅ c To remove dependence on tube length and sample amount, leaving a pure material property [ α ]
What do ( + ) ( − ) Clockwise (dextrorotatory) and anticlockwise (laevorotatory) twisting of polarized light.
Mnemonic One-line summary of the whole toolkit"3D carbon → four different sticks → star it → count 2 n
Ready? Then return to the parent topic and every symbol will now read like plain words.
