Visual walkthrough — Functional groups and homologous series

Before we touch a single symbol, we agree on one rule that governs everything below.

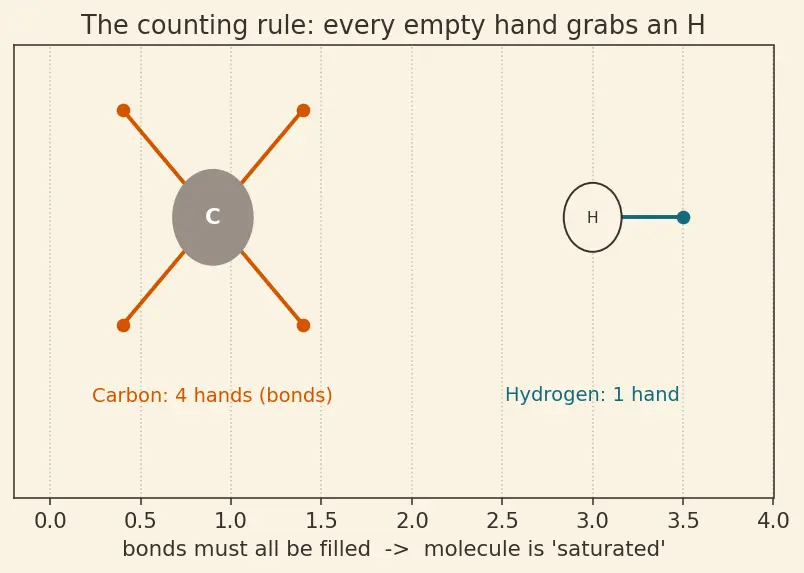

• Carbon (C): the grey ball with 4 short lines = 4 bonds it must use.
• Hydrogen (H): the small ball with 1 line = 1 bond it must use.
• The word saturated means: every carbon hand that isn't holding another carbon is holding an H. Nothing left dangling.

---

Step 1 — The smallest alkane: one carbon

WHAT. Place one carbon. It has 4 hands and no carbon neighbours, so all 4 hands grab hydrogens.

WHY. We start at $n=1$ because a formula for all $n$ has to be forced to agree with the tiniest case first. If our future formula fails here, it is wrong.

PICTURE. One central C, four H's around it.

$\underset{\text{1 carbon}}{\underbrace{C}}\underset{\text{4 hydrogens}}{\underbrace{H_4}}=C{H}_4$

• The subscript $4$ under $H$ is just counting the hydrogens: 4 hands → 4 H's.
• This molecule is methane. Remember the number 4 — we will watch how it changes as the chain grows.

---

Step 2 — Add a second carbon: what does one more C cost?

WHAT. Bring in a second carbon and bond it to the first. That single new C–C bond uses one hand on each carbon.

WHY. We want to see the price of extending the chain. Every time two carbons join, two hands (one per carbon) are "spent" on the bond between them and can no longer hold hydrogens.

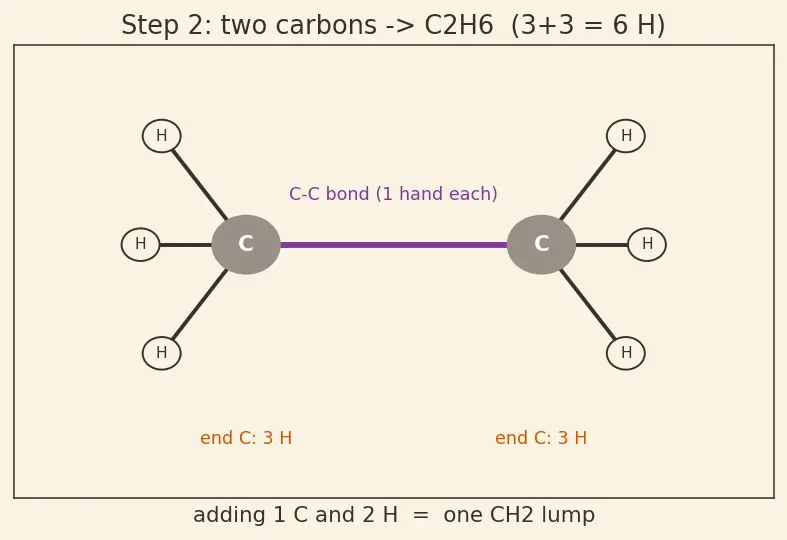

PICTURE. Two carbons holding hands; the remaining hands (3 on each end carbon) fill with H.

$\underset{\text{2 carbons}}{\underbrace{C_2}}{H}_{\underset{\text{left C}}{\underbrace{3}}+\underset{\text{right C}}{\underbrace{3}}}=C_2{H}_6$

• Each end carbon uses 1 hand for the C–C bond, leaving $4-1=3$ hands for H.
• So $3+3=6$ hydrogens. This is ethane, $C_2{H}_6$.
• Notice: going from $C{H}_4$ to $C_2{H}_6$ we added 1 C and 2 H — that is exactly one ${\text{CH}}_2$. Hold that thought; it is the heartbeat of the whole chapter.

---

Step 3 — Insert a carbon into the middle: the inner carbons behave differently

WHAT. Grow to three carbons in a row. Now the middle carbon has a carbon on both sides.

WHY. We must check whether a carbon in the interior of a chain contributes the same number of hydrogens as an end carbon. If they differ, our formula must account for both types — this is exactly the "cover all cases" demand.

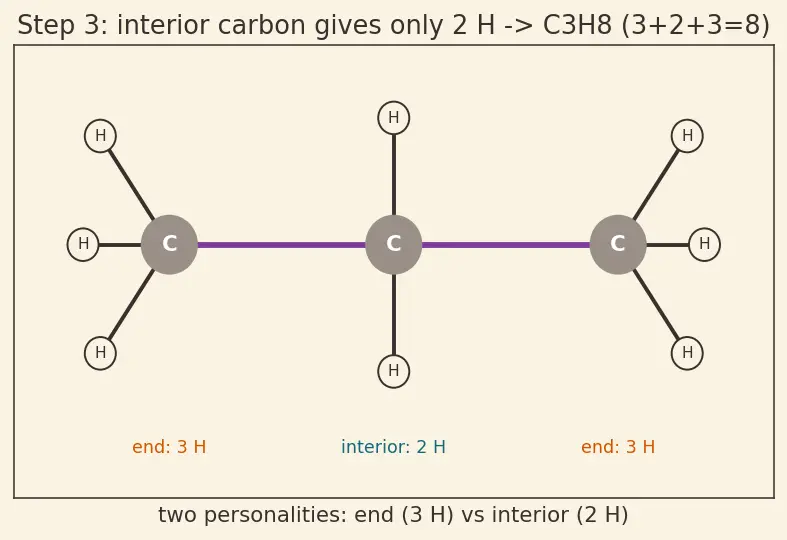

PICTURE. Left-end C, middle C, right-end C. Count the free hands on each.

$C_3{H}_{\underset{\text{end}}{\underbrace{3}}+\underset{\text{middle}}{\underbrace{2}}+\underset{\text{end}}{\underbrace{3}}}=C_3{H}_8$

• End carbons: 1 hand to a neighbour, $4-1=3$ hands for H → $3$ H each.
• Middle (interior) carbon: 2 hands used on its two carbon neighbours, so $4-2=2$ hands for H → $2$ H.
• Total: $3+2+3=8$. This is propane, $C_3{H}_8$.

---

Step 4 — Turn the counting into a formula (the payoff)

WHAT. Generalise Step 3 to a chain of $n$ carbons. There are always 2 end carbons and $(n-2)$ interior carbons.

WHY. We stop drawing and start algebra only now, because the picture already told us the two contributions ($3$ H per end, $2$ H per interior). Algebra just sums them.

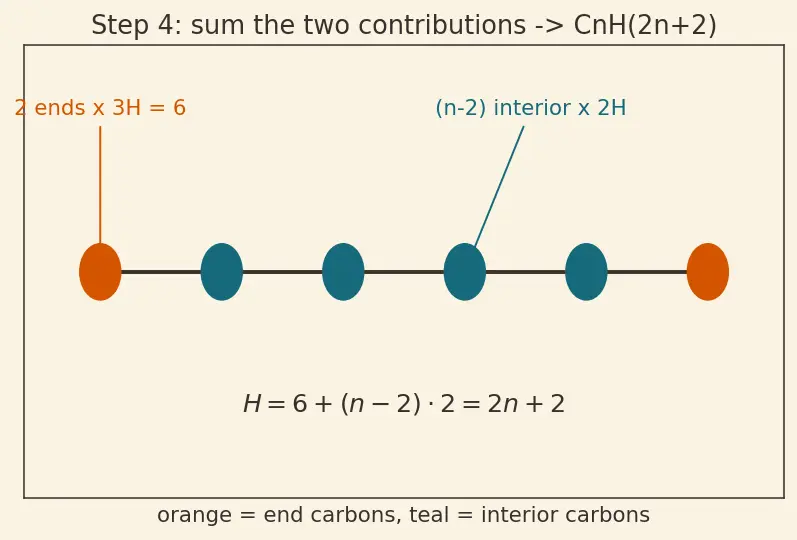

PICTURE. A chain with the two ends flagged in orange and the interior stretch flagged in teal, plus the running sum.

$H=\underset{\text{two ends}}{\underbrace{2\times 3}}+\underset{\text{interior carbons}}{\underbrace{(n-2)\times 2}}$

Now simplify, term by term:

$H=6+2n-4=2n+2$

• $2\times 3=6$ hydrogens from the two ends.
• $(n-2)\times 2=2n-4$ hydrogens from the interior.
• Adding: $6+(2n-4)=2n+2$.

$\boxed{C_n{H}_{2n+2}(\text{alkane})}$

• $n$ = number of carbons (whatever you choose).
• $2n+2$ = the hydrogens forced by the counting rule.

---

Step 5 — Why every jump is $+{\text{CH}}_2$ = mass $14$

WHAT. Compare consecutive members: subtract member $n$ from member $n+1$.

WHY. The defining test of a homologous series is a constant ${\text{CH}}_2$ gap. We prove it drops straight out of the formula — it is not a coincidence.

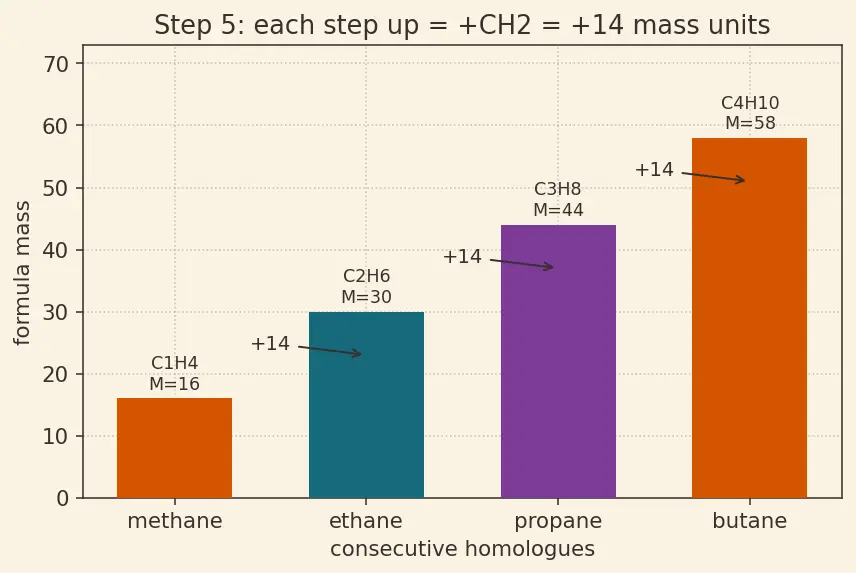

PICTURE. A staircase where each step up adds exactly one C and two H.

Carbons change by $(n+1)-n=1$. Hydrogens change by:

$[2(n+1)+2]-[2n+2]=2n+2+2-2n-2=2$

• Carbon difference $=1$.
• Hydrogen difference $=2$.
• Together: $+1\text{C}+2\text{H}={\text{CH}}_2$.

Its formula mass, using C $=12$, H $=1$:

$12+2(1)=14$

That is the famous $+14$ per step. Every rung of the ladder is one ${\text{CH}}_2$ heavier than the last.

---

Step 6 — Swap in a functional group: alcohols and alkenes for free

WHAT. Take one hydrogen off an alkane and put an $-OH$ in its place (alcohol). Separately, remove two hydrogens and let two carbons share an extra bond ($C=C$, alkene).

WHY. The parent note claimed $C_n{H}_{2n+1}OH$ and $C_n{H}_{2n}$ without proof. We show both are just the alkane count, edited by the group. This is the whole point of GOC: the skeleton stays; the group is the edit.

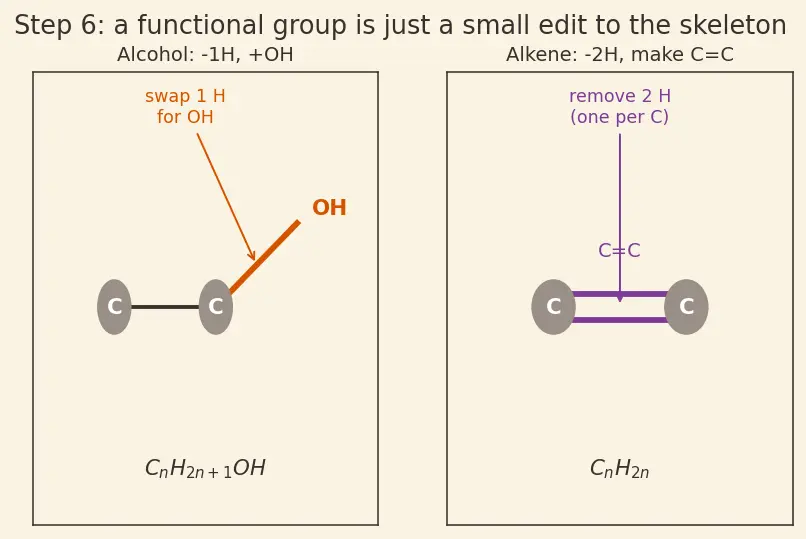

PICTURE. Left: an alkane with one H swapped for OH. Right: two carbons pulling in a double bond, ejecting one H each.

Alcohol. Replace one H by $-OH$. We lose 1 H from the $2n+2$ but gain an $OH$:

$C_n{H}_{2n+2-1}OH=C_n{H}_{2n+1}OH$

• $2n+2-1=2n+1$ — we simply removed the single H that the oxygen now occupies.
• The oxygen brought its own H inside the $OH$, so total H atoms are $(2n+1)+1=2n+2$: the H count is conserved, just repackaged. This is the hydroxyl group hanging on the same chain.

Alkene. A double bond means two carbons share two hands with each other instead of one. Each of those two carbons loses one H compared to the alkane:

$C_n{H}_{2n+2-2}=C_n{H}_{2n}$

• $2n+2-2=2n$ — two hydrogens removed, one from each carbon of the $C=C$.
• This is the extra reactive $\pi$-electron cloud the parent note called an "electron imbalance."

---

Step 7 — Degenerate & edge cases (never leave a gap)

WHAT. Test the formula at its boundaries.

WHY. A formula you trust must survive its extremes, not just the comfortable middle.

• $n=1$ (no interior carbon at all). There are no interior carbons: $n-2=-1$? The picture rescues us — with one carbon there are no ends pairs to join; it simply grabs 4 H. The algebra still gives $2(1)+2=4$ because the "$-2$ interior" term and the "$+2$ ends" term were built to cancel correctly at the smallest case. ✓
• $n=0$ (no carbon). $2(0)+2=2\Rightarrow H_2$. There is no organic molecule here, but the formula degrades gracefully to hydrogen gas — a reassuring boundary, not a contradiction.

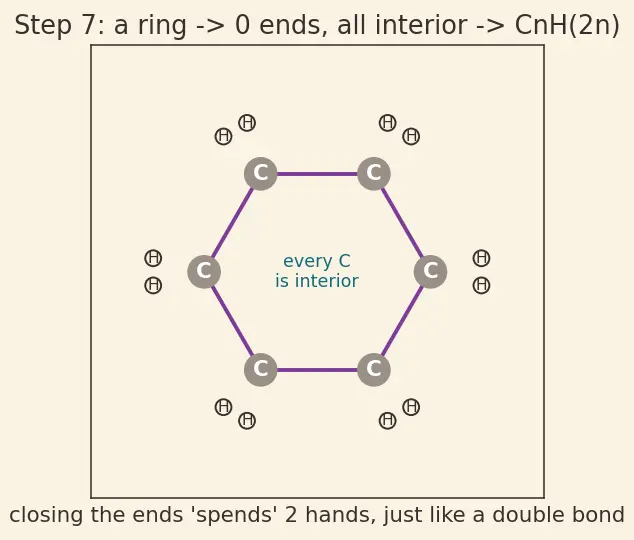

• A ring (cycloalkane). If the two chain ends bond to each other, both former end-carbons become interior. We lose the two "extra" end hydrogens: $C_n{H}_{2n}$ — the same count as an alkene, because closing a ring "spends" two hands just like a double bond does. Same edit, different geometry.
• Branching. A branch point is just a carbon with 3 carbon neighbours ($4-3=1$ H). It changes which carbons are interior but never the rule. The straight-chain formula $C_n{H}_{2n+2}$ still holds for any acyclic saturated alkane, branched or not, because branch carbons and the extra chain-ends they create always rebalance.

• Notice how the ring figure shows zero end carbons — every carbon is interior, so every carbon gives 2 H, total $2n$.

---

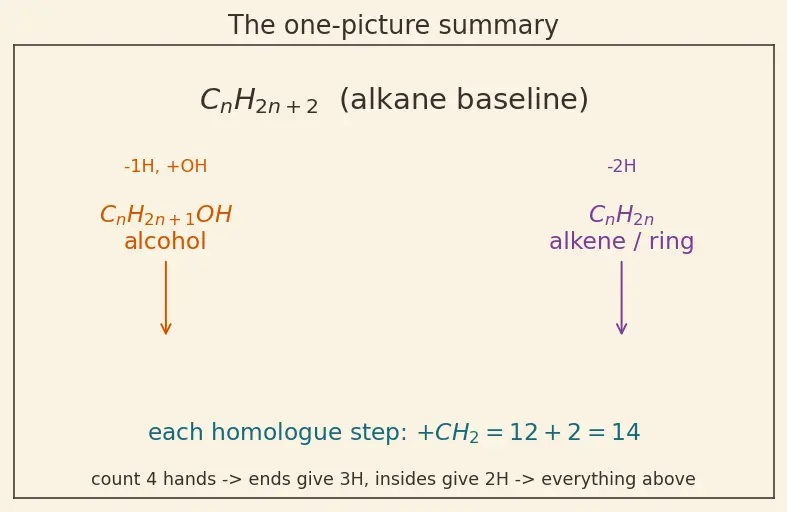

The one-picture summary

Everything above, compressed: start from carbon's 4 hands, count ends vs interiors, and read off every family.

$$\underset{\text{alkane (baseline)}}{\underbrace{C_n{H}_{2n+2}}}\underset{\text{swap 1 H}}{\overset{-H,+OH}{\to }}\underset{\text{alcohol}}{\underbrace{C_n{H}_{2n+1}OH}}\underset{\text{alkane}}{\underbrace{C_n{H}_{2n+2}}}\underset{\text{make }C=C}{\overset{-2H}{\to }}\underset{\text{alkene / ring}}{\underbrace{C_n{H}_{2n}}}$$

$\text{consecutive members differ by }\Delta ={\text{CH}}_2=12+2=14$

Recall Feynman: the whole walkthrough in plain words

Every carbon is a hand-holding creature with exactly four hands, and every empty hand must grab a hydrogen. If a carbon sits at the end of a chain it has one hand busy holding the next carbon, so it grabs 3 hydrogens; if it sits inside the chain it holds two carbons and grabs only 2. A chain of $n$ carbons always has exactly two ends and the rest inside — add up their hydrogens ($3+3$ from the ends plus $2$ each from the inside) and you get $2n+2$. That is the alkane formula, and it was forced by the hand-counting, not memorised. Grow the chain by one carbon and you always add exactly one carbon and two hydrogens — a ${\text{CH}}_2$ lump weighing $14$ — which is why the whole family climbs in steps of $14$. Finally, if you pluck off one hydrogen and stick an $-OH$ there you get an alcohol ($C_n{H}_{2n+1}OH$); if you make two carbons hold an extra bond you tear off two hydrogens and get an alkene or ring ($C_n{H}_{2n}$). Same skeleton, tiny edit — that is all a functional group ever is.

---
