Catenation and the diversity of organic molecules: Worked examples

Before anything, one word must be earned.

The scenario matrix

Think of each row as a type of trap. We will hit every one.

Cell	Case class	What varies	Filled by
A	Bond-strength comparison (down a group)	atom size ↑ ⇒ overlap ↓	Ex 1
B	Zero / degenerate input — chain of length "1"	$n = 1$ : no C–C bond at all	Ex 2
C	Limiting behaviour — chain length $n \to$ large	isomer count explodes	Ex 3
D	Sign / trend flip — reactivity rises as strength falls	inverse relationship	Ex 4
E	Counting all arrangements (isomerism)	fixed formula, many shapes	Ex 5
F	Ring vs chain (a "different quadrant" of catenation)	topology changes	Ex 6
G	Real-world word problem	petrol / plastics framing	Ex 7
H	Exam-style twist — mixed / trick statement	must separate necessary vs sufficient	Ex 8

Every one of these is worked below. The numbers used:

$E (C - C) \approx 348, E (S i - S i) \approx 222, E (G e - G e) \approx 188 kJ/mol$

Cell A — Bond-strength comparison down a group

Worked example Example 1 — Rank chain-stability of C, Si, Ge and give the % drop.

Forecast: guess which of $C - C$ , $S i - S i$ , $G e - G e$ is strongest, and roughly by how much silicon loses to carbon (10%? 40%?).

Step 1 — line up the numbers. $348$ , $222$ , $188 kJ/mol$ . Why this step? Chain survival is decided by the weakest link's strength; the bond energy is that strength, so we compare energies directly.

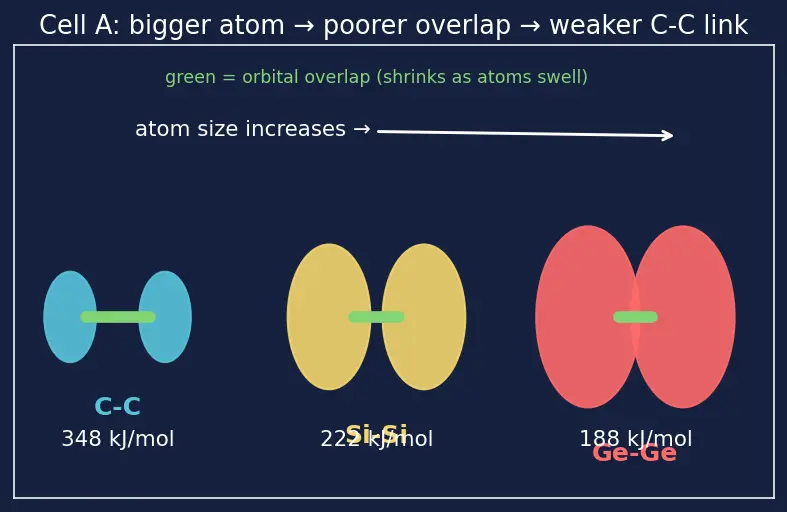

Step 2 — order them. $C - C (348) > S i - S i (222) > G e - G e (188)$ . Why this step? Larger atoms sit lower in Group 14; their valence orbitals are further from the nucleus, so two of them overlap poorly — a longer, floppier, weaker bond. Look at the figure: as the atoms swell, the shared electron region (green) shrinks.

Step 3 — quantify carbon's lead over silicon. $drop = \frac{348 - 222}{348} \times 100% \approx 36.2%$ Why this step? A percentage makes "much weaker" concrete — silicon loses over a third of the strength.

Verify: $348 - 222 = 126$ ; $126/348 = 0.362 \dots$ ⇒ $36.2%$ . Units cancel ( $kJ/mol \div kJ/mol$ ) so a pure percent is correct. ✓

Cell B — Zero / degenerate input

Worked example Example 2 — Does methane

$C H_{4}$ "catenate"? How many C–C bonds are in $C_{n} H_{2 n + 2}$ ? Forecast: guess how many carbon–carbon bonds a one-carbon molecule has.

Step 1 — count C–C bonds in a straight alkane. Placing $n$ carbons in a row gives one bond between each neighbouring pair: $(C-C bonds) = n - 1.$ Why this step? This is the degenerate check. If catenation means "C bonded to C," a molecule with zero C–C bonds does not catenate at all.

Step 2 — plug $n = 1$ (methane). $n - 1 = 0$ . Why this step? Methane is the "length-1 chain" — the boundary case. It has no C–C bond, so it is the one alkane that shows no catenation.

Step 3 — plug $n = 2$ (ethane). $n - 1 = 1$ — the smallest real catenated molecule. Why this step? This is where catenation first switches on; every longer chain just adds one more link.

Verify: pentane $n = 5 \Rightarrow 5 - 1 = 4$ C–C bonds — draw $C - C - C - C - C$ and count the dashes: exactly 4. ✓

Cell C — Limiting behaviour (isomer explosion)

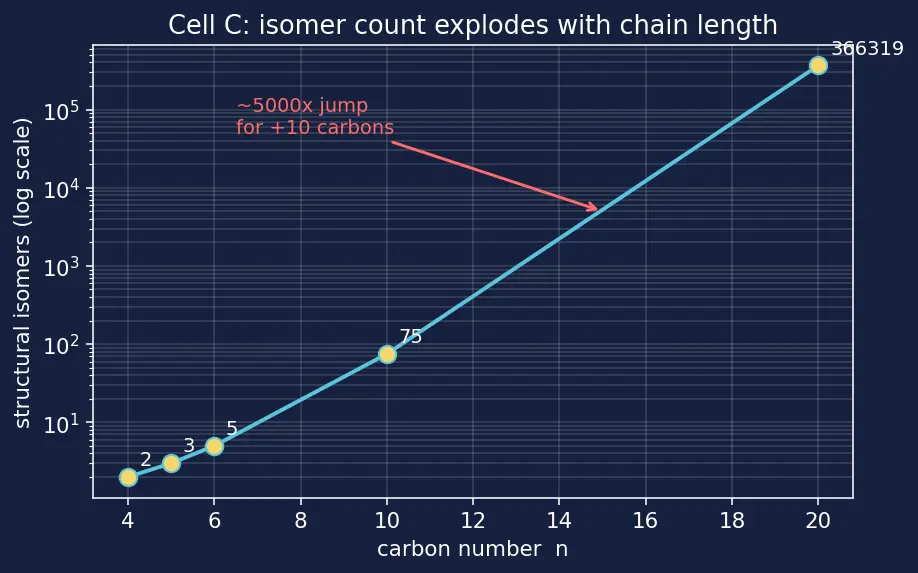

Worked example Example 3 — How fast does structural-isomer count grow with

$n$ ? Forecast: from $C_{4}$ (2 isomers) to $C_{20}$ , guess an order of magnitude — dozens? thousands? hundreds of thousands?

Step 1 — read the trend from the parent table. $2, 3, 5, 75, 366319$ for $n = 4, 5, 6, 10, 20$ . Why this step? There is no clean formula, so we reason from data. The point is the shape of growth, not an exact law.

Step 2 — measure the multiplier from $n = 10$ to $n = 20$ . $\frac{366319}{75} \approx 4884.$ Why this step? A ratio strips away units and shows the explosion: ten more carbons multiplied the possibilities by nearly 5000×. This "faster than any polynomial" growth is the mathematical face of diversity.

Step 3 — state the limit. As $n \to$ large, isomer count $\to$ effectively unbounded for practical chemistry — this is why organic compounds outnumber all inorganic ones. Why this step? Limiting behaviour is a required cell; catenation's payoff only appears at large $n$ .

Verify: $75 \times 4884 = 366300 \approx 366319$ (within rounding of the ratio). ✓

Cell D — Sign / trend flip (strength down ⇒ reactivity up)

Worked example Example 4 — As you go C → Si → Ge, does chain

reactivity rise or fall? Forecast: guess whether the weaker-bonded elements are more or less reactive toward air/water.

Step 1 — recall the two independent effects. (i) bond energy falls ( $348 \to 188$ ); (ii) empty $d$ -orbitals become available (Si, Ge have accessible $3 d /4 d$ ; carbon has none in its valence shell). Why this step? Reactivity has a thermodynamic face (weak bond, easy to break) and a kinetic face (open pathway for attack). Both push the same direction here.

Step 2 — combine the signs. Strength ↓ and attack-pathway opens ⇒ reactivity ↑. So the trend of reactivity is the mirror image (opposite sign) of the trend of bond strength. Why this step? This is the sign-flip cell: whenever a quantity and its inverse both appear, an exam loves to ask "do they move together or oppositely?" Here — oppositely.

Step 3 — apply it. Carbon chains = strong + inert = survive; silicon chains = weak + attackable = hydrolyse and oxidise.

Verify (sanity, no arithmetic): consistent with observed fact — alkanes are safe in air/water, silanes ignite/hydrolyse. Trend directions are opposite, as claimed. ✓

Cell E — Counting all arrangements (isomerism)

Worked example Example 5 — List

every structural isomer of $C_{5} H_{12}$ and confirm the count. Forecast: guess the total — 2, 3, or 4?

Step 1 — longest straight chain. All 5 carbons in a row: $C - C - C - C - C$ = n-pentane. Why this step? Start from the extreme "no branching" case so nothing is missed.

Step 2 — one branch. Take a 4-carbon main chain, hang the 5th carbon on the second carbon: 2-methylbutane (isopentane). Why this step? Shortening the backbone by one frees exactly one carbon to branch — this is the only new place a single branch can sit (branching on C-1 or C-4 just re-makes the straight chain).

Step 3 — maximum branching. A central carbon carrying four $C H_{3}$ groups: 2,2-dimethylpropane (neopentane). Why this step? Push all spare carbons onto one centre — the opposite extreme from Step 1. No further distinct arrangement exists.

Answer: $3$ isomers. Verify (formula check): each must still be $C_{5} H_{12}$ . n-pentane: $3 C H_{3} ?$ no — count H: two $C H_{3}$ (6H) + three $C H_{2}$ (6H) = 12H. ✓ neopentane: central C (0H) + four $C H_{3}$ (12H) = 12H. ✓ Both satisfy $C_{n} H_{2 n + 2} = C_{5} H_{12}$ . ✓

Cell F — Ring vs chain (a different topology)

Worked example Example 6 — Compare open-chain

$C_{5} H_{12}$ with the ring $C_{5} H_{10}$ (cyclopentane): how do H-counts differ, and why is the ring a valid catenation product? Forecast: guess whether closing a chain into a ring adds or removes hydrogens.

Step 1 — open chain C–C bonds. For $n = 5$ , chain has $n - 1 = 4$ C–C bonds (Ex 2) and formula $C_{5} H_{12}$ . Why this step? Establish the baseline before bending the chain into a loop.

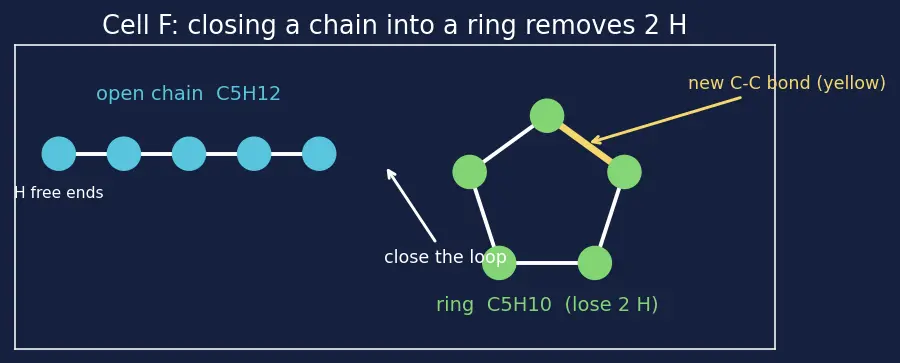

Step 2 — close the ring. Joining the two end carbons makes one new C–C bond: now $n$ bonds instead of $n - 1$ . Each end carbon must give up one H to form that new bond, so we lose $2$ hydrogens: $C_{5} H_{12} ring closure C_{5} H_{10} .$ Why this step? Rings are a different quadrant of catenation — self-bonding that loops back. The picture shows the extra bond (yellow) that turns the chain's two loose ends into a closed pentagon.

Step 3 — why carbon can do this. Carbon's small size gives strong overlap even at the bond angles a ring forces, so cyclopentane, cyclohexane, and benzene are all stable.

Verify: general ring rule — a saturated ring $C_{n} H_{2 n}$ vs open $C_{n} H_{2 n + 2}$ differs by exactly 2 H. For $n = 5$ : $C_{5} H_{10}$ vs $C_{5} H_{12}$ , difference $= 2$ . ✓

Cell G — Real-world word problem

Cell H — Exam-style twist (necessary vs sufficient)

Worked example Example 8 — TRUE/FALSE: "Tetravalency alone explains why carbon catenates better than silicon." Justify.

Forecast: guess TRUE or FALSE before reading on.

Step 1 — check the shared property. Both carbon and silicon are tetravalent (4 valence electrons, 4 bonds). Why this step? If a property is identical in two elements, it cannot by itself explain a difference between them.

Step 2 — apply logic. Tetravalency is necessary (you need spare bonds to extend/branch) but not sufficient (silicon has it too, yet fails). The deciding difference is $C - C$ bond strength ( $348$ vs $222$ ) plus kinetic inertness (no valence $d$ -orbitals). Why this step? The trap separates "required" from "the reason for the difference." Numerically: the strength gap of $126 kJ/mol$ (Ex 1) is the real discriminator, not valency.

Answer: FALSE. Verify: consistency with Ex 1 & Ex 4 — the strength gap ( $36.2%$ ) and $d$ -orbital availability are what differ; valency does not. ✓

Recall One-line answers to lock it in

Every alkane $C_{n} H_{2 n + 2}$ has how many C–C bonds? ::: $n - 1$ Saturated ring $C_{n} H_{2 n}$ has how many H fewer than the open chain? ::: exactly 2 $%$ that $S i - S i$ is weaker than $C - C$ ? ::: about $36%$ Number of $C_{5} H_{12}$ structural isomers? ::: 3 Total C–C bond energy of straight $C_{8} H_{18}$ ? ::: $2436 kJ/mol$
