Visual walkthrough — Catenation and the diversity of organic molecules

Step 1 — What a "chain" even is (the Lego picture)

WHAT. Before we ask why carbon, we must agree on the object. A chain is atoms of the same element holding hands: each atom uses one of its "hands" (a bond) to grab the next atom of the same kind. A bond is just a shared pair of electrons — think of it as one handshake that holds two atoms together.

WHY. If an element cannot grab its own kind, it can never make a chain — it can only pair up with something else and stop. So the whole topic reduces to one question: how good is an atom at handshaking with a copy of itself? That property has a name: catenation.

PICTURE. Below, four carbon atoms (black) each hold hands with the next. The chain survives only if every handshake is strong.

Step 2 — The weakest-link law: a chain is only as strong as one handshake

WHAT. A chain of $n$ atoms has $n-1$ handshakes (bonds). Here $n$ is just how many atoms are in the chain — count the beads on the necklace. If any single handshake lets go, the chain splits in two.

WHY. This is the whole game. Nature is always jiggling atoms with heat. A bond that is easy to break will break somewhere along a long chain — and once one link goes, the chain is dead. So the length a chain can reach is controlled by the strength of one $C-C$ bond, written $E(C-C)$. Read that symbol as: "the energy you must pay to snap one carbon–carbon handshake." Bigger $E$ = harder to break = longer chains possible.

PICTURE. One red link is under stress. It doesn't matter that the other links are fine — if the red one breaks, the chain is over.

Step 3 — WHY the carbon handshake is stronger: the small-atom picture

WHAT. Bond strength comes from orbital overlap — how much the two atoms' outer electron clouds interlock. Picture each atom's bonding cloud as a fuzzy ball reaching out. When two balls overlap deeply, the shared electrons sit right between the nuclei and glue them tightly.

WHY this tool (overlap, not "size = strength"). A tempting wrong idea is "bigger atom, more electrons, stronger bond." But strength is about how close the shared electrons get to both nuclei. Carbon is small (radius $\approx 77$ pm), so its bonding cloud is close-in and the two carbons sit near each other — deep overlap, short strong bond. Silicon is big ($\approx 117$ pm); its outer ($3p$) cloud is far from the nucleus and diffuse, so two silicons sit far apart — shallow overlap, long weak bond.

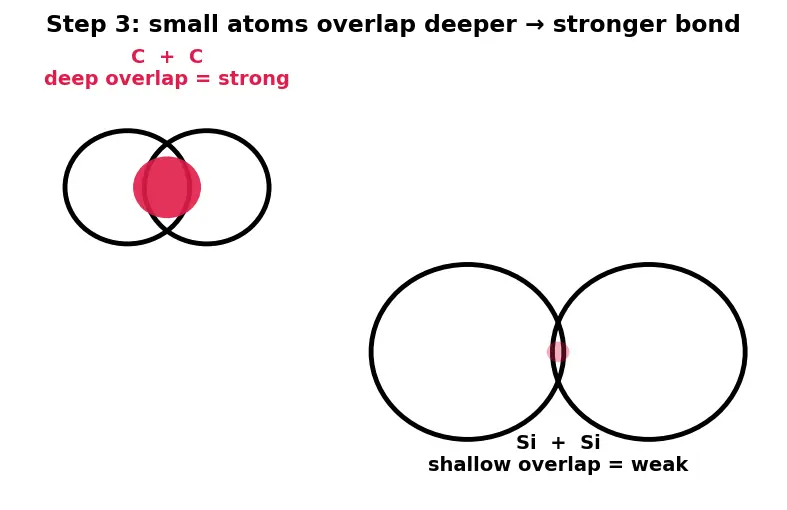

PICTURE. Two small carbon balls overlap deeply (red overlap zone, dark and dense). Two big silicon balls barely touch — thin, pale overlap.

Step 4 — Carbon never runs out of hands: tetravalency

WHAT. Carbon has 4 valence electrons → it wants 4 bonds (it is tetravalent). "Valence electrons" are the outer electrons available for handshaking; "tetravalent" just means "four handshakes." In a straight chain a middle carbon uses 2 hands for its two neighbours — leaving 2 free hands.

WHY this matters. Those 2 spare hands are what make organic chemistry rich. They can grab H, O, N, S, halogens (the "functional groups"), or grab another carbon to start a branch. A chain-maker with no spare hands could only make boring bare threads. Carbon is never "used up."

PICTURE. A middle carbon: two black bonds go left/right along the chain, two red bonds point up/down — free to hold H, O, N, or to branch.

Step 5 — Why carbon chains survive the world: kinetic inertness

WHAT. Strong bonds mean the chain won't fall apart on its own. But could water or air pull it apart? To be attacked, a molecule needs a low-energy doorway — an empty orbital where an attacker's electrons can slip in. Carbon's valence shell (the $n=2$ shell) has no $d$-orbitals and no lone pairs — no doorway. Silicon's valence shell ($n=3$) has empty $3d$ orbitals — an open door for attackers like $O{H}^{-}$.

WHY. "Strong" (thermodynamic) and "unattacked" (kinetic) are two different guarantees. A chain needs both: hard to break by heat and no easy chemical doorway. Carbon wins both; silicon loses the second — so silanes oxidise in air and hydrolyse in water even if you manage to build them.

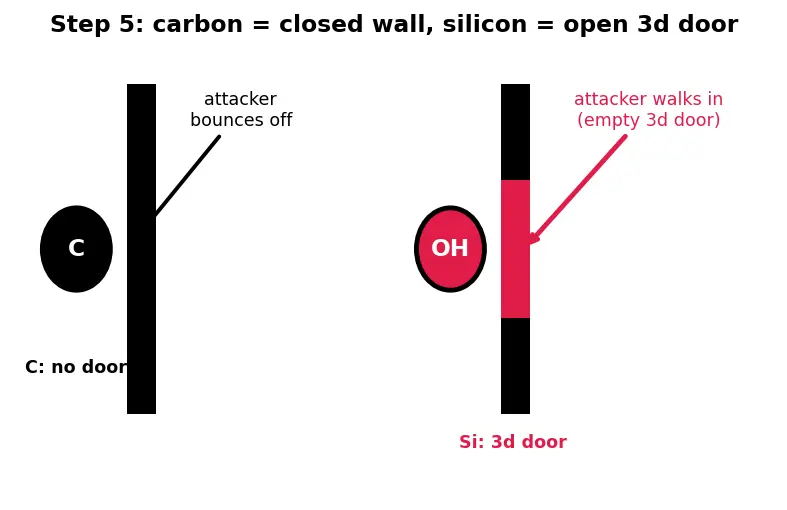

PICTURE. Carbon: a closed wall, attacker bounces off. Silicon: an open door (red $3d$ orbital), attacker walks straight in.

Step 6 — Catenation is not only straight lines: branches and rings

WHAT. Using its spare hands (Step 4), carbon does three shapes of self-bonding: straight chain, branched chain, and ring (a chain whose last carbon grabs the first).

WHY. Each shape is a new set of molecules from the same atoms — this is where the numbers explode. Rings need carbon to bend its bonds and still overlap well; small atoms manage this, which is why stable rings (cyclohexane, benzene) are a carbon speciality.

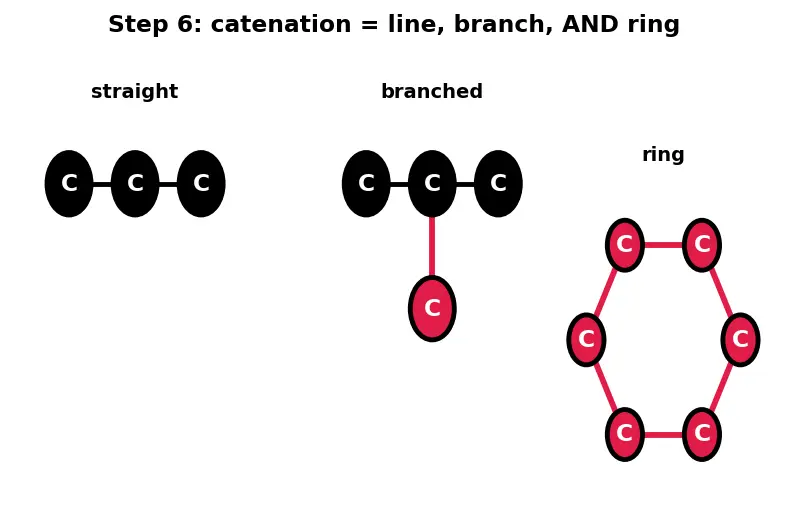

PICTURE. Same four/six carbons drawn three ways: a line, a line with a red branch carbon, and a red closed ring.

Step 7 — The explosion: isomers vs carbon count $n$

WHAT. An isomer is a molecule with the same formula but a different arrangement. Take the alkane formula $C_n{H}_{2n+2}$ (a saturated carbon chain plus its hydrogens). As $n$ (the number of carbons) grows, the number of distinct arrangements grows ferociously.

WHY this is the "mathematical face" of diversity. Every extra carbon opens new places to branch, so the count multiplies, not adds. One formula can hide hundreds of real, different substances.

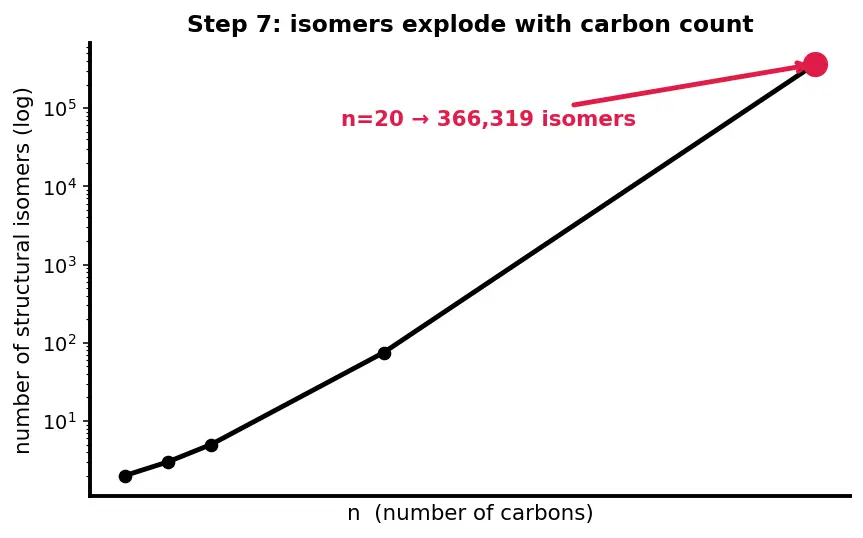

PICTURE. A steeply climbing curve: horizontal axis $n$ (carbons), vertical axis = number of structural isomers (on a log scale, since it blows up). The red dot marks $n=20\to 366,319$.

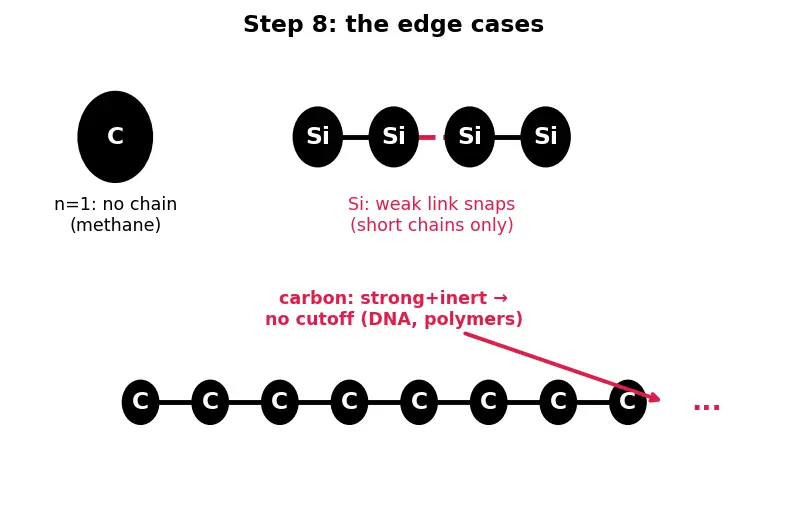

Step 8 — The degenerate cases (where a chain cannot grow)

Cover every scenario, so nothing surprises you:

• $n=1$ (single atom): zero handshakes ($n-1=0$). Nothing to break — but also no "chain." This is the trivial floor: $C{H}_4$, methane, one carbon.
• Weak links (silicon, germanium): handshakes exist but $E(Si-Si)$ is too small — thermal jiggle breaks a link long before the chain gets long. Chains fizzle out short.
• Open doorway (silicon in air/water): even a freshly built $Si$ chain is attacked (Step 5) and destroyed. So $S{i}_{20}{H}_{42}$ does not exist while $C_{20}{H}_{42}$ (eicosane) is ordinary.
• The limit $n\to \infty$ for carbon: because each link is strong and inert, there is no natural cutoff — carbon reaches polymers and DNA (thousands of linked carbons). This limiting behaviour is why life is carbon-based.

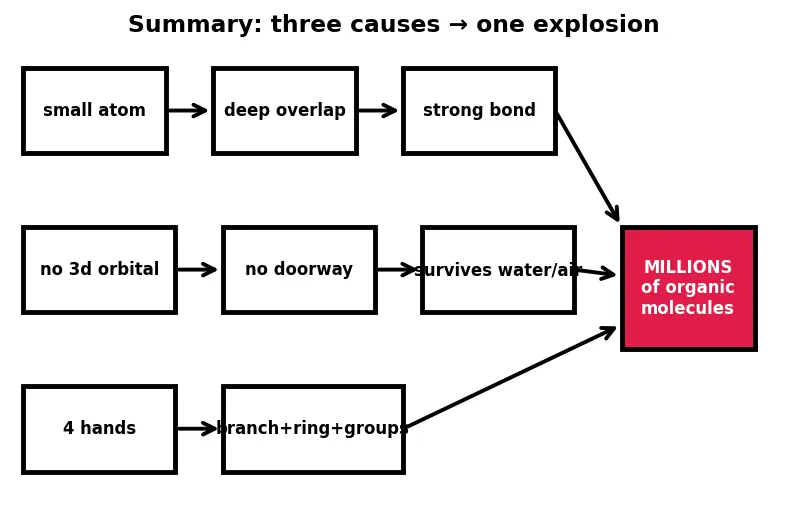

The one-picture summary

Everything above collapses into a single causal chain of pictures: small atom → deep overlap → strong bond → survives heat, and no $d$-orbital → no doorway → survives water/air, and 4 hands → branches + rings + functional groups, which together (× isomerism × multiple bonds) give the millions of organic molecules.
