Tetravalency of carbon; hybridization recap (sp, sp², sp³): Visual walkthrough

Before we begin, three plain-word anchors so no symbol is unearned:

Step 1 — The paradox: carbon looks like it can only hold two hands

WHAT. We line up carbon's 6 electrons in their ground-state boxes. Two go into the $1 s$ ball (core, never bond). Then $2 s$ takes two, and the three $2 p$ dumbbells get the remaining two — one each in $p_{x}$ and $p_{y}$ , leaving $p_{z}$ empty.

$core, locked 1 s^{2} full pair 2 s^{2} only 2 unpaired 2 p_{x}^{1} 2 p_{y}^{1} 2 p_{z}^{0}$

$1 s^{2}$ — the two innermost electrons, buried, never used for bonding.
$2 s^{2}$ — a full pair; a full box has no free hand to offer.
$2 p_{x}^{1} 2 p_{y}^{1}$ — two lonely (unpaired) electrons: these are the only two "free hands."
$2 p_{z}^{0}$ — empty, offering nothing yet.

WHY. A bond needs one electron reaching out to pair with another atom's electron. Only unpaired electrons can do this. Ground-state carbon has exactly two unpaired electrons → it should be divalent (make 2 bonds, like the unstable carbene $: C H_{2}$ ). But real methane is $C H_{4}$ . Contradiction — that gap is what the whole derivation must close.

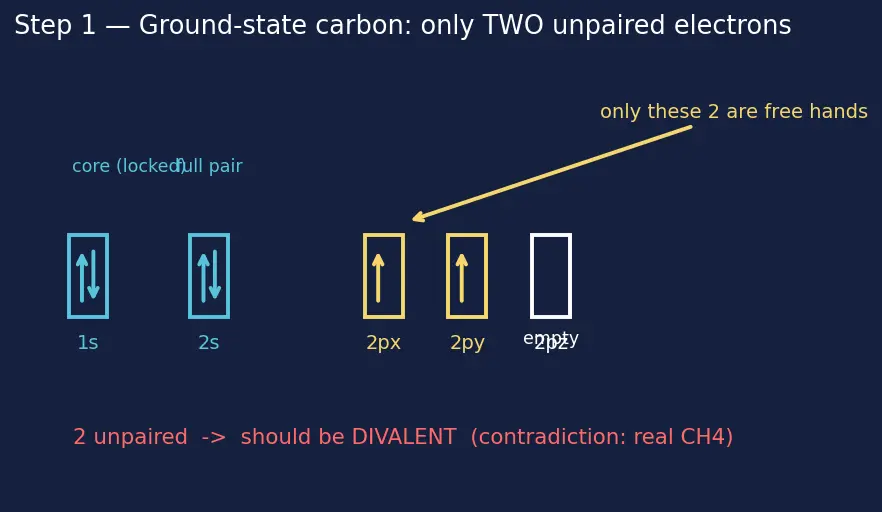

PICTURE. Boxes-and-arrows for the electrons. Notice the paired $2 s$ box (two arrows, up+down) and the two half-filled $2 p$ boxes (one arrow each).

Figure — Tetravalency of carbon; hybridization recap (sp, sp², sp³)

Step 2 — Promotion: spend a little energy to free a stuck hand

WHAT. Push one of the paired $2 s$ electrons up into the empty $2 p_{z}$ box.

$2 s^{2} 2 p_{x}^{1} 2 p_{y}^{1} 2 p_{z}^{0} + Δ E 2 s^{1} 2 p_{x}^{1} 2 p_{y}^{1} 2 p_{z}^{1}$

The arrow $+ Δ E$ means "this costs energy $Δ E$ " — moving an electron up to a higher box is never free.
Right-hand side: now four boxes each hold a single arrow → four unpaired electrons → four free hands.

WHY. This is the only way to get four unpaired electrons. But is it worth the price?

$the cost, paid once Δ E_{promotion} \approx 400 kJ/mol < energy released by 2 extra C-H bonds 2 \times 414 kJ/mol$

Nature pays a small bill (~400) and earns a bigger refund (~828). Net stability wins, so promotion happens — not because carbon "wants" bonds, but because energetics reward it.

PICTURE. The $2 s$ ball on the left, the three $p$ dumbbells on the right, and a yellow arrow lifting one electron up into the empty $p_{z}$ . Note the small energy gap it climbs.

Step 3 — The new problem: four hands, but of mismatched shapes

WHAT. After promotion we own one round $s$ orbital and three dumbbell $p$ orbitals. We drew them in Step 2. Now look at their shapes side by side.

WHY this is still broken. In real methane, all four C–H bonds are measurably identical: same length ( $109$ pm), same strength, same angle apart. But an $s$ ball and a $p$ dumbbell are different shapes at different energies. If carbon just used them raw, one C–H bond (from $s$ ) would differ from the other three (from $p$ ). Experiment says they're all the same. So the raw orbitals cannot be the real bonding orbitals — something must average them out.

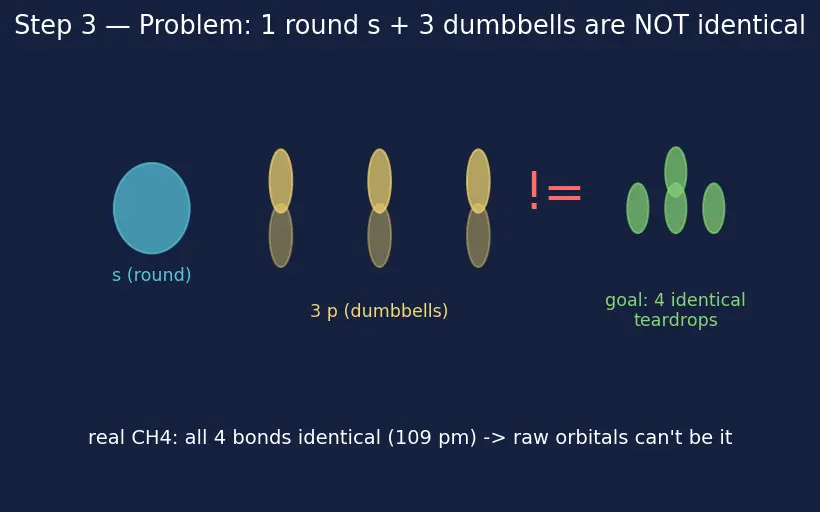

PICTURE. Left: the mismatched raw set (1 ball + 3 dumbbells) with a red "≠" showing they are unequal. Right: a hint of the goal — four identical teardrop shapes.

Step 4 — Hybridization: blend the orbitals into equal teardrops

WHAT. Mix (mathematically add and subtract) the $s$ orbital with some of the $p$ orbitals. The blend produces new hybrid orbitals, all identical, each shaped like a fat teardrop (one big lobe pointing outward — perfect for aiming a bond).

Each hybrid carries a fraction of the round $s$ , called its s-character:

$s p^{3} : \frac{1}{4} = 25%, s p^{2} : \frac{1}{3} \approx 33%, s p : \frac{1}{2} = 50%$

The denominator = total orbitals mixed ( $s p^{3}$ mixes 4, $s p^{2}$ mixes 3, $s p$ mixes 2).
The single $s$ orbital's "roundness" is shared equally among them, so fewer hybrids means more $s$ each. This s-fraction drives bond length, angle, and the electronegativity of that carbon.

WHY teardrops. A round ball overlaps a neighbour equally in all directions — wasteful. A teardrop concentrates its cloud in one direction, so it overlaps a partner atom strongly and cheaply. Directional hybrids = strong, aimed $σ$ bonds.

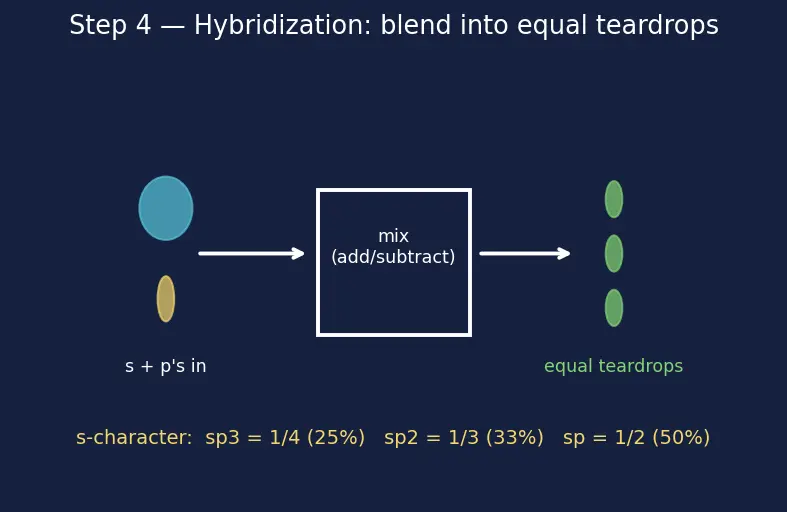

PICTURE. The blender idea: $s$ + $p$ 's go in, identical teardrops come out, with the s-character fraction labelled on each family.

Step 5 — How many hands to mix? The steric number decides

WHAT. You do not always mix all four. You mix exactly as many orbitals as you have jobs, where a "job" is a $σ$ bond or a lone pair.

WHY $π$ bonds are excluded. A $π$ bond is made from a leftover, unmixed $p$ dumbbell lying sideways. It rides on top of a $σ$ bond that already exists — it never asks for its own hybrid orbital. So counting it would double-count the direction. That is why "double bond = $s p^{2}$ , not $s p$ ": the second stroke of the double bond is $π$ , contributing nothing to SN.

$SN = 2 SN = 3 SN = 4 \to \to \to s p (mix s + 1 p) s p^{2} (mix s + 2 p) s p^{3} (mix s + 3 p)$

The leftover $p$ orbitals ( $2$ for $s p$ , $1$ for $s p^{2}$ , $0$ for $s p^{3}$ ) are exactly the ones that go on to make $π$ bonds.

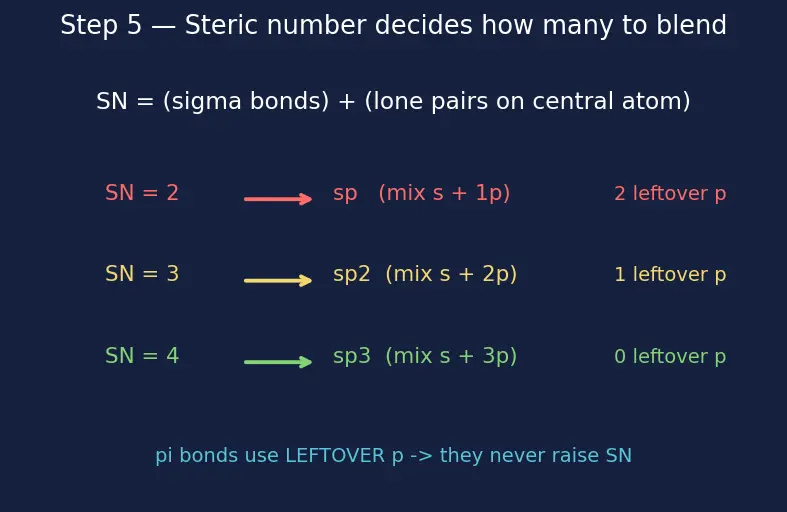

PICTURE. A flow: count $σ$ + lone pairs → get SN → read off which hybrid and how many raw orbitals were consumed, with the unused $p$ 's highlighted.

Step 6 — The shapes fall out: why 180°, 120°, 109.5°

WHAT. Once you know how many teardrops, geometry is forced: identical negative clouds repel each other and spread as far apart as possible on a sphere (this is VSEPR).

2 teardrops point opposite ways → linear, $18 0^{\circ}$ → $s p$ .
3 teardrops spread in a flat triangle → trigonal planar, $12 0^{\circ}$ → $s p^{2}$ .
4 teardrops push to the corners of a tetrahedron → $109. 5^{\circ}$ → $s p^{3}$ .

WHY these exact angles. Two clouds get furthest apart on a straight line ( $18 0^{\circ}$ ). Three do best as an equilateral triangle in a plane ( $36 0^{\circ} /3 = 12 0^{\circ}$ ). Four cannot lie flat and stay far apart — they lift into 3-D corners, and the maths of a regular tetrahedron gives $109. 5^{\circ}$ . Nothing is memorized; the angle is just "maximum mutual escape."

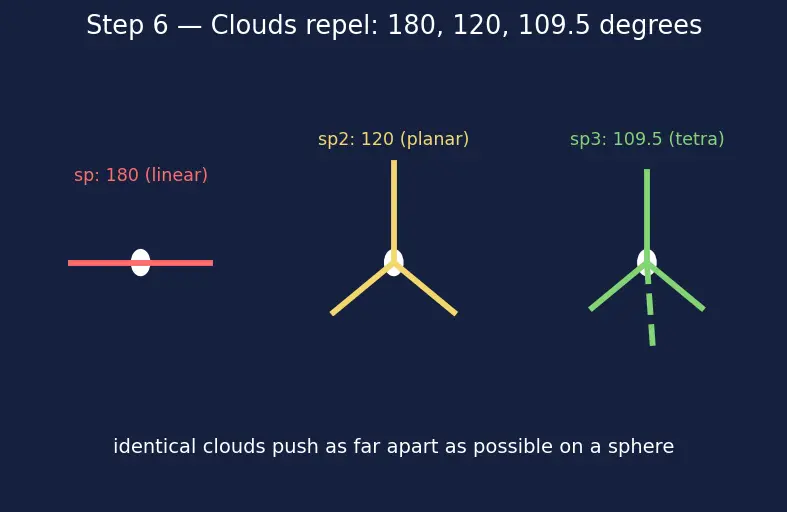

PICTURE. Three panels — linear, planar-triangle, tetrahedron — each with the angle marked between the teardrop hands.

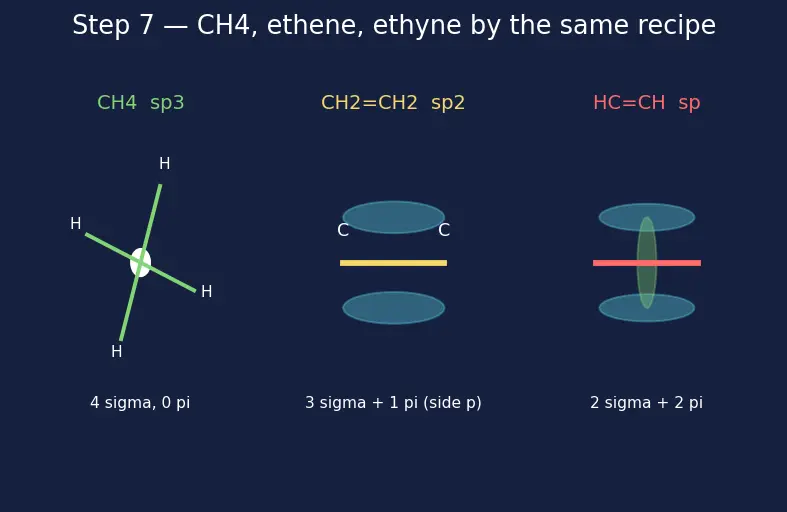

Step 7 — Three real molecules, worked in the same picture

WHAT. Apply the recipe (count $σ$ + LP → SN → hybrid → place leftover $p$ 's as $π$ ) to three carbons.

Molecule	$σ$ on central C	SN	Hybrid	Leftover $p$	$π$ bonds	Shape
$C H_{4}$	4	4	$s p^{3}$	0	0	tetrahedral $109. 5^{\circ}$
$C H_{2} = C H_{2}$	3	3	$s p^{2}$	1	1	planar $12 0^{\circ}$
$H C \equiv C H$	2	2	$s p$	2	2	linear $18 0^{\circ}$

WHY the same recipe works everywhere. The double bond in ethene = 1 $σ$ + 1 $π$ ; the triple bond in ethyne = 1 $σ$ + 2 $π$ . Only $σ$ 's and lone pairs raise SN, so ethene's carbon (3 $σ$ ) is $s p^{2}$ and ethyne's (2 $σ$ ) is $s p$ . The extra $π$ bonds are drawn from the leftover $p$ dumbbells, sideways.

PICTURE. The three molecules with $σ$ framework (teardrops, head-on) drawn solid and $π$ overlaps (leftover $p$ 's, side-by-side) drawn as dashed clouds.

Step 8 — Edge & degenerate cases (never leave a scenario unshown)

Three situations that look like they should break the recipe — and don't:

$C O_{2}$ ( $O = C = O$ ): central C has 2 $σ$ (one per oxygen) + 0 lone pairs on C → SN 2 → $s p$ , linear. Even with two double bonds, the carbon is $s p$ , not $s p^{3}$ . The two $π$ bonds use carbon's two leftover $p$ 's. (Ignore the oxygens' lone pairs — they sit on the outer atoms, not on carbon.)
Water-like oxygen in methanol $C H_{3} - O H$ : the O has 2 $σ$ (to C and to H) + 2 lone pairs → SN 4 → $s p^{3}$ → bent, angle slightly below $109. 5^{\circ}$ because fat lone-pair clouds shove the bonds together. Lone pairs do count when they're on the central atom.
Carbene $: C H_{2}$ (the degenerate "unpromoted" case): if promotion never happened, carbon keeps just 2 unpaired electrons and makes 2 bonds — the divalent species from Step 1. It exists, it's real, and it's reactive and unstable — living proof of why promotion pays off for the stable $C H_{4}$ .

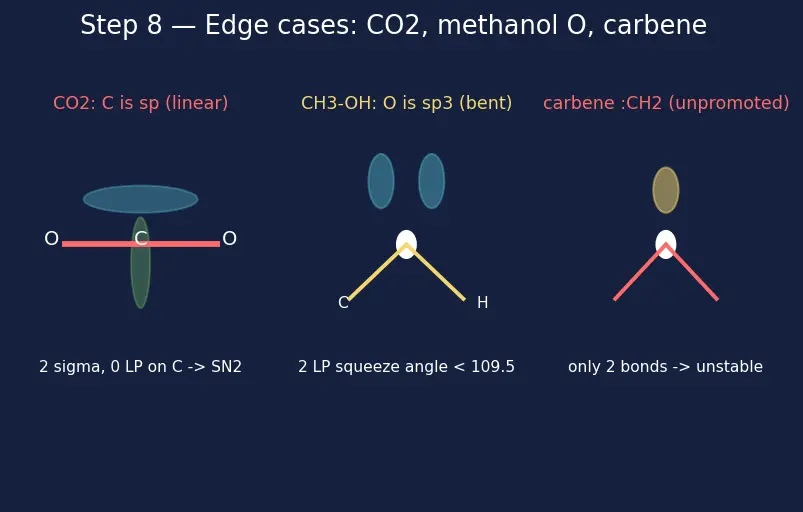

PICTURE. Left: $C O_{2}$ linear with two side-on $π$ clouds. Middle: methanol O, bent, two lone-pair balloons squeezing the angle. Right: the lonely divalent carbene.

The one-picture summary

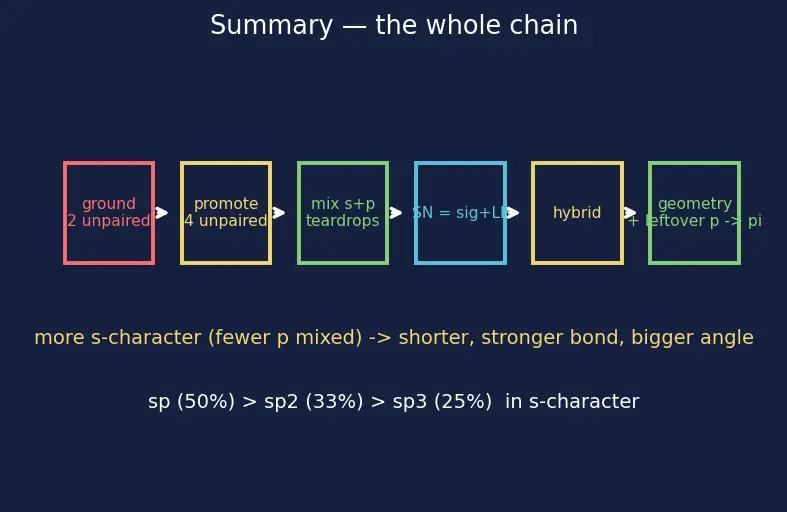

Everything on one strip: paradox → promotion → mismatch → blend into teardrops → count SN → geometry, with the $s p^{3}$ / $s p^{2}$ / $s p$ outcomes and their leftover $p$ 's that become $π$ bonds.

More s-character (from mixing fewer $p$ 's) pulls the cloud in tighter: shorter, stronger bonds and a bigger angle. That single fact chains into bond-length trends, the acidity of terminal alkynes, and the flat all- $s p^{2}$ ring of benzene, where leftover $p$ 's pool into delocalized $π$ clouds.

Recall Feynman: the whole walkthrough in plain words

Carbon at rest has two spare hands and two hands clasped together. With a small nudge (that costs a bit of energy), it un-clasps them, so now it has four free hands — but they're mismatched: one is a round ball, three are dumbbells. Since real methane's four bonds are all identical, carbon blends the ball and dumbbells into four matching teardrops. It only blends as many as it has jobs to do: count the head-on ( $σ$ ) bonds plus any lone pairs — that number tells you how many to blend and therefore the shape. Two teardrops → straight line. Three → flat triangle. Four → 3-D pyramid corners. Any dumbbells it didn't blend lie sideways and make the extra strokes of double and triple bonds ( $π$ bonds). Fewer things blended means each teardrop keeps more of the round ball's grip, so those bonds are shorter, stronger, and more spread out. That's the entire story of carbon's geometry.

Recall Quick self-test

Why is $C O_{2}$ linear even with two double bonds? ::: Central C has 2 $σ$ + 0 lone pairs → SN 2 → $s p$ → linear; the two $π$ bonds use leftover $p$ 's and don't raise SN. Why is oxygen in methanol bent below 109.5°? ::: O has SN 4 ( $s p^{3}$ ) from 2 $σ$ + 2 lone pairs; the fat lone pairs repel harder and squeeze the bond angle. What net energy fact justifies promotion? ::: The ~400 kJ/mol promotion cost is outweighed by the ~2×414 kJ/mol released forming two extra C–H bonds.
