Visual walkthrough — Borax bead, charcoal cavity tests

We are building on ideas from Dry Tests in Qualitative Analysis, Oxidising vs Reducing Flame, Transition Metal d-d Colour and Fluxes in Metallurgy. Wherever a word from those pages is needed, we rebuild it here first.

---

Step 1 — Start from a white powder: what borax actually is

WHAT. Borax is a white crystalline salt. Its full chemical name is sodium tetraborate decahydrate, written $\underset{\text{2 sodium ions}}{\underbrace{{\text{Na}}_2}}\underset{\text{a boron–oxygen cage}}{\underbrace{{\text{B}}_4{\text{O}}_7}}\cdot \underset{\text{10 trapped water molecules}}{\underbrace{10{\text{H}}_2\text{O}}}$

Read the formula left to right like a recipe card: two sodium atoms, one boron–oxygen framework of 4 borons and 7 oxygens, and glued around all of it are 10 water molecules hiding inside the crystal.

WHY start here. Every colour we will produce comes from what this powder turns into when heated. If we don't know the starting material atom-for-atom, none of the later equations balance.

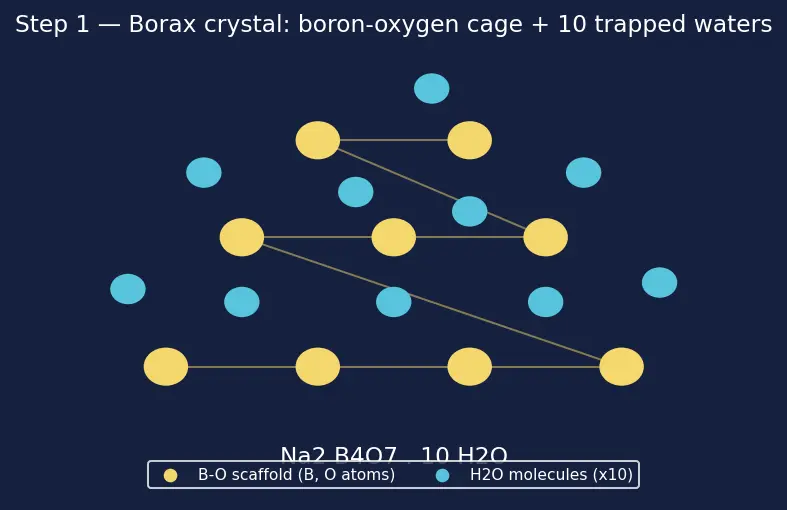

PICTURE. The crystal drawn as a lattice with the 10 water molecules (blue) sitting inside the boron–oxygen scaffold (yellow).

---

Step 2 — Heat it: the water leaves and the bead puffs up

WHAT. The first thing heat does is boil off those 10 waters: ${\text{Na}}_2{\text{B}}_4{\text{O}}_7\cdot 10{\text{H}}_2\text{O}\stackrel{\Delta }{\to }\underset{\text{anhydrous, still solid}}{\underbrace{{\text{Na}}_2{\text{B}}_4{\text{O}}_7}}+\underset{\text{steam escaping}}{\underbrace{10{\text{H}}_2\text{O}\uparrow }}$

The symbol $\Delta$ over the arrow means "heat is applied." The up-arrow $\uparrow$ on ${\text{H}}_2\text{O}$ means "leaves as a gas."

WHY this happens first. Water is held weakly; it needs the least energy to escape. So as the flame warms the loop, steam pushes out before anything else can react. That escaping steam makes the mass swell and froth — the effect chemists call intumescence. Watching the bead bubble up is your proof that Step 2 is underway.

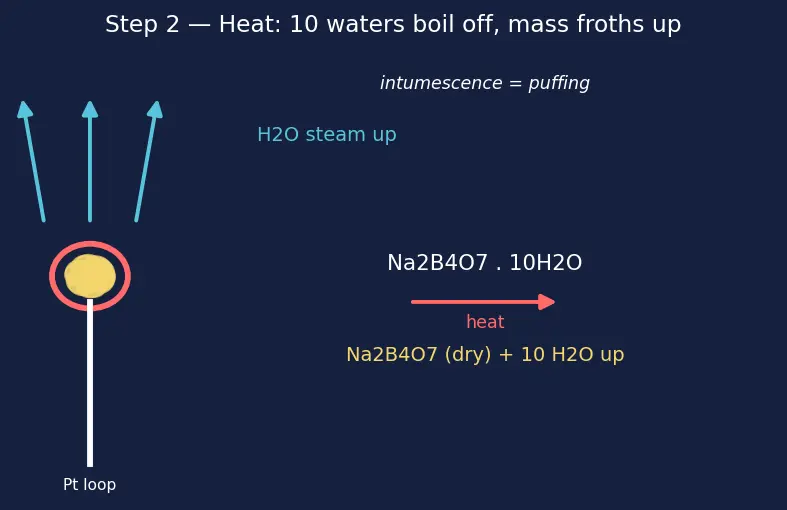

PICTURE. A hot platinum loop; steam arrows leaving; the solid frothing up into a puffed white mass.

---

Step 3 — Keep heating: split into the "glass" and the "helper"

WHAT. Once dry, the framework itself breaks into two new substances: ${\text{Na}}_2{\text{B}}_4{\text{O}}_7\stackrel{\Delta }{\to }\underset{\begin{array}{c}\text{sodium}\\ \text{metaborate}\end{array}}{\underbrace{2{\text{NaBO}}_2}}+\underset{\begin{array}{c}\text{boric anhydride}\\ \text{(reactive part)}\end{array}}{\underbrace{{\text{B}}_2{\text{O}}_3}}$

• $2{\text{NaBO}}_2$ — sodium metaborate.
• ${\text{B}}_2{\text{O}}_3$ — boric anhydride, the reactive oxygen-hungry part.

WHY this split happens (the mechanism). Borax is really a ${\text{Na}}_2\text{O}$ locked to two ${\text{B}}_2{\text{O}}_3$ units: think of it as ${\text{Na}}_2\text{O}\cdot 2{\text{B}}_2{\text{O}}_3$. When you drive out the water and pour in more heat, the weakly-held ${\text{B}}_2{\text{O}}_3$ end is freed — it has the highest bond energy to give up and does so as the melt reorganises into the lowest-energy liquid it can form. One ${\text{B}}_2{\text{O}}_3$ stays bound to ${\text{Na}}_2\text{O}$ (that is the metaborate, $2{\text{NaBO}}_2$); the other ${\text{B}}_2{\text{O}}_3$ is set loose to react. So the "split" is really the melt sorting itself into a bound part and a free reactive part — heat pays the price, a lower-energy melt is the reward.

WHY this matters. That molten sodium borate glass is a solvent, and its ${\text{B}}_2{\text{O}}_3$ is the reactive site: like water dissolves sugar, the molten glass dissolves a metal oxide and its ${\text{B}}_2{\text{O}}_3$ binds the metal into a coloured borate. No glass, no coloured bead. Everything after this point rides on this one clear drop.

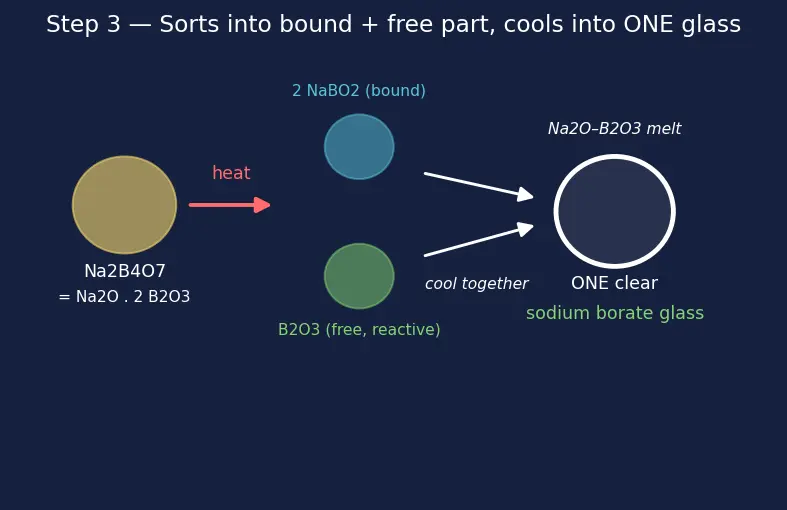

PICTURE. The equation drawn as one puffed mass splitting into the bound metaborate part and the free ${\text{B}}_2{\text{O}}_3$, then both cooling together into one clear sodium borate glass bead.

Recall Why do we even want a

glass? Question: why not just heat the metal salt alone and look at its colour? ::: A dry salt alone chars or scatters light — you can't read a colour. Dissolved evenly inside a clear glass, the metal shows one pure transparent colour you can judge by eye. The glass is a controlled, see-through stage. Is the clear bead pure boric anhydride? ::: No — it is a sodium borate glass (Na2O–B2O3 melt). The B2O3 is only the reactive part; the metaborate makes it a clear glass.

---

Step 4 — Add the metal: the glass grabs it and turns colour

WHAT. Touch the hot clear bead to an unknown salt; a speck sticks and its metal oxide reacts with the glass to form a coloured metaborate. Using copper as the worked example: $\underset{\text{reactive part of glass}}{\underbrace{{\text{B}}_2{\text{O}}_3}}+\underset{\text{metal oxide}}{\underbrace{\text{CuO}}}⟶\underset{\text{copper metaborate — BLUE}}{\underbrace{{\text{Cu(BO}}_2{)}_2}}$

Term by term: the reactive ${\text{B}}_2{\text{O}}_3$ inside the glass plus the copper oxide ($\text{CuO}$) lock together into ${\text{Cu(BO}}_2{)}_2$, where the copper ion is now embedded in the glass and colours it blue.

WHY the colour appears. The colour comes from the copper ion, specifically its partially-filled d-orbitals absorbing certain colours of light — the exact mechanism of Transition Metal d-d Colour. The glass just holds one lonely metal ion in place so its natural colour shows cleanly.

PICTURE. A clear bead touching blue salt; zoom-in showing a single $C{u}^{2+}$ ion locked in the borate cage, absorbing red-orange light and reflecting blue.

---

Step 5 — The two flames: same metal, two colours

WHAT. A blowpipe flame has two zones. Which zone you bathe the bead in changes the metal's oxidation state, and that changes the colour.

• Oxidising flame (OF) — the outer, oxygen-rich, hot blue tip. Extra oxygen keeps copper in its higher state $C{u}^{2+}$ → blue/green bead.
• Reducing flame (RF) — the inner luminous, fuel-rich part full of unburnt carbon. It donates electrons, pulling copper down to $C{u}^{+}$ (or metallic $C{u}^0$) → red/colourless bead.

For copper in the reducing flame, the fuel-rich flame supplies carbon (as CO) that hands electrons to copper. The full balanced reduction of the blue $C{u}^{2+}$ metaborate down to red ${\text{Cu}}_2\text{O}$ is: $2\underset{C{u}^{2+},\text{blue}}{\underbrace{{\text{Cu(BO}}_2{)}_2}}+\underset{\text{from the glass}}{\underbrace{2{\text{NaBO}}_2}}+\underset{\text{reducer, from RF}}{\underbrace{\text{CO}}}\stackrel{\Delta ,\text{RF}}{\to }\underset{C{u}^{+},\text{opaque red}}{\underbrace{{\text{Cu}}_2\text{O}}}+\underset{\text{sodium borate glass restored}}{\underbrace{2{\text{Na(BO}}_2)\cdot {\text{B}}_2{\text{O}}_3}}+\underset{\text{oxygen carried off}}{\underbrace{{\text{CO}}_2\uparrow }}$

Read it term by term: two blue copper-metaborate units meet the glass's own metaborate and one CO from the reducing flame. The CO grabs an oxygen (leaving as ${\text{CO}}_2$), so each $C{u}^{2+}$ gains an electron and drops to $C{u}^{+}$, collapsing into red ${\text{Cu}}_2\text{O}$; the borate reorganises back into clear sodium borate glass. No ellipsis — every atom is accounted for: the oxygen that leaves on ${\text{CO}}_2$ is exactly the oxygen $C{u}^{2+}$ loses when it becomes $C{u}^{+}$.

WHY two flames. One observation can be ambiguous — cobalt and copper both look blue in OF. But cobalt stays blue in RF while copper turns red/colourless. The second flame is the tie-breaker. This is the whole idea behind Oxidising vs Reducing Flame.

PICTURE. The blowpipe flame with OF and RF zones labelled; the same bead shown blue under OF and red under RF, with an "electrons added" arrow on the RF side.

---

Step 6 — The other test: charcoal steals the oxygen instead

WHAT. Now the second experiment. Scoop a cavity in a charcoal block, mix the salt with sodium carbonate ${\text{Na}}_2{\text{CO}}_3$, and heat with the reducing flame. Hot carbon rips oxygen off the metal oxide, leaving free metal: $\underset{\text{metal oxide}}{\underbrace{\text{MO}}}+\underset{\text{charcoal}}{\underbrace{\text{C}}}\stackrel{\Delta }{\to }\underset{\text{free metal}}{\underbrace{\text{M}}}+\underset{\text{carbon monoxide gas}}{\underbrace{\text{CO}\uparrow }}$

The role of ${\text{Na}}_2{\text{CO}}_3$ (using lead as the example): ${\text{PbSO}}_4+{\text{Na}}_2{\text{CO}}_3\to {\text{PbCO}}_3+{\text{Na}}_2{\text{SO}}_4,{\text{PbCO}}_3\stackrel{\Delta }{\to }\underset{\text{easy to reduce}}{\underbrace{\text{PbO}}}+{\text{CO}}_2$ $\text{PbO}+\text{C}\to \underset{\text{grey bead}}{\underbrace{\text{Pb}}}+\text{CO}\uparrow$

WHY carbon, why the reducing flame. Charcoal is hungry for oxygen — a natural reducing agent. The reducing flame keeps the atmosphere oxygen-poor so the freed metal isn't re-oxidised. ${\text{Na}}_2{\text{CO}}_3$, the flux, first converts an awkward salt (a sulphate here) into a clean oxide the carbon can attack.

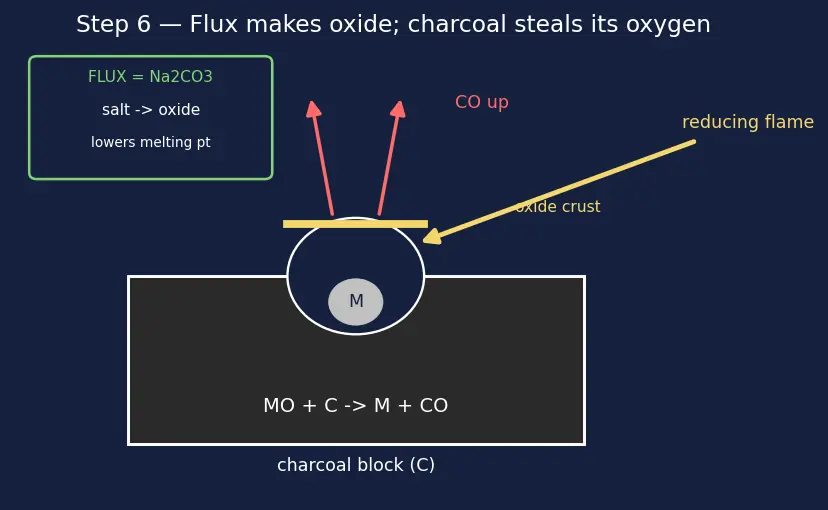

PICTURE. Charcoal cavity cross-section with a labelled "flux" breakdown; reducing flame aimed in; CO arrows leaving; a shiny metal bead forming at the bottom with a coloured oxide crust around the rim.

---

Step 7 — Degenerate case: when no metal bead appears

WHAT. Some metals — $Mg$, $Al$, $Ca$, $Ba$, $Sr$ (and the other alkaline earths) — form oxides with such enormously high melting points that they cannot melt into a bead. Instead you get a white, infusible residue that glows brightly in the flame. And zinc gives no bead but a crust that is yellow when hot, white when cold.

WHY it's not a failure. "No shiny bead" is information: a glowing white residue points straight at the high-melting oxides. Note that $Ca$, $Sr$ and $Ba$ are all group-2 (alkaline-earth) metals — the same infusible-oxide behaviour repeats down the group, so seeing a white glow means "think alkaline earth or Al." To pin down which one, moisten with cobalt nitrate and reheat — the Cobalt Nitrate Test: $\text{Al}\to \text{blue (Theˊnard’s blue)},\text{Mg}\to \text{pink},\text{Zn}\to \text{green}$

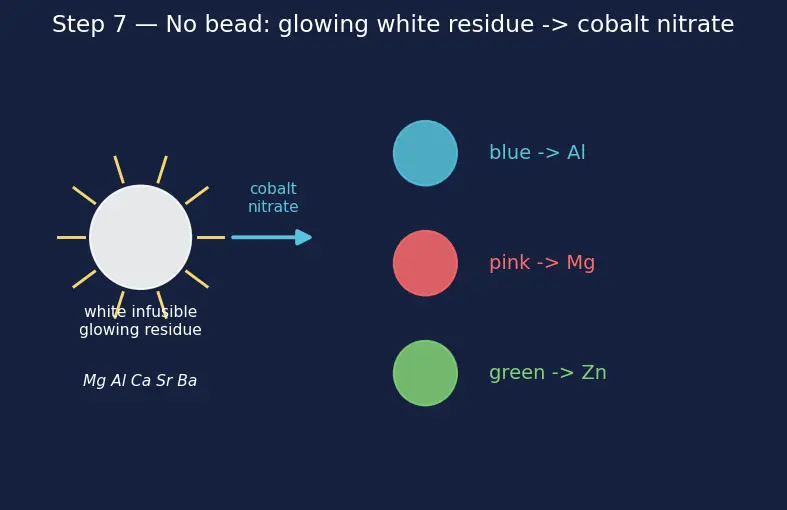

PICTURE. Left: a glowing white residue (no bead). Right: the same residue after cobalt nitrate, split into blue / pink / green outcomes labelled Al / Mg / Zn.

---

The one-picture summary

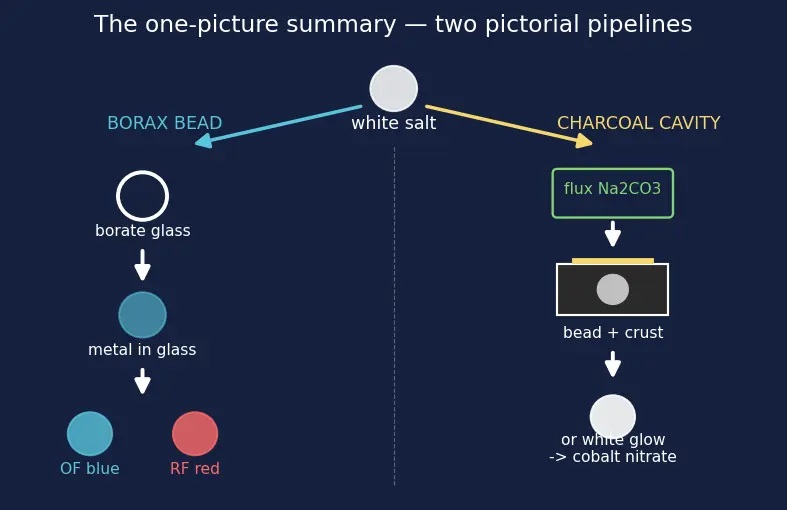

WHAT. One diagram compresses both tests as two visual pipelines. The white powder branches into the borax bead path (heat → clear sodium borate glass → grab metal → read OF and RF colour) and the charcoal cavity path (flux → reduce → metal bead + oxide crust, or glowing white residue → cobalt nitrate). Each stage is shown as its own little picture, not just words.

Recall Feynman: the whole walkthrough in plain words

Start with a white powder. Heat it and the water hiding inside boils out, so it froths up. Keep heating and it sorts itself into a bound part and a free reactive part, cooling together into one drop of clear sodium borate glass. That glass is like a tiny transparent stage. Touch it to an unknown metal salt and one metal atom climbs onto the stage — and the glass lights up a colour, blue for copper. Because the same metal shows a different colour when you feed it electrons, you check two flames: an oxygen-rich one (metal stays high, blue) and a fuel-rich one (metal gets electrons, turns red — a carbon monoxide molecule steals an oxygen away as ${\text{CO}}_2$).

The second test flips the idea: instead of a glass stage, you put the salt on burnt wood. First a helper called a flux (${\text{Na}}_2{\text{CO}}_3$) turns the salt into a plain oxide. Then the charcoal, greedy for oxygen, yanks it right off, leaving a shiny bead of pure metal plus a coloured crust of leftover oxide (lead → grey bead + yellow crust; zinc → yellow-hot, white-cold). And if the metal's oxide melts too high to form a bead — the alkaline earths like $Ca$, $Sr$, $Ba$, or $Al$ — you just get a glowing white ash, which is itself a clue, and a drop of cobalt nitrate turns it blue, pink, or green to finish the job.

Recall

Which flame turns a copper borax bead red, and why? ::: The reducing flame; its unburnt carbon (as CO) donates electrons, dropping $C{u}^{2+}$ to $C{u}^{+}/C{u}^0$ while CO leaves as ${\text{CO}}_2$. Why can't $A{l}_2{O}_3$ or CaO form a metal bead on charcoal? ::: Their melting points are far too high — they stay solid white infusible glowing residues. What single substance in the borax bead is the transparent "stage"? ::: A sodium borate glass (Na2O–B2O3 melt); B2O3 is only its reactive part.
