Borax bead, charcoal cavity tests: Foundations — Chemistry deep dive

This page builds every symbol, word, and notation the parent note Borax bead & charcoal cavity tests throws at you — starting from absolutely nothing. If a term below is fuzzy, you cannot follow the main note. So we earn each one, in order, with a picture.

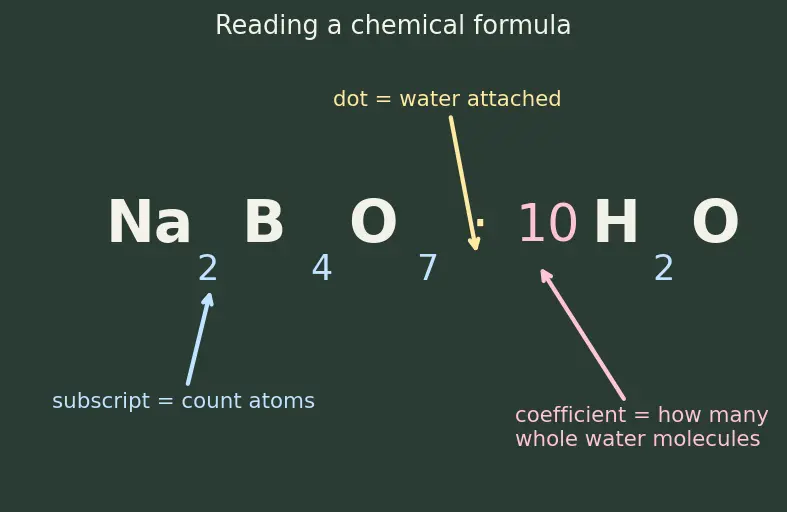

0. What is a "chemical formula"? (the alphabet)

Before any reaction, you must be able to read a formula. A chemical formula is a shorthand recipe telling you which atoms are glued together and how many of each.

Figure — Borax bead, charcoal cavity tests

Why the topic needs this: the whole note is written in these recipes. If you can't count the atoms, you can't see that water leaves, that boron oxide stays, that a metal joins in.

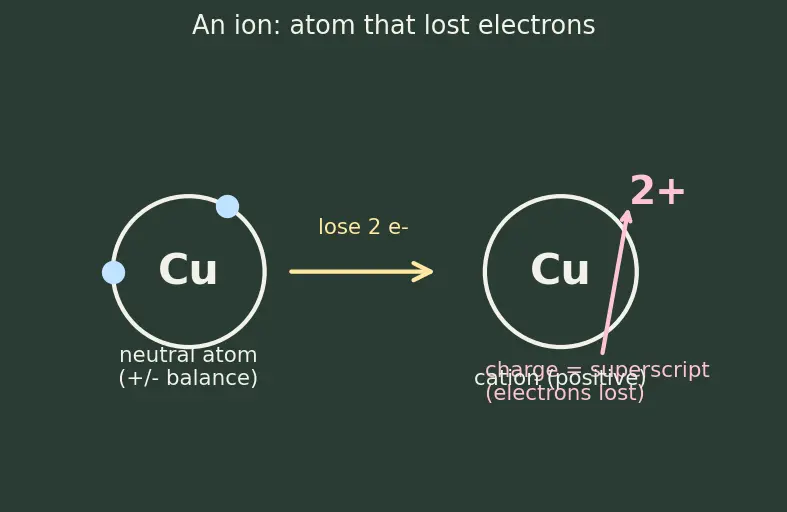

1. The ion and its charge: $C u^{2 +}$ , $F e^{3 +}$

An atom is normally electrically neutral. If it loses electrons it becomes positively charged; the charged atom is called an ion.

Why the topic needs this: the colour of a borax bead depends entirely on which charge the metal carries. Copper as $C u^{2 +}$ is blue; the same copper as $C u^{+}$ is red/colourless. The little superscript is the whole answer. See Cation Analysis - Group Salts for how cations organise the wider subject.

2. Oxidation state — "how many electrons short?"

The charge idea generalises. Oxidation state is a bookkeeping number: how many electrons an atom has given away (positive) or taken (negative) inside a compound.

Why the topic needs this: both tests are stories about pushing a metal's oxidation state up or down. The oxidising flame raises it ( $C u^{2 +}$ ); the reducing flame lowers it ( $C u^{+}$ or $C u^{0}$ ). The charcoal cavity forces it all the way down to free metal ( $M^{0}$ ). Deep dive: Oxidising vs Reducing Flame.

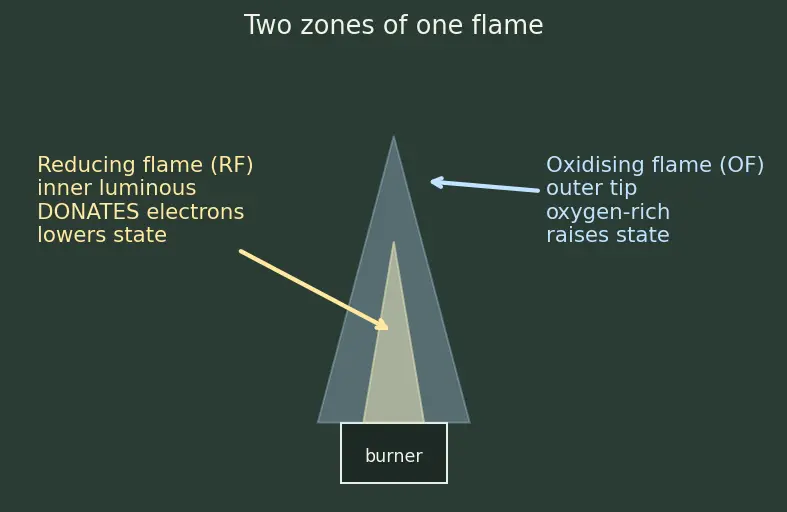

3. The two flames: OF and RF

A gas flame is not one thing — it has zones with opposite chemical personalities.

Why the topic needs this: every colour in the parent table is listed twice — once for OF, once for RF — because the same metal shows different colours depending on which flame zone you park the bead in. Miss this and the colour table is meaningless.

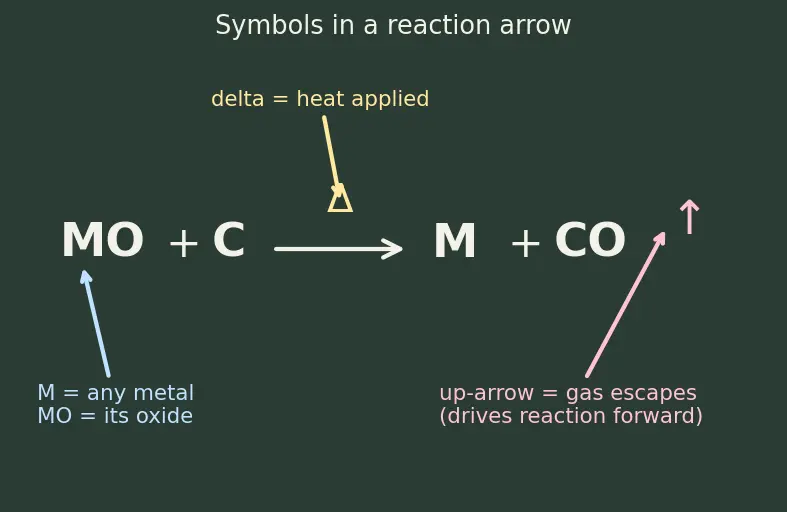

4. Symbols that appear in the equations

Now the little marks scattered through the parent's reaction arrows.

Why the topic needs this: the master reactions $MO + C \to M + CO ↑$ use every one of these marks. $Δ$ says "heat," $↑$ says "gas escapes so the reaction is driven forward," and $M$ says "this works for lead, copper, zinc — all of them."

5. Flux, reducing agent, oxide, incrustation — the vocabulary

Four words the parent uses as if you already know them.

Why the topic needs this: the charcoal test's entire logic is "flux converts salt → oxide, reducing agent strips oxygen → free metal, and any escaping oxide re-deposits as a coloured incrustation." Without these four words the mechanism is just noise. This all sits inside the broader picture of Dry Tests in Qualitative Analysis.

6. How it all fits — prerequisite map

Read it top to bottom: reading formulas feeds everything; charge feeds oxidation state; oxidation state plus the two flames feed both tests; the tests together name the metal.

Equipment checklist

Cover the right side and test yourself — if you can answer all of these, you're ready for the parent note.

I can read a subscript and say what it counts

Yes — a small low-right number counting atoms in one molecule, e.g.

B_{4}

= four boron atoms.

I can read a superscript charge like

C u^{2 +}

A high-right signed number = electrons lost;

C u^{2 +}

lost 2 electrons, carries +2.

I know the difference between subscript and charge

Subscript (low-right) counts atoms; charge (high-right) counts lost electrons — different position, different job.

I can define oxidation and reduction with OIL RIG

Oxidation Is Loss of electrons (state up); Reduction Is Gain of electrons (state down).

I know what the oxidising flame does to oxidation state

Raises it (oxygen-rich outer cone removes electrons) — keeps metal in the higher state.

I know what the reducing flame does to oxidation state

Lowers it (fuel-rich inner cone donates electrons) — gives the lower state or free metal.

I know what

Δ

means

Heat is applied to the reaction.

I know what the

↑

symbol means

The product leaves as a gas (escapes upward).

I know what

M

and

MO

stand for

A generic metal atom and its oxide — used when a rule applies to many metals.

I can define flux, reducing agent, oxide, incrustation

Flux = easy-melting carrier; reducing agent = electron donor stripping oxygen; oxide = metal+oxygen; incrustation = coloured oxide crust on cold charcoal.

I know why we record BOTH flames in the borax test

One flame can be ambiguous (Co and Cu both blue in OF); the second flame separates them.

Recall Feynman: say the whole idea in one breath

A powder hides a metal. Heat it: in a glass bead the metal colours the glass (and the colour tells you its charge, which the flame can raise or lower); on charcoal the flame steals the oxygen away and leaves shiny metal or a coloured crust. Every symbol on this page is just a tool for seeing the invisible metal.
