Foundations — Applications — biological (haemoglobin, chlorophyll, vit B₁₂), medicinal (cisplatin), industrial (catalysts)

Before you can read a single line of the parent note, you must own every symbol it throws at you. We build each one from nothing: plain words → a picture → why the topic needs it. Read top to bottom; each block earns the next.

1. The metal ion and its charge — ${\text{Fe}}^{2+}$, ${\text{Mg}}^{2+}$, ${\text{Co}}^{3+}$

Picture a solid ball with little dots (electrons) around it. Pluck off 2 dots and the ball is now "hungry" — it has a net pull of $+2$ and wants to grab electron-rich neighbours.

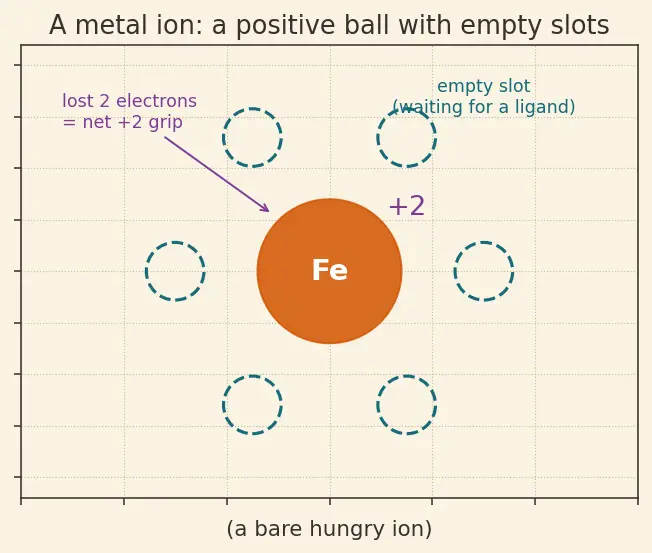

• The picture: a shaded sphere labelled $\text{Fe}$ with a ring of empty "slots" around it and a $+2$ tag.
• Why the topic needs it: the charge is the grip strength. A $+2$ ion binds ligands differently from a $+3$ ion, and — crucially — the SAME metal can switch between $+2$ and $+3$ (this is the whole story of why methaemoglobin fails). See Oxidation states of transition metals.

2. Oxidation state — the "+2 / +3" idea made precise

Why write it two ways? Chemists write "Fe(II)" (Roman numeral in brackets) when the metal is inside a complex and its true charge is fuzzy, but "${\text{Fe}}^{2+}$" for the bare ion. They mean the same count of lost electrons.

• Why the topic needs it: oxygen transport only works with Fe (II). Oxidise it by one more electron to Fe (III) and the whole machine jams. One number decides whether you can breathe.

3. Ligand and donor atom — the plug that fills the slot

Imagine the metal's slot as an empty socket and the ligand as a plug carrying two spare electrons (a "lone pair"). Push the plug in — that shared pair is now a coordinate bond.

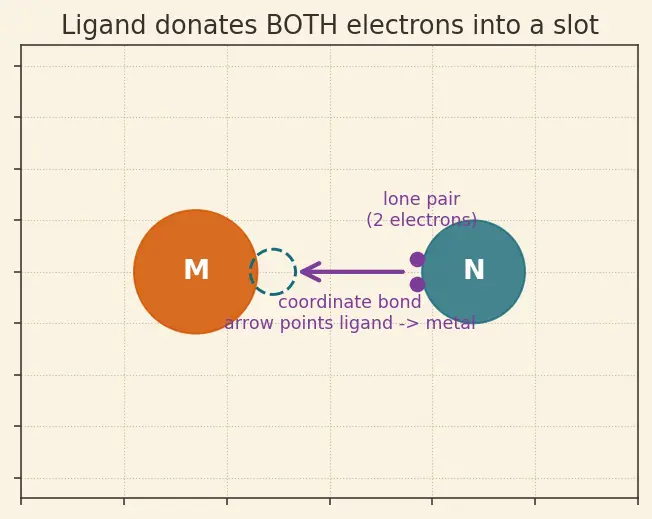

• The picture: a metal sphere with a curved arrow from a ligand's lone-pair dots into a metal slot; the arrow starts on the ligand (it gives).
• Why the topic needs it: O₂, CO, NH₃, Cl⁻, and the nitrogen atoms of the porphyrin ring are ALL ligands. "Binding oxygen" literally means "O₂ acts as a ligand in one slot."

4. Coordination number and geometry — how many slots, arranged how

Six slots most often arrange as an octahedron (metal in the middle of an 8-faced shape, one ligand poking out of each of 6 vertices); four slots often make a square plane (four ligands at the corners of a flat square, metal in the centre). The shape is not random — it is forced by how many ligands and which metal.

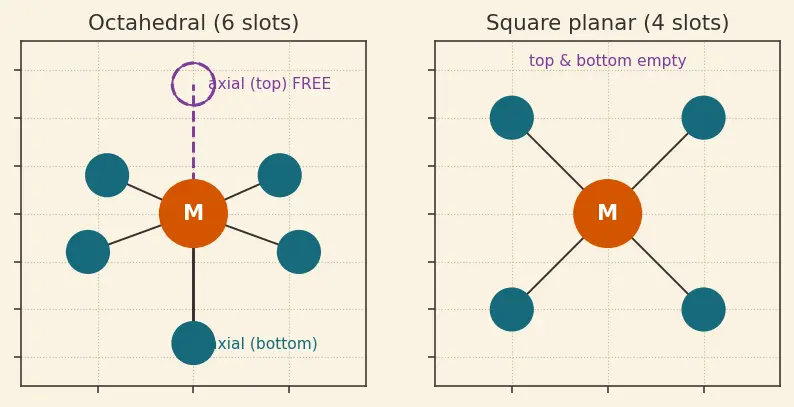

• The picture (left): octahedral — 4 ligands in a plane + 1 up + 1 down. (right): square planar — 4 ligands flat, top and bottom empty.
• Why the topic needs it:
  • Haemoglobin uses an octahedron: 4 nitrogen ligands in the plane, 1 histidine below, and the 6th top slot free for O₂.
  • Cisplatin is square planar (Pt is d⁸ — see Square planar complexes and Crystal Field Theory).

5. Axial vs. in-plane positions — "which slot is free?"

The parent note keeps saying "the 6th axial site binds O₂." That only makes sense once you can SEE the octahedron: 4 ligands lock into the flat ring, the 5th axial slot is taken by the protein, and the 6th axial slot points straight up — empty and waiting.

• Why the topic needs it: the free axial slot is the business end of every biological metal. Nature deliberately fills the ring and one axial slot so that exactly one slot stays open for reversible chemistry.

6. Macrocycle — the "cage" that holds 4 slots at once

Instead of 4 separate small ligands, imagine a single pre-shaped hoop with 4 nitrogen "fingers" pointing inward. Drop a metal in the middle and all four fingers grip at once.

• Why the topic needs it: using ONE ring instead of four separate ligands makes the grip far tighter and more stable — this extra stability is the chelate effect, see Stability and chelate effect. It also leaves both axial slots controllable.

7. Reversible binding — the ⇌ symbol

Picture a two-way revolving door: O₂ walks in where there is a crowd of oxygen (the lungs) and walks back out where oxygen is scarce (the muscles). A one-way door ($\to$) would trap O₂ forever — useless for transport.

• Why the topic needs it: transport = grab and release. The whole point of Fe(II) is that its bond to O₂ is reversible. CO, by contrast, uses (almost) a one-way arrow — that is why it poisons.

8. cis vs. trans — the geometry that decides life or death

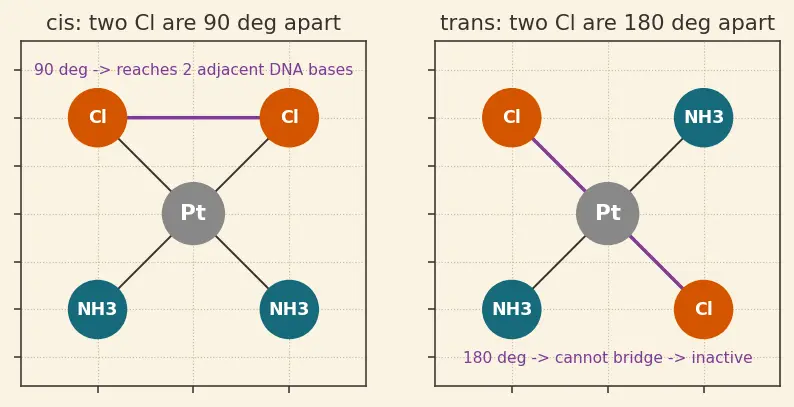

• The picture: a square-planar Pt; on the left the two Cl are on adjacent corners (cis, 90°), on the right on opposite corners (trans, 180°).
• Why the topic needs it: cisplatin's two chlorides must sit 90° apart so that, once they leave, Pt can reach two neighbouring DNA bases at once. Trans (180°) can't stretch to two adjacent sites — same formula, dead drug. This is the heart of Isomerism in coordination compounds.

How the foundations feed the topic

Read it as: charge and slots come first, ligands plug the slots, the number of plugs sets the shape, the shape gives you free axial slots (biology) and cis/trans choices (medicine), and reversible binding ties it all to real function.

Equipment checklist

Test yourself — cover the right side. If any answer is fuzzy, reread that section before touching the parent note.
