Visual walkthrough — Nomenclature (IUPAC) — naming complex ions and compounds

---

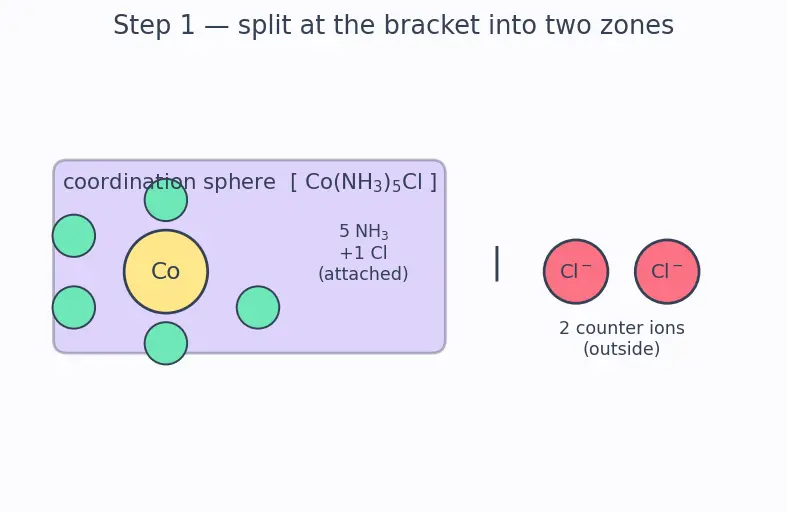

Step 1 — Draw the compound as two zones

WHAT. Take the raw formula and split it at the square bracket into two zones:

• the inside zone = coordination sphere (metal + attached groups),
• the outside zone = counter ions (the loose ions that balance charge).

WHY. Naming rules treat these two zones completely differently — the inside becomes ONE long fused word, the outside is named like an ordinary salt ion. If you don't split first, you'll blend rules that don't belong together.

PICTURE. Look at the two coloured boxes: the lavender box is everything inside the brackets; the two coral circles floating outside are the loose ${\text{Cl}}^{-}$ ions.

$\underset{\text{inside}=\text{coordination sphere}}{\underbrace{[\text{Co}({\text{NH}}_3{)}_5\text{Cl}]}}\underset{\text{outside}=\text{2 counter ions}}{\underbrace{{\text{Cl}}_2}}$

• $\text{Co}$ — the central metal (the hand doing the holding).
• $({\text{NH}}_3{)}_5$ — five ammonia molecules, each a ligand (electron-donor attached to the metal).
• inside $\text{Cl}$ — one chloride attached to the metal, so it counts as a ligand too.
• outside ${\text{Cl}}_2$ — two chlorides NOT attached; they only balance charge.

---

Step 2 — Read the charge off the counter ions

WHAT. Two free ${\text{Cl}}^{-}$ ions each carry $-1$, total $-2$. For the whole thing to be neutral, the inside must be $+2$.

WHY. We need the sphere's charge before we can find the metal's oxidation state — and the counter ions hand it to us for free.

PICTURE. The balance beam: two coral $-1$ weights on the right force the lavender sphere on the left to read $+2$.

${\text{charge}}_{\text{sphere}}+\underset{\text{two outside }{\text{Cl}}^{-}}{\underbrace{2\times (-1)}}=\underset{\text{neutral compound}}{\underbrace{0}}\Rightarrow {\text{charge}}_{\text{sphere}}=+2$

---

Step 3 — Derive the metal's oxidation state

WHAT. Ammonia ${\text{NH}}_3$ is neutral ($0$). The inside chloride is $-1$. Plug in: $x+\underset{\text{five neutral }{\text{NH}}_3}{\underbrace{5\times 0}}+\underset{\text{one inside }{\text{Cl}}^{-}}{\underbrace{(-1)}}=\underset{\text{from Step 2}}{\underbrace{+2}}\Rightarrow x=+3$

WHY. The Roman numeral in the final name is exactly this $x$. We never guess it — we solve the one-line equation so quadrant-style sign errors can't sneak in.

PICTURE. Each ligand drops its charge into a running tally; the metal's box absorbs whatever is needed to hit $+2$.

• $x$ — the metal charge we are solving for.
• $5\times 0$ — five neutral ammines contribute nothing.
• $-1$ — the single attached chloride.
• $+2$ — the target (from the balance beam in Step 2).

---

Step 4 — Name the ligands and alphabetise them

WHAT.

• ${\text{NH}}_3\to$ ammine (special neutral ligand, double m).
• attached ${\text{Cl}}^{-}\to$ chlorido (anionic ligand: ending $\to$ "-o").

Sort by first letter of the root: ammine before chlorido.

WHY. If we sorted by prefix we'd wrongly compare "penta" vs "" — meaningless. Ignoring the prefix keeps the sort about identity, not quantity.

PICTURE. Two name-cards slide into an A→Z slot; "ammine" lands ahead of "chlorido" regardless of how many copies each has.

---

Step 5 — Attach the multiplying prefixes

WHAT. Five ammines → pentaammine. One chlorido → (prefix "mono" is dropped) → chlorido.

WHY penta and not pentakis? "Ammine" is a plain, simple name — no built-in di/tri to collide with — so the ordinary prefix is correct. We reserve bis/tris for names like ethylenediamine where "tri" would fuse into the "di" and confuse the reader.

PICTURE. The number "5" morphs into the block "penta-" and clicks onto the front of "ammine"; the lone chloride gets no number tag.

$\underset{5}{\underbrace{\text{penta}}}\text{ammine}\underset{1}{\underbrace{(\text{no prefix})}}\text{chlorido}$

---

Step 6 — Name the metal (does it get "-ate"?)

WHAT. Our sphere is $+2$ — positive — so cobalt stays cobalt. Then bolt on the oxidation state from Step 3 as a Roman numeral, no space: cobalt(III).

WHY. The suffix is a flag that says "this metal lives inside an anion". Since ours is a cation, the flag stays off. (Contrast: $[\text{Fe}(\text{CN}{)}_6{]}^{4-}$ is negative → ferrate.)

PICTURE. A sign gate: charge $\ge 0$ takes the left path (plain name), charge $<0$ takes the right path (add -ate). Our $+2$ steers left.

---

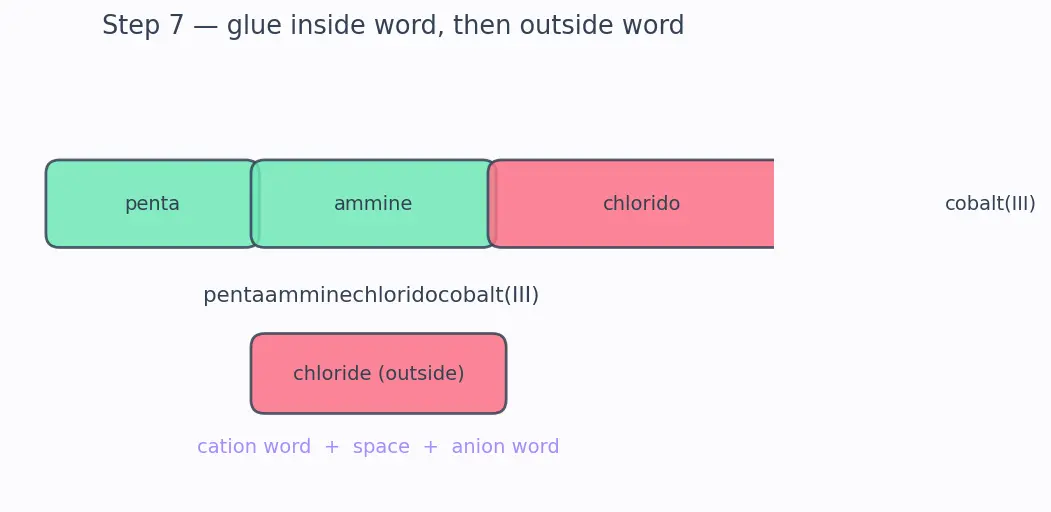

Step 7 — Assemble: cation word, then anion word

WHAT. Fuse inside-zone pieces in order (ligands → metal → oxidation state): $\text{penta}+\text{ammine}+\text{chlorido}+\text{cobalt(III)}=\text{pentaamminechloridocobalt(III)}$ Then the outside ${\text{Cl}}^{-}$ → chloride, written as a separate word after (positive part first, exactly like sodium chloride):

$\boxed{\text{pentaamminechloridocobalt(III) chloride}}$

WHY. Positive-ion-first is the same rule as ordinary salts — one habit covers both. The inside becomes a single word so the reader sees the sphere as one unit.

PICTURE. The four inside-blocks snap together into one long word; the outside chloride sits after a gap.

---

Edge cases you must never trip on

---

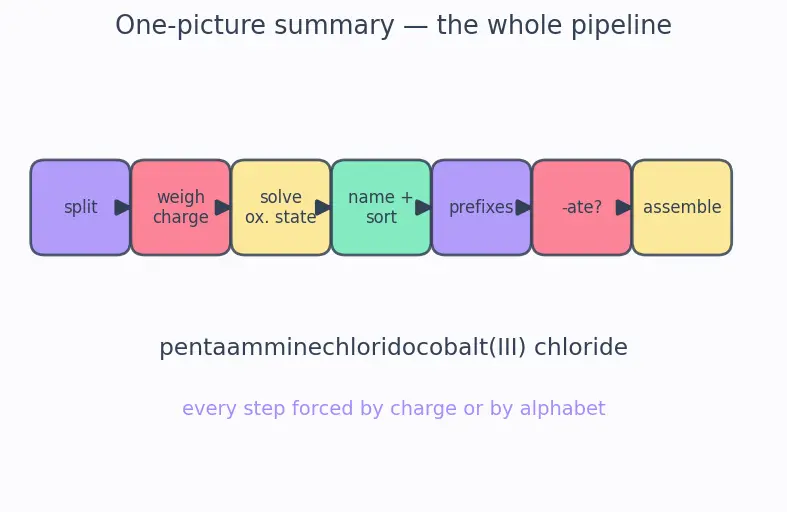

The one-picture summary

The whole pipeline in one frame: split → weigh charge → solve oxidation state → name & alphabetise ligands → add prefixes → decide -ate → assemble.

Recall Feynman retelling — the whole walkthrough in plain words

I get a formula. First I cut it at the bracket: the crowd inside (metal plus its held-on friends) is one team, the loose ions outside are just there to balance the books. I count the outside charges — two grumpy chlorides at $-1$ each means $-2$, so the inside team must be $+2$ to keep the whole thing neutral. Now I look inside: five ammonias contribute nothing, one attached chloride is $-1$, so the metal itself must be $+3$ to make the inside add up to $+2$ — that $+3$ becomes the little Roman tag. I name the friends: ammonia-as-a-ligand is ammine, chloride-as-a-ligand is chlorido, and I line them up A→Z ignoring how many there are (ammine before chlorido). I stick numbers on: five gives penta, one gets nothing. I check the team's mood — it's positive, so cobalt stays "cobalt" (if it had been negative I'd have added -ate). Finally I glue the inside into one word and say the positive part first, the leftover chloride last: pentaamminechloridocobalt(III) chloride. Every step was forced by charge or by alphabet — nothing was memorised whole.

---

Connections

• Oxidation State & d-electron count — Step 3's charge equation.
• Ligands — types, denticity, chelation — why "en" needs tris.
• Werner's Theory & Coordination Number — why the sphere is one unit.
• Isomerism in Coordination Compounds — why unique names matter.
• Crystal Field Theory — what the oxidation state feeds into next.
