Foundations — Nomenclature (IUPAC) — naming complex ions and compounds

Everything the parent note throws at you — $[\text{Co}({\text{NH}}_3{)}_5\text{Cl}]{\text{Cl}}_2$, "oxidation state $x$", "coordination sphere", the Roman numeral — is made of a handful of tiny ideas. We meet them one at a time, and each one gets a picture.

1. The central metal — the thing everything hangs on

Picture a magnet in the middle of a table. It is one object, and other things stick to it. In our formulas the metal is always the symbol written first inside the square brackets: in $[\text{Co}({\text{NH}}_3{)}_5\text{Cl}]$, the metal is $\text{Co}$ (cobalt).

Why the topic needs it: every name ends with the metal's name. If you can't spot the metal, you can't finish a name. See the red centre in the figure below.

Read more about why metals bond this way in Werner's Theory & Coordination Number.

2. The ligand — a group that grabs the metal

A lone pair is just two electrons that an atom is not using for any other bond — they are "spare" and available to share. The atom that reaches out with this pair is the donor atom.

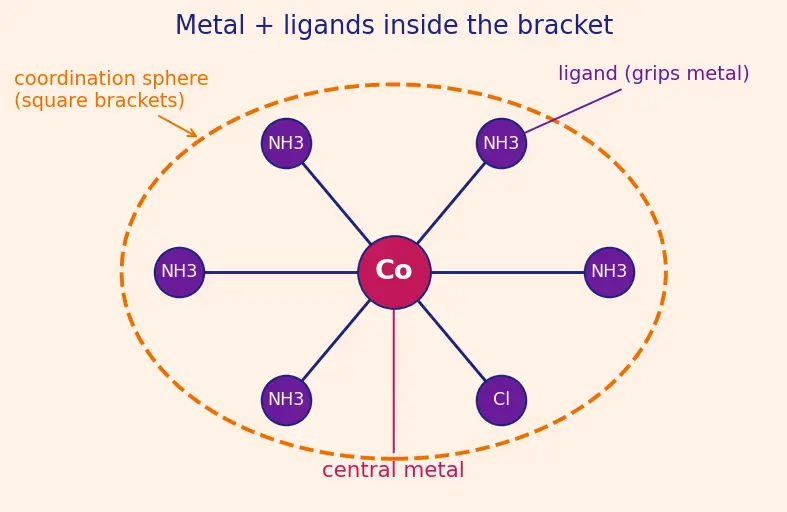

In the figure above, the violet blobs around the metal are ligands. In $[\text{Co}({\text{NH}}_3{)}_5\text{Cl}]$ there are two kinds of ligand: five ${\text{NH}}_3$ (ammonia) and one $\text{Cl}$ (chloride).

Why the topic needs it: the whole first half of any name is a list of ligands. Their types and counts drive everything. Full detail lives in Ligands — types, denticity, chelation.

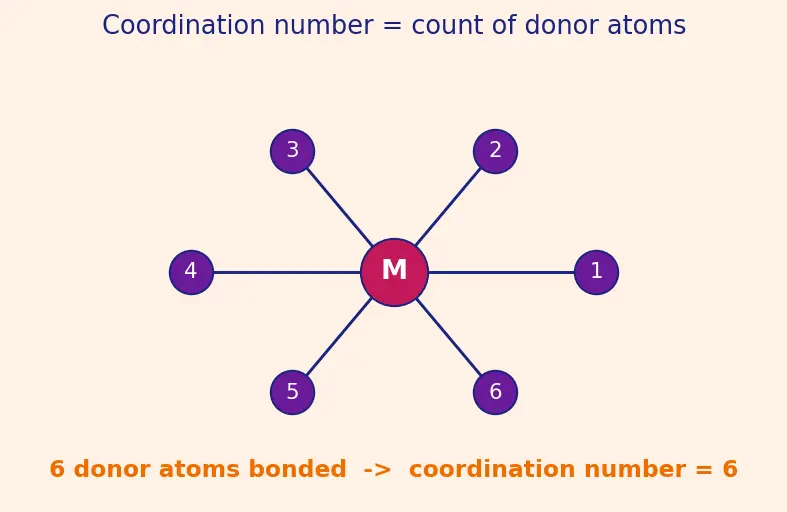

3. Counting the grips — the coordination number

In $[\text{Co}({\text{NH}}_3{)}_5\text{Cl}]$ we count: 5 (from the ammonias) + 1 (from the chloride) $=6$. So the coordination number is $6$.

4. The square brackets — the invisible wall

Draw a circle around the magnet and all the hands gripping it. That circle is the bracket. Anything inside is a team; anything outside is a stranger.

Why the topic needs it: the bracket tells you which groups are ligands (inside, named as ligands) versus which are counter ions (outside, named separately). In $[\text{Co}({\text{NH}}_3{)}_5\text{Cl}]{\text{Cl}}_2$ the two ${\text{Cl}}_2$ after the bracket are outside — they are not ligands.

5. The counter ion — the stranger outside the wall

Picture the circled team on the table, and separate loose marbles nearby that keep the whole tabletop electrically even. Those marbles are counter ions.

In $[\text{Co}({\text{NH}}_3{)}_5\text{Cl}]{\text{Cl}}_2$, the two chlorides after the bracket are counter ions. Because each ${\text{Cl}}^{-}$ carries a $-1$ charge and there are two of them ($-2$ total), the coordination sphere itself must be $+2$ to cancel them out.

6. Charge and the plus/minus sign — reading electric bookkeeping

The picture: think of $+$ as "owes an electron" and $-$ as "carries a spare electron". Positive and negative attract, which is why counter ions cling to the coordination sphere.

Why the topic needs it: the sign of the whole complex ion decides whether the metal gets the "-ate" suffix. Positive/neutral → normal name; negative → "-ate". Getting the sign right is step zero of naming.

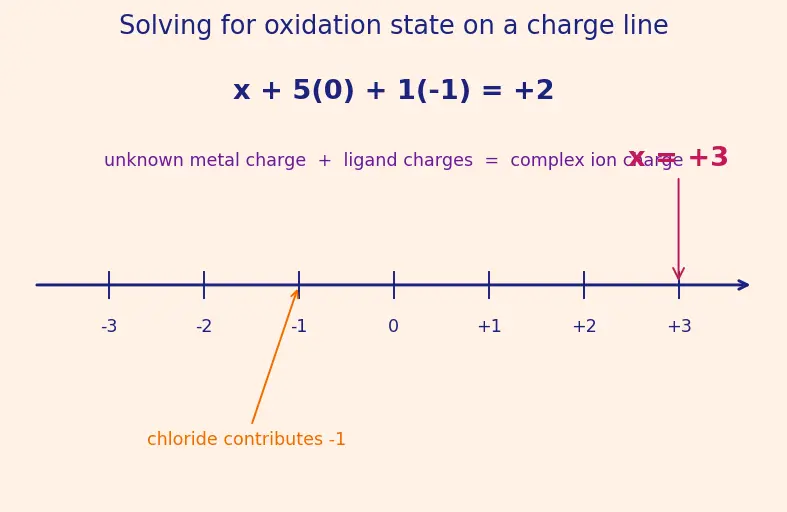

7. Oxidation state and the symbol $x$ — the metal's hidden charge

The symbol $x$ is just a placeholder for "the number we don't know yet". We use algebra because the metal's charge is not written anywhere — we must deduce it from things we do know.

The symbol $\sum$ (a big Greek "S", for Sum) means "add up all of these". So $\sum (\text{ligand charges})$ means "total up every ligand's charge, one by one".

Why this tool and not guessing? Because the metal's charge is invisible in the formula, but ligand charges are known (chloride is always $-1$, ammonia always $0$) and the total is known (it must cancel the counter ions). One equation, one unknown $x$ — algebra hands us the answer with zero memorising. Deeper treatment: Oxidation State & d-electron count.

8. Roman numerals — the tidy way to write the oxidation state

Why not ordinary numbers? Convention avoids confusion between "how many ligands" (written as prefixes like penta) and "what charge the metal has". Keeping charge in Roman numerals visually separates the two ideas.

9. Multiplying prefixes — counting the ligands in words

Picture: five hands of the same kind gripping the magnet → we don't write "5", we write penta-. This is pure vocabulary — a translation table from number to Greek word.

Why the topic needs it: prefixes tell the reader the count without using digits inside the flowing word of a name.

The prerequisite map

Read the map top to bottom: metal + ligands make the coordination sphere; counter ions and charge let us solve for oxidation state; prefixes and the Roman-numeral tag finish the full name. That full name is exactly what the parent topic teaches you to build.

Equipment checklist

Cover the right side and test yourself before moving on.
