Intuition The ONE core ideaA metal atom in a coordination compound holds two separate kinds of "sticking power": an inner grip that grabs a fixed number of molecules in fixed positions in space, and an outer charge that is balanced by ions floating loosely nearby. Everything in Werner's theory — formulas, precipitates, conductivity, shapes — comes from telling these two apart.
Before you can read a single line of Werner's theory of coordination compounds , you must be able to read its alphabet . This page builds every symbol from nothing, in the order they depend on each other. If the parent note wrote a symbol without explaining it, it gets explained here.

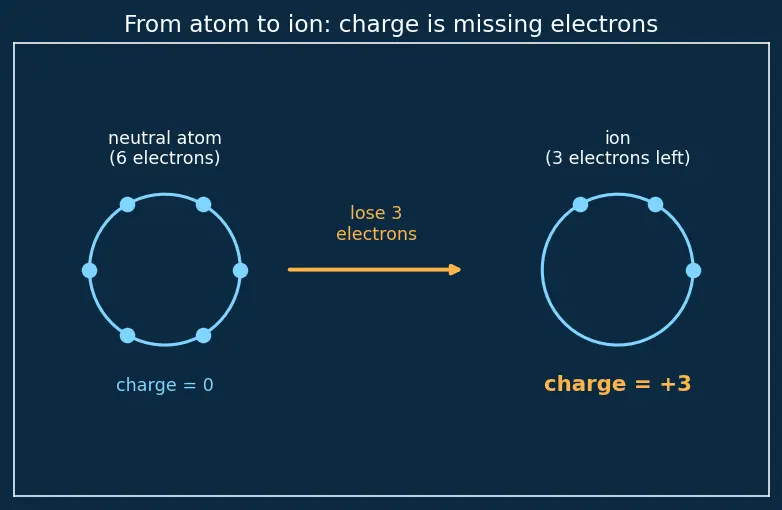

Definition Atom, ion, chargeAn atom is a single particle of an element (e.g. one cobalt atom). If an atom loses or gains electrons , it carries a leftover electric charge and we call it an ion
A positive ion (lost electrons) is written with a small raised plus, e.g. C o 3 +
A negative ion (gained electrons) with a raised minus, e.g. C l −
The picture: think of a ball that normally has equal red (+) and blue (–) paint. Rub off 3 blue dots → the ball reads "+3". Add 1 blue dot → it reads "–1".
Intuition WHY we need charge firstWerner's whole trick is charge bookkeeping — counting pluses and minuses inside vs outside a bracket. If you can't read C o 3 + C l −
The small raised number-and-sign (like the 3 + oxidation state short of (positive) or has extra (negative) compared to the neutral atom.
Definition Metal centre and ligand
M the central metal ion — the atom sitting in the middle that everything else attaches to (Co, Pt, Cu, ...).A ligand donates a lone pair of electrons to the metal and so attaches to it. Examples: N H 3 C l −
The picture: the metal is a magnet in the centre; ligands are little arrows that point into it, each carrying a pair of electrons like a handshake offered to the metal.
Intuition WHY a ligand must have a lone pairThe metal ion is short of electrons (it's positive). A ligand offers a spare pair; the metal accepts. This one-sided "both electrons from the ligand" bond is why the metal can hold many groups at once — it's the mechanism behind the "inner grip". More on which molecules qualify: Ligands — classification (mono/poly-dentate, chelate) .
Definition Reading a formulaA chemical formula lists which atoms are stuck together and how many of each. A small subscript number multiplies the atom just before it.
N H 3 N three hydrogens (H C o C l 3 three chlorines.
Common mistake "The subscript 3 inN H 3 Why it feels right: raised and lowered numbers look similar. The flaw: a number below the line (N H 3 atoms ; a number above the line (C o 3 + charge . Fix: low = count, high = charge.
C o C l 3 ⋅ 6 N H 3 ⋅ and combined with " sign. C o C l 3 ⋅ 6 N H 3 C o C l 3 N H 3 without saying how they are arranged. Werner's job was to figure out the how .

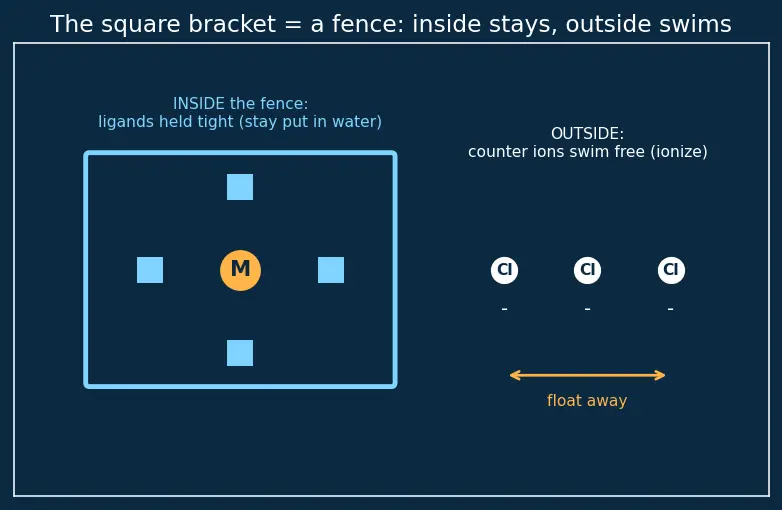

Definition Coordination sphere[ ] [ ] fence around the metal. Whatever is written inside is held by the metal's inner grip (secondary valency) — these are the ligands, and they do NOT float away in water. Whatever is written outside is a loose counter ion , held only by charge, and it DOES float away (ionizes) in water.
The picture: a fenced yard. Toys inside the fence stay with the owner even in a flood; friends standing outside the fence swim away when the flood comes.
inside the fence: held tight [ C o ( N H 3 ) 6 ] outside: swims free C l 3
Intuition WHY the bracket carries all the meaningThe single experimental fact Werner relied on — how many chloride ions precipitate with silver nitrate — depends entirely on which side of the bracket each C l is the theory written on paper. Freeing-ion behaviour connects to Conductivity and ionization of electrolytes .

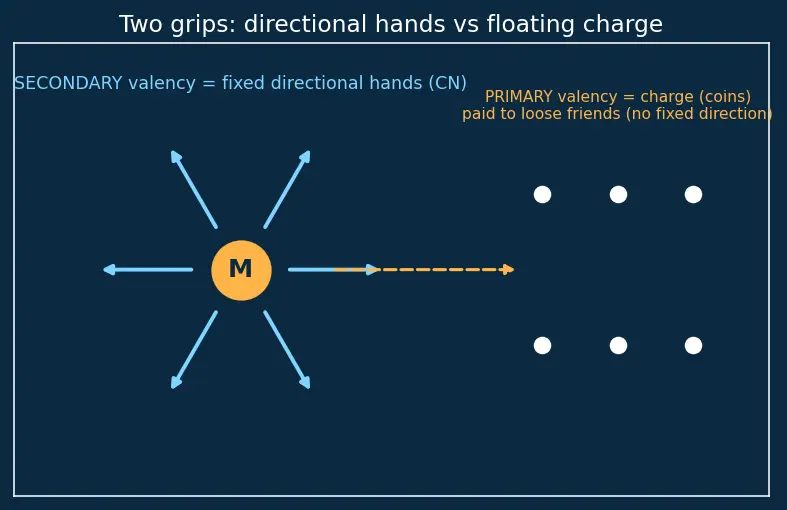

Definition The two valencies
Primary valency charge to be balanced (its oxidation state). It is non-directional (points nowhere in particular) and ionizable (satisfied by counter ions that swim free). Modern name: oxidation state .Secondary valency fixed number of ligands the metal grips, in fixed directions in space . It is non-ionizable (those ligands stay put). Modern name: coordination number (CN) .
The picture: the metal is a person with a fixed number of hands (secondary — grabs toys and never lets go) and a pocket of coins (primary — paid to friends who stand outside and can wander off).
P rimary = I onizable, N on-directional (oxidation state).
S econdary = Si ts in space (D irectional) = CN = ligands inside the brackets.
Definition Coordination numberCN = the number of donor atoms directly bonded to the metal = the number of "hands" the metal uses. Not the number of molecules — a molecule with two grabbing atoms counts as 2.
Intuition WHY CN forces a shapeBecause the hands point in fixed directions , once you know how many there are, the shape is decided:
CN 6 → six directions as far apart as possible → octahedral (think: up, down, and four around a square).CN 4 → either tetrahedral or square planar .
This is why counting how many isomers a compound forms lets Werner deduce the 3-D shape — see Coordination number and geometry and Isomerism in coordination compounds (cis-trans, optical) .
Worked example Reading the symbol on a real caseFor [ C o ( N H 3 ) 5 C l ] C o 3 + + 3 N H 3 5 × 0 = 0 C l − − 1 Q complex = + 3 + 0 + ( − 1 ) = + 2 [ C o ( N H 3 ) 5 C l ] 2 + 2 counter ions (C l −
Intuition WHY the whole compound must add to zeroA bottle of a stable compound carries no net charge. So the charge inside the fence (+ 2 2 × − 1 predict how many counter ions appear — and therefore how many precipitate. Nomenclature that names these pieces: IUPAC nomenclature of coordination compounds .
Geometry octahedral or square
Charge bookkeeping Q complex
Each box is a symbol or idea built above. Follow the arrows and you arrive, fully equipped, at the parent topic.
Test yourself — you should be able to answer each before reading the parent note.
What does the raised 3 + C o 3 + The atom's charge: it has lost 3 electrons (oxidation state + 3
What is a ligand, in one line? A molecule or ion that donates a lone electron pair to the metal and stays attached.
What does a low subscript (like the 3 in N H 3 The number of atoms — NOT a charge.
What does the raised dot in C o C l 3 ⋅ 6 N H 3 "Combined with" — it says they join, but not how.
What is held INSIDE the square bracket [ ] The ligands (secondary valency); they do NOT ionize / stay put in water.
What is written OUTSIDE the bracket, and does it ionize? The counter ions (primary valency); they DO swim free in water.
What modern concept is Werner's primary valency? The metal's oxidation state (non-directional, ionizable).
What modern concept is Werner's secondary valency? The coordination number CN (directional, non-ionizable).
Is CN the number of molecules or the number of donor atoms bonded? The number of donor atoms / coordinate bonds.
Compute Q complex [ C o ( N H 3 ) 5 C l ] + 3 + 0 − 1 = + 2 [ C o ( N H 3 ) 5 C l ] 2 +
