Heavy water D₂O, hydrogen peroxide H₂O₂ — structure, preparation, reactions: Foundations

This page assumes nothing. We build every symbol the parent note throws at you, one brick at a time, before it is ever used.

1. Atoms, protons, neutrons — the counting game

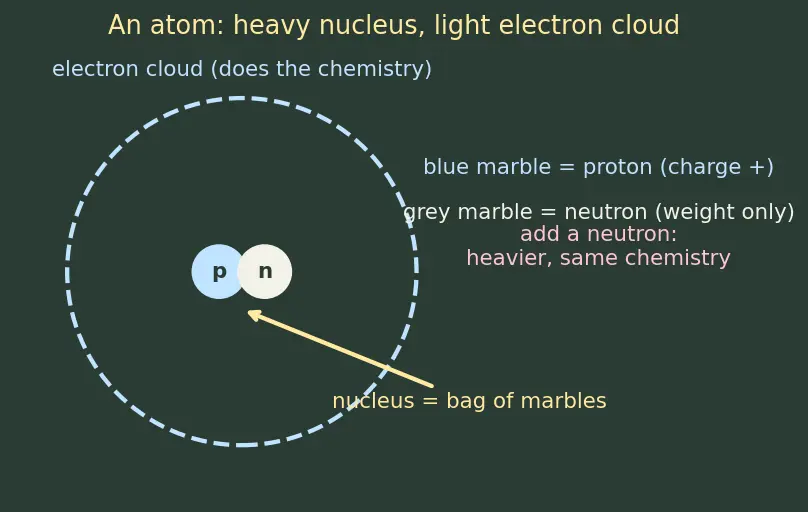

The picture: think of the nucleus as a bag of marbles. Blue marbles = protons, grey marbles = neutrons. Add a grey marble and the atom gets heavier but still bonds identically — this single fact is the seed of the entire "heavy water" story.

Figure — Heavy water D₂O, hydrogen peroxide H₂O₂ — structure, preparation, reactions

Why the topic needs this: Heavy water differs from ordinary water only by added neutrons. If you don't picture a neutron as "extra weight, same chemistry", the whole isotope idea is a mystery.

2. Isotopes and the hydrogen family

Hydrogen has three isotopes. All have exactly 1 proton (that's what makes them hydrogen); they differ only in neutrons:

Name	Symbol	Protons	Neutrons	Mass (amu)
Protium	$_{1}^{1} H$ (H)	1	0	1
Deuterium	$_{1}^{2} H$ (D)	1	1	2
Tritium	$_{1}^{3} H$ (T)	1	2	3

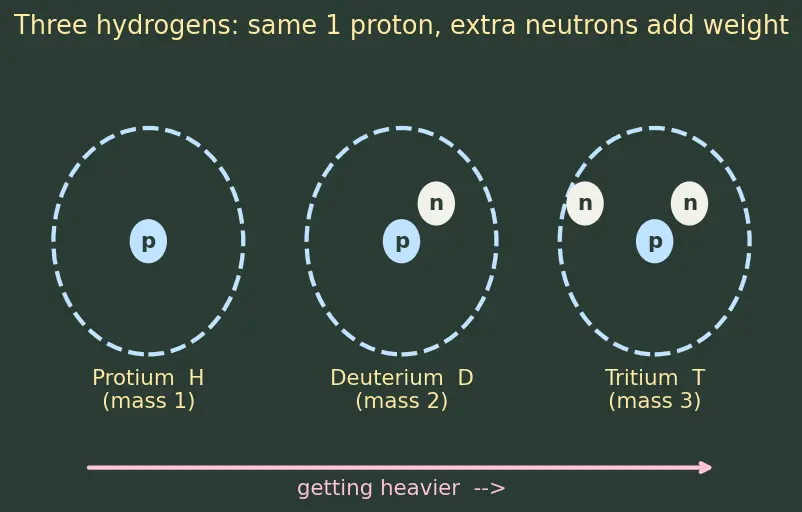

The picture: three hydrogen atoms lined up, each with one proton, gaining grey neutron marbles left to right — the atom literally gets heavier while its single electron (its chemistry) is untouched.

Why the topic needs this: "Heavy water is D₂O" is meaningless until you know D = deuterium = hydrogen-with-one-extra-neutron. The parent note's "11% heavier" claim comes straight from mass 20 vs mass 18.

Recall Why does adding a neutron NOT change how an atom bonds?

Bonding is done by electrons, and neutrons have no charge, so they leave the electron cloud completely unchanged. Only the mass changes.

3. Molecular formula and molecular mass

The 11% claim, earned: $\frac{20 - 18}{18} = 0.111 = 11%$ heavier. That is all the parent note means by "11% heavier".

4. Bent shape — why water is not a straight line

The picture: oxygen at the centre, two O–H bonds splayed downward like a wide "V", and two lone-pair clouds pushing from above. The pushing is why the V isn't flat.

Why the topic needs this: the parent note states D₂O is "bent, ~104.5°, nearly identical to H₂O". That identity is because the electron picture is unchanged — only the nuclei got heavier. Same electrons ⇒ same shape.

Recall What decides the bent shape of water, the nuclei or the electrons?

The electrons (bonding pairs + lone pairs repelling). Since deuterium has the same electrons as hydrogen, D₂O has the same bent shape.

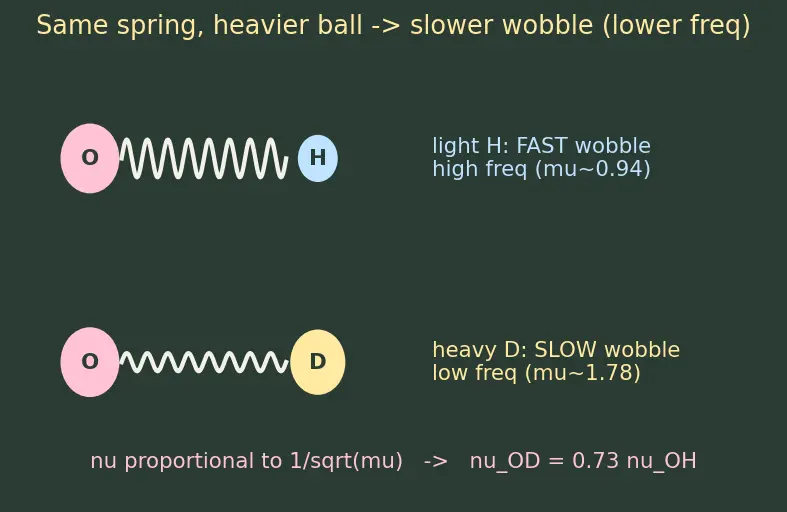

5. A bond as a spring — vibration, frequency, mass

This is the single most important idea for understanding every isotope effect in the parent note.

Why this tool and not just "the mass"? A vibrating bond isn't one ball on a wall — it's two balls, both moving. The correct single number that captures how the pair swings is $μ$ , not $m_{1}$ or $m_{2}$ alone. That is why the parent note uses $μ$ everywhere.

Compute it exactly as the parent does: $μ_{OH} = \frac{16 \times 1}{16 + 1} = \frac{16}{17} \approx 0.94 amu$ $μ_{OD} = \frac{16 \times 2}{16 + 2} = \frac{32}{18} \approx 1.78 amu$

Since only $μ$ changes, the ratio is pure arithmetic: $\frac{ν _{OD}}{ν _{OH}} = \frac{μ _{OH}}{μ _{OD}} = \frac{0.94}{1.78} \approx 0.73$

So O–D vibrates at about 73% the speed of O–H — exactly the parent note's $ν_{O D} \approx 0.73 ν_{O H}$ .

6. Zero-point energy (ZPE) — why the bond never fully stops

The picture: imagine an energy valley (a U-shaped curve). The bottom of the valley is "no motion", but the bond is forced to hover a little way up the walls. A fast vibrator (O–H, high $ν$ ) hovers higher; a slow vibrator (O–D, low $ν$ ) hovers lower, closer to the valley floor.

Chain of consequences (all from the parent page):

O–D has lower $ν$ ⇒ lower $E_{Z P E}$ ⇒ starts deeper in the valley ⇒ needs more energy to climb out and break ⇒ O–D reactions are 5–7× slower (the kinetic isotope effect).

Recall In one sentence, why is heavy water chemically more "sluggish"?

Its O–D bonds sit lower in the energy valley (lower zero-point energy), so they need more energy to break — reactions run several times slower.

7. Density, melting point, boiling point — reading a comparison table

Why D₂O beats H₂O on all three: the D₂O molecule is heavier (density 1.107 vs 0.997) and its slower nuclei spend more time locked in hydrogen-bonded positions, so more heat is needed to melt (3.82 °C vs 0 °C) or boil (101.4 °C vs 100 °C). You now have every idea needed to explain that table, not just memorise it.

8. Percent, tiny fractions, and "abundance"

Why the topic needs this: the parent note's entire "preparation is hard / cascade many stages" argument rests on deuterium being rare. If you can convert between "0.0156%" and "1 in 6420", the enrichment maths reads easily.

The prerequisite map

Equipment checklist

Self-test: cover the right side and answer each before revealing.

What does the subscript in H₂O₂ tell you?

The count of that atom — two hydrogens and two oxygens per molecule.

What is deuterium in terms of protons and neutrons?

1 proton and 1 neutron (mass number 2), so it is hydrogen's heavy isotope, symbol D.

Why does adding a neutron leave chemistry unchanged?

Chemistry is run by electrons; a neutron has no charge and does not touch the electron cloud.

Compute the molecular mass of D₂O.

2×2 + 16 = 20 g/mol.

What is reduced mass and why use it instead of a single atom's mass?

μ = m₁m₂/(m₁+m₂); a bond has two moving atoms, so μ is the correct effective mass the spring "feels".

How does ν depend on μ?

ν ∝ 1/√μ, so heavier reduced mass ⇒ lower vibration frequency.

Why is the O–D bond effectively harder to break?

Lower ν ⇒ lower zero-point energy ⇒ it sits deeper in the energy valley ⇒ more energy needed to break.

What gives water its bent shape?

The two lone pairs plus two bond pairs on oxygen repel each other into a ~104.5° bent geometry.

Convert 0.0156% to "1 in how many"?

1 divided by 0.000156 ≈ 1 in 6420 hydrogen atoms.
