Heavy water D₂O, hydrogen peroxide H₂O₂ — structure, preparation, reactions

Overview

Two exceptional hydrogen compounds with unique properties: heavy water (deuterium oxide) used in nuclear reactors, and hydrogen peroxide, a powerful oxidizing agent. Understanding their molecular structure, synthesis pathways, and reaction mechanisms reveals fundamental principles of isotope effects and redox chemistry.

---

Heavy Water (D₂O)

Structure

Molecular geometry: Bent (like H₂O)

• Bond angle: ~104.5° (slightly larger than H₂O's 104.45° due to reduced nuclear motion)
• Bond length O-D: 0.9575 Å (vs. 0.9584 Å for O-H)
• Key difference: The heavier deuterium nucleus vibrates more slowly, affecting hydrogen bonding strength

Why the structure is nearly identical to H₂O: The electronic structure is the same—2 lone pairs on oxygen, sp³ hybridization, VSEPR theory predicts bent geometry. The nucleus change (1 neutron addition) doesn't alter electron configuration, only nuclear mass.

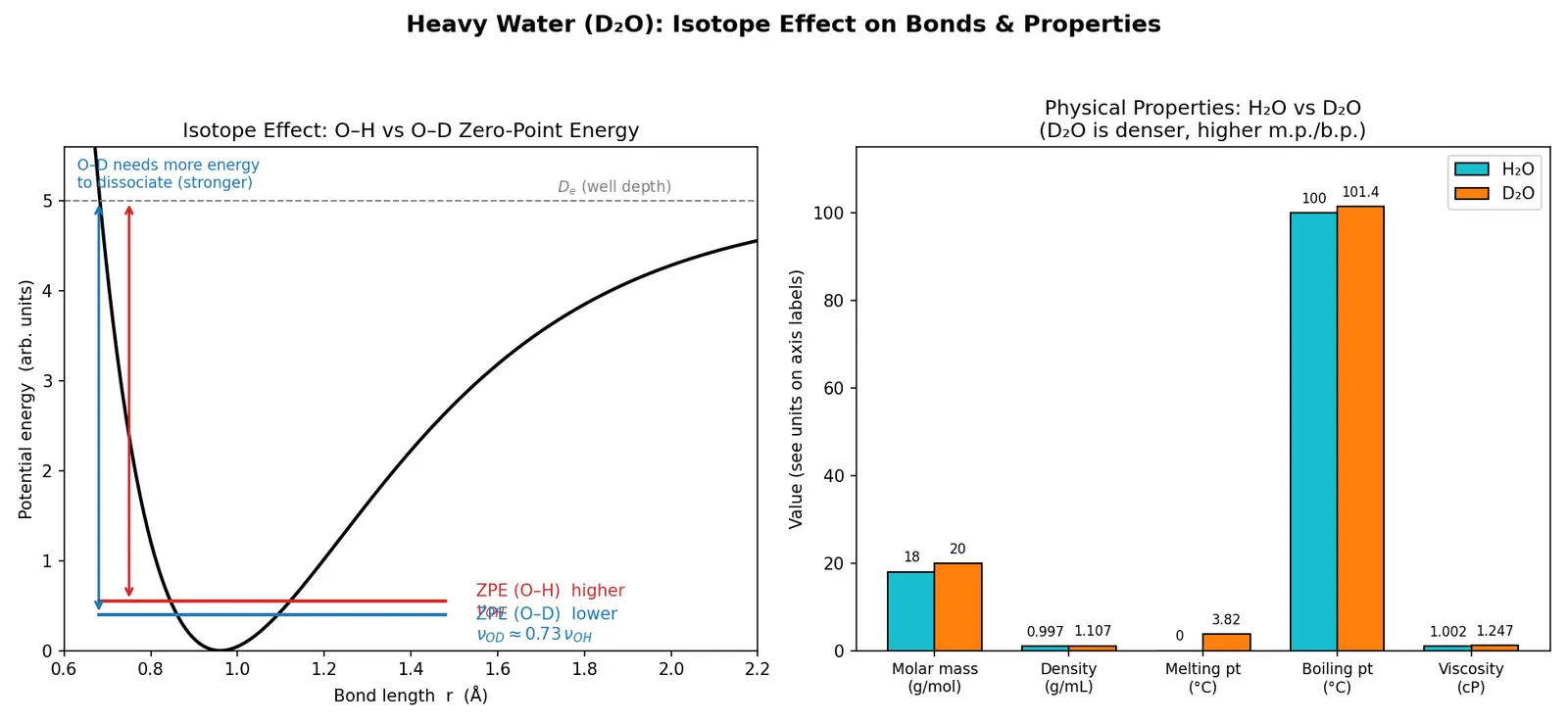

Physical Properties Comparison

Property	H₂O	D₂O	Why Different?
Molecular mass	18 g/mol	20 g/mol	Extra neutrons
Density (20°C)	0.997 g/mL	1.107 g/mL	Heavier molecules pack tighter
Melting point	0°C	3.82°C	Stronger D-bonding (heavier atom = slower vibration = more time in bonding configuration)
Boiling point	100°C	101.4°C	Same reason as melting point
Viscosity	1.002 cP	1.247 cP	Stronger intermolecular forces

Where $\mu$ is reduced mass $\mu = \frac{m_1 m_2}{m_1 + m_2}$

For O-H vs. O-D: $\mu_{OH} = \frac{16 \times 1}{17} \approx 0.94 \text{ amu}$ $\mu_{OD} = \frac{16 \times 2}{18} \approx 1.78 \text{ amu}$

Since $\nu \propto \frac{1}{\sqrt{\mu}}$, the O-D bond vibrates at lower frequency ($\nu_{OD} \approx 0.73 \nu_{OH}$), has lower ZPE, and is effectively stronger (requires more energy to break beyond the ZPE level).

Preparation of Heavy Water

Why preparation is difficult: Natural abundance of deuterium is only 0.0156% (1 in 6420 hydrogen atoms). Concentrating D₂O requires exploiting subtle physical/chemical differences.

Method 1: Electrolysis of Water (Fractional Electrolysis)

Principle: H₂O electrolyzes faster than D₂O because lighter H-O bonds break more easily (lower activation energy due to quantum tunneling effects). Protium (H) is preferentially liberated as gas, so deuterium concentrates in the residual liquid.

Process:

1. Electrolyze large volume of ordinary water
2. H₂O preferentially decomposes: $\text{H}_2\text{O} \to \text{H}_2 + \frac{1}{2} \text{O}_2$
3. D₂O concentrates in the remaining liquid
4. Repeat multiple stages

Derivation of enrichment (Rayleigh distillation model): Let the separation factor be $\alpha = \frac{\text{rate of H removal}}{\text{rate of D removal}} \approx 6$

This means during electrolysis, D leaves the liquid $\alpha$ times more slowly than H. Treating this as a Rayleigh-type fractionation, if the fraction of water remaining as liquid is $L$ (so $L=1-f$ where $f$ is fraction electrolyzed), the ratio of deuterium atom fraction in the residue to the start is: $\frac{R_{final}}{R_{initial}} = L^{\,(1/\alpha) - 1}$

Why this form? For a trace species that is removed $\alpha$ times slower, the standard Rayleigh law gives enrichment $= L^{(1/\alpha)-1}$. Since $1/\alpha < 1$, the exponent is negative, so as $L \to 0$ the residue becomes progressively richer in D.

For $\alpha = 6$ and $f = 0.99$ (so $L = 0.01$): $\frac{R_{final}}{R_{initial}} = (0.01)^{(1/6) - 1} = (0.01)^{-0.833} = 10^{1.667} \approx 46$

So a single deep-electrolysis stage enriches deuterium by roughly 46×, i.e. from 0.0156% to about 0.72%. Real plants therefore cascade many such stages to reach 99.8%.

Reality: Electrolysis is energy-intensive; it is used as a final polishing step, not the bulk method.

Solution:

• Liquid remaining: $1000 \times L = 1000 \times 0.01 = 10$ L. (This 10 L is the total residual liquid, mostly still H₂O — the D species is a tiny fraction of it.)

Why this step: $L$ is the fraction of the whole liquid left, not the fraction of D₂O left. The residue is still dominated by ordinary water; deuterium is only enriched relative to hydrogen.

• Enrichment factor: $R_{final}/R_{initial} = (0.01)^{-0.833} \approx 46$
• New D content: $0.0156\% \times 46 \approx 0.72\%$

Why this step: We apply the Rayleigh law $R_{final}=R_{initial}\,L^{(1/\alpha)-1}$ derived above; the residue is enriched but nowhere near pure — hence the need for a cascade. (The old "sum to a few mL" reasoning was wrong: $L$ tracks total liquid, not the D₂O volume.)

Method 2: Girdler Sulfide (GS) Process (Industrial — main bulk method)

Principle: Deuterium exchanges between H₂S gas and liquid H₂O, and the equilibrium constant is temperature-dependent: $H_2S_{(g)} + HDO_{(l)} \leftrightharpoons HDS_{(g)} + H_2O_{(l)}$

Temperature-dependent equilibrium:

• At ~30°C (cold tower): D prefers the water phase ($K$ favours HDO)
• At ~130°C (hot tower): D prefers the H₂S gas phase

Two-tower process:

1. Cold tower (30°C): D transfers from H₂S into H₂O
2. Hot tower (130°C): D-enriched water releases D back to H₂S
3. H₂S circulates between towers, gradually concentrating D₂O in the cold tower bottoms

Derivation of ideal stage count: With a single-stage effective separation factor $\alpha \approx 2.3$ and $n$ ideal equilibrium stages: $\text{Enrichment} = \alpha^n = (2.3)^n$

To go from 0.0156% to 99% D: $\frac{0.99}{0.000156} = (2.3)^n \implies 6346 = (2.3)^n$ $n = \frac{\ln(6346)}{\ln(2.3)} \approx 10.5 \text{ ideal equilibrium stages}$

Industrial reality: The GS process runs at only ~15–20% enrichment before handing off to further distillation/electrolysis. Because tray efficiency is low and back-mixing occurs, real plants require hundreds of physical counter-current stages (very tall towers) to approximate the ~10 ideal stages — the ideal-stage count is a thermodynamic lower bound, not the actual tray count.

Solution: For trace D, the equilibrium partition gives $\frac{x_{water}}{x_{H_2S}} = \alpha = 2.3$ with conservation $x_{water} + x_{H_2S} = 0.02 + 0.015 = 0.035$.

Why this step: Deuterium simply redistributes between phases; total D is conserved.

Solving: $x_{water} = \frac{2.3 \times 0.035}{3.3} = 0.0244\%$.

Result: Water is enriched from 0.02% to 0.0244% in a single stage — small per stage, hence many stages.

Method 3: Fractional Distillation (Historical)

Principle: D₂O boils higher (101.4°C vs 100°C), so H₂O evaporates preferentially. Separation factor $\alpha \approx 1.05$ is tiny → thousands of stages needed → obsolete but historically first (1930s).

Chemical Properties of D₂O

Key reactions:

1. Ionization: $\text{D}_2\text{O} \leftrightharpoons \text{D}^+ + \text{OD}^-$, $K_w = 1.35 \times 10^{-15}$ (vs $10^{-14}$ for H₂O) — smaller because the D-O bond is harder to break.
2. Exchange with H₂O: $D_2O + H_2O \rightleftharpoons 2HDO$, $K \approx 3.3$ (HDO favoured statistically).
3. Biological toxicity: high D₂O replacement disrupts enzyme kinetics and DNA replication timing.

Solution: Let $x$ react each way: [D₂O]=[H₂O]=$1-x$, [HDO]=$2x$. $K = \frac{(2x)^2}{(1-x)^2} = 3.3 \implies \frac{2x}{1-x} = \sqrt{3.3} = 1.82$ $2x = 1.82 - 1.82x \implies 3.82x = 1.82 \implies x = 0.476$

Result: [D₂O]=[H₂O]=0.524 M, [HDO]=0.952 M — HDO dominates.

Applications of D₂O

1. Neutron moderator in CANDU reactors (D has tiny neutron capture cross-section, 0.0005 barn vs 0.33 barn for H).
2. NMR solvent (¹H-silent).
3. Non-radioactive tracer in biology/hydrology.
4. Neutrino detection (Sudbury Observatory).

---

Hydrogen Peroxide (H₂O₂)

Structure

• Open-book (skew, non-planar) structure
• O-O bond length: 1.48 Å (long, weak single bond)
• O-H bond length: 0.97 Å
• Dihedral angle: 111.5° (gas), 90.2° (solid, due to H-bonding)

Why non-planar: Each O is sp³ (2 bonds + 2 lone pairs). The two O–H planes twist to minimize lone-pair repulsion (a planar form would align the lone pairs and maximize repulsion).

Why this step: $\Delta H = \Sigma(\text{bonds broken}) - \Sigma(\text{bonds formed})$. The negative value confirms decomposition is exothermic, driving the metastability.

Physical Properties (complete)

Property	Value	Why
Molecular mass	34 g/mol	H₂O₂
Appearance	Pale blue (pure), colorless dilute	weak O-O chromophore
Melting point	-0.43°C	strong H-bonding
Boiling point	150.2°C	extensive hydrogen bonding (far above 34 g/mol expectation)
Density (pure)	1.45 g/mL	compact H-bonded network
Viscosity	1.245 cP	stronger intermolecular forces than water
Dipole moment	2.26 D	higher than water (1.85 D)
Miscibility	Fully miscible with water	forms H-bonds
Dissociation ($K_{a1}$)	$2.4\times10^{-12}$	weak acid, weaker than water

Commercial strengths: 3% (antiseptic), 6–10% (bleach), 30% (lab), 90%+ (rocket propellant). Concentration also given in volume strength (volumes of O₂ liberated per volume of solution at STP).

Preparation of H₂O₂

Method 1: Anthraquinone (Autoxidation) Process — ~95% of world output

A cyclic process where 2-ethylanthraquinone acts as a catalyst carrier.

Step 1 — Hydrogenation (Pd catalyst): $\text{2-ethylanthraquinone} + \text{H}_2 \xrightarrow{\text{Pd}} \text{2-ethylanthrahydroquinone}$ Why: Generates an electron-rich hydroquinone (two -OH groups).

Step 2 — Autoxidation (air): $2\text{-ethylanthrahydroquinone} + O_2 \rightarrow 2\text{-ethylanthraquinone} + H_2O_2$ Why: The -OH groups donate H to O₂, forming the O-O peroxide bond; the quinone is regenerated (catalytic).

Step 3 — Extraction: H₂O₂ is extracted into water and vacuum-distilled to concentrate.

Net: $\text{H}_2 + \text{O}_2 \rightarrow \text{H}_2\text{O}_2$ (anthraquinone recycles). Advantages: continuous, high yield (~90%), no ionic contamination.

Method 2: Electrolytic (Peroxydisulfate) Process (older)

Step 1 (anode, high current density): $2\text{HSO}_4^- \rightarrow \text{H}_2\text{S}_2\text{O}_8 + 2e^-$ Step 2 (hydrolysis): $\text{H}_2\text{S}_2\text{O}_8 + 2\text{H}_2\text{O} \rightarrow 2\text{H}_2\text{SO}_4 + \text{H}_2\text{O}_2$ Why: The peroxydisulfate O-O linkage is transferred to H₂O₂ on hydrolysis. Drawback: high energy, H₂SO₄ contamination — now largely obsolete.

Method 3: Barium Peroxide (Laboratory)

$BaO_2 + H_2SO_4 \to BaSO_4 \downarrow + H_2O_2$ Why: acid protonates the peroxide ion $\text{O}_2^{2-} + 2\text{H}^+ \rightarrow \text{H}_2\text{O}_2$; insoluble BaSO₄ ($K_{sp}=1.1\times10^{-10}$) precipitates, driving the reaction and giving clean H₂O₂ on filtration. (Using H₃PO₄ instead avoids sulfate; H₃PO₄ also stabilizes the product.)

Chemical Properties of H₂O₂

1. Decomposition

$2\text{H}_2\text{O}_2 \rightarrow 2\text{H}_2\text{O} + \text{O}_2 \uparrow$ Catalyzed by light, heat, base, heavy-metal ions (Fe³⁺, Cu²⁺, Mn²⁺) and enzymes (catalase). Stored in dark bottles with stabilizers (phosphoric acid, acetanilide, stannates). Radical chain via Fenton-type steps: $H_2O_2 + \text{Fe}^{2+} \rightarrow \text{Fe}^{3+} + \text{OH}^- + \cdot\text{OH}$ $\text{H}_2\text{O}_2 + \cdot\text{OH} \rightarrow \text{H}_2\text{O} + \cdot\text{OOH}$ Why: radicals provide a low-activation-energy pathway.

2. Acidic Character

$\text{H}_2\text{O}_2 \rightleftharpoons \text{H}^+ + \text{HO}_2^-, \quad K_{a1}=2.4\times10^{-12}$ Weaker acid than water. Forms metal peroxides: $\text{H}_2\text{O}_2 + 2\text{NaOH} \rightarrow \text{Na}_2\text{O}_2 + 2\text{H}_2\text{O}$.

3. Oxidizing Agent (its most common role)

• Acidic: $\text{H}_2\text{O}_2 + 2\text{H}^+ + 2e^- \to 2\text{H}_2\text{O}, E^\circ=+1.77\ \text{V}$
• Basic: $\text{HO}_2^- + \text{H}_2\text{O} + 2e^- \rightarrow 3\text{OH}^-,\ E^\circ=+0.88\ \text{V}$

Examples:

• $2\text{Fe}^{2+} + \text{H}_2\text{O}_2 + 2\text{H}^+ \rightarrow 2\text{Fe}^{3+} + 2\text{H}_2\text{O}$ (oxidizes Fe²⁺, since $E^\circ_{Fe^{3+}/Fe^{2+}}=0.77<1.77$)
• $\text{H}_2\text{O}_2 + 2\text{I}^- + 2\text{H}^+ \rightarrow \text{I}_2 + 2\text{H}_2\text{O}$ (used in iodometric titration)
• $\text{PbS + 4H}_2\text{O}_2 \rightarrow \text{PbSO}_4 \text{ + 4H}_2\text{O}$ (restores blackened oil paintings)
• Bleaches hair, wool, silk (oxidative, gentle).

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, is note ka core idea bahut simple hai — hydrogen ke do special compounds ko samajhna: heavy water (D₂O) aur hydrogen peroxide (H₂O₂). Heavy water mein normal hydrogen ki jagah uska bhaari isotope deuterium hota hai, jisme ek extra neutron hota hai. Ab yaha intuition ye hai ki electron configuration to bilkul same rehti hai, isliye molecule ka shape aur chemistry almost same dikhti hai. Lekin nucleus bhaari hone se molecule ka mass badhta hai, aur mass directly affect karta hai bond ke vibration, bond strength, aur physical properties jaise melting point, boiling point aur density ko. Yahi wajah hai ki D₂O ka density (1.107 g/mL) normal water se zyada hai.

Ab why-it-matters ki baat karein — jab atom bhaari hota hai to wo dheere vibrate karta hai, matlab uska zero-point energy kam hota hai, aur is wajah se O-D bond effectively stronger ho jata hai (todne mein zyada energy lagti hai). Isi concept ko "isotope effect" kehte hain, aur yahi principle heavy water banane mein kaam aata hai. Jab tum paani ko electrolysis karte ho, to halka H-O bond aasani se tootta hai, isliye normal hydrogen gas ban ke nikal jata hai aur deuterium bache hue liquid mein concentrate ho jaata hai. Kyunki nature mein deuterium sirf 0.0156% hi hota hai, isko concentrate karna mushkil hai — isliye multiple stages ki zaroorat padti hai.

Ye topic important isliye hai kyunki heavy water nuclear reactors mein moderator ki tarah use hota hai — deuterium neutrons ko "chura" nahi leta jaise normal hydrogen karta hai, isliye chain reaction chalti rehti hai. Exam ke point of view se bhi tumhe reduced mass ka formula, ZPE ka concept aur separation factor (α ≈ 6) yaad rakhna chahiye, kyunki inhi se samajh aata hai ki chhota sa neutron ka addition kaise itne saare physical properties ko change kar deta hai. Bond strength, vibration frequency aur isotope effect ka ye connection redox chemistry aur H₂O₂ ki reactions samajhne ke liye bhi solid base banata hai.
