Overview

Water is the most abundant compound on Earth and exhibits unique properties due to its bent molecular structure and extensive hydrogen bonding. Understanding why water behaves differently from most substances requires examining its molecular geometry, intermolecular forces, and the dissolved ions that cause hardness.


1. Molecular Structure of Water

Deriving the Bond Angle

Step 1: Determine electron geometry

  • O has 6 valence electrons: 2 in bonds (1 per H), 4 in 2 lone pairs
  • Total electron pairs = 4→ tetrahedral electron geometry

Step 2: Account for lone pair repulsion

  • Repulsion order: LP-LP > LP-BP > BP-BP
  • 2 lone pairs compress the H-O-H angle from ideal 109.5° to 104.5°

WHY this step? Lone pairs occupy more angular space than bonded pairs because they're held by one nucleus instead of shared between two, creating stronger repulsion.

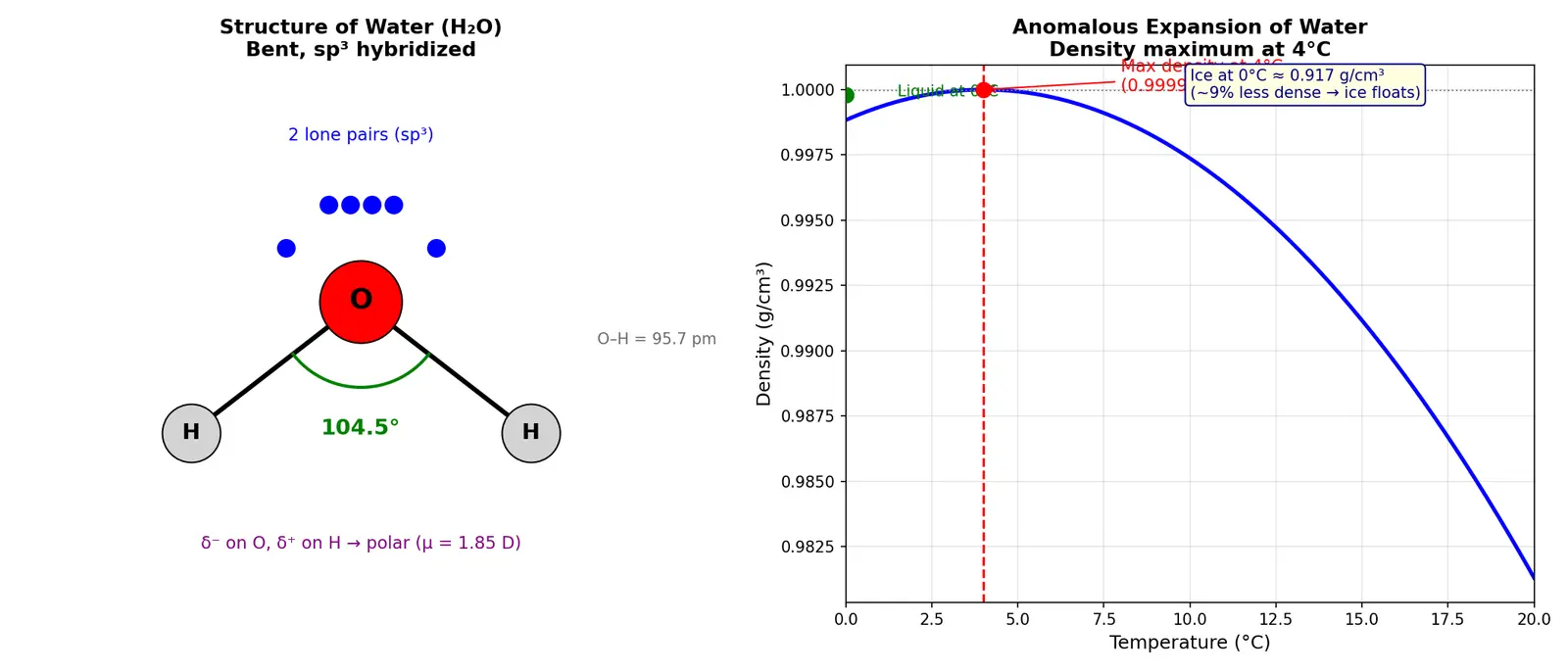

Figure — Water — structure (HOH = 104.5°), anomalous expansion, hardness (temporary - permanent), softening

2. Anomalous Expansion of Water

Deriving the Density Maximum

Step 1: Understand competing factors

  • Cooling effect (4°C → 0°C): Molecules slow down, hydrogen bonds become more stable → more open cage structures form → density decreases
  • Heating effect (4°C → 100°C): Molecules speed up, volume increases → density decreases

Step 2: Find the crossover point At 4°C, these effects balance:

  • Just enough thermal energy to break some open structures
  • Not enough thermal expansion to dominate
  • Result: maximum number of molecules per unit volume

WHY this matters? This property is crucial for aquatic life. If ice sank, lakes would freeze from the bottom up, killing all life. Instead, surface ice insulates the water below.


3. Hydrogen Bonding Network


4. Water Hardness

Why Temporary Hardness is "Temporary"

The chemistry: Calcium bicarbonate is soluble but unstable when heated.

Step 1: Write the equilibrium Ca(HCO3)2Ca2++2HCO3\text{Ca}(\text{HCO}_3)_2 \rightleftharpoons \text{Ca}^{2+} + 2\text{HCO}_3^-

Step 2: What happens on boiling? Ca(HCO3)2ΔCaCO3+H2O+CO2\text{Ca}(\text{HCO}_3)_2 \xrightarrow{\Delta} \text{CaCO}_3 \downarrow + \text{H}_2\text{O} + \text{CO}_2 \uparrow

WHY this step? Heat shifts the bicarbonate equilibrium: HCO₃⁻ decomposes to CO₃²⁻, which immediately precipitates with Ca²⁺ as insoluble CaCO₃ (the white "scale" in kettles).

Step 3: Net effect The Ca²⁺ is removed from solution as solid CaCO₃, converting hard water to soft.

Permanent Hardness Removal


5. Measurement of Hardness


Summary Comparison

| Property | Temporary Hardness | Permanent Hardness | |----------|-------------------| | Cause | Ca(HCO₃)₂, Mg(HCO₃)₂ | CaSO₄, CaCl₂, MgSO₄, MgCl₂ | | Removed by Boiling? | ✅ Yes | ❌ No | | Chemical Removal | Boiling, Ca(OH)₂ (Clark's) | Na₂CO₃ (washing soda), ion exchange | | Forms on Boiling | CaCO₃ scale | Remains dissolved |



Recall Explain Water Structure to a12-Year-Old

Imagine water molecules are like Mickey Mouse heads! The oxygen is the face (big and round), and the two hydrogens are the ears sticking out at angle (104.5°, like Mickey's ears aren't straight up).

Now, oxygen is a bit gredy — it pulls the electrons closer to itself, making the "face" slightly negative and the "ears" slightly positive. So Mickey's face has a tiny negative charge and his ears have tiny positive charges.

When you have lots of Mickey heads (water molecules), the positive ears of one Mickey attract the negative face of another Mickey — this is called a hydrogen bond. It's like Mickey molecules holding hands!

In liquid water, they hold hands but keep letting go and grabing different friends. But when water freezes, all the Mickeys lock hands in a pattern with lots of space in between — like dancers in a formation with arms stretched out. That's why ice takes up more room than liquid water, and why ice cubes float in your drink!

Hard water? That's when there are little calcium and magnesium "rocks" dissolved in the water. When you try to wash with soap, the soap sticks to these rocks and makes scum instead of bubles. Soft water doesn't have those rocks, so soap works better.


Connections

  • VSEPR Theory — explains the 104.5° bond angle
  • Hydrogen Bonding — responsible for all anomalous properties
  • Electronegativity and Polarity — why O-H bonds are polar
  • Solubility Rules — why carbonates precipitate but sulfates don't
  • Coligative Properties — hardness affects freezing point slightly
  • Le Chatelier's Principle — explains bicarbonate decomposition on heating
  • Ion Exchange Resins — modern water softening technology
  • Soap Chemistry — why soap fails in hard water
  • Aquatic Ecosystems — ice floating is crucial for life

Active Recall Practice

#flashcards/chemistry

What is the bond angle in water and why is it not 109.5°? :: The H-O-H bond angle is 104.5° because oxygen is sp³ hybridized with 4 electron pairs (2 bonded, 2 lone pairs). Lone pair-lone pair repulsion is stronger than lone pair-bonded pair repulsion, compressing the angle from the ideal tetrahedral 109.5° to 104.5°.

Why does ice float on water?
Ice is less dense than liquid water (0.917 vs 0.997 g/cm³ at 4°C) because water molecules in ice form an open hexagonal lattice with large empty spaces. Each molecule hydrogen-bonds to exactly 4 neighbors in a tetrahedral arrangement, creating ~9% more volume than liquid water.
At what temperature is water most dense and why?
Water is most dense at 4°C (0.997 g/cm³). Below4°C, molecules form more open hydrogen-bonded structures as they slow down, decreasing density. Above 4°C, thermal expansion dominates, also decreasing density. At 4°C, these two effects balance optimally.
What causes temporary hardness and how is it removed?
Temporary hardness is caused by dissolved calcium and magnesium bicarbonates: Ca(HCO₃)₂ and Mg(HCO₃)₂. It is removed by boiling: Ca(HCO₃)₂ → CaCO₃↓ + H₂O + CO₂↑. The bicarbonates decompose on heating, precipitating as insoluble carbonates.
What causes permanent hardness and how is it removed?
Permanent hardness is caused by dissolved calcium and magnesium sulfates, chlorides, and nitrates (CaSO₄, MgCl₂, etc.). It cannot be removed by boiling. Methods include: (1) adding Na₂CO₃ (washing soda) to precipitate carbonates, or (2) ion exchange using zeolites/permutit.

Write the equation for removing permanent hardness with washing soda :: CaSO₄ + Na₂CO₃ → CaCO₃↓ + Na₂SO₄. Sodium carbonate provides CO₃²⁻ ions which precipitate Ca²⁺ as insoluble CaCO₃ (Ksp = 3.4×10⁻⁹), removing it from solution.

How does the permutit method soften water?
Permutit (sodium zeolite) exchanges Na⁺ for Ca²⁺/Mg²⁺: Na₂Ze + Ca²⁺ ⇌ CaZe + 2Na⁺. Hard water passes through zeolite, which captures Ca²⁺/Mg²⁺ and releases Na⁺. The zeolite is regenerated by flushing with concentrated NaCl solution.
Why doesn't soap lather in hard water?
Hard water contains Ca²⁺ and Mg²⁺ ions. Soap (sodium stearate, C₁₇H₃₅CONa) reacts with these ions: 2C₁₇H₃₅COO⁻ + Ca²⁺ → (C₁₇H₃₅COO)₂Ca↓. This forms insoluble scum (precipitate) that wastes soap and prevents lather formation until all hardness ions are consumed.
What is the approximate energy of one hydrogen bond in water?
Approximately 20-21 kJ/mol. This is calculated from the electrostatic attraction between the partial charges (δ+ on H, δ- on O) separated by ~180 pm, using Coulomb's law and converting to molar units.
How is water hardness expressed and what are the classifications?
Hardness is expressed in pm (parts per million) of CaCO₃ equivalent. Classifications: Soft (0-60 ppm), Moderately hard (61-120 ppm), Hard (121-180 ppm), Very hard (>180 ppm). All hardness-causing salts are converted to CaCO₃ equivalent for standard comparison.
Why are there2 lone pairs on oxygen in water?
Oxygen has 6 valence electrons. It forms 2 covalent bonds with hydrogen atoms (using 2 electrons), leaving 4 electrons that form 2 lone pairs. These lone pairs are in sp³ hybrid orbitals and occupy ~109.5° of the tetrahedral electron arrangement.

Distinguish between electron geometry and molecular geometry of water :: Electron geometry considers all electron pairs (bonded and lone): water has 4 electron pairs in tetrahedral arrangement (~109.5°). Molecular geometry considers only atomic positions: water is bent/V-shaped with H-O-H angle of 104.5° because the2 lone pairs are invisible the molecular shape.

Concept Map

VSEPR

LP-LP repulsion

creates

enables

forms

4 neighbors open cage

max density at 4C

dissolves ions

Ca and Mg bicarbonates

Ca and Mg chlorides sulfates

removed by

removed by

Oxygen 2 BP + 2 LP

Tetrahedral electron geometry

Bent 104.5 deg

Polar molecule

Hydrogen bonding

Hexagonal ice lattice

Anomalous expansion

Ice floats

Water hardness

Temporary hardness

Permanent hardness

Softening

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, water ke baare mein sabse pehli cheez samajhna zaroori hai — ye molecule bent yaani V-shaped hoti hai, straight nahi. Iska reason hai oxygen ke paas 2 bonded pairs (H atoms ke saath) aur 2 lone pairs of electrons. VSEPR theory kehti hai ki ye 4 electron pairs ek dusre ko repel karte hain aur tetrahedral arrangement banate hain (~109.5°). Par lone pairs zyada strongly repel karte hain kyunki wo sirf ek nucleus se attached hote hain, isliye H-O-H angle daba kar 104.5° reh jaata hai. Ye bent shape hi water ko polar banati hai (ek side δ- oxygen, dusri side δ+ hydrogen), aur yahi polarity hydrogen bonding ko enable karti hai — jo water ke saare special properties ki jadd hai.

Ab sabse mazedaar part — anomalous expansion. Normal substances jab freeze hoti hain to shrink karti hain, par water ulta karti hai, wo ~9% expand ho jaati hai freezing par. Isiliye ice paani par float karti hai aur winter mein pipes phat jaati hain. Jab water 0°C par freeze hoti hai, molecules ek hexagonal crystal lattice mein lock ho jaate hain jahan har molecule apne 4 neighbours ke saath hydrogen bond banata hai — ye open, cage-jaisi structure hoti hai jismein liquid water se zyada empty space hota hai, isliye ice kam dense hoti hai. Aur ek interesting baat — water ki maximum density 4°C par hoti hai, freezing point par nahi, kyunki wahan cooling aur thermal effects balance ho jaate hain.

Ye samajhna kyun important hai? Kyunki ye property directly aquatic life ko bachati hai. Agar ice sink ho jaati to jheel neeche se upar tak freeze ho jaati aur saari machhliyan mar jaati. Lekin ice upar float karti hai aur ek insulating layer bana deti hai jo neeche ka paani warm rakhti hai. Toh exam mein bhi aur real life mein bhi, water ka bent structure aur hydrogen bonding hi wo core reasons hain jo iski har unusual behaviour ko explain karte hain — ek baar ye intuition clear ho gaya to baaki sab properties automatically samajh aane lagengi.
