Water — structure (HOH = 104.5°), anomalous expansion, hardness (temporary - permanent), softening: Visual walkthrough

This page rebuilds ONE result in pictures: liquid water is densest at 4 °C, and ice is less dense than liquid water. We start from a single water molecule and end holding a floating ice cube — every symbol earned, every step drawn.

You only need three ideas from elsewhere, and we will re-explain each as it arrives: the bent shape of water (VSEPR Theory), the hydrogen bond (Hydrogen Bonding), and what density means. Nothing else is assumed.

Step 1 — What "density" even means

WHAT. Density is just how much stuff is crammed into a box. Take a fixed volume of space (say one cube) and count how many molecules sit inside it. More molecules in the same box → heavier box → denser.

WHY start here. The entire result is a sentence about density ("densest at 4 °C"). If we don't nail down what density is, every later step is empty words.

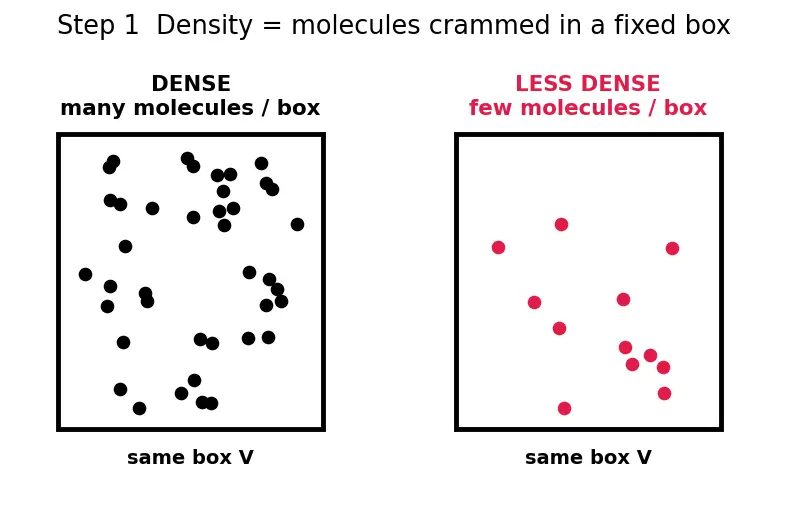

PICTURE. Two identical boxes. The left box is packed tight (many dots). The right box is loose (fewer dots, gaps between them). Same box size, fewer molecules on the right → the right box is less dense.

Figure — Water — structure (HOH = 104.5°), anomalous expansion, hardness (temporary - permanent), softening

Step 2 — One water molecule, and why it is bent

WHAT. Draw a single water molecule: one oxygen (O) in the middle, two hydrogens (H) sticking off it. The two H's are not on opposite sides — they splay out at $104. 5^{\circ}$ , giving a wide "V".

WHY it must be bent. Oxygen carries four clouds of electrons: two shared with the H's (bonding pairs) and two "lone" pairs sitting on O alone. All four clouds shove each other apart — this is VSEPR Theory. Lone pairs are fatter (held by one nucleus, not shared) so they shove harder, squeezing the H–O–H angle down from the tidy $109. 5^{\circ}$ to $104. 5^{\circ}$ .

PICTURE. The red V is the molecule. The two grey balloons above O are the lone pairs pushing the H's downward and together.

Step 3 — The molecule is lopsided (polar), so molecules grab each other

WHAT. Oxygen pulls the shared electrons toward itself (it is more electronegative — see Electronegativity and Polarity). So O wears a small negative charge, written $δ^{-}$ , and each H wears a small positive charge, $δ^{+}$ . The " $δ$ " (delta) just means "a little bit of", not a full charge.

WHY. Opposite charges attract. A $δ^{+}$ hydrogen on one molecule reaches out and clings to a $δ^{-}$ oxygen on a neighbouring molecule. That clingy link is a hydrogen bond (Hydrogen Bonding).

PICTURE. Two molecules. The red dashed line is the hydrogen bond — H of the left molecule reaching to O of the right molecule.

Step 4 — Liquid water: bonds break, reform, and let molecules slip close

WHAT. In liquid water at room temperature, molecules jiggle with thermal energy. Hydrogen bonds constantly snap and re-form. Because bonds keep breaking, molecules are free to slide into whatever gaps appear and pack fairly tightly, like people shuffling on a crowded bus.

WHY. Warmth = motion. Motion breaks the flimsy $20 kJ/mol$ links faster than they form perfectly. Broken links mean no rigid cage — molecules fill space opportunistically.

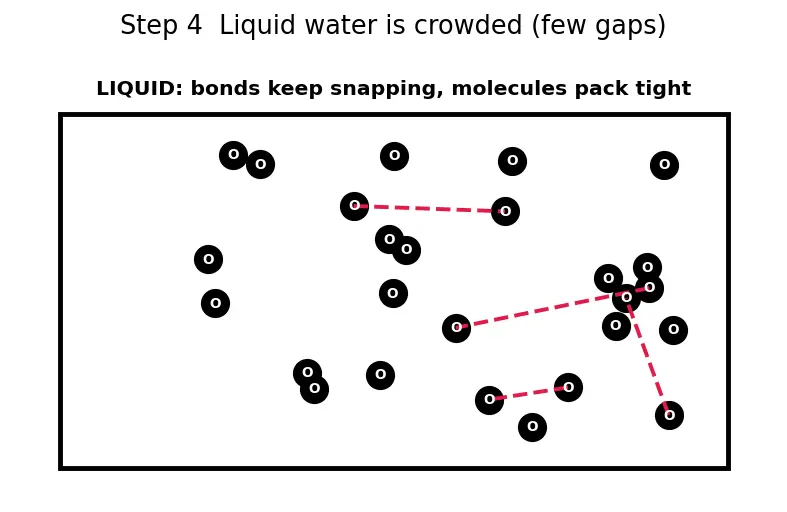

PICTURE. A messy blob of molecules, close together, with only some red dashed bonds drawn (many are momentarily broken). Note how little empty space there is.

Step 5 — Ice: every molecule bonds to exactly 4 neighbours → an open cage

WHAT. Cool water to $0^{\circ}$ C and the jiggling drops too low to break the bonds. Now each molecule insists on its four ideal, straight hydrogen bonds (two through its H's, two into its lone pairs). To satisfy all four at their favourite angle ( $\approx 109. 5^{\circ}$ , tetrahedral), the molecules must sit in a rigid hexagonal cage — and a cage is mostly hollow.

WHY the cage is roomier. In the liquid, molecules cheated: they sat wherever there was space, ignoring perfect bond angles. In ice they cannot cheat — the directionality (Step 3!) forces the wide, open geometry. Order costs space.

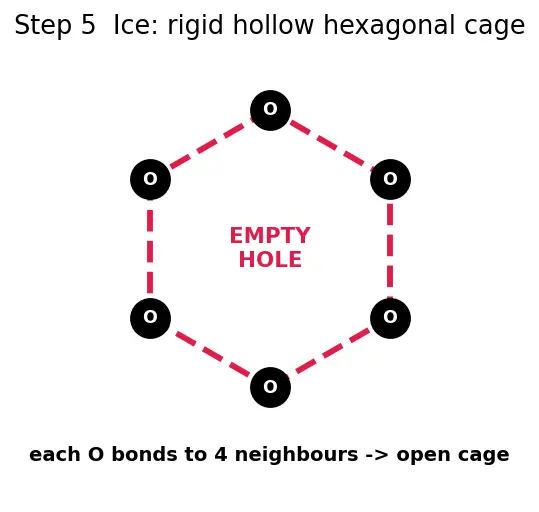

PICTURE. The hexagonal ice lattice: a ring of six molecules held by red hydrogen bonds, enclosing a large empty hole in the middle. Compare the visible gaps here to the packed blob of Step 4.

Step 6 — Put the two boxes side by side: ice is less dense, so it floats

WHAT. Same-size box of liquid vs same-size box of ice. The liquid box holds more molecules (packed); the ice box holds fewer (open cage). By Step 1, the ice box is lighter — less dense.

WHY floating follows. A less-dense object dropped in a denser fluid rises. Ice ( $0.917 g/cm^{3}$ ) is less dense than liquid water ( $0.9998 g/cm^{3}$ near $0^{\circ}$ C), so ice floats.

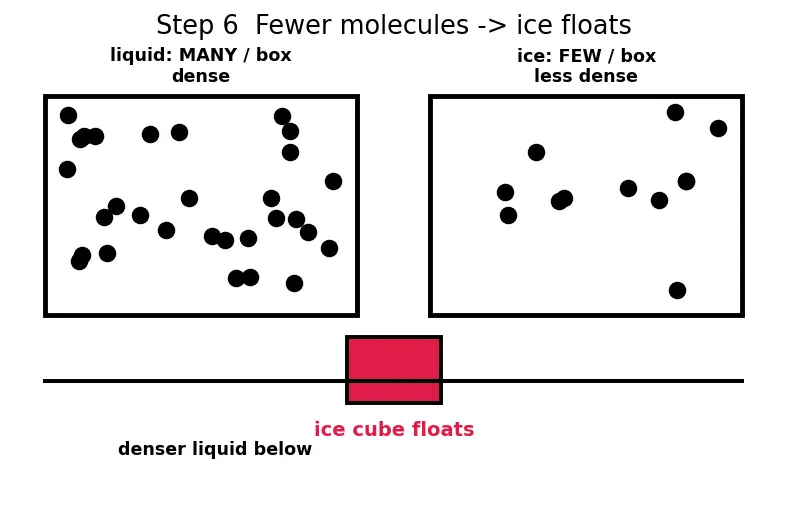

PICTURE. Left box: dense liquid (many dots) sits low. Right box: ice cage (few dots, holes). The red ice cube bobs at the surface of the liquid.

Step 7 — The turning point: why the densest liquid is at 4 °C, not 0 °C

WHAT. Now trace density as we cool liquid water from warm down to freezing. Two opposing effects fight:

Effect A (normal shrinking): cooling slows molecules, so like any liquid, volume drops → density rises as we cool.
Effect B (cage-building): as we approach $0^{\circ}$ C, more little open ice-like cages start forming even in the liquid → volume grows → density falls.

WHY a maximum appears. From high temperature down to $4^{\circ}$ C, Effect A wins (still shrinking normally). Below $4^{\circ}$ C, Effect B takes over (cages spreading it back out). Where they exactly balance — $4^{\circ}$ C — density is at its peak.

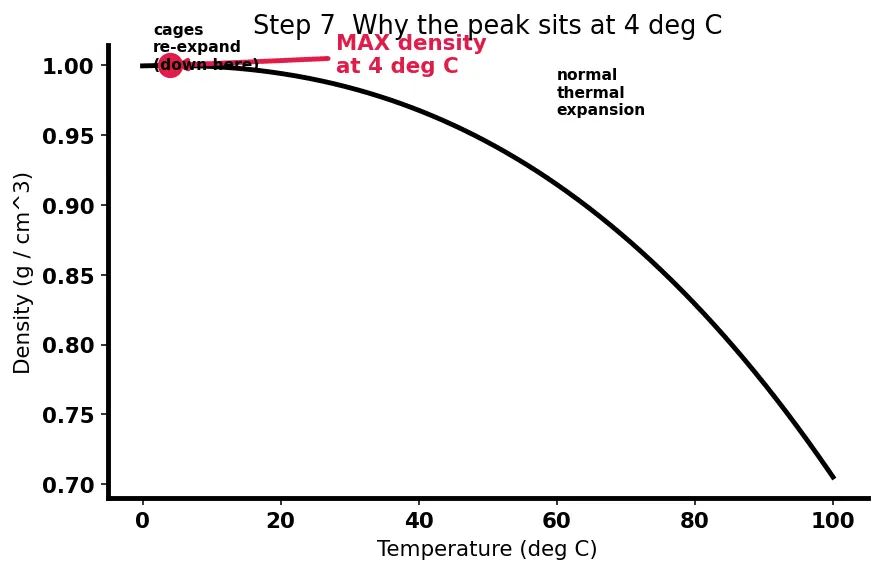

PICTURE. A density-vs-temperature curve: rising from $10 0^{\circ}$ C down, humping to a maximum at $4^{\circ}$ C, then falling to $0^{\circ}$ C. The red dot marks the $4^{\circ}$ C peak.

The one-picture summary

Everything collapses into a single storyboard: bent molecule → lopsided charges → directional hydrogen bond → forced open cage → less-dense floating ice, with a density peak at 4 °C.

Recall Feynman retelling — say it like a story

A water molecule is a little wide "V": oxygen in the corner, two hydrogens on the arms, pushed to $104. 5^{\circ}$ by two fat lone pairs. Because oxygen hogs the electrons, the oxygen end is a bit negative and the hydrogen ends a bit positive. So each molecule's plus-hydrogen reaches out and grabs a neighbour's minus-oxygen — a hydrogen bond — and this grab is fussy: it only likes to happen along certain straight lines.

When water is warm and liquid, the molecules jiggle so hard these grabs keep snapping. Free of the fussy geometry, molecules cram into any gap — so warm water is nicely packed and heavy per box. But when you freeze it, the jiggling dies down and the grabs win. Now every molecule must hold four neighbours at their favourite wide angle, and the only way to do that is to build a hollow hexagonal cage. Cages are mostly air, so ice has fewer molecules per box — it's lighter, so it floats.

And there's a twist on the way down: from hot to $4^{\circ}$ C, cooling just shrinks the water like normal (denser). But past $4^{\circ}$ C the cages start forming and puff it back up (lighter). The two effects tie exactly at $4^{\circ}$ C — the densest water there is. That's why lakes freeze from the top, and fish survive the winter underneath.

Recall Quick self-check

Why does ice float? ::: Its molecules lock into an open hexagonal cage (each bonded to 4 neighbours), leaving more empty space → lower density than liquid water. Why 4 °C and not 0 °C for max density? ::: Above 4 °C normal contraction dominates; below 4 °C cage-forming re-expands it. They balance at 4 °C. What single property of the hydrogen bond forces the open cage? ::: Its directionality — bonds insist on the wide tetrahedral angle, which the tight liquid packing cannot satisfy.
