Foundations — Concentration cells

Before you can trust the parent note, you must be able to read it. Below is every symbol and idea it uses, ordered so each one only leans on the ones before it.

1. The players: metal, ion, and electron

Start with the three physical objects the whole topic is built from.

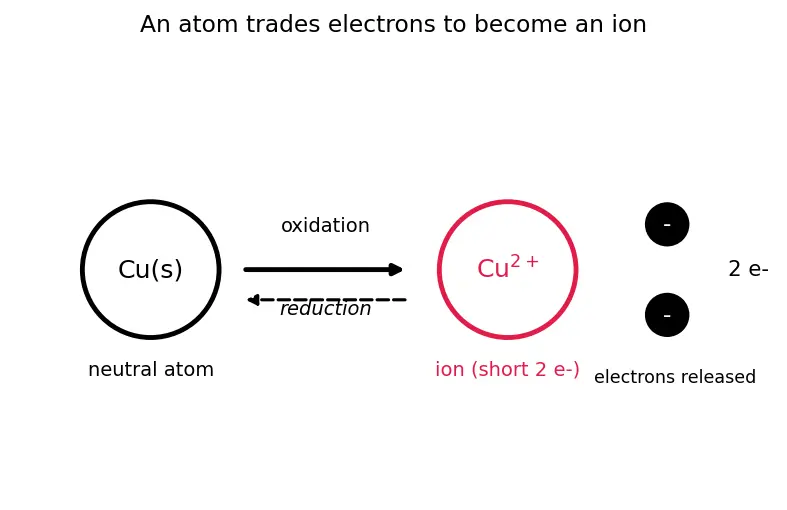

Look at the figure. A neutral copper atom (left) hands over two electrons and becomes a ${\text{Cu}}^{2+}$ ion (right, red). Reading it right-to-left runs the same event backwards.

2. Oxidation and reduction — the two directions of that trade

The trade in the figure runs two ways, and each way has a name.

3. Anode and cathode — where each direction happens

We need words for the two locations. Each metal rod dipped in solution is an electrode.

Electrons always travel through the outside wire from anode to cathode. That is the definition of which way current-carriers move.

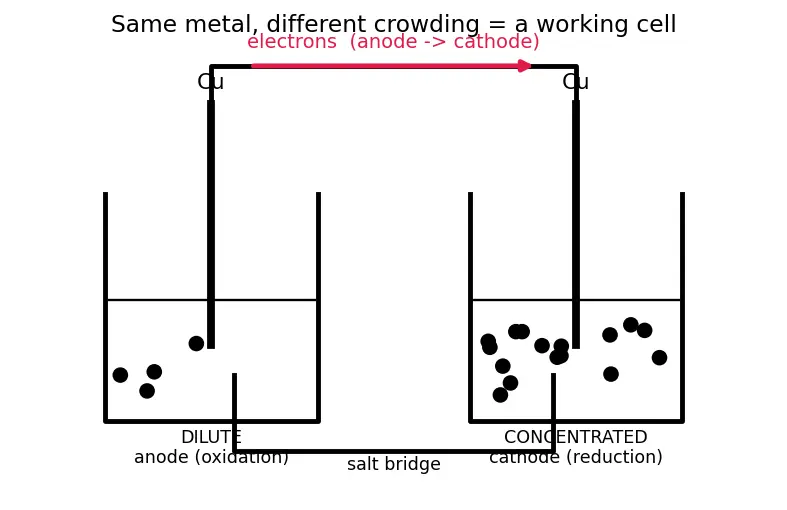

The figure shows the finished cell: two beakers of the same metal, a wire on top, a salt bridge below, and the red arrow marking electron flow from the dilute (anode) side to the crowded (cathode) side.

4. Concentration and the bracket notation $[]$

Now the star of the show: how crowded the ions are.

Left beaker: dots crowded together, high $[{\text{Cu}}^{2+}]$. Right beaker: same dots spread thin, low $[{\text{Cu}}^{2+}]$. This single picture is the entire reason the cell works — nature dislikes the difference and wants both sides to look the same. That urge to even-out is the driving force. (This is Le Chatelier's principle and entropy speaking; D2 will unpack why "mixing" lowers free energy.)

5. The number $n$ — electrons per event

Why does the topic need $n$? Because the same voltage-per-crowding-difference gets divided among the electrons moved. More electrons sharing the push → smaller voltage each. That's why $n$ sits in the denominator of the formula.

6. The logarithm $\log$ — why it appears at all

The formula has a $\log$. Here is what that symbol means and why chemistry can't avoid it.

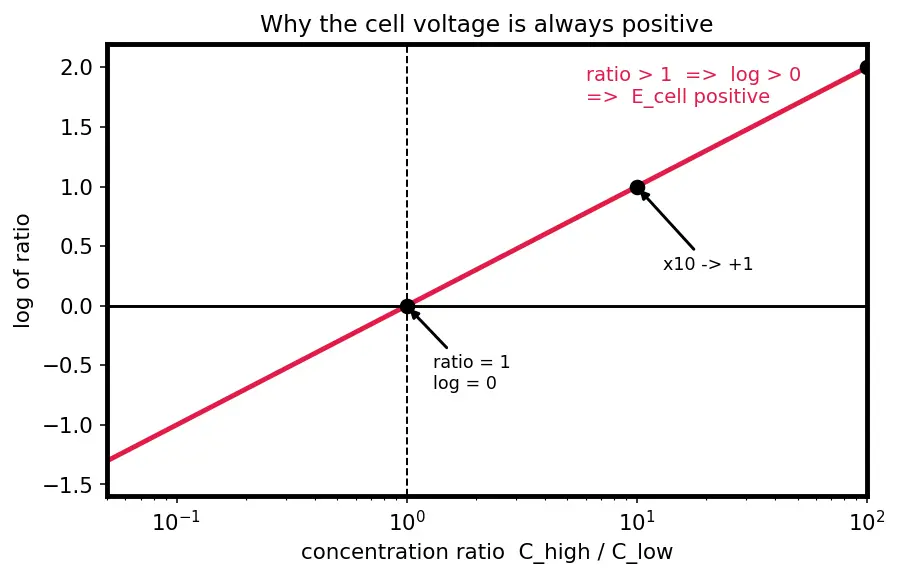

The red curve shows $\log x$: it crosses zero at $x=1$, is negative below 1, positive above 1, and climbs by exactly $+1$ every time $x$ multiplies by 10. Because $C_{\text{high}}>C_{\text{low}}$, the ratio $C_{\text{high}}/C_{\text{low}}>1$, so its log lands on the positive part of the curve — which is why the cell voltage always comes out positive.

7. The symbols $E$, $E°$, and $E_{\text{cell}}$

8. The constant $0.0592$ — where it comes from

The parent writes $\frac{0.0592}{n}$ without saying what $0.0592$ is. Here it is, demystified.

You don't need to derive this yet (D2 does). For now: $0.0592$ is just "the volts one factor-of-ten in concentration is worth, at room temperature."

9. Salt bridge and half-cell — the plumbing

Without the salt bridge, electrons would flow for a split second and then stop, because charge would pile up. It keeps the circuit honest.

How it all feeds the topic

Every arrow says "you need the left box to understand the right box." The two great feeders are the crowding difference (why anything happens) and the Nernst equation (how much voltage it's worth).

Equipment checklist

Test yourself — say each answer aloud before revealing.
