Intuition The one core ideaEvery metal or ion has a hidden "hunger for electrons," but you can never measure one alone — only the difference in hunger between two of them. So we glue every half-reaction to ONE agreed-upon partner (the hydrogen electrode, declared to be "zero hunger"), and the number we read off becomes that half-reaction's standard electrode potential.
Before you can read the parent note, you must own every piece of its vocabulary. This page takes each symbol and word the parent uses — some of which it assumes you already know — and rebuilds it from nothing: plain words, then a picture, then why the topic can't live without it.
Redox is just electrons changing owners . One species lets go of electrons; another grabs them. Everything else on this page is bookkeeping for how strongly each species pulls.
Definition Oxidation and Reduction
Oxidation = losing electrons. The species that loses them is the reducing agent (it gives electrons away, so it reduces something else).Reduction = gaining electrons. The species that gains them is the oxidizing agent (it takes electrons, so it oxidizes something else).
Memory hook: OIL RIG — Oxidation Is Loss, Reduction Is Gain (of electrons).
If any of that felt shaky, build it first from 2.7.01-Oxidation-states-and-balancing-redox-equations .
e − e − one electron — a single tiny negative charge that can hop from one atom to another.

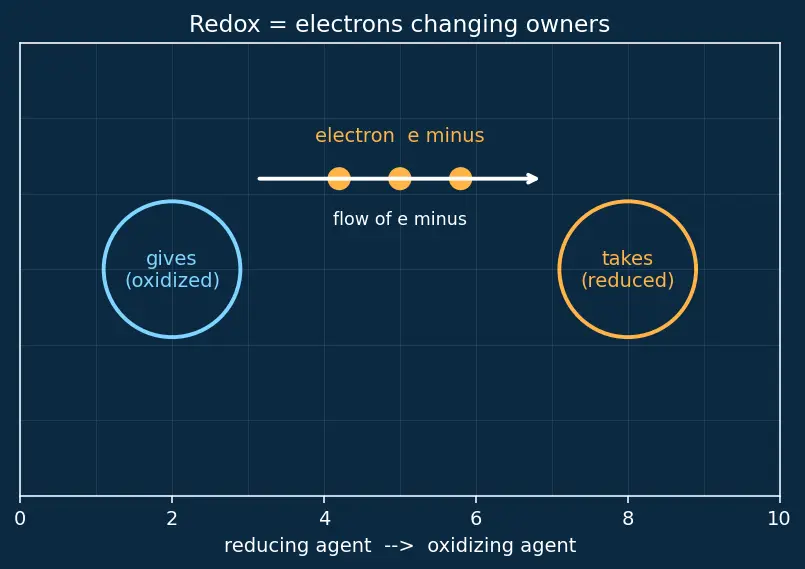

Picture: in figure s01, the little amber dot travelling along the wire. When it leaves an atom, that atom is oxidized; when it lands on one, that atom is reduced.
Why the topic needs it: the whole "driving force" we measure is the push on these dots. Count them carefully — you'll see them balanced on both sides of every half-reaction.
Definition Reaction arrows
→ ⇌ either direction ; which way it actually goes depends on conditions. The hydrogen electrode is written this way because it can either release or absorb electrons.
A half-reaction shows only the electron gain OR only the electron loss , not both. Example:
Zn 2 + + 2 e − → Zn Picture: one side of figure s01 — just the grabbing half, ignoring where the electrons came from.
Why the topic needs it: you cannot measure a lone half-reaction, but you can rank half-reactions. The whole electrochemical series is a list of half-reactions.
Definition Superscript charge, e.g.Zn 2 + 2 + missing 2 electrons , so it carries 2 units of positive charge. H + I − extra electron.
Why: the number of + − e − 2 + 2 e −
( s ) ( aq ) ( g ) ( l ) ( s ) ( aq ) ( g )
Definition Electrode / Half-cellAn electrode is a piece of metal (or inert conductor) dipped into a solution — the place where electrons enter or leave. A half-cell is that electrode plus its solution: the physical home of one half-reaction.

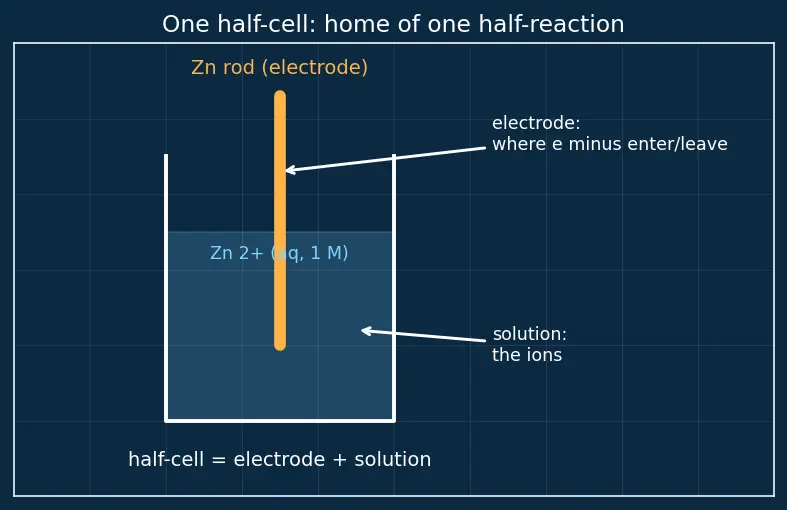

Picture: figure s02, left beaker — a zinc rod standing in zinc-ion solution.
Why the topic needs it: "electrode potential" is a property of a half-cell . Two half-cells wired together make a full cell you can actually measure.
Definition Cathode and Anode
Cathode = the electrode where reduction happens (electrons arrive, ions are grabbed).Anode = the electrode where oxidation happens (electrons leave).
Mnemonic: Red Cat, An Ox — Red uction at Cat hode, An ode is Ox idation.
Deeper cell construction (salt bridge, wiring) lives in 2.7.04-Electrochemical-cellsand-cell-potential .
Definition The little circle° E ° E measured under a fixed agreed-upon set of conditions so that everyone's numbers can be compared:
concentration of every dissolved ion = 1 M
gas pressure = 1 bar
temperature = 298 K 25 ° C
Why: potential changes with concentration and temperature. Nailing down "standard" makes a single, quotable number. When conditions drift from standard, you correct with the 2.7.03-Nernst-equation-and-concentration-effects .

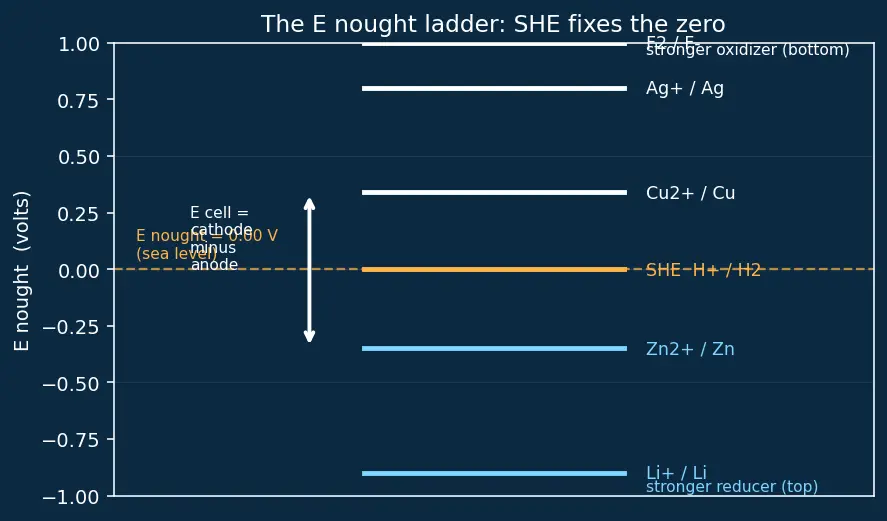

E ° E ° voltage — a number in volts — that measures how strongly a half-cell pulls electrons compared to the hydrogen reference. More positive E ° Picture: think of it as the height of each half-reaction on a ladder (figure s03 below). Higher rung = stronger electron-grabber.
V volt measures energy per unit of charge — how much push each electron feels. One volt = one joule of energy delivered per coulomb of charge that moves.
Why the tool, and not just "energy"? We want a number that describes the tendency of the half-cell regardless of how many electrons flow. Energy alone would depend on the amount of stuff; volts (energy per charge ) strip that out, giving a clean intensity of push. That's exactly why potentials, not energies, are tabulated.
You cannot measure one half-cell's push alone — a voltmeter needs two terminals, so it only ever reads a difference . The fix is to declare one half-cell the zero mark.
Definition Standard Hydrogen Electrode (SHE)The SHE is the agreed reference half-cell: platinum in 1 M H + H 2 1 bar 2 H + ( aq ) + 2 e − ⇌ H 2 ( g ) declared to have E ° = 0.00 V defined .
Picture: sea level in figure s03 — the line we call "zero altitude" so every mountain and valley gets a height relative to it.
Why: with one fixed zero, every other half-cell's reading becomes an absolute-looking number, and all of them can be compared on one ladder.
The parent uses this to decide spontaneity. Each symbol:
Δ G ° n F
Δ G ° standard Gibbs free energy change : a number (in joules) that is negative when a reaction happens on its own (spontaneous), positive when it needs pushing. See 1.5.02-Thermodynamics-spontaneity-and-Gibbs-energy .n number of electrons transferred in the balanced reaction (the count of e − F Faraday constant ≈ 96485 C mol − 1 The minus sign makes a positive E ° cell Δ G ° — i.e. positive voltage means spontaneous.
Common mistake The most common sign errorE ° reduction potentials (always written as "… + e − → … anode it runs in reverse — but you do NOT flip the sign of E ° E ° cell = E ° cathode − E ° anode arrow only, never the tabulated E °
Intuition What the whole series isStack every half-reaction by its E ° bottom entries are hungry electron-grabbers → strong oxidizing agents . The top entries let electrons go easily → strong reducing agents . Any species can push electrons down the ladder to a hungrier partner — that downhill move is the spontaneous reaction.
Recall Quick self-check on the ladderOn the electrochemical series, which end holds the strongest oxidizing agents? ::: The bottom — most positive E ° F 2 + 2.87 V
Standard conditions E nought
Standard electrode potential
E cell equals cathode minus anode
Electrochemical series ladder
Delta G equals minus n F E cell
Cover the right side and test yourself — you're ready for the parent note when every line is automatic.
e − Oxidation vs reduction ::: oxidation = loss of electrons; reduction = gain of electrons (OIL RIG)
Reducing agent vs oxidizing agent ::: reducing agent gives electrons (gets oxidized); oxidizing agent takes electrons (gets reduced)
A half-reaction ::: shows only the electron gain OR only the loss, e.g. Zn 2 + + 2 e − → Zn
The charge 2 + Zn 2 + e −
Cathode / Anode ::: cathode = reduction site; anode = oxidation site (Red Cat, An Ox)
The circle in E °
A volt measures ::: energy per unit charge — the push felt by each electron
Why we need a reference electrode ::: a voltmeter reads only differences, so we fix one half-cell (SHE) at exactly 0.00 V
SHE half-reaction and its potential ::: 2 H + + 2 e − ⇌ H 2 E ° = 0.00 V
E ° cell = E ° cathode − E ° anode In Δ G ° = − n F E ° cell n F n F ≈ 96485 C mol − 1
Sign meaning: E ° cell > 0 Δ G ° < 0
∣ ∥ Strongest oxidizing agents sit ::: at the bottom of the series (most positive E °
