Born-Haber cycle revisited — calculating lattice energy: Exercises

Before we start, let us pin down the tools so nothing is used before it is named.

Definition The five energy steps (all in

$kJ mol^{- 1}$ )

$Δ H_{f}$ = enthalpy of formation — energy change making the solid directly from elements in their standard states. See Enthalpy of formation.
$Δ H_{s u b}$ = sublimation/atomisation — energy to turn 1 mol of solid metal into 1 mol of gaseous metal atoms. Always $+$ (you pull atoms apart).
$I E$ = ionisation energy — energy to strip an electron off a gaseous atom. Always $+$ . See Ionisation energy trends.
$\frac{1}{2} D$ = half the bond dissociation enthalpy — energy to break one bond of a diatomic like $Cl_{2}$ to get ONE atom. Always $+$ . See Bond dissociation enthalpy.
$E A$ = electron affinity — energy change when a gaseous atom gains an electron. Usually $-$ (energy released). See Electron affinity.
$U$ = lattice energy — energy change assembling gaseous ions into the solid. Strongly $-$ .

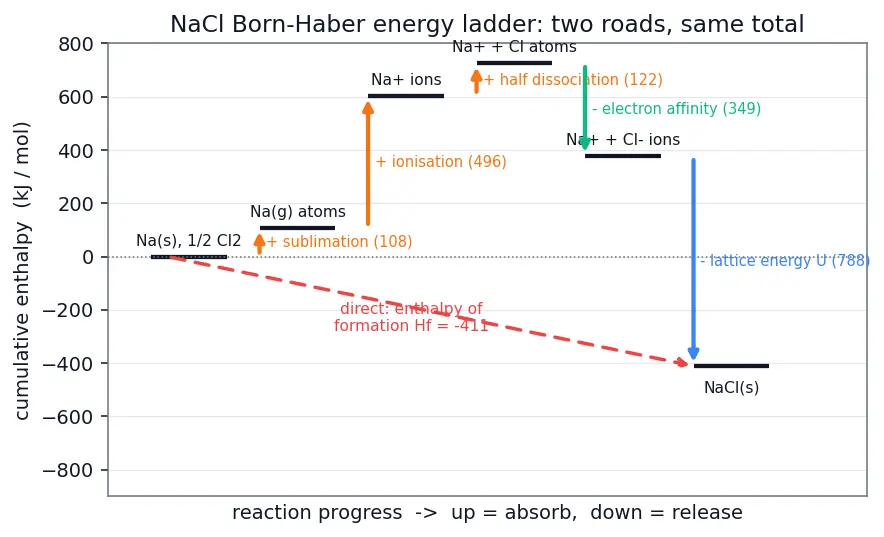

The energy ladder below (WHAT the whole cycle looks like) is your reference for every sign in this page: up = absorb (+), down = release (−).

Figure — Born-Haber cycle revisited — calculating lattice energy

Level 1 — Recognition

L1.1 — Name the step

For NaCl, which single symbol represents the step $Na (s) ⟶ Na (g)?$ And is it $+$ or $-$ ?

Recall Solution

Turning solid metal into gaseous atoms is sublimation/atomisation, symbol $Δ H_{s u b}$ . You are pulling atoms out of a solid lattice into free gas — that costs energy, so it is positive ( $+$ ). On the ladder (Figure s01) it is an upward step.

L1.2 — Spot the sign

A student writes $E A (Cl) = + 349 kJ mol^{- 1}$ in a Born–Haber cycle. Standard tables list "349 kJ/mol released." What sign should appear in the cycle, and why?

Recall Solution

"Released" energy is negative in an enthalpy cycle. So use $E A (Cl) = - 349 kJ mol^{- 1} .$ On the ladder this is a downward step (Figure s01, green). The word "released" tells you the direction, not the sign — you supply the minus.

Level 2 — Application

L2.1 — Lattice energy of NaCl

Given ( $kJ mol^{- 1}$ ): $Δ H_{f} = - 411$ , $Δ H_{s u b} = + 108$ , $I E = + 496$ , $\frac{1}{2} D = + 122$ , $E A = - 349$ . Find $U$ .

Recall Solution

Plug into the master equation: $U = Δ H_{f} - Δ H_{s u b} - I E - \frac{1}{2} D - E A$ $U = (- 411) - (108) - (496) - (122) - (- 349)$ The last term: subtracting a negative adds $349$ . $U = - 411 - 108 - 496 - 122 + 349 = - 788 kJ mol^{- 1}$ Large and negative — that is why NaCl is a hard, high-melting solid.

L2.2 — Lattice energy of KF

Given ( $kJ mol^{- 1}$ ): $Δ H_{f} = - 567$ , $Δ H_{s u b} (K) = + 89$ , $I E (K) = + 419$ , $\frac{1}{2} D (F_{2}) = + 79$ , $E A (F) = - 328$ . Find $U$ .

Recall Solution

$U = - 567 - 89 - 419 - 79 - (- 328)$ $U = - 567 - 89 - 419 - 79 + 328 = - 826 kJ mol^{- 1}$ More negative than NaCl because F⁻ and K⁺ pack a bit tighter — recall $U \propto q_{+} q_{-} / r$ from Ionic bonding and Coulomb's law.

L2.3 — Solve for enthalpy of formation

For AgCl: $U = - 905$ , $Δ H_{s u b} (Ag) = + 284$ , $I E (Ag) = + 731$ , $\frac{1}{2} D (Cl_{2}) = + 122$ , $E A (Cl) = - 349$ . Find $Δ H_{f}$ .

Recall Solution

This time $Δ H_{f}$ is the unknown, so use the equation in its un-rearranged form: $Δ H_{f} = Δ H_{s u b} + I E + \frac{1}{2} D + E A + U$ $Δ H_{f} = 284 + 731 + 122 + (- 349) + (- 905)$ $Δ H_{f} = 284 + 731 + 122 - 349 - 905 = - 117 kJ mol^{- 1}$

Level 3 — Analysis

L3.1 — MgCl₂: matching the stoichiometry

For MgCl₂: $Δ H_{f} = - 641$ , $Δ H_{s u b} (Mg) = + 148$ , $I E_{1} = + 738$ , $I E_{2} = + 1451$ , $D (Cl_{2}) = + 244$ (full bond), $E A (Cl) = - 349$ per Cl. Find $U$ .

Recall Solution

The formula unit needs two electrons off Mg and two Cl⁻ ions: $U = Δ H_{f} - Δ H_{s u b} - (I E_{1} + I E_{2}) - D - 2 E A$ $U = - 641 - 148 - (738 + 1451) - 244 - 2 (- 349)$ $U = - 641 - 148 - 2189 - 244 + 698 = - 2524 kJ mol^{- 1}$ Roughly three times NaCl's value: the $+ 2$ charge on Mg and its small radius make $q_{+} q_{-} / r$ far bigger.

L3.2 — Find electron affinity of Br (KBr)

For KBr: $U = - 671$ , $Δ H_{f} = - 394$ , $Δ H_{s u b} (K) = + 89$ , $I E (K) = + 419$ , $\frac{1}{2} D (Br_{2}) = + 112$ . Find $E A (Br)$ .

Recall Solution

$E A$ is the unknown, so isolate it: $E A = Δ H_{f} - Δ H_{s u b} - I E - \frac{1}{2} D - U$ $E A = - 394 - 89 - 419 - 112 - (- 671)$ $E A = - 394 - 89 - 419 - 112 + 671 = - 343 kJ mol^{- 1}$ Negative, as expected: Br gaining an electron releases energy.

L3.3 — Solve for the second ionisation energy (CaO)

For CaO: $Δ H_{f} = - 635$ , $Δ H_{s u b} (Ca) = + 178$ , $I E_{1} (Ca) = + 590$ , $\frac{1}{2} D (O_{2}) = + 249$ , combined electron affinity $E A (O \to O^{2 -}) = + 657$ (net, endothermic — see note below), $U = - 3401$ . Find $I E_{2} (Ca)$ .

Recall Solution

Ca loses two electrons, so both $I E_{1}$ and $I E_{2}$ appear. O gains two electrons; the net affinity given (+657) already covers both electron additions. Master equation: $Δ H_{f} = Δ H_{s u b} + I E_{1} + I E_{2} + \frac{1}{2} D + E A + U$ Isolate $I E_{2}$ : $I E_{2} = Δ H_{f} - Δ H_{s u b} - I E_{1} - \frac{1}{2} D - E A - U$ $I E_{2} = - 635 - 178 - 590 - 249 - 657 - (- 3401)$ $I E_{2} = - 635 - 178 - 590 - 249 - 657 + 3401 = + 1092 kJ mol^{- 1}$ Positive and larger than $I E_{1}$ — pulling a second electron off an already-positive ion is harder.

Level 4 — Synthesis

L4.1 — Chain two cycles: theoretical vs experimental $U$

For AgF the Born–Haber (experimental) lattice energy is $U_{e x p} = - 960 kJ mol^{- 1}$ , while the purely electrostatic theoretical model predicts $U_{t h eo} = - 870 kJ mol^{- 1}$ . Compute the discrepancy $U_{e x p} - U_{t h eo}$ and state what a large negative discrepancy physically means.

Recall Solution

$U_{e x p} - U_{t h eo} = (- 960) - (- 870) = - 90 kJ mol^{- 1}$ The experimental lattice is $90 kJ mol^{- 1}$ more exothermic than the ionic-only model predicts. A purely ionic (point-charge) model cannot account for this extra stability, so the "missing" energy signals partial covalent character — the ions share electron density more than pure spheres would. Silver halides are a classic case.

L4.2 — Build the whole cycle from raw data (LiF)

Only these are known for LiF ( $kJ mol^{- 1}$ ): $Δ H_{s u b} (Li) = + 159$ , $I E (Li) = + 520$ , $\frac{1}{2} D (F_{2}) = + 79$ , $E A (F) = - 328$ , and the directly measured $Δ H_{f} = - 616$ . (a) Find $U$ . (b) Then predict $Δ H_{f}$ of a hypothetical "LiF₂" if it required an extra $I E_{2} (Li) = + 7298$ and a second $\frac{1}{2} D + E A$ pair, keeping the same $U$ — comment.

Recall Solution

(a) Standard route: $U = - 616 - 159 - 520 - 79 - (- 328) = - 616 - 159 - 520 - 79 + 328 = - 1046 kJ mol^{- 1}$ (b) For imaginary LiF₂ we add $I E_{2}$ , one more $\frac{1}{2} D$ , one more $E A$ , and reuse $U = - 1046$ : $Δ H_{f} = Δ H_{s u b} + (I E_{1} + I E_{2}) + 2 \cdot \frac{1}{2} D + 2 E A + U$ $Δ H_{f} = 159 + (520 + 7298) + 2 (79) + 2 (- 328) + (- 1046)$ $Δ H_{f} = 159 + 7818 + 158 - 656 - 1046 = + 6433 kJ mol^{- 1}$ Comment: hugely positive (endothermic) — the enormous $I E_{2}$ of Li ( $7298$ , ripping into a noble-gas core) is nowhere near paid back by lattice energy. So "LiF₂" would not form; Li is stubbornly $+ 1$ . The cycle predicts non-existence quantitatively.

Level 5 — Mastery

L5.1 — Two unknowns removed by two facts (NaH)

For sodium hydride NaH you are told two things:

$Δ H_{f} (NaH) = - 56 kJ mol^{- 1}$ .
The lattice energy from a reliable calculation is $U = - 808 kJ mol^{- 1}$ .

Known: $Δ H_{s u b} (Na) = + 108$ , $I E (Na) = + 496$ , $\frac{1}{2} D (H_{2}) = + 218$ . Find the electron affinity of hydrogen, $E A (H)$ , and comment on its unusual value.

Recall Solution

One equation, one unknown ( $E A$ ): $E A = Δ H_{f} - Δ H_{s u b} - I E - \frac{1}{2} D - U$ $E A = - 56 - 108 - 496 - 218 - (- 808)$ $E A = - 56 - 108 - 496 - 218 + 808 = - 70 kJ mol^{- 1}$ Comment: $E A (H) \approx - 70$ is small in magnitude — hydrogen only weakly wants an extra electron (compare Cl at $- 349$ ). Yet NaH still forms because Na is easy to ionise and the H⁻ lattice is stabilising. The cycle lets us extract this hard-to-measure $E A (H)$ from bulk thermodynamics.

L5.2 — Full audit: find the planted error

A student's NaCl worksheet reads: $U = Δ H_{f} - Δ H_{s u b} - I E - \frac{1}{2} D - E A$ $U = - 411 - 108 - 496 - 122 - 349 = - 1486 kJ mol^{- 1}$ Data are the L2.1 values. Identify the mistake, give the corrected $U$ , and explain the size of the error.

Recall Solution

The error is the last term: $E A = - 349$ , so $- E A = - (- 349) = + 349$ , not $- 349$ . The student subtracted $349$ instead of adding it. Corrected: $U = - 411 - 108 - 496 - 122 + 349 = - 788 kJ mol^{- 1}$ The error size is $2 \times 349 = 698 kJ mol^{- 1}$ (you had the sign backwards, so you are off by twice the term). That is why the wrong answer, $- 1486$ , is nearly double the true value — a red flag that a sign flipped.
