Defects — Schottky, Frenkel; non-stoichiometric defects: Foundations

Before we can even read the parent note, we must earn every symbol it throws at us. This page is the toolbox. We open each drawer, name the tool in plain words, draw the picture it stands for, and say why the topic cannot live without it. Read top to bottom — each item leans on the one above.

0. The starting picture: a crystal lattice

Figure — Defects — Schottky, Frenkel; non-stoichiometric defects

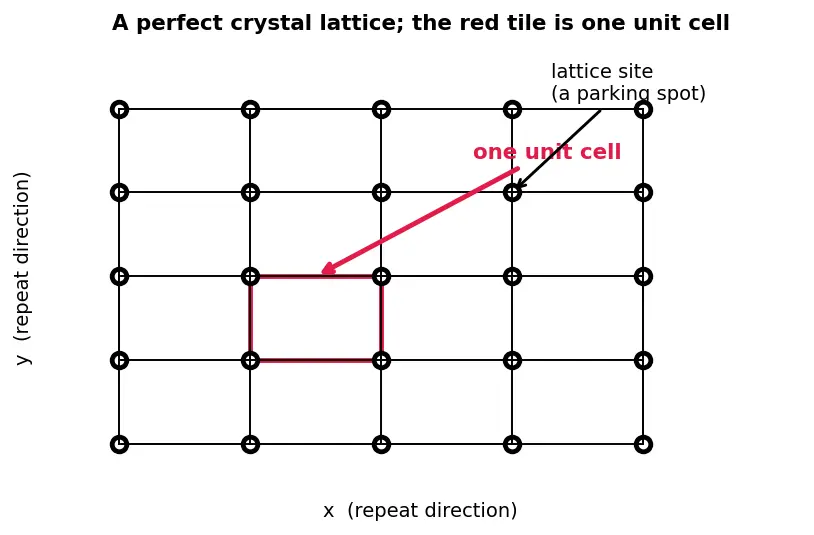

Look at the figure. The black grid is the perfect lattice; every crossing is a site holding an ion. The red-outlined square is one unit cell — copy it left/right/up/down and you get the whole crystal back. This is the stage on which every defect happens.

Why the topic needs it: a "defect" is by definition a place where this perfect repetition breaks. No lattice, no meaning of "defect." Build this first. See Crystal Lattices and Unit Cells.

1. Ion, cation, anion — and what "charge" means

The little superscript number is the charge. $F e^{2 +}$ means "iron missing 2 electrons, charge $+ 2$ ." $O^{2 -}$ means "oxygen with 2 extra electrons, charge $- 2$ ." We must be fluent here because the whole reason defects come in specific combinations is charge balance (next item).

2. Electrical neutrality — the accountant's rule

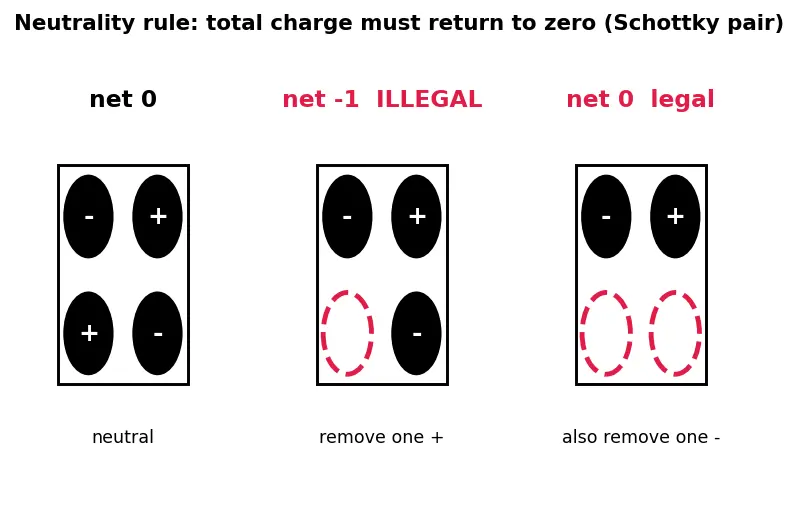

In the figure, the left box is neutral: charges cancel. Pull out one red $N a^{+}$ (middle box) and the box is now $- 1$ — illegal. The right box shows the only legal fix in NaCl: also remove a $C l^{-}$ , back to zero. That single rule is why:

Schottky vacancies come in cation + anion pairs,
one missing $F e^{2 +}$ forces two $F e^{3 +}$ ,
an F-centre must trap an electron in the hole.

Keep this accountant's rule in your hand for the entire topic.

3. Coordination number & ionic size

Why the topic needs both:

Similar sizes + high coordination → Schottky is favoured (nothing small enough to hide in the gaps, so ions just leave).
Big size difference → Frenkel is favoured (the small cation can squeeze into a tiny gap the big anion never could).

See Coordination Number. The "tiny gaps" get their own item next.

4. Interstitial sites (the gaps between parking spots)

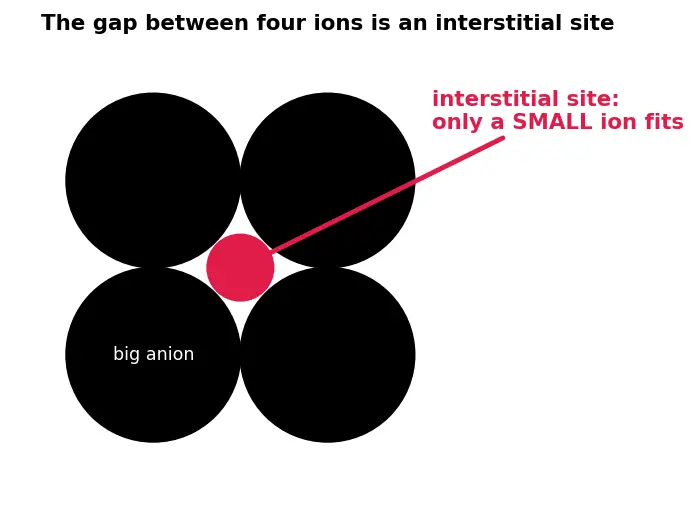

The figure shows four black ions kissing; the red dot in the middle is the interstitial hole. A small cation (red, small) can wedge in there; a big anion cannot. This is the only place a Frenkel-displaced ion can go, and it is why Frenkel needs a size mismatch.

Why the topic needs it: "Frenkel = vacancy + interstitial" is meaningless until you can see the interstitial. Details in Interstitial Sites (Tetrahedral & Octahedral Voids).

5. Density and its formula

Reading the formula for the topic: the volume $a^{3}$ is fixed by the lattice. If a Schottky defect removes atoms, the top ( $Z M$ , the mass) shrinks while the bottom stays put → $ρ$ drops. If a Frenkel defect only moves an atom inside, nothing leaves → $ρ$ unchanged. This single formula is the entire "density" row of the parent's table. See Density of a Unit Cell.

6. Vacancy vs relocation — the two ways to disturb a site

Two flavours matter:

Removed entirely (atom leaves the crystal) → mass lost → Schottky.
Relocated to an interstitial (atom still inside) → mass kept → Frenkel.

This distinction, plus item 5, is the Schottky-vs-Frenkel contrast. Everything else is detail.

7. Absolute temperature $T$ and the energy of jiggling

Why the topic needs it: at $0 K$ the crystal is perfect. Above it, $k_{B} T$ is the "budget" that pays for knocking atoms loose. That is why defect counts grow with $T$ .

8. Entropy $S$ , enthalpy $H$ , and Gibbs free energy $G$

See Entropy and Gibbs Free Energy.

9. The exponential $e^{- E / k_{B} T}$ (the shape of the answer)

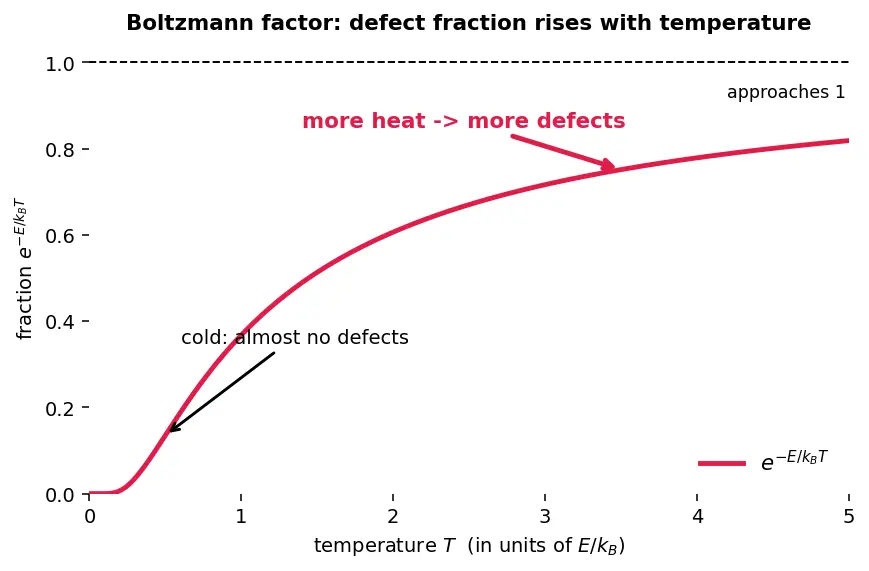

The red curve shows $e^{- E / k_{B} T}$ rising toward 1 as $T$ grows: more heat → more defects, exactly the parent's boxed formulas $n \approx N_{c} N_{a} e^{- E_{s} /2 k_{B} T}, n \approx N N_{i} e^{- E_{f} /2 k_{B} T} .$ You now know every symbol in them: $n$ = number of defects, $N$ = number of sites, and the rest are from items 7–9. The factor of $2$ in $E /2$ comes from the combinatorics of vacating two independent things at once (a cation site and an anion site) — the parent derives this.

A fixed "parking spot" in the repeating pattern where one ion belongs.

Cation vs anion — sign of charge?

Cation is positive (+), anion is negative (−).

State the electrical-neutrality rule.

The sum of all charges in the crystal must equal zero.

What does a high coordination number mean physically?

An ion is surrounded (touched) by many nearest neighbours.

What is an interstitial site, and who can fit in it?

The gap between lattice sites; only a small ion (cation) fits, not a big anion.

ρ = Z M / (N_{A} a^{3})

, why does removing atoms lower

ρ

The mass

Z M

(top) shrinks while the volume

a^{3}

(bottom) is fixed by the lattice.

Vacancy vs relocation — which loses mass?

Removal (vacancy) loses mass; relocation to an interstitial keeps it.

What does the product

k_{B} T

represent?

The rough amount of random thermal (jiggling) energy each particle carries.

Why do defects lower

G = H - T S

even though they cost energy?

The first defects add a lot of entropy

S

, and the

- T S

term outweighs the small rise in

H

What does

e^{- E / k_{B} T}

tell you?

The fraction of particles with enough random energy

E

to form a defect; grows with

T

, shrinks with

E

What is an F-centre?

An electron trapped in an anion vacancy; it absorbs light (colour) and can conduct.
