Intuition The big picture (WHY defects exist at all)A perfect crystal — every ion sitting exactly on its lattice site — only exists at absolute zero (0 K 0\ \text{K} 0 K increases entropy (more ways to arrange atoms) even though it costs energy . Since nature minimises Gibbs free energy G = H − T S G = H - TS G = H − T S − T S -TS − T S some defects always appear at T > 0 T > 0 T > 0 . So defects are not "mistakes" — they are thermodynamically required .
The two stoichiometric ionic defects we care about are Schottky and Frenkel .

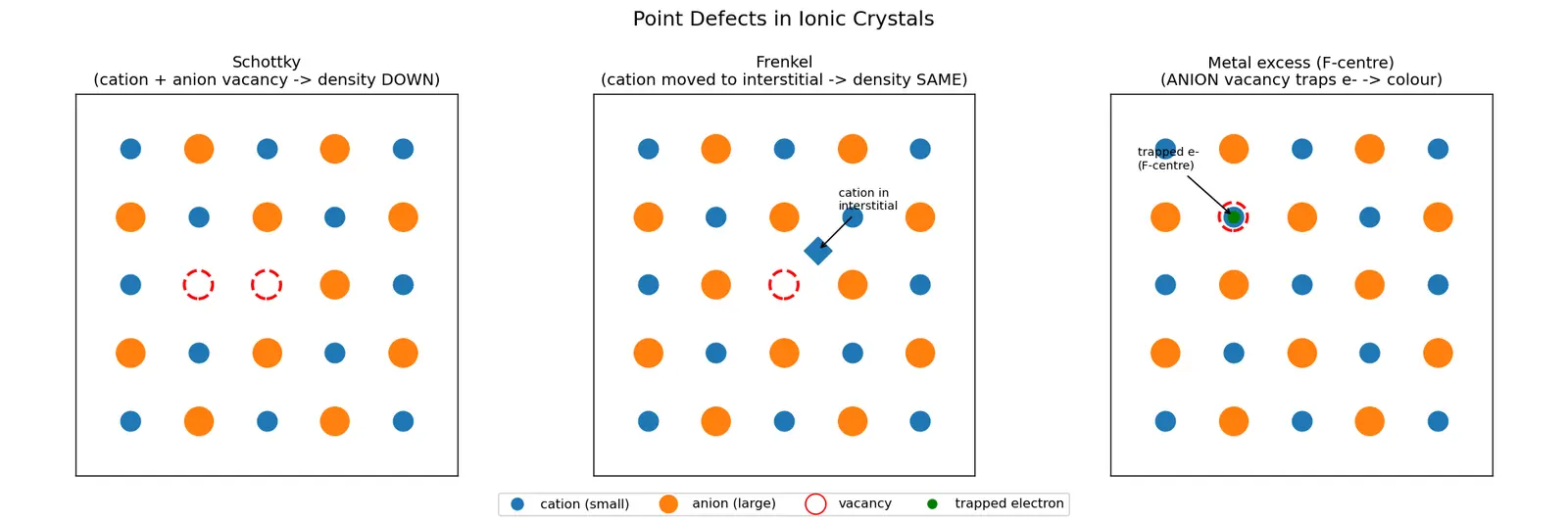

Definition Schottky defectA pair of vacancies : one cation missing AND one anion missing from their lattice sites. They must come in pairs (equal numbers of cation & anion vacancies) so the crystal stays electrically neutral .
Intuition WHY equal numbers?Remove one N a + Na^+ N a + − 1 -1 − 1 C l − Cl^- C l − forces pairing . This is why Schottky defects lower the density — atoms are literally gone, but the volume stays the same.
HOW it shows up: favoured when cation and anion are of similar size and the coordination number is high .
Examples: NaCl , KCl , CsCl , AgBr (AgBr shows both!).
ρ = Z M N A a 3 ⇒ fewer atoms ⇒ lower ρ \rho = \frac{Z\,M}{N_A\,a^3} \quad\Rightarrow\quad \text{fewer atoms} \Rightarrow \text{lower } \rho ρ = N A a 3 Z M ⇒ fewer atoms ⇒ lower ρ
Definition Frenkel defectAn ion (almost always the smaller cation ) leaves its lattice site and squeezes into an interstitial (in-between) site. One vacancy + one interstitial ion of the same ion.
Intuition WHY the cation, and WHY no density change?Cations are smaller, so they fit into the tiny interstitial holes; big anions cannot. Since the ion is only relocated, not removed , the total number of atoms is unchanged → density is unchanged . This is the key contrast with Schottky.
HOW it shows up: favoured when there is a large size difference between cation and anion (low coordination number).
Examples: ZnS , AgCl , AgBr , AgI .
Property
Schottky
Frenkel
Density
decreases unchanged
Ions missing?
cation + anion
none (relocated)
Needs interstitial site?
no
yes
Size requirement
similar sizes
large size difference
Electrical conductivity
slightly ↑ (ions hop into vacancies)
slightly ↑
Definition Metal excess & metal deficiencyDefects where the cation:anion ratio departs from the ideal formula, driven by electron trapping or absent electrons , so the compound is coloured and semiconducting .
Intuition WHY NaCl turns yellowHeat N a C l NaCl N a C l N a Na N a N a Na N a C l − Cl^- C l − Cl⁻ vacancy . The electron left behind (from the ionised Na) gets trapped in that vacancy — this trapped electron is an F-centre (F = Farbe , German for colour). It absorbs visible light → yellow colour . Formula becomes N a 1 + x C l Na_{1+x}Cl N a 1 + x C l
Intuition WHY ZnO turns yellow when hotHeat Z n O ZnO Z n O loses oxygen as O 2 O_2 O 2 oxygen vacancies (V O V_O V O O 2 − O^{2-} O 2 − in the vacancy (an F-centre in the oxide). These trapped electrons are easily excited → yellow colour when hot and n-type semiconduction . Formula drifts to Z n 1 + x O Zn_{1+x}O Z n 1 + x O Note: the anion (oxygen) vacancy is the dominant native defect in oxygen-deficient ZnO; Zn²⁺ squeezing into interstitial sites is possible but much higher in energy , so vacancy formation is the realistic mechanism.
F e 0.95 O Fe_{0.95}O F e 0.95 O F e O FeO F e O F e 2 + Fe^{2+} F e 2 + empty . Each missing F e 2 + Fe^{2+} F e 2 + + 2 +2 + 2 + 2 +2 + 2 + 2 +2 + 2 without adding any atom — done by oxidising two F e 2 + → F e 3 + Fe^{2+} \to Fe^{3+} F e 2 + → F e 3 + (each conversion raises charge by only + 1 +1 + 1 two are needed per vacancy). Hence 1 vacancy ⇒ 2 Fe³⁺ . This variable oxidation state gives variable composition and p-type semiconduction . Only metals with more than one oxidation state (transition metals) can do this.
Common mistake Steel-manning the classic trapsTrap 1: "Frenkel lowers density." Feels right because "defect = missing atom." Fix: in Frenkel the ion just moves inside ; nothing leaves → density unchanged. Only Schottky loses atoms → lower density.
Trap 2: "Anions form Frenkel defects." Feels right by symmetry. Fix: anions are too big to fit interstitial holes; cations (smaller) do. (Rare exception: C a F 2 CaF_2 C a F 2 anion Frenkel because F − F^- F −
Trap 3: "F-centre is a hole / a metal atom." Feels right — "extra metal." Fix: the metal is ionised; the trapped electron in the anion vacancy is the F-centre, and it gives colour.
Trap 4: "One missing Fe²⁺ makes just one Fe³⁺." Feels right — one-for-one swap. Fix: a missing F e 2 + Fe^{2+} F e 2 + + 2 +2 + 2 F e 3 + Fe^{3+} F e 3 + + 1 +1 + 1 two F e 3 + Fe^{3+} F e 3 +
Trap 5: "Schottky uses N e − E / 2 k B T Ne^{-E/2k_BT} N e − E /2 k B T Fix: the clean combinatorial result is n ≈ N c N a e − E s / 2 k B T n\approx\sqrt{N_cN_a}\,e^{-E_s/2k_BT} n ≈ N c N a e − E s /2 k B T collapses to N e − E s / 2 k B T Ne^{-E_s/2k_BT} N e − E s /2 k B T N c = N a = N N_c=N_a=N N c = N a = N E E E
Recall Feynman: explain to a 12-year-oldImagine a huge parking lot where every car has its own spot (perfect crystal). When it gets warm, some drivers get restless. In a Schottky lot, one red car AND one blue car both drive away together (so it stays "fair") — the lot has fewer cars, so it's lighter . In a Frenkel lot, one small car just parks sideways in the aisle instead of its spot — same number of cars, same weight. In a non-stoichiometric lot, someone leaves an empty spot and hides a glowing ball (an electron) there — and that glow gives the lot a colour !
"S chottky S ubtracts (density) — S imilar sizes.""F renkel F its F orward into interstitials — density F ixed (unchanged)."F-centre → Farbe → colour. Empty anion hole + electron = "F-lashlight in the gap."Fe deficiency: "one hole, two Fe³⁺" (charge − 2 -2 − 2 + 1 + 1 +1+1 + 1 + 1
Which defect lowers crystal density, and why? Schottky — equal numbers of cation & anion vacancies mean atoms are actually removed while volume stays the same.
Which defect keeps density unchanged, and why? Frenkel — the ion is merely relocated to an interstitial site, not removed, so mass and volume are unchanged.
Why must Schottky vacancies come in cation–anion pairs? To preserve overall electrical neutrality of the crystal.
Why do cations (not anions) form Frenkel defects? Cations are smaller and fit into interstitial holes; large anions cannot.
Condition favouring Schottky vs Frenkel? Schottky: similar cation/anion sizes & high coordination. Frenkel: large size difference & low coordination.
Two examples of Schottky defects? NaCl, KCl (also CsCl, AgBr).
Two examples of Frenkel defects? ZnS, AgCl (also AgBr, AgI).
What is an F-centre? An electron trapped in an anion vacancy; it absorbs visible light and gives the crystal colour.
Why does NaCl heated in Na vapour turn yellow? Metal-excess defect: Cl⁻ vacancy traps an electron (F-centre) that absorbs light.
What is the dominant native defect in oxygen-deficient ZnO, and why yellow when hot? Oxygen (anion) vacancies trapping electrons (F-centres), not Zn interstitials; these electrons are excited to give colour and n-type conduction.
Why is FeO written Fe₀.₉₅O, and how is charge balanced? Some Fe²⁺ sites are vacant; each vacancy (charge −2) is balanced by oxidising TWO Fe²⁺→Fe³⁺.
Correct Schottky defect-count expression? n ≈ N c N a e − E s / 2 k B T n \approx \sqrt{N_c N_a}\,e^{-E_s/2k_BT} n ≈ N c N a e − E s /2 k B T , which reduces to
N e − E s / 2 k B T N e^{-E_s/2k_BT} N e − E s /2 k B T when
N c = N a = N N_c=N_a=N N c = N a = N .
Frenkel defect-count expression? n ≈ N N i e − E f / 2 k B T n \approx \sqrt{N\,N_i}\,e^{-E_f/2k_BT} n ≈ N N i e − E f /2 k B T using lattice sites
N N N and interstitial sites
N i N_i N i .
Which requirement lets metal-deficiency defects occur? The metal must have variable oxidation states (transition metals).
Crystal Lattices and Unit Cells — defects live on/off these sitesDensity of a Unit Cell — ρ = Z M / N A a 3 \rho = ZM/N_Aa^3 ρ = Z M / N A a 3 Z Z Z Coordination Number — controls Schottky vs Frenkel preferenceSemiconductors and Band Theory — non-stoichiometry gives n-/p-typeEntropy and Gibbs Free Energy — why defects are thermodynamically favouredInterstitial Sites (Tetrahedral & Octahedral Voids) — where Frenkel ions go
cation+anion vacancy pair
similar ion size, high CN
large size difference, low CN
Non-stoichiometric Fe0.95O
Intuition Hinglish mein samjhoDekho, koi bhi crystal perfectly clean sirf 0 K 0\ \text{K} 0 K pasand aata hai — kyunki G = H − T S G = H - TS G = H − T S
Do main stoichiometric defect: Schottky mein ek cation aur ek anion dono apni jagah se gayab (pair mein, taaki charge neutral rahe) — isse density kam ho jaati hai. Iska sahi count n ≈ N c N a e − E s / 2 k B T n \approx \sqrt{N_c N_a}\,e^{-E_s/2k_BT} n ≈ N c N a e − E s /2 k B T N e − E s / 2 k B T N e^{-E_s/2k_BT} N e − E s /2 k B T Frenkel mein chhota cation apni site chhod ke interstitial mein ghus jaata hai — atom sirf shift hua, gaya nahi, isliye density same . Yaad rakho: similar size → Schottky (NaCl, KCl), bada size difference → Frenkel (ZnS, AgCl).
Non-stoichiometric mein ratio hi badal jaata hai. Metal excess : NaCl ko Na vapour mein garam karo → Cl⁻ vacancy banti hai aur usme electron fas jaata hai — yeh F-centre , jo light absorb karke yellow colour deta hai. ZnO garam karne par oxygen nikal jaati hai (oxygen vacancy ban-ti hai) aur wahi electron trap karti hai — dominant defect Zn interstitial nahi, balki oxygen vacancy hai, isliye ZnO garam mein yellow aur n-type ho jaata hai.
Metal deficiency : F e 0.95 O Fe_{0.95}O F e 0.95 O F e 2 + Fe^{2+} F e 2 + − 2 -2 − 2 do F e 2 + Fe^{2+} F e 2 + F e 3 + Fe^{3+} F e 3 + + 1 +1 + 1 1 vacancy = 2 Fe³⁺ , na ki one-to-one. Yeh chhoti detail exam mein marks dilati hai.
