HOW we derive the limiting ratio (worked for octahedral, CN = 6):
Consider a cation at the centre of a square of 4 anions (a slice through an octahedral hole). At the limiting (minimum) case, the anions just touch each other AND the cation just touches each anion.
Why this step? The geometric limit is exactly when both contacts happen simultaneously — below it the cation "rattles," above it anions separate.
Along the square's edge: two anions touch → edge length =2r−.
Along the diagonal: anion–cation–anion → diagonal =2r−+2r+.
For a square, diagonal =2× edge:
2r−+2r+=2(2r−)
Why this step? Pythagoras on the square face fixes the geometry exactly.
Divide by 2r−:
1+r−r+=2⇒r−r+=2−1=0.414
So octahedral (CN 6) needs ρ≥0.414.
Derive the cubic (CN 8) limit — "Why this step?" version:
Cation in a cube of 8 anions. Anions touch along the cube edge (=2r−); cation sits on the body diagonal (=2r++2r−). Body diagonal =3× edge:
2r−+2r+=3(2r−)⇒ρ=3−1=0.732.

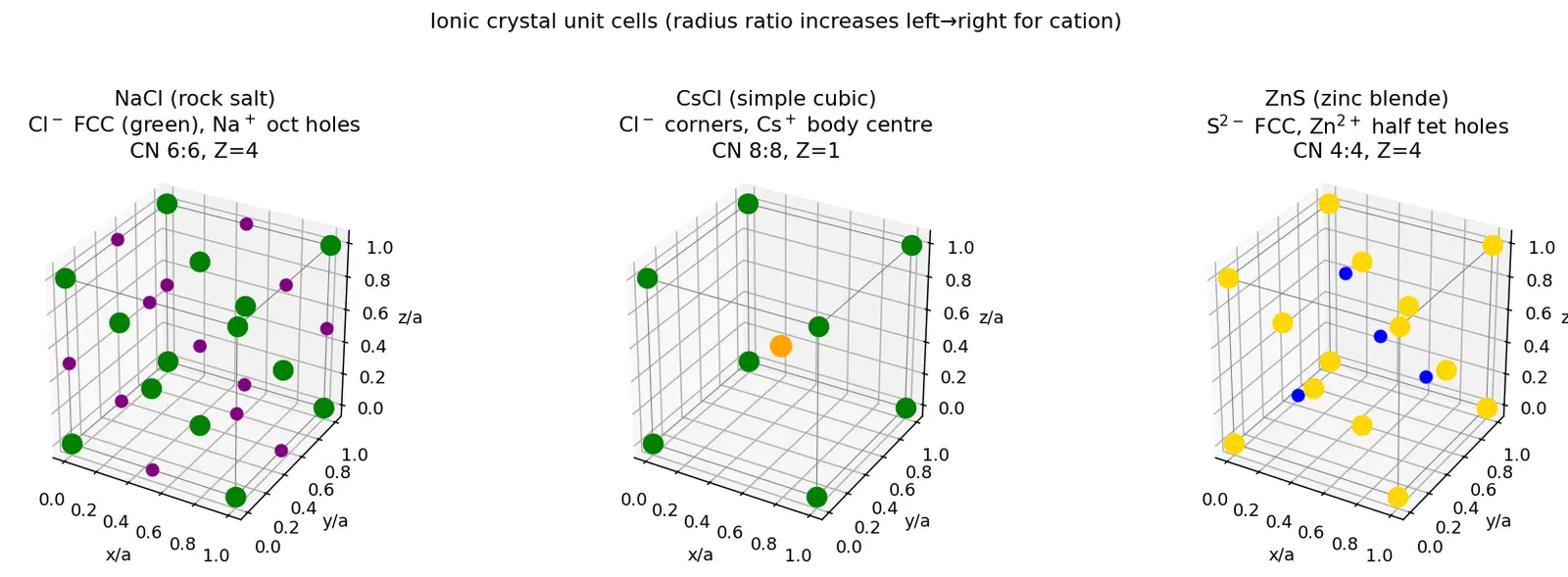

Imagine oranges (big negative ions) packed in a box. In the gaps between oranges you can slot small marbles (positive ions). If the marble is tiny it fits only where 4 oranges meet (ZnS). A bigger marble needs a bigger gap where 6 oranges surround it (NaCl). A really big marble is almost orange-sized, so it sits in the middle of a whole cube of 8 oranges (CsCl). Whether you fill every gap or half the gaps decides the recipe: 1 marble per orange (NaCl), or 2 marbles per orange (Na₂O). Fluorite is just this flipped around.
Ionic crystal ka basic funda ye hai: do lattices — ek positive ions (cation) ka, ek negative ions (anion) ka — ek doosre ke andar ghuse hue hote hain, taaki opposite charge wale ions touch karein (attraction max) aur same charge wale door rahein (repulsion min). Kaunsi structure banegi ye decide karta hai radius ratior+/r− — matlab cation kitna bada hai anion ke comparison mein.
Chhota cation kam anions ko around le sakta hai. Jaise ratio 0.225–0.414 ho to tetrahedral hole mein baithta hai (CN 4, ZnS). 0.414–0.732 mein octahedral hole (CN 6, NaCl). 0.732–1 mein cubic (CN 8, CsCl). Ye cutoffs simple geometry se aate hain: square ka diagonal 2× edge, cube ka body diagonal 3× edge — bas Pythagoras laga do aur 2−1=0.414, 3−1=0.732 mil jaata hai. Rattan mat karo, derive karo.
Ek important trap: CsCl ko BCC mat bolo! BCC mein corner aur centre same atom hona chahiye, yahan Cl corner pe aur Cs centre pe — alag ions — isliye ye simple cubic hai, Z=1. Fluorite (CaF₂) mein Ca²⁺ FCC banata hai aur F⁻ saare tetrahedral holes bharta hai → 1:2 ratio, cation CN 8, anion CN 4. Antifluorite (Na₂O) bilkul ulta — anion FCC, cations holes mein — isliye 2:1.
Density nikalne ke liye formula ρ=ZM/(NAa3) use karo, aur Z hamesha ions count karke nikalo (corner 1/8, face 1/2, edge 1/4, inside 1). NaCl ke liye Z=4 aata hai aur density ≈2.17 g/cm³ — real value se match, isliye tumhe pata chal jaata hai counting sahi hai.
