Maxwell-Boltzmann distribution of speeds — most probable, mean, rms: Foundations

This page assumes you know nothing about the notation on the parent topic. We build every symbol it uses, in an order where each idea leans only on the ones before it.

0. What is a "gas" made of? (the mental picture)

Picture a sealed box. Inside are billions of tiny balls (molecules) whizzing about, bouncing off each other and the walls. This picture is the whole subject of the Kinetic Theory of Gases: a gas is many little moving balls, and everything we measure (pressure, temperature) is really an average over their motion.

Figure — Maxwell-Boltzmann distribution of speeds — most probable, mean, rms

One snapshot: some balls are crawling, some are sprinting. We are going to learn how to count them by speed.

1. Speed $v$ — a single positive number

Why the topic needs it. The whole distribution is a chart of speeds. The letter $v$ is the horizontal axis of that chart.

Because a molecule moves in 3D, its velocity has three parts, written $(v_{x}, v_{y}, v_{z})$ — how fast it moves along the three directions (left-right, forward-back, up-down). The speed is the length of that arrow, found with 3D Pythagoras: $v = v_{x}^{2} + v_{y}^{2} + v_{z}^{2}$ Keep this in your pocket; the parent page's " $v^{2}$ factor" comes straight from it.

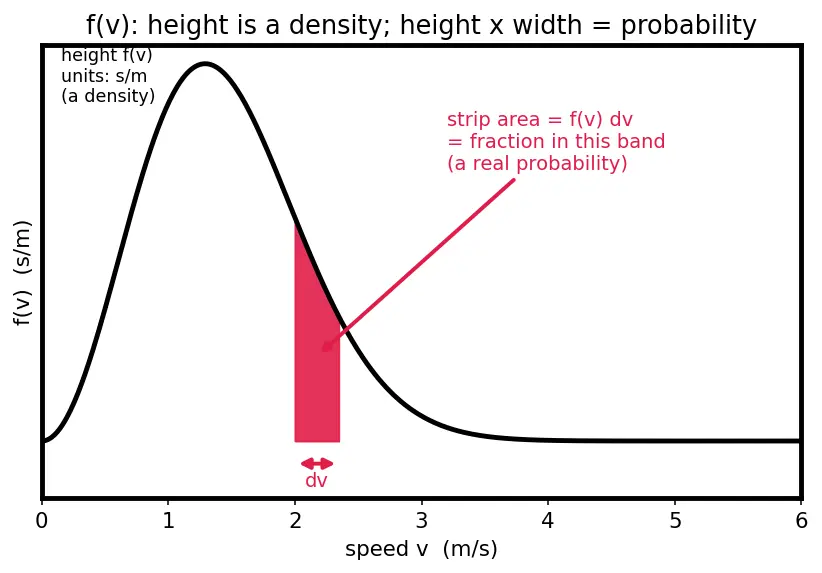

2. Fraction, probability, and the function $f (v)$

Now the key move. Speed is continuous — a molecule can have speed $391.4$ or $391.41$ m/s. Asking "what fraction have exactly $391.4$ ?" is meaningless (the answer is basically zero). So we ask about a little band of speeds instead.

Why the topic needs it. $f (v)$ is the Maxwell-Boltzmann curve. Everything the parent computes — the peak, the averages — is just a question you ask about this one function.

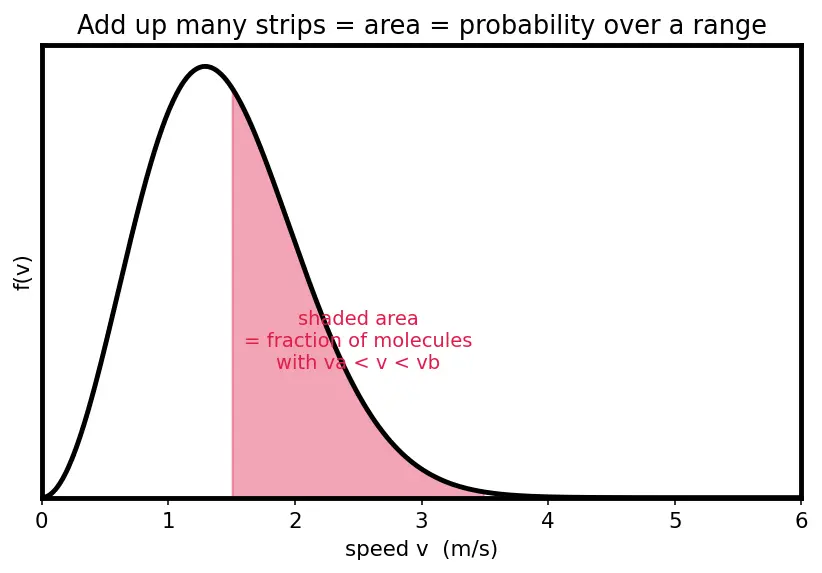

3. Area under a curve = adding up thin bars ( $\int$ ), and the constant $A$

The symbol $\int_{0}^{\infty} (\dots) d v$ looks scary. It means one plain thing:

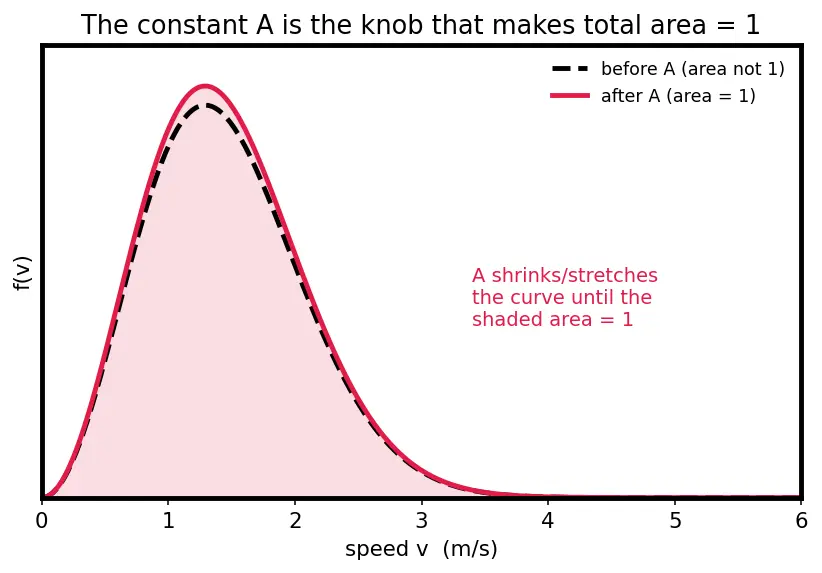

Where the shape comes from before it is normalized. The parent multiplies two ingredients — the "how many ways" factor $4 π v^{2}$ and the "how likely" factor $e^{- m v^{2} /2 k T}$ — and puts an unknown constant $A$ in front: $f (v) = A (4 π v^{2}) e^{- m v^{2} /2 k T}$ $A$ is a pure scale knob: it stretches the whole curve up or down without changing its shape. Its only job is to make the total area exactly $1$ .

Doing the integral (why the answer looks the way it does). Write $α = \frac{m}{2 k T}$ so the exponent is $- α v^{2}$ . The standard result (a "Gaussian moment") is $\int_{0}^{\infty} v^{2} e^{- α v^{2}} d v = \frac{1}{4} \frac{π}{α ^{3}} .$ So the un-normalized area is $4 π \cdot \frac{1}{4} π / α^{3} = π π / α^{3} = (π / α)^{3/2}$ . Taking the reciprocal and putting back $α = m /2 k T$ : $A = (\frac{α}{π})^{3/2} = (\frac{m}{2 π k T})^{3/2}$ Multiplying $A$ back in reproduces the parent's boxed formula, and the leftover $4 π$ (from the shell, next section) stays out front: $f (v) = 4 π (\frac{m}{2 π k T})^{3/2} v^{2} e^{- m v^{2} /2 k T} .$

Why the topic needs it. All three "average speeds" are areas (weighted sums) under $f (v)$ , and normalization — carried out through $A$ — is what makes the curve a genuine probability chart.

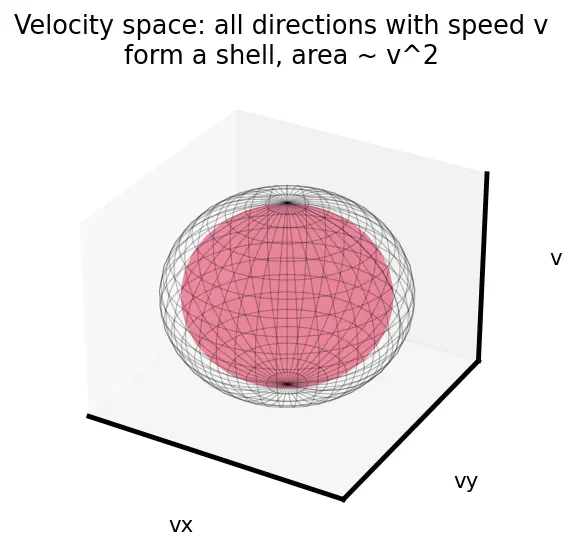

4. Where the $v^{2}$ and the $4 π$ come from — the velocity shell

Why the topic needs it. Without $v^{2}$ the curve would peak at $v = 0$ (everything piled at rest). The growing shell area is the reason a gas has a most-probable speed above zero at all.

5. The slope tool: derivative $\frac{df}{d v}$ and finding the peak

Why the topic needs it, and why this tool and not another. The parent asks: "which speed is the most common?" That is the speed at the peak of $f (v)$ . The only reliable way to locate a peak of a smooth curve is to find where its slope is zero — and "slope" is precisely what the derivative measures. That is why the parent writes $\frac{df}{d v} = 0$ to get $v_{m p}$ .

Intuition Why zero slope here means a MAXIMUM, not a dip — the concavity check

A flat slope ( $\frac{df}{d v} = 0$ ) marks either a hilltop or a valley bottom. To be sure it's a hilltop we look at the second derivative $\frac{d ^{2} f}{d v ^{2}}$ (the slope of the slope — whether the curve bends down like a frown or up like a smile):

Frown (curve bends down, $\frac{d ^{2} f}{d v ^{2}} < 0$ ) ⇒ the flat point is a maximum (a peak).
Smile (curve bends up) ⇒ it would be a minimum.

For $f (v)$ there are only two flat points: $v = 0$ (where $f = 0$ , the curve is just leaving the floor — a minimum) and $v = v_{m p}$ . Since $f > 0$ for all $v > 0$ and $f \to 0$ at both ends ( $v = 0$ and $v \to \infty$ ), the interior flat point $v_{m p}$ must be the top of the hill — the curve is frowning there. So the single positive root of $\frac{df}{d v} = 0$ is genuinely the maximum. That is why setting the slope to zero is enough in this case.

6. The exponential $e^{- x}$ — a "shrinking" number

Why the topic needs it. The parent's Boltzmann factor $e^{- m v^{2} /2 k T}$ says "fast molecules are rare." As the speed $v$ grows, the number in the exponent grows, so $e^{- (big)}$ shrinks — fewer molecules can afford to be that fast. This is the "how likely" ingredient, and it comes from the deeper Boltzmann Distribution.

7. The physical constants: $m$ , $k$ , $T$ , $M$ , $R$ , $N_{A}$

8. Kinetic energy $\frac{1}{2} m v^{2}$ — why " $v^{2}$ " keeps appearing

Why the topic needs it. The exponent in the Boltzmann factor is energy over thermal budget: $\frac{ε}{k T} = \frac{m v ^{2}}{2 k T}$ . And the special average $v_{r m s}$ exists precisely because energy depends on $v^{2}$ , not $v$ — so to talk about energy you must average $v^{2}$ first, then square-root. This is also the bridge to Average Kinetic Energy and Temperature ( $\overline{ε} = \frac{3}{2} k T$ ).

9. Where these foundations flow into the topic

Downstream, the same speeds feed Graham's Law of Effusion (lighter gases effuse faster) and Mean Free Path and Collision Frequency (how often balls collide). The whole picture is the ideal gas; departures at high pressure are the subject of Real Gases and van der Waals Equation.

Equipment checklist

Cover the answer and test yourself. If any line stumps you, re-read its section above.

What does

v

mean, and why is it never negative?

v

is speed = the length of a molecule's motion arrow; a length can't be negative.

What does

f (v) d v

physically represent, and what are the units of

f (v)

f (v) d v

is the fraction (a pure-number probability) in the band

v

v + d v

;

f (v)

is a density with units

s/m

Why is

f (v)

a probability density and not a probability?

A single exact speed has probability 0; you must multiply the height

f (v)

by a band width

d v

to get real probability.

Why must

\int_{0}^{\infty} f (v) d v = 1

, and what does it fix?

Adding fractions over every speed band recovers the whole gas; this normalization fixes the constant

A

What is

A

and how is it found?

The scale knob out front;

A = 1/ \int_{0}^{\infty} 4 π v^{2} e^{- m v^{2} /2 k T} d v = (m /2 π k T)^{3/2}

Where do the

4 π

and

v^{2}

come from?

The surface area

4 π v^{2}

of the velocity-space sphere of radius

v

— the "ways" to have that speed.

What does the derivative

\frac{df}{d v}

measure, and where is it zero?

The slope of the curve; it is zero at the peak, which locates

v_{m p}

How do you know that zero-slope point is a maximum, not a minimum?

The second-derivative (concavity) test: the curve frowns (

d^{2} f / d v^{2} < 0

) there, and

f \to 0

at both ends, so the interior flat point is the top.

Define the most probable speed

v_{m p}

The speed at the peak of

f (v)

— where

df / d v = 0

; more molecules sit near it (per band) than any other speed.

What does

e^{- m v^{2} /2 k T}

do as

v

grows, and why?

It shrinks toward 0 — fast molecules cost more energy and are rarer (Boltzmann factor).

What is the meaning of

k

(Boltzmann constant)?

The energy-per-kelvin exchange rate for one molecule (

\approx 1.38 \times 1 0^{- 23} J/K

Why do

2 k T / m

and

2 R T / M

give the same speed?

R = k N_{A}

and

M = m N_{A}

, so

m / k = M / R

— the ratio is unchanged.

Which unit must

T

be in, and why?

Kelvin — the formula needs a scale starting at true zero motion.

Recall Self-check: build the shape from scratch

Multiply a growing $v^{2}$ by a shrinking $e^{- m v^{2} /2 k T}$ . What do you get, and where does the peak sit? ::: A right-skewed hump; the peak is $v_{m p} = 2 k T / m$ , found by setting the slope $df / d v = 0$ (confirmed a maximum by the concavity test).
